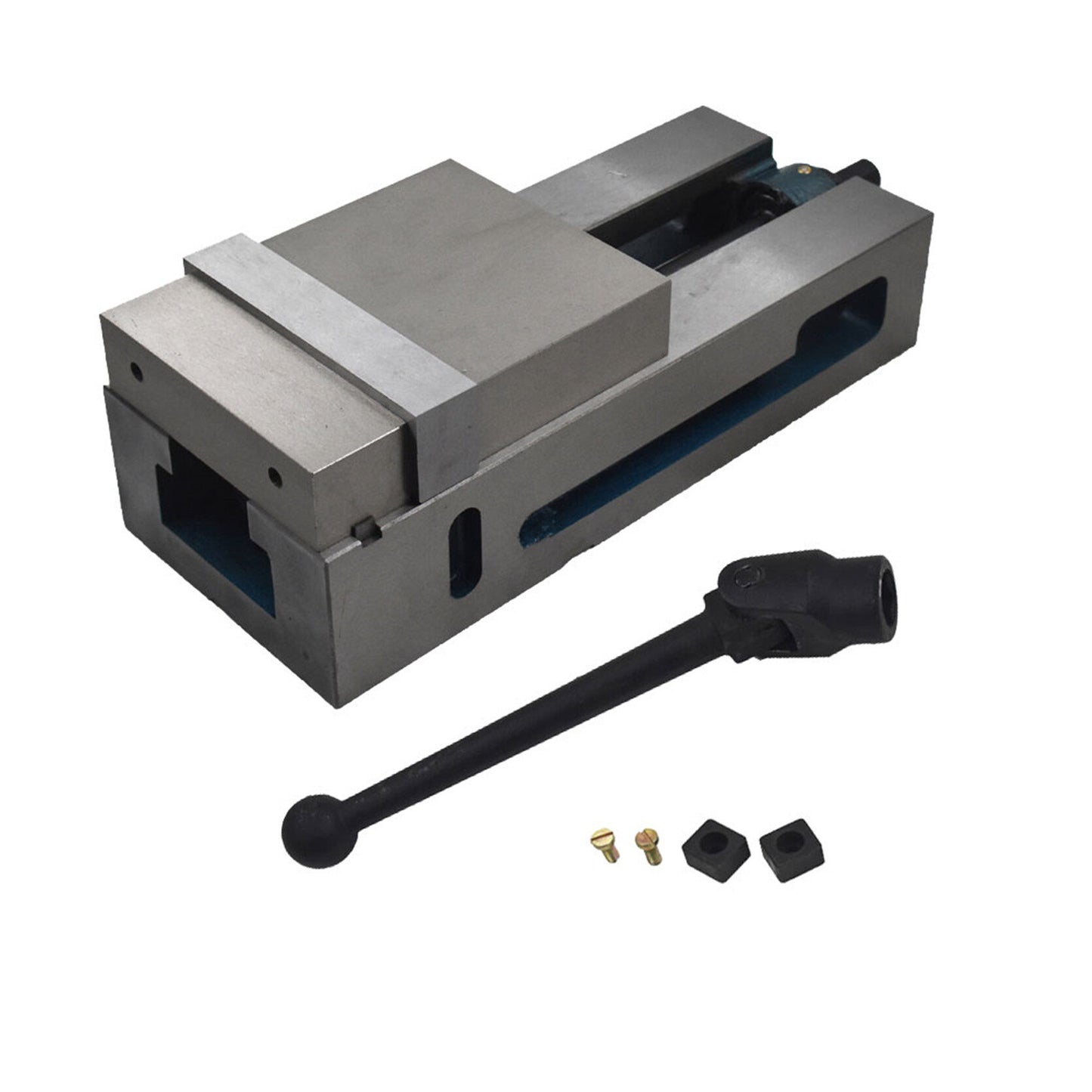

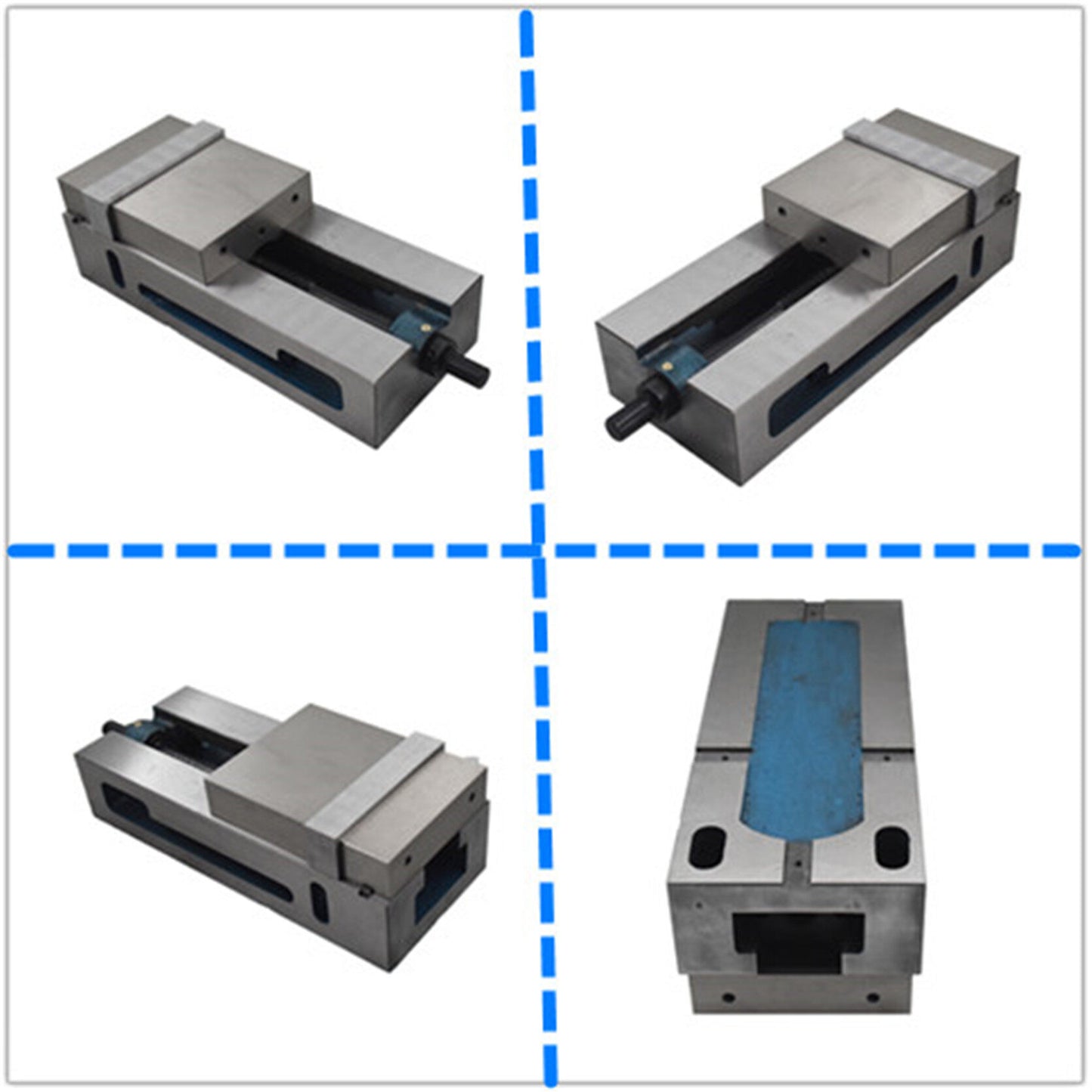

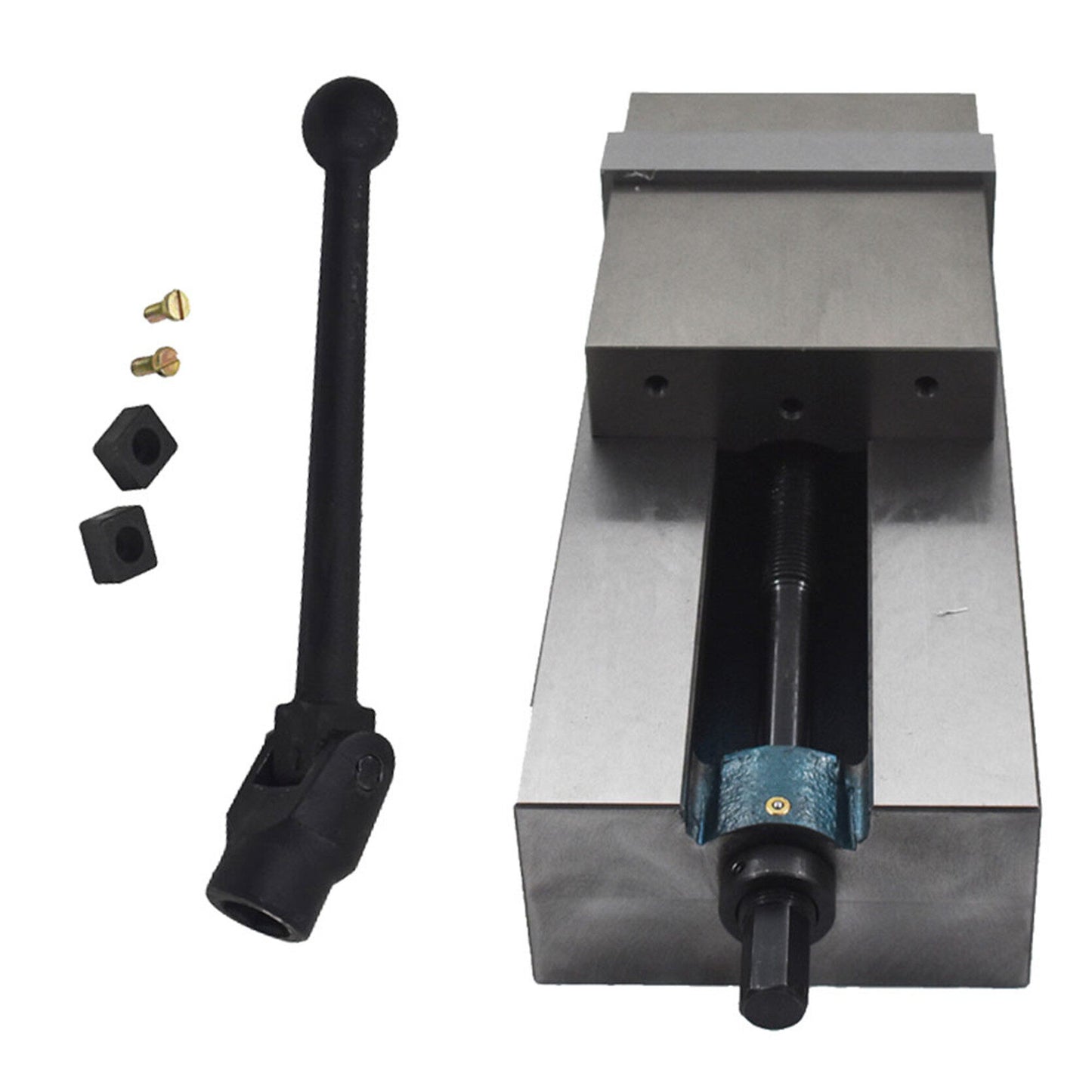

Precision Mill Vise Without Base for Milling Shaping and Drilling Machines

Specifics and features:

Jaw Width: 6"

Jaw Opening: 6"

Jaw Depth: 1-1/2"

Overall Length: 15"

Bed Height: 2.8"

Overall Height: 4.8"

center distance between jaw's bolting screw: 3.8"

Clamping Force: 10,000 lbs

Flatness: 0.001"

Accuracy: both sides square to bottom: 0.0004"

Parallel to each other: 0.0008"

Lock down design up to 80% deflection.

All sides flattened.

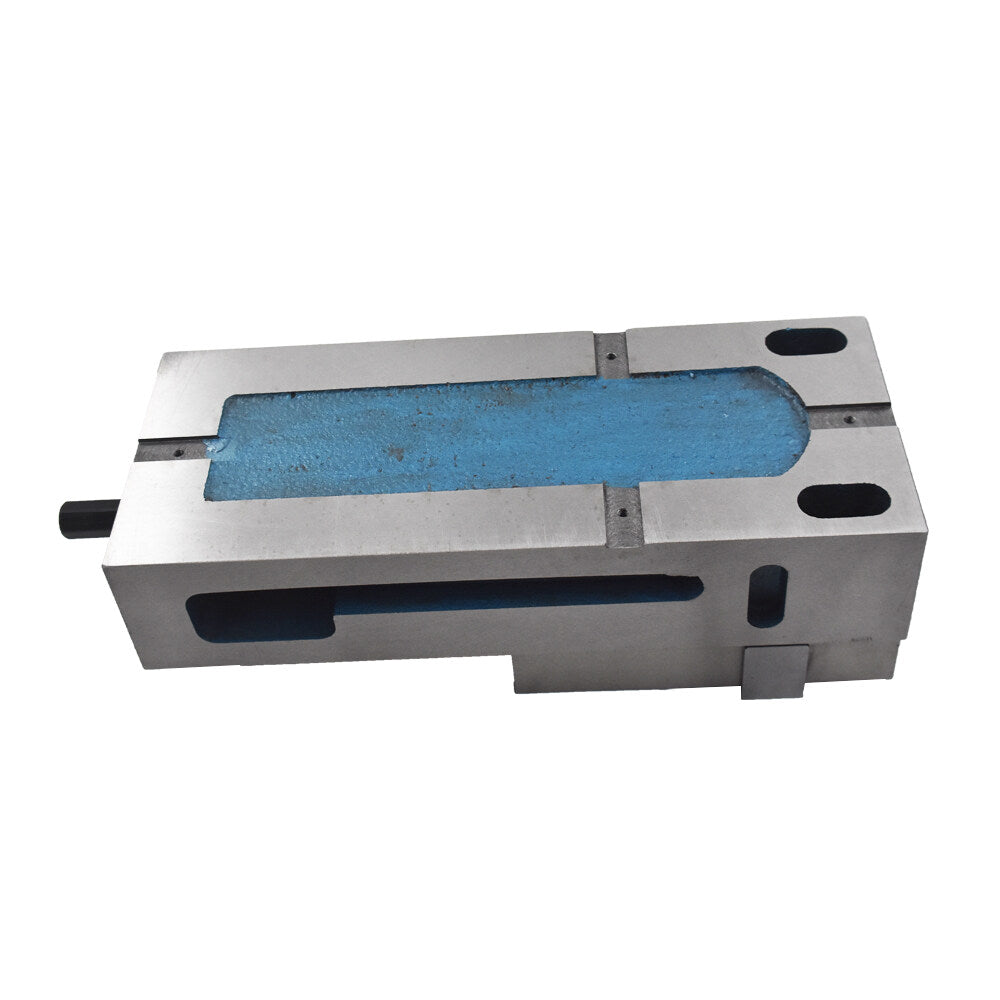

Can be mounted on side or base.

For small to intermediate NC/CNC milling, grinding, tapping operations in multiple vise set-ups with or without sub plates

Each pound of force in horizontal induces 1/2 lb of downward force, eliminating jaw tilt.

Not recommended to place the jaw plate on the outside jaw to clamp on longer workpiece.
