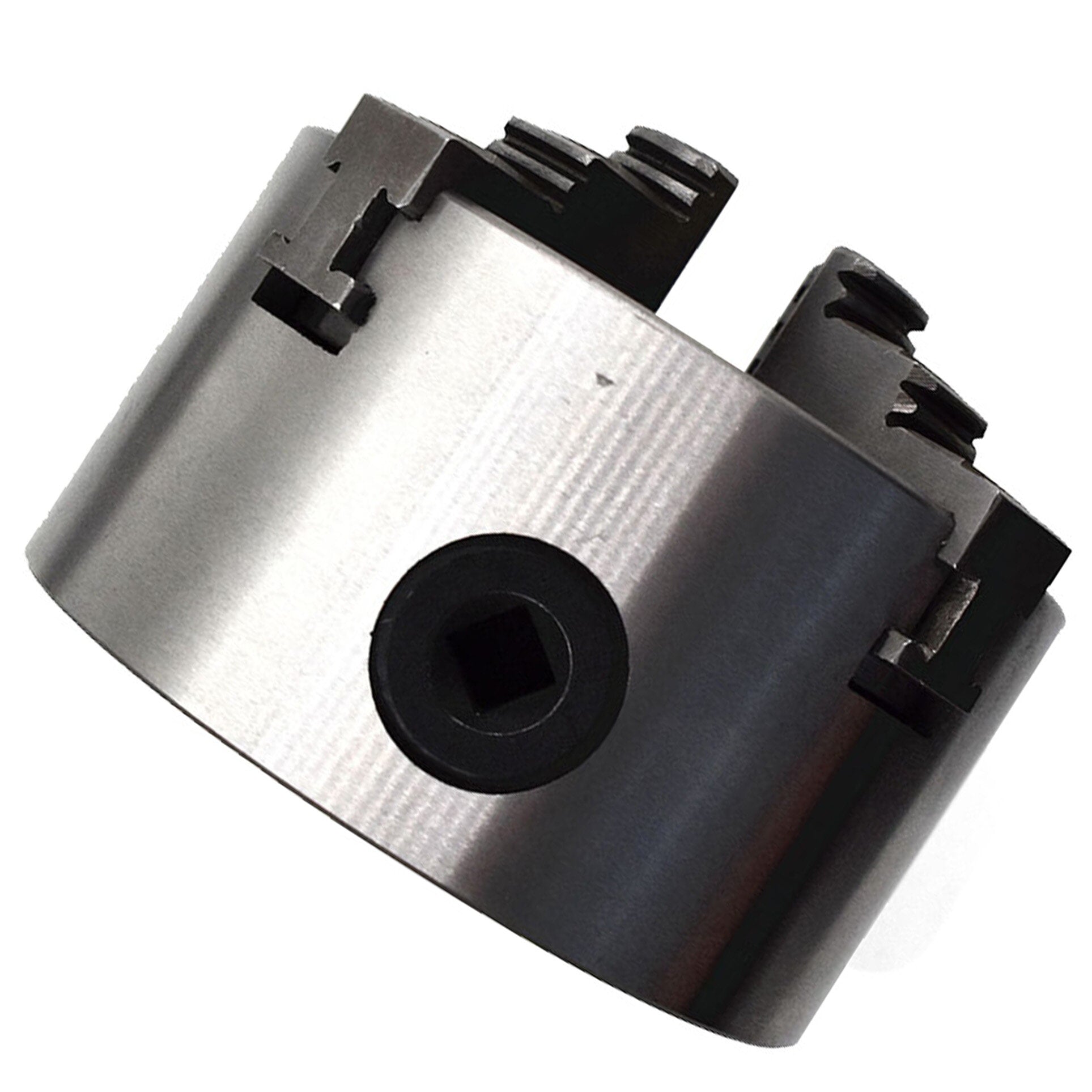

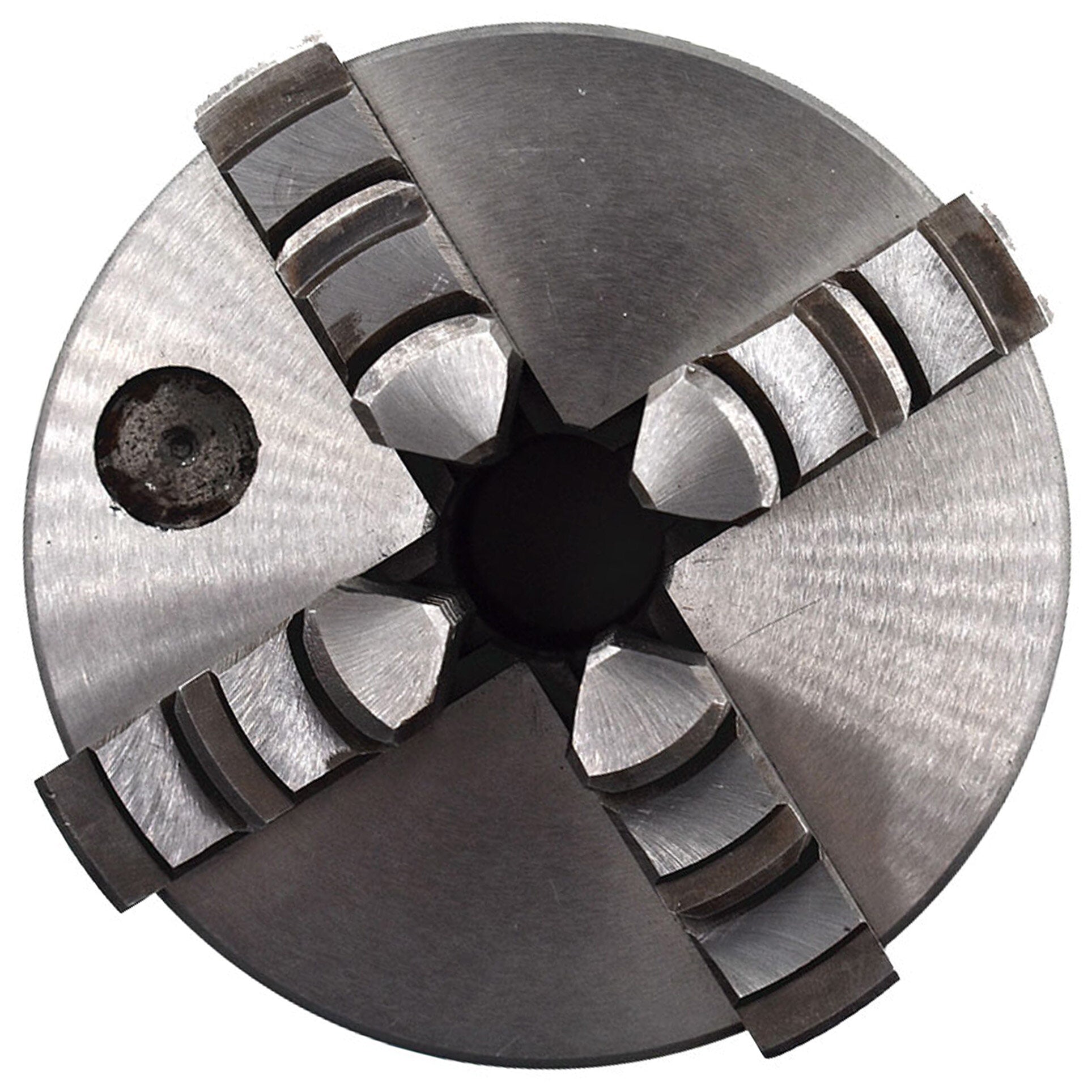

New K12-100 4 Jaw Self Centering 4'' Lathe Chuck CNC Wood Turning Reversible Jaw

New K12-100 4 Jaw Self Centering 4'' Lathe Chuck CNC Wood Turning Reversible Jaw

Regular price $80.26 USD
Regular price $0.00 USD Sale price $80.26 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Adaptive Image

Specifications:

Size: 100 mm (4") Jaw: 4-jaw Outside Diameter: 100 mm (4")

Bolt Circle Diameter: 84 mm (3.31")

Center Thru Hole Diameter: 22 mm (0.866")

Internal Jaw Clamping Range (A-A1): 2-30 mm (0.079"-1.18")

Internal Jaw Jamming Range (B-B1): 30-90 mm (1.18"-3.54")

External Jaw Clamping Range (C-C1): 30-80 mm (1.18"- 3.15")

Mounting Thread: 3-M8

Accuracy: 0.07 mm (0.003")Max

Input Torque: 60 N.mMax.

Speed: 4200 R/min

Gross Weight: 7.4 lb (3.36 kg)

Package Dimensions (L x W x H): 5.5" x 5.5" x 5.1" (14 x 14 x 13 cm)

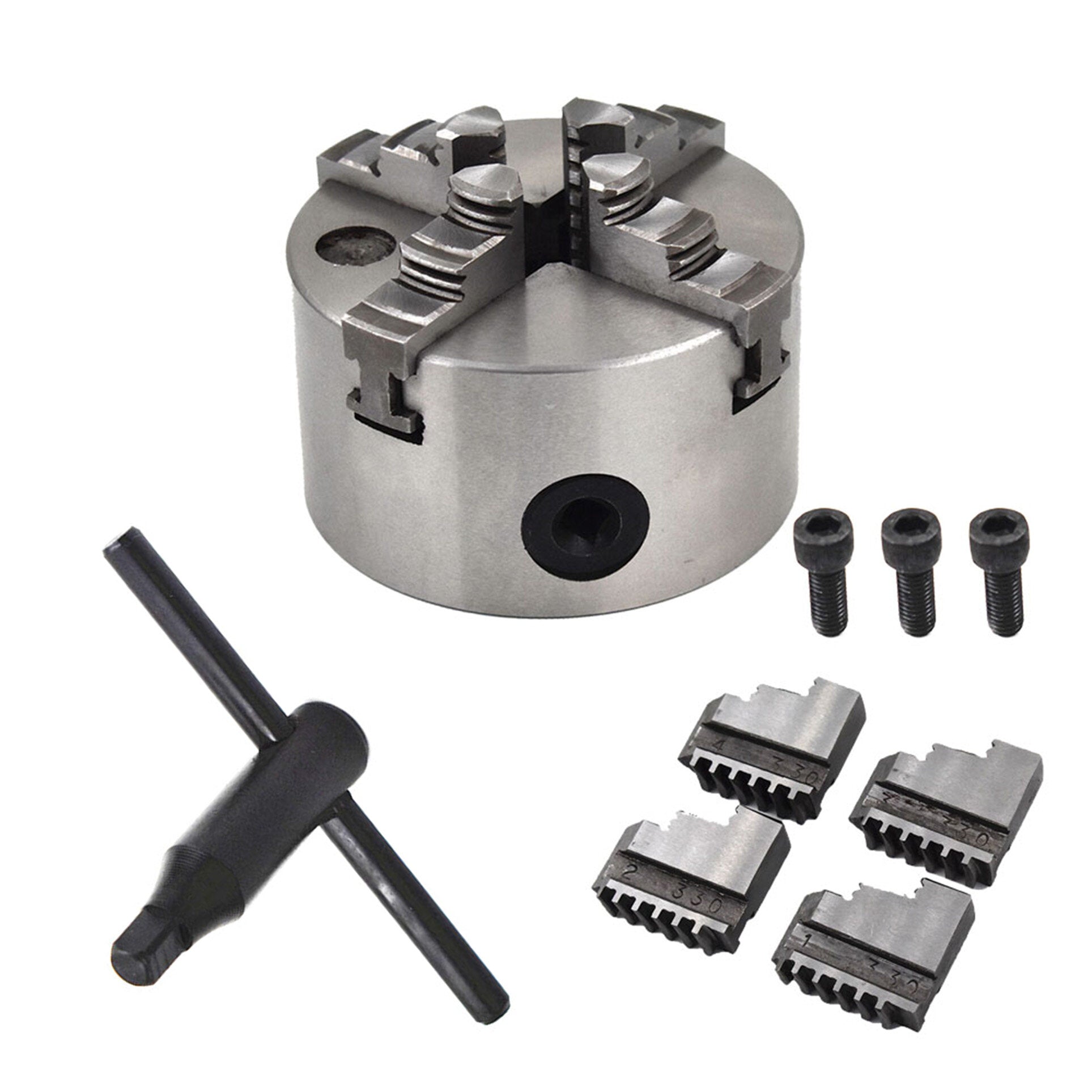

Package Content:

1 X 100 mm/3.93 Inch Lathe Chuck Body

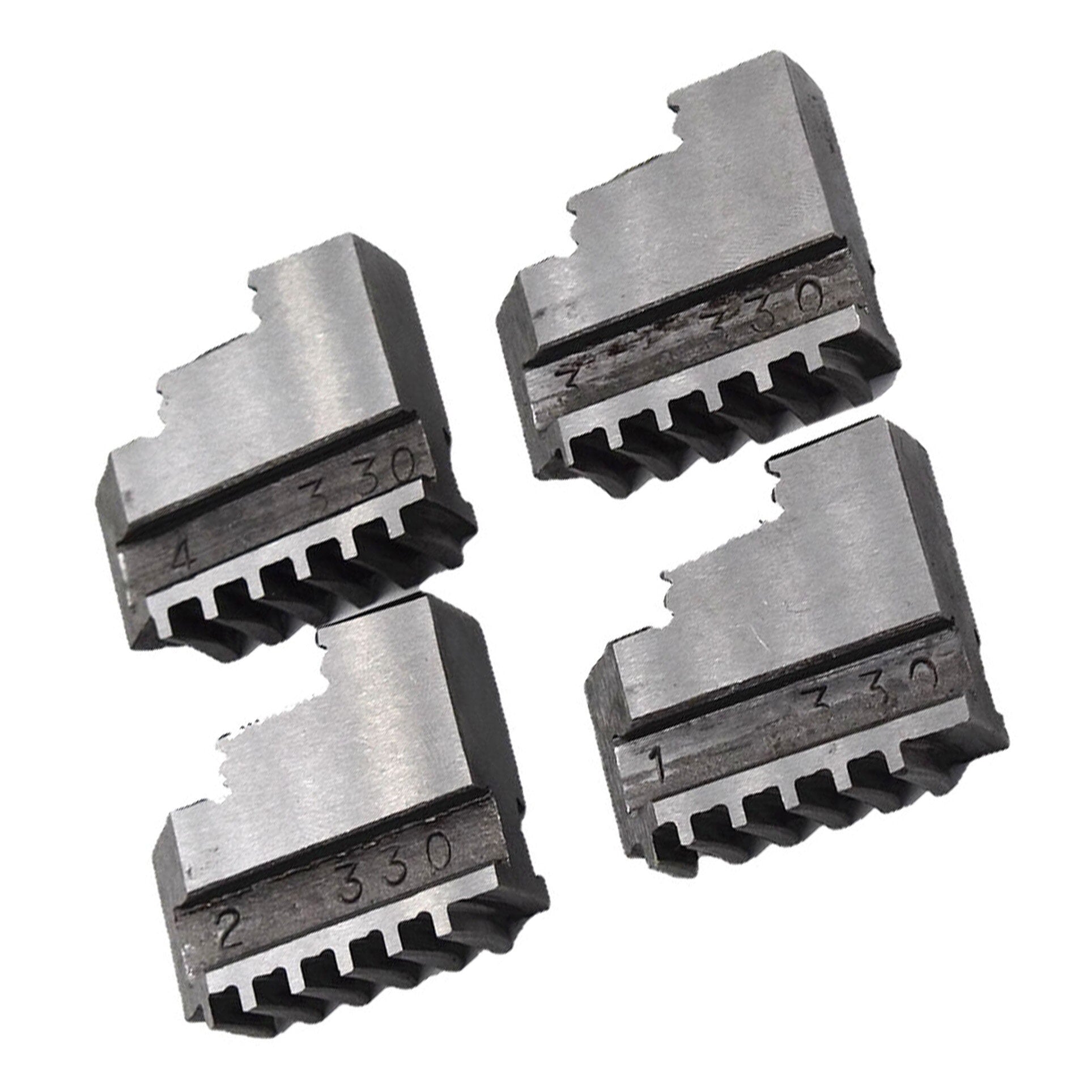

1 X Internal Jaw Set (steel)

1 X External Jaw Set (steel)

Mounting Bolts

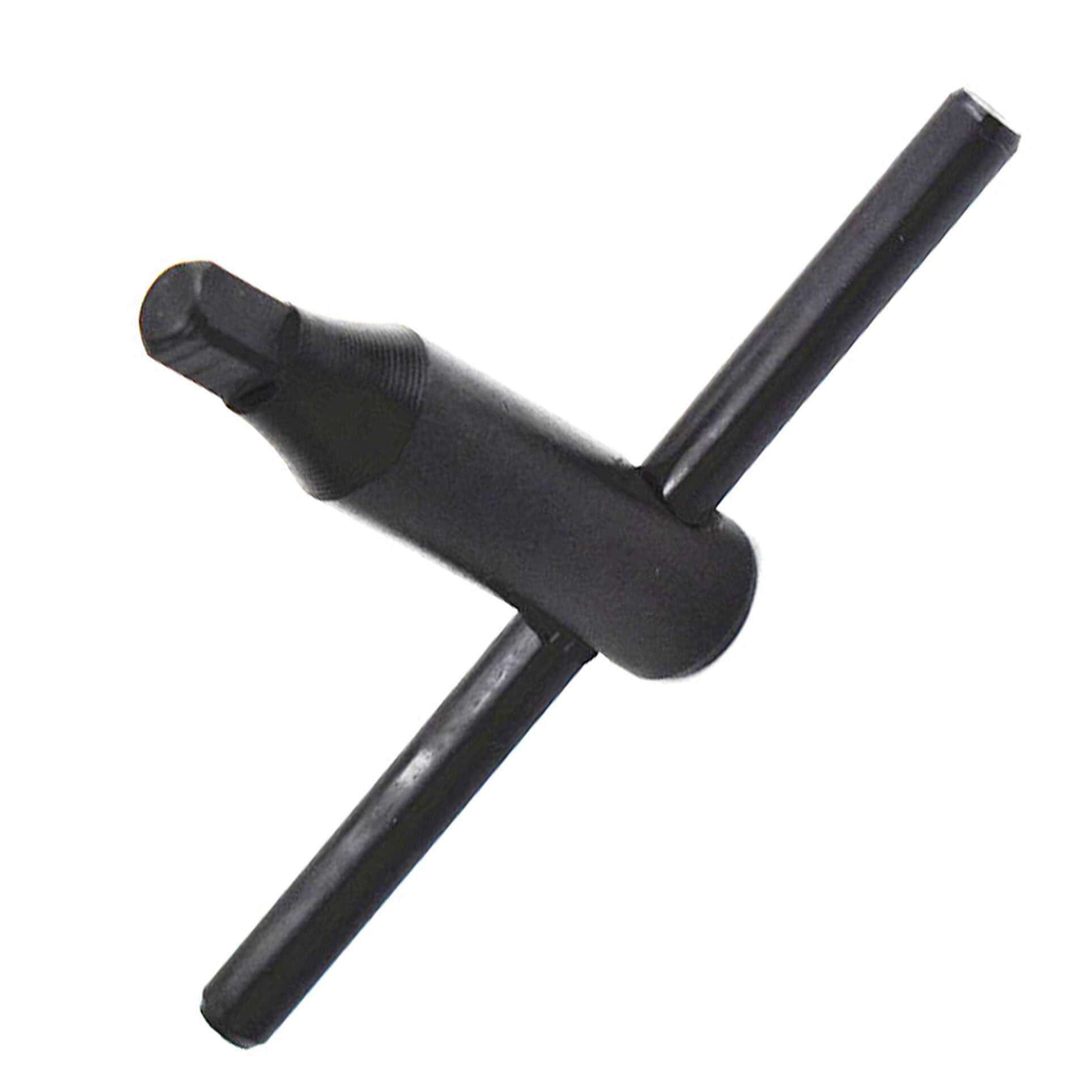

1 X Chuck Key
