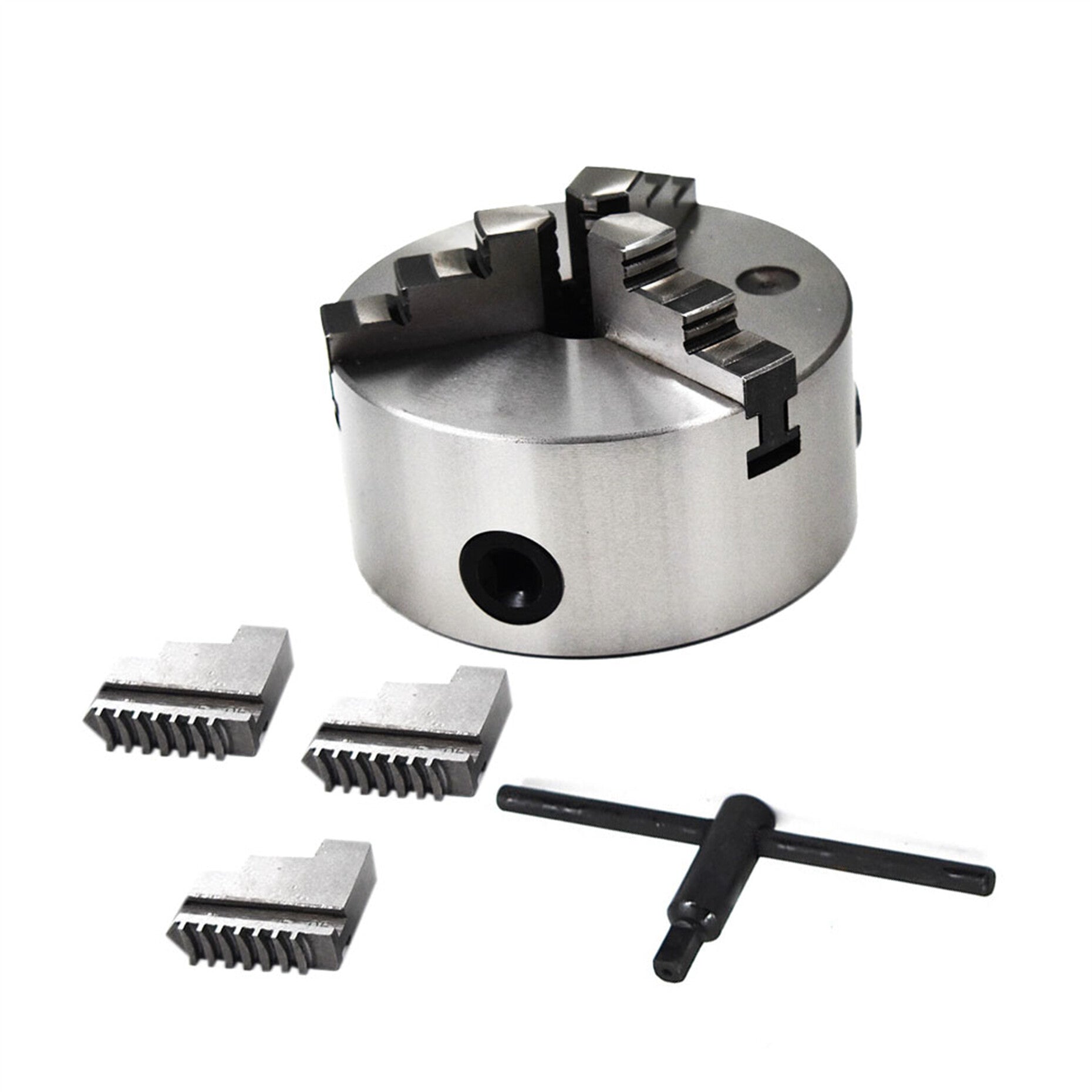

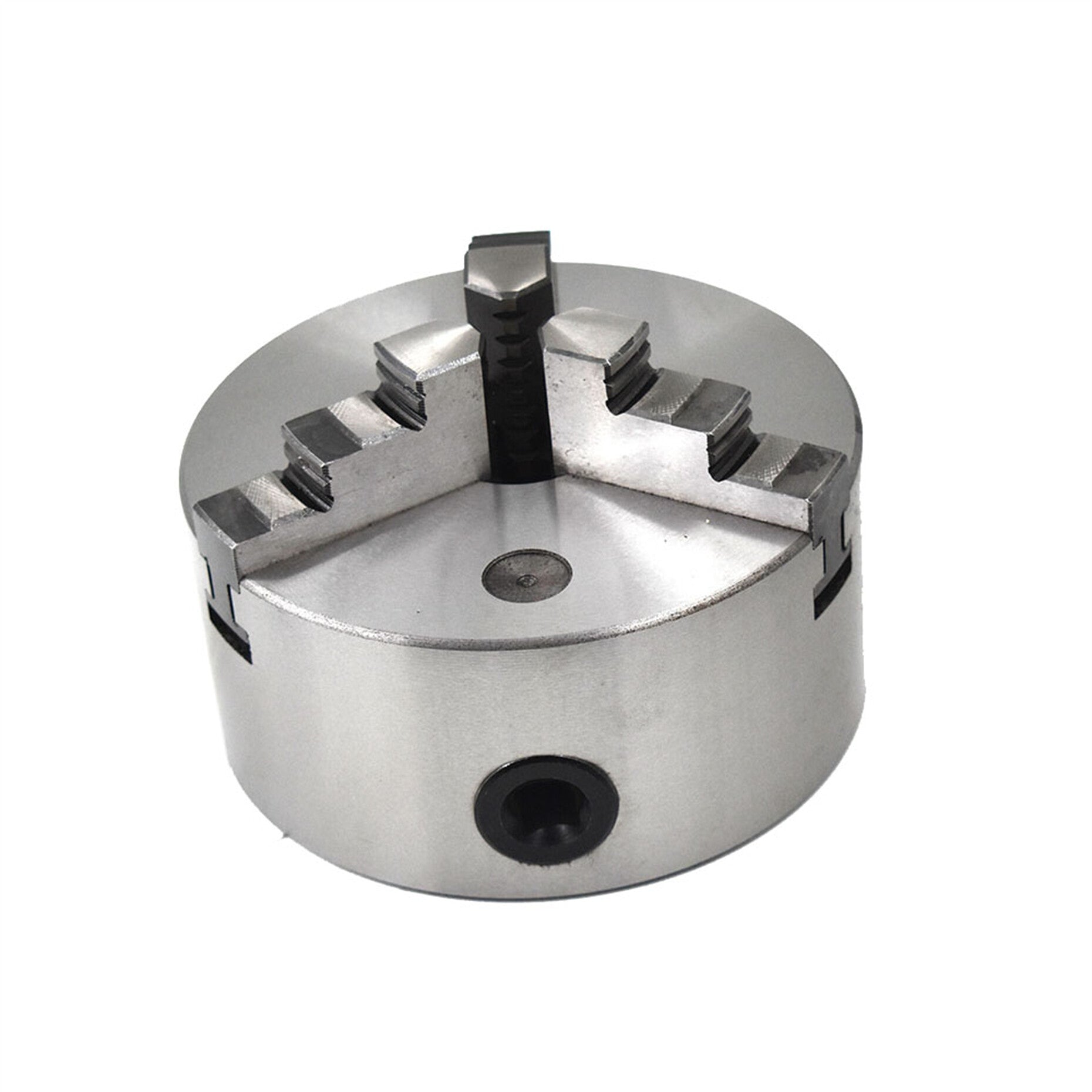

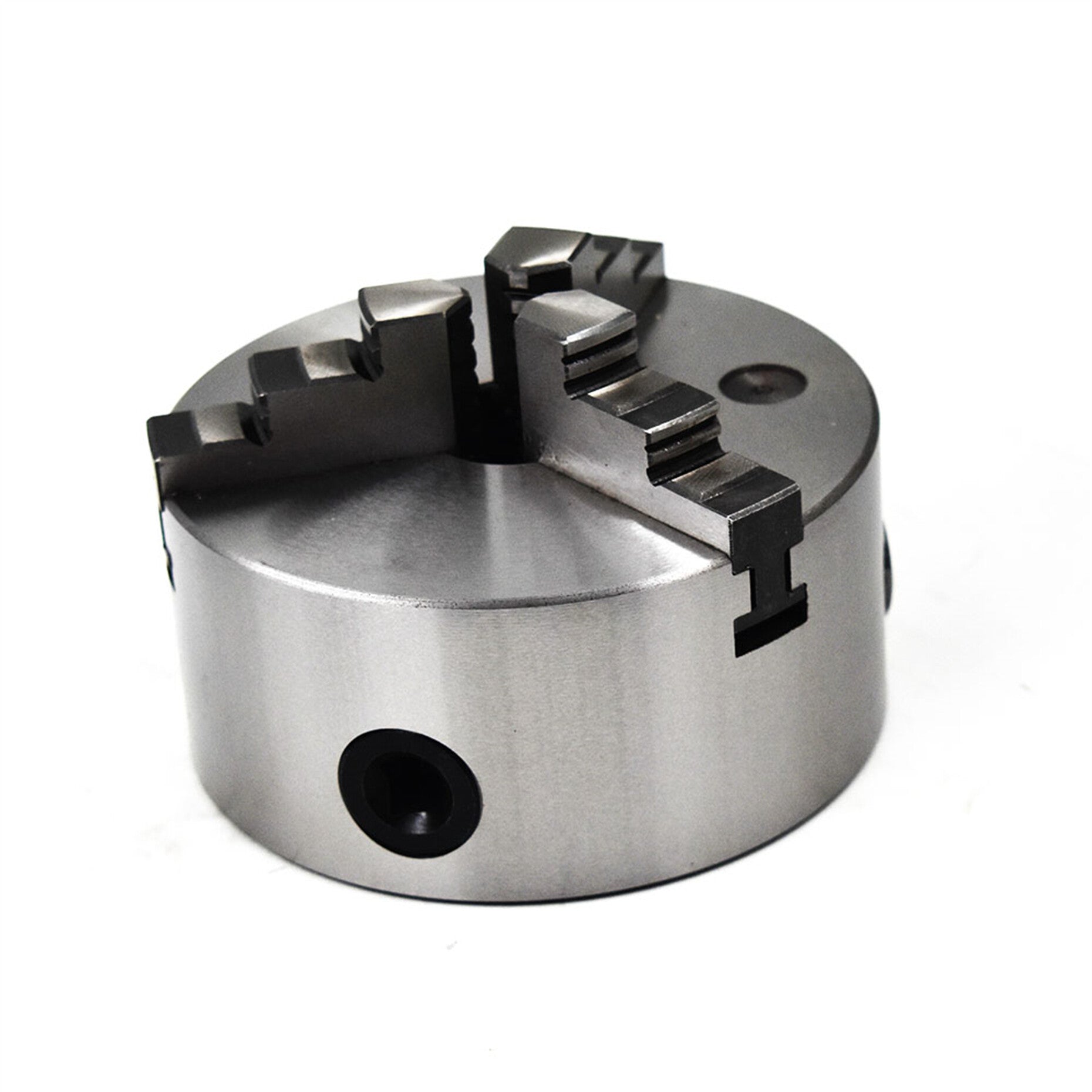

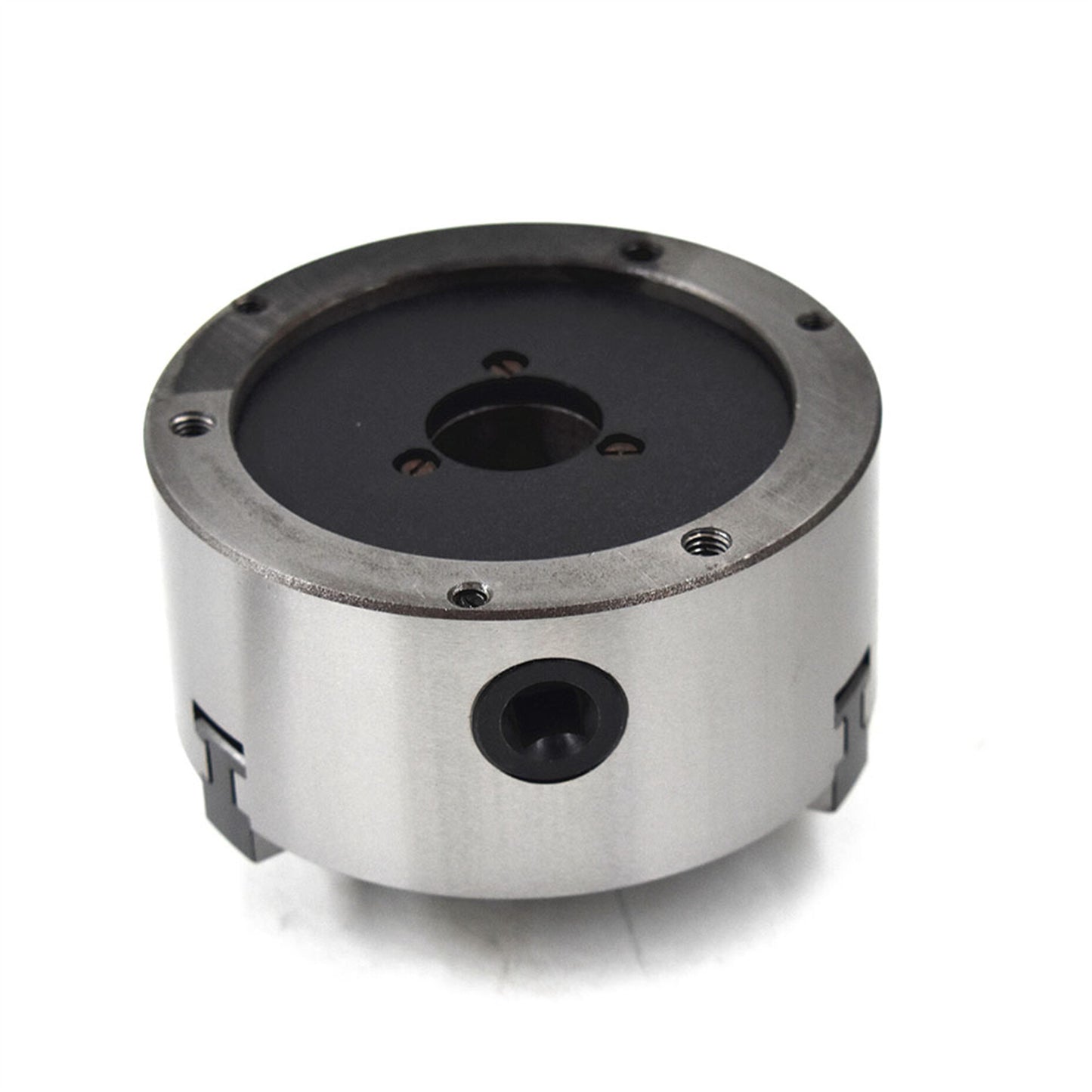

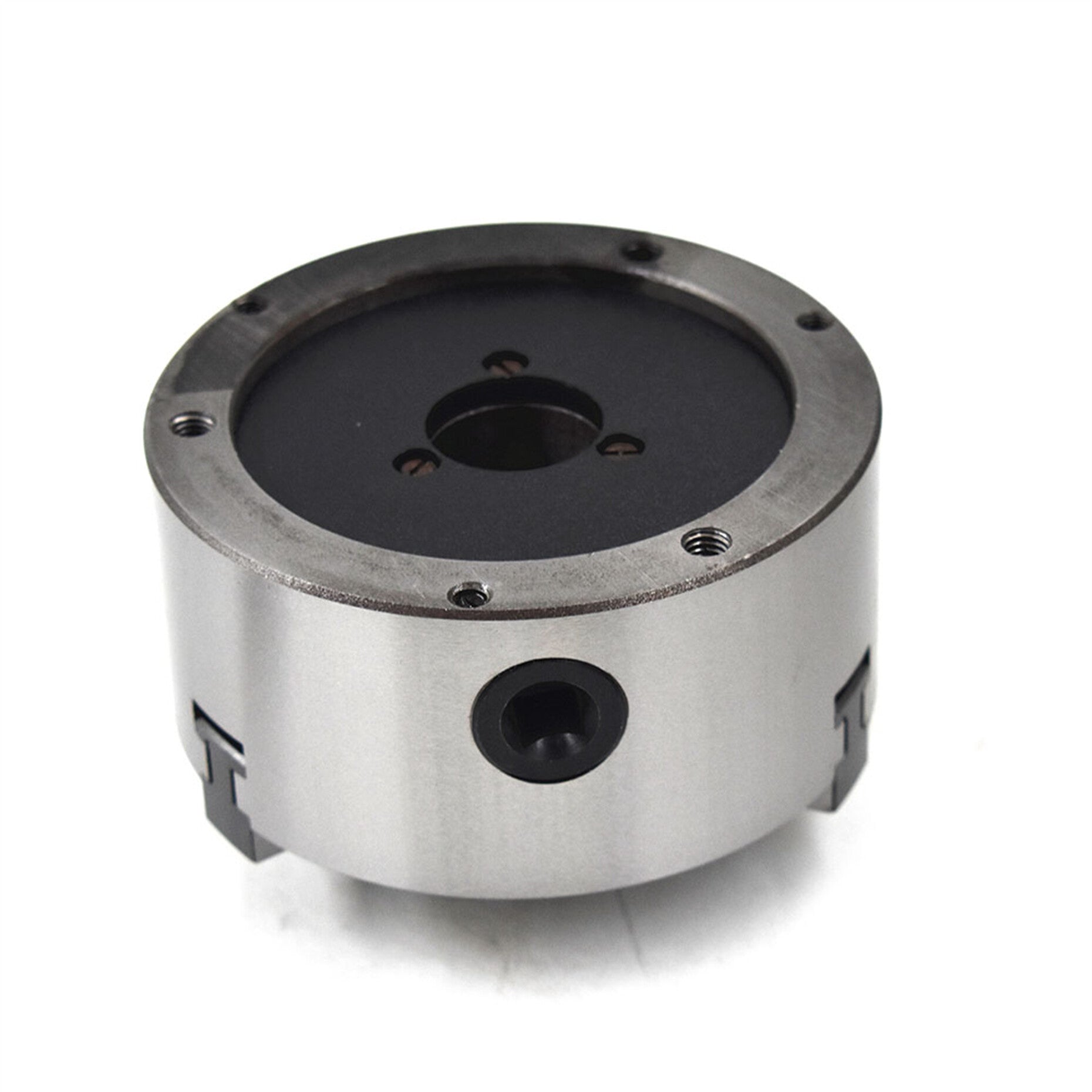

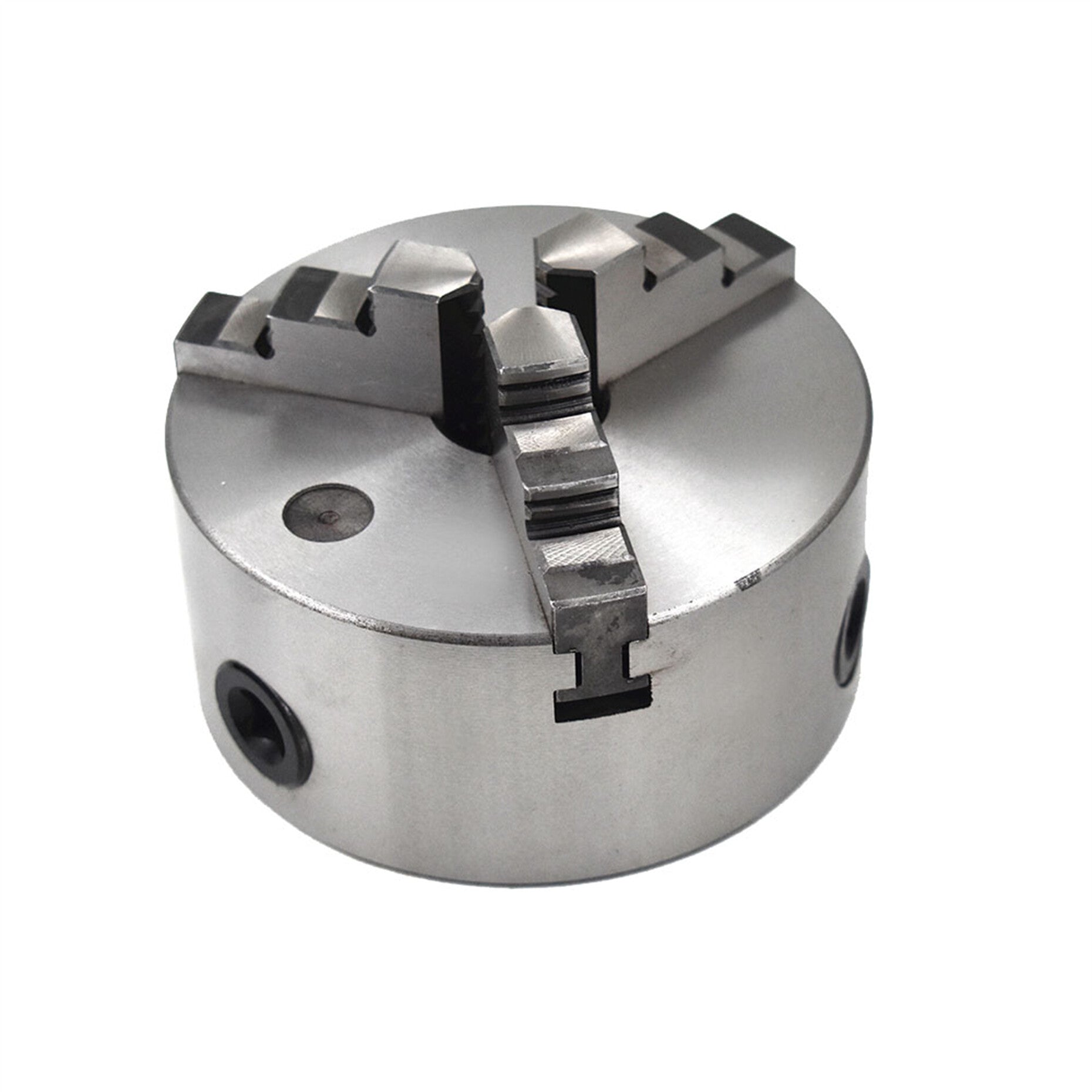

NEW K11-125 3 Jaw Lathe Chuck 125mm Self Centering Scroll Lathe Chuck
NEW K11-125 3 Jaw Lathe Chuck 125mm Self Centering Scroll Lathe Chuck
Regular price
$81.89 USD
Regular price
$0.00 USD
Sale price
$81.89 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Out of stock
Description?
- Material: Hardened Steel
- Model: K11-125
- Max RPM: 3800 r/min
- Jaw: 3 Jaw
- High precision: ?0.05mm
- Application: for CNC Drilling Milling Machine
- Diameter: 4.921" (125mm)
- Thickness: 2.283"
- Center hole: 1.181"
- Bolt Circle Diameter: 4.252"
- Runout: 0.003"
Internal Jaw
- Clamping Range A-A1: 0.079-1.181"
- Jamming Range B-B1: 1.181-3.543"
External Jaw
- Clamping Range C-C1: 1.181-3.149"
Package Included:
- 2 x hard solid jaws
- 3 x mounting screws
- 1 x hexagon wrench
