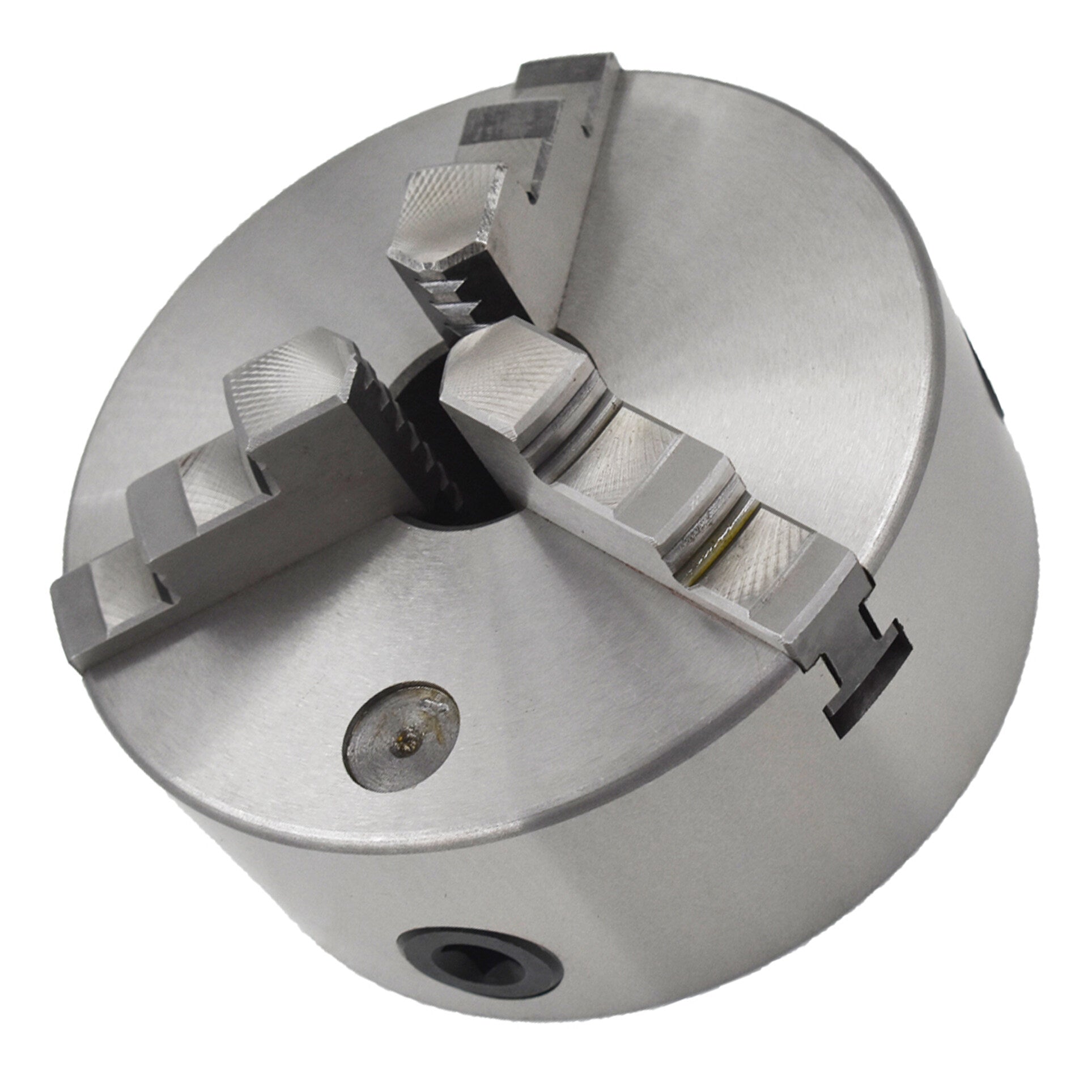

New 6'' Lathe Chuck K11-160 3-Jaw Self-Centering 160mm CNC
New 6'' Lathe Chuck K11-160 3-Jaw Self-Centering 160mm CNC
Regular price
$102.00 USD
Regular price
$113.44 USD
Sale price
$102.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
In stock
Description?
Features?
Package Included:
- Size: 160 mm (6.3")
- Outside Diameter: 160 mm (6.3")
- Bolt Circle Diameter: 142 mm (5.59")
- Center Thru Hole Diameter: 45 mm (1.77")
- Chuck Body Thickness: 65 mm (2.56")
- Internal Jaw Clamping Range (A-A1): 3-55 mm (0.12"-2.17")
- Internal Jaw Jamming Range (B-B1): 50-160 mm (1.97"-6.3")
- External Jaw Clamping Range (C-C1): 55-145 mm (2.17"-5.7")
- Mounting Thread: 3-M8
- Accuracy: 0.002"
Features?
- MAIN PARAMETER-3 Jaw self-centering design lathe chuck. Diameter: 160 mm (6.3")
- QUALITY MATERIAL-Semi-steel body. Cast iron chuck body. All guideways and bearing surfaces are precisely machined
- 2 SETS OF JAWS-Internal and external jaw sets included. Internal clamping range: 3-55 mm (0.12"-2.17"). Jamming range: 50-160 mm (1.97"-6.3"). External clamping range: 55-145 mm (2.17"-5.7")
- DURABLE IN USE-Both side of jaw teeth and guides are ground and hardened to HRC 58-62
- APPLICABLE RANGE-The chuck is suitable for machine tools and accessories for general lathes, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories, etc...

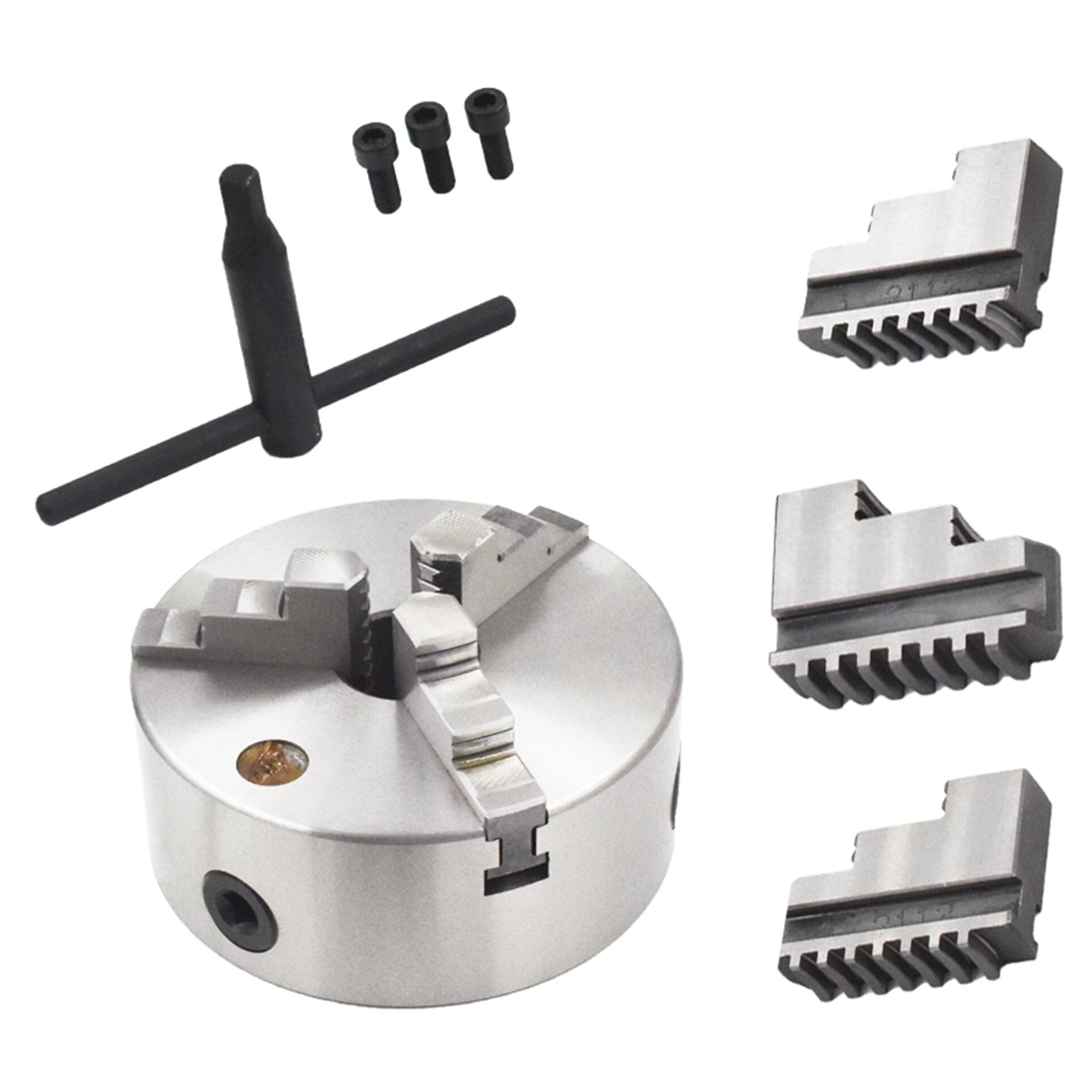

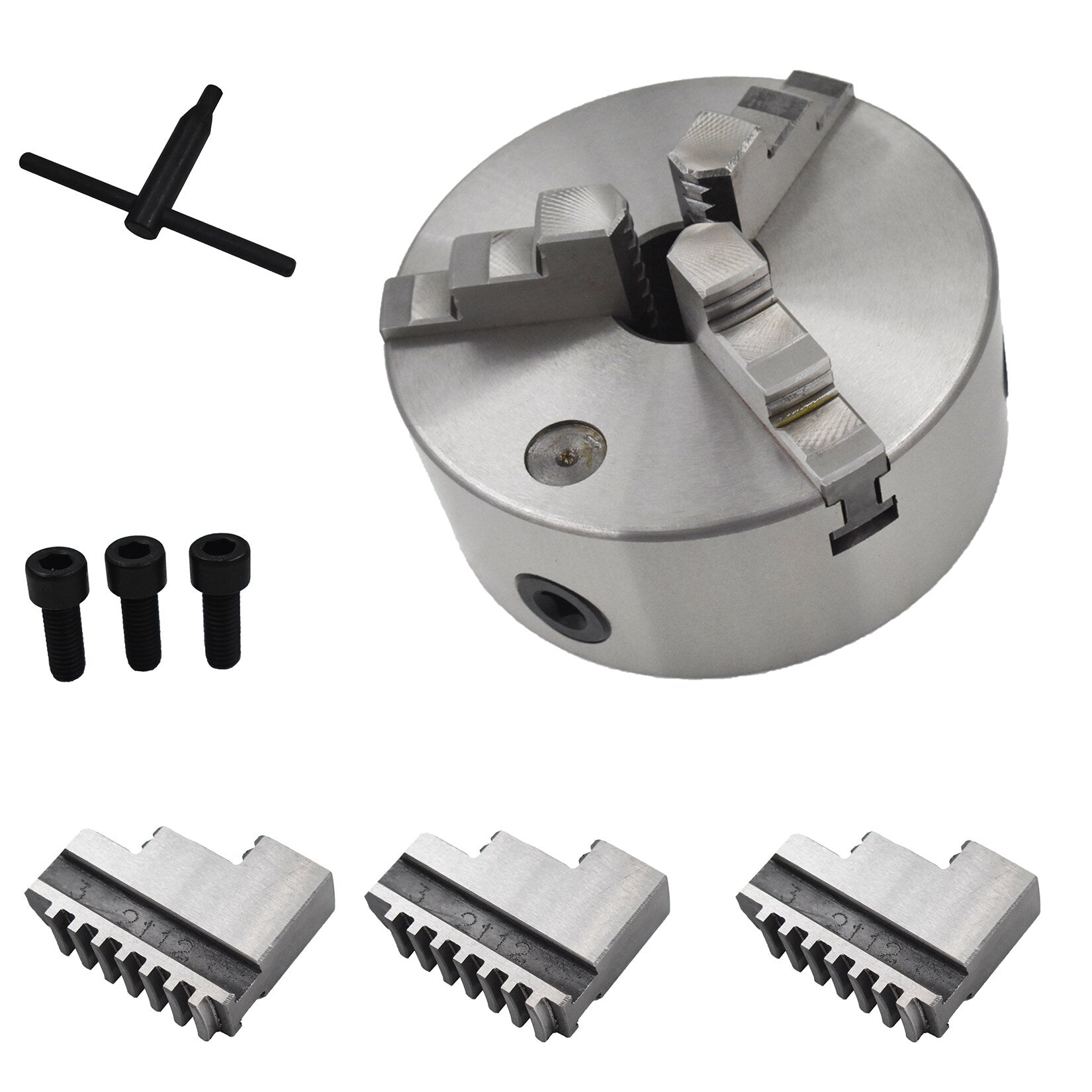

Package Included:
- 1 X 160 mm/6 Inch Lathe Chuck Body

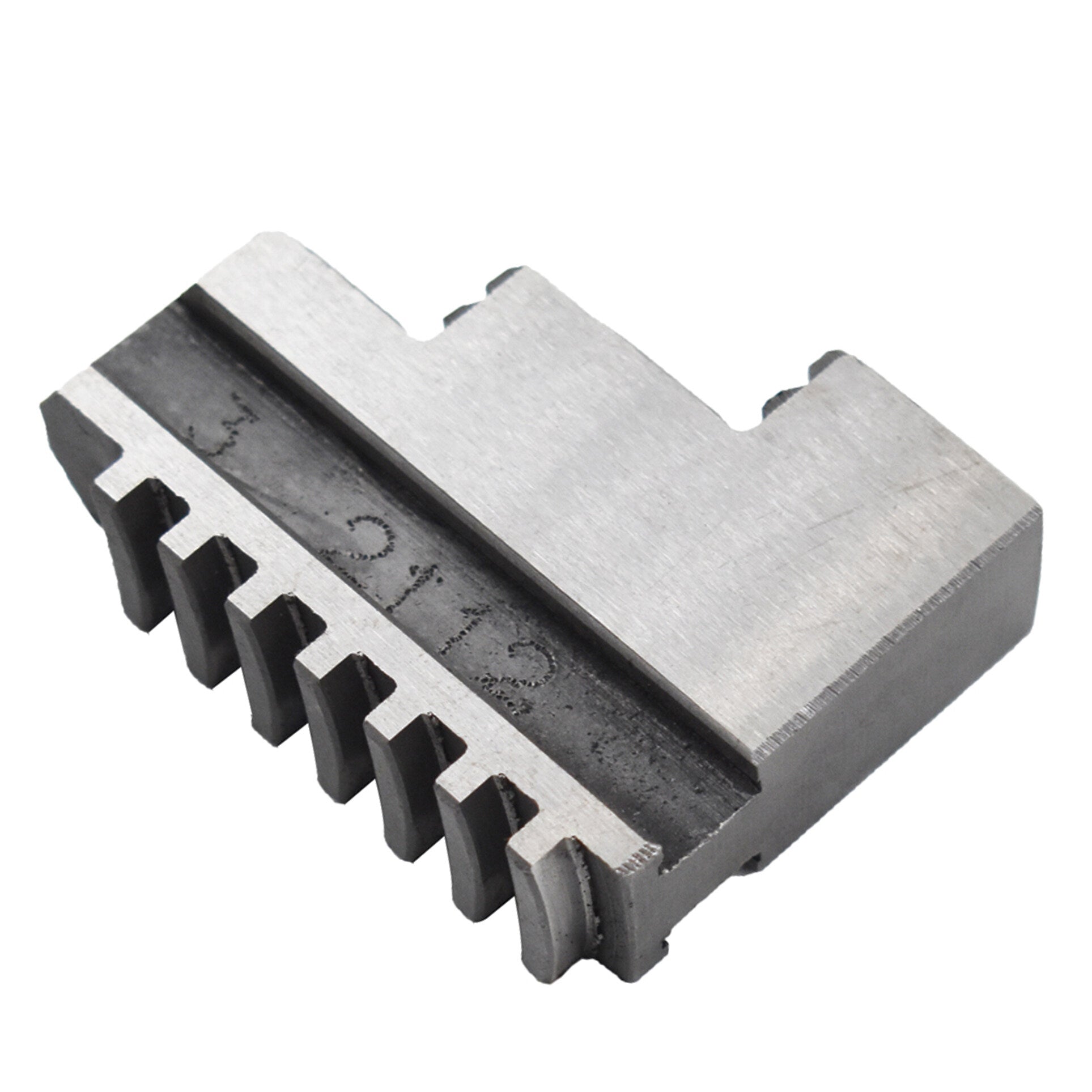

- 3 X Internal Jaws
- 3 X External Jaws
- 3 X Mounting Bolts
- 1 X Safety Chuck Key
