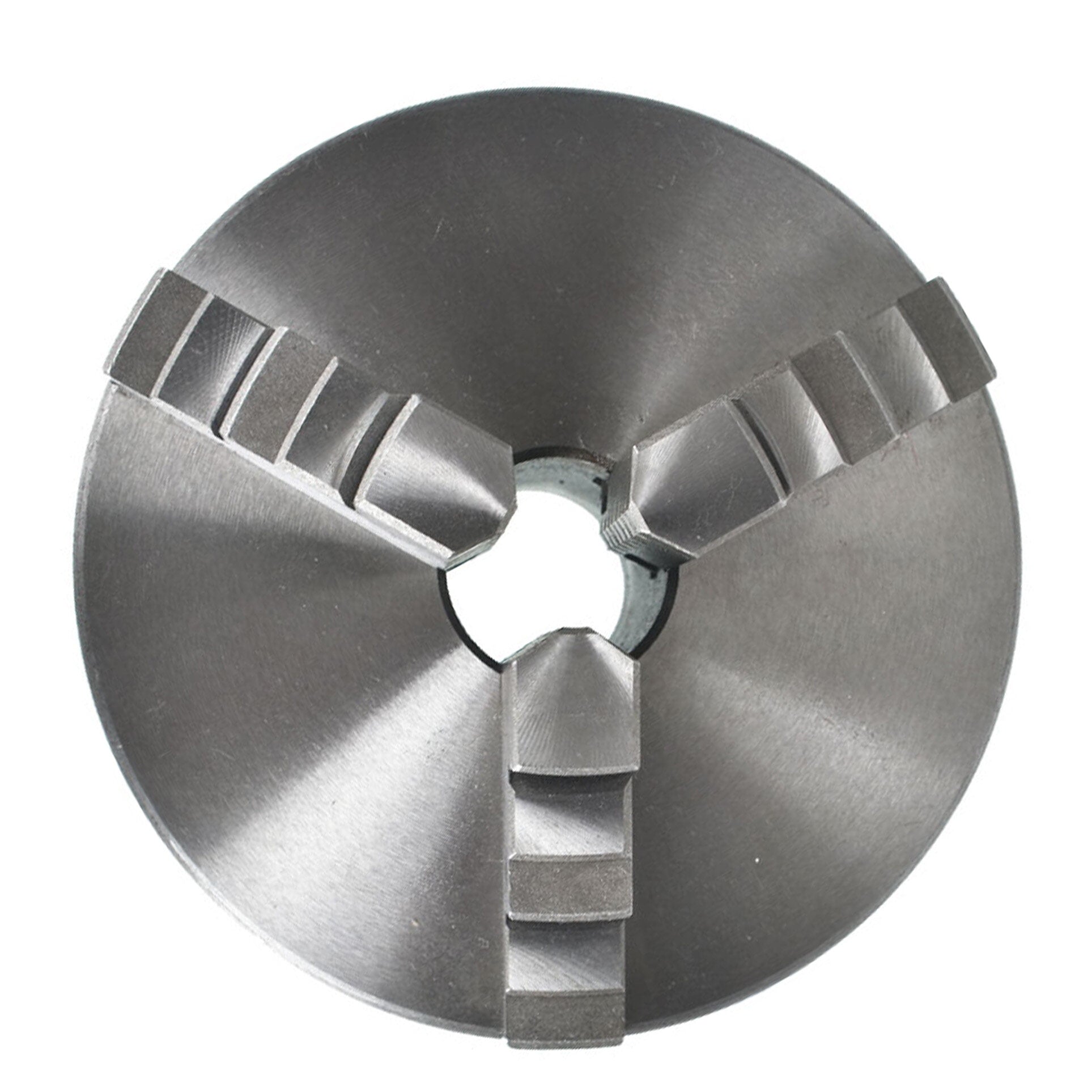

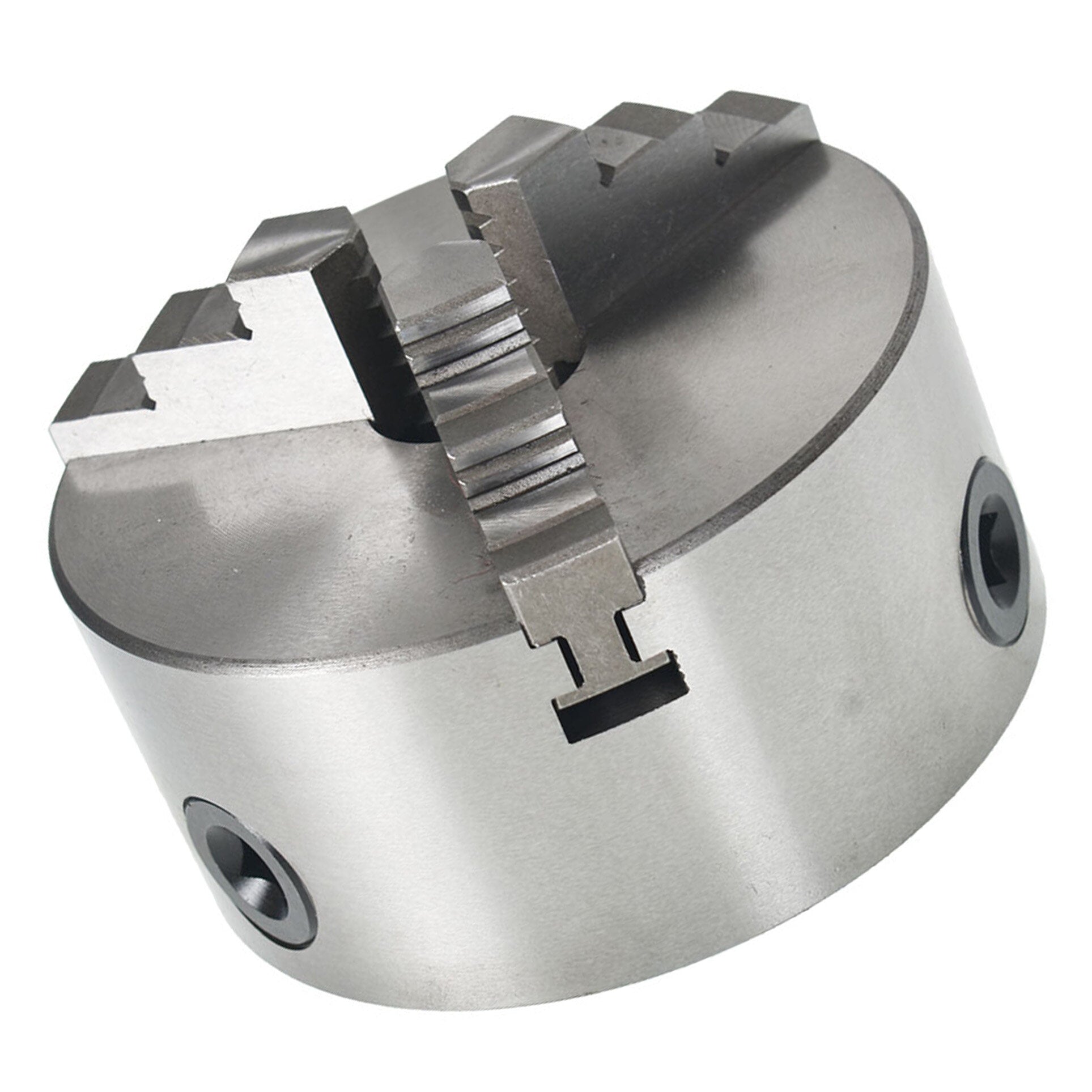

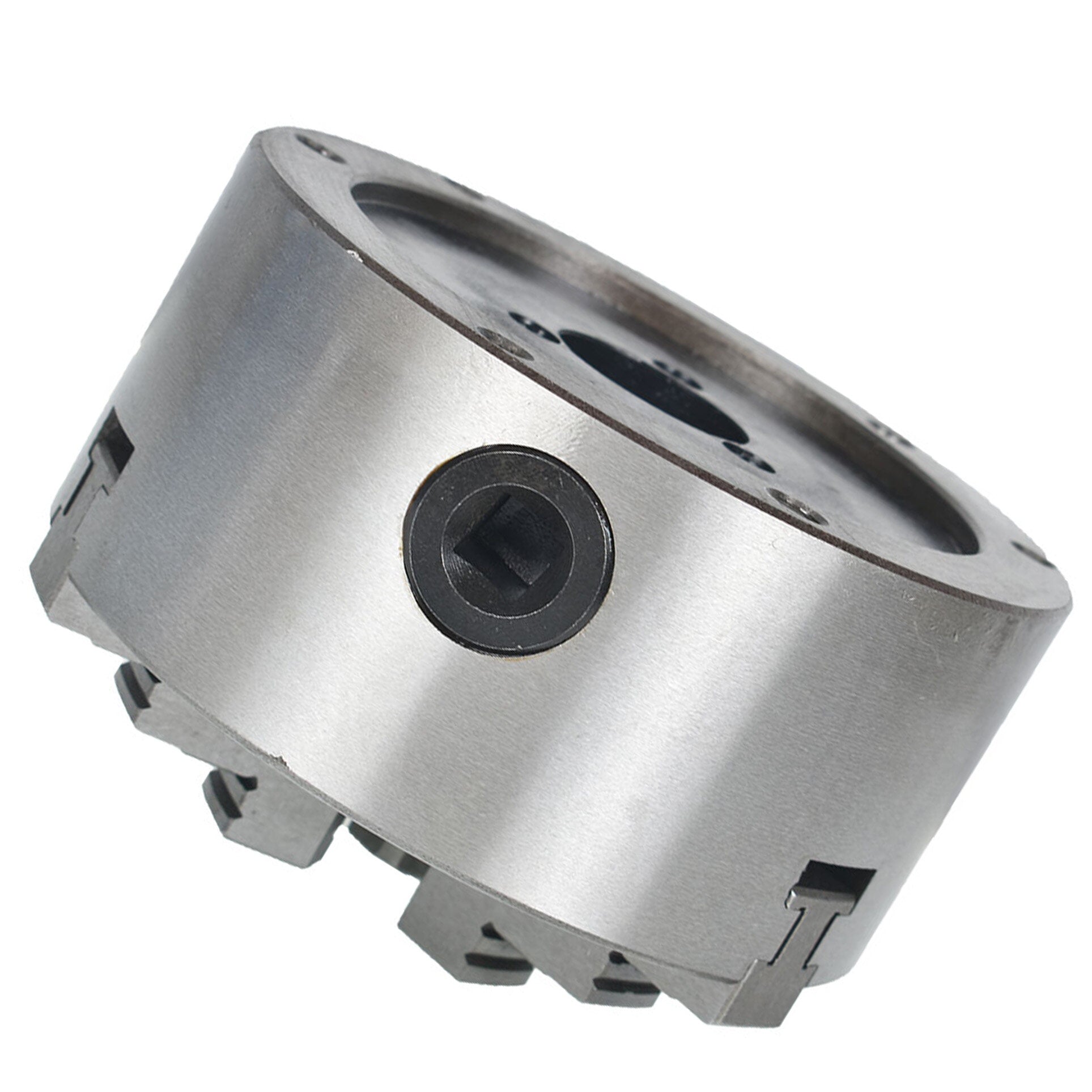

New 5'' Lathe Chuck K11-130 130mm 3 Jaw Self Centering Cast Iron CNC Machine

New 5'' Lathe Chuck K11-130 130mm 3 Jaw Self Centering Cast Iron CNC Machine

Regular price $97.06 USD
Regular price $0.00 USD Sale price $97.06 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Adaptive Image
Description?
  • Size: 130 mm (5.1")
  • Outside Diameter: 130 mm (5.1")
  • Bolt Circle Diameter: 115 mm (4.25")
  • Center Thru Hole Diameter: 30 mm (1.18")
  • Chuck Body Thickness: 60 mm (2.28")
  • Internal Jaw Clamping Range (A-A1): 3-40 mm (0.12"-1.58")
  • Internal Jaw Jamming Range (B-B1): 40-130 mm (1.58"-5.12")
  • External Jaw Clamping Range (C-C1): 40-120 mm (1.58"-4.7")
  • Mounting Thread: 3-M8
  • Accuracy: 0.002"

Features?
  • MAIN PARAMETER - 3 jaw self-centering design lathe chuck. Diameter: 130 mm (5.1")
  • QUALITY MATERIAL - Cast iron chuck body. All guideways and bearing surfaces are precisely machined
  • 2 SETS OF JAWS - Internal and external jaw sets included. Internal clamping range: 3-40 mm (0.12"-1.58"). Jamming range: 40-130 mm (1.58"-5.12"). External clamping range: 40-120 mm (1.58"-4.7")
  • DURABLE IN USE - Both side of jaw teeth and guides are ground and hardened to HRC 58-62
  • APPLICABLE RANGE - The chuck is suitable for machine tools and accessories for general lathes, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories, etc...

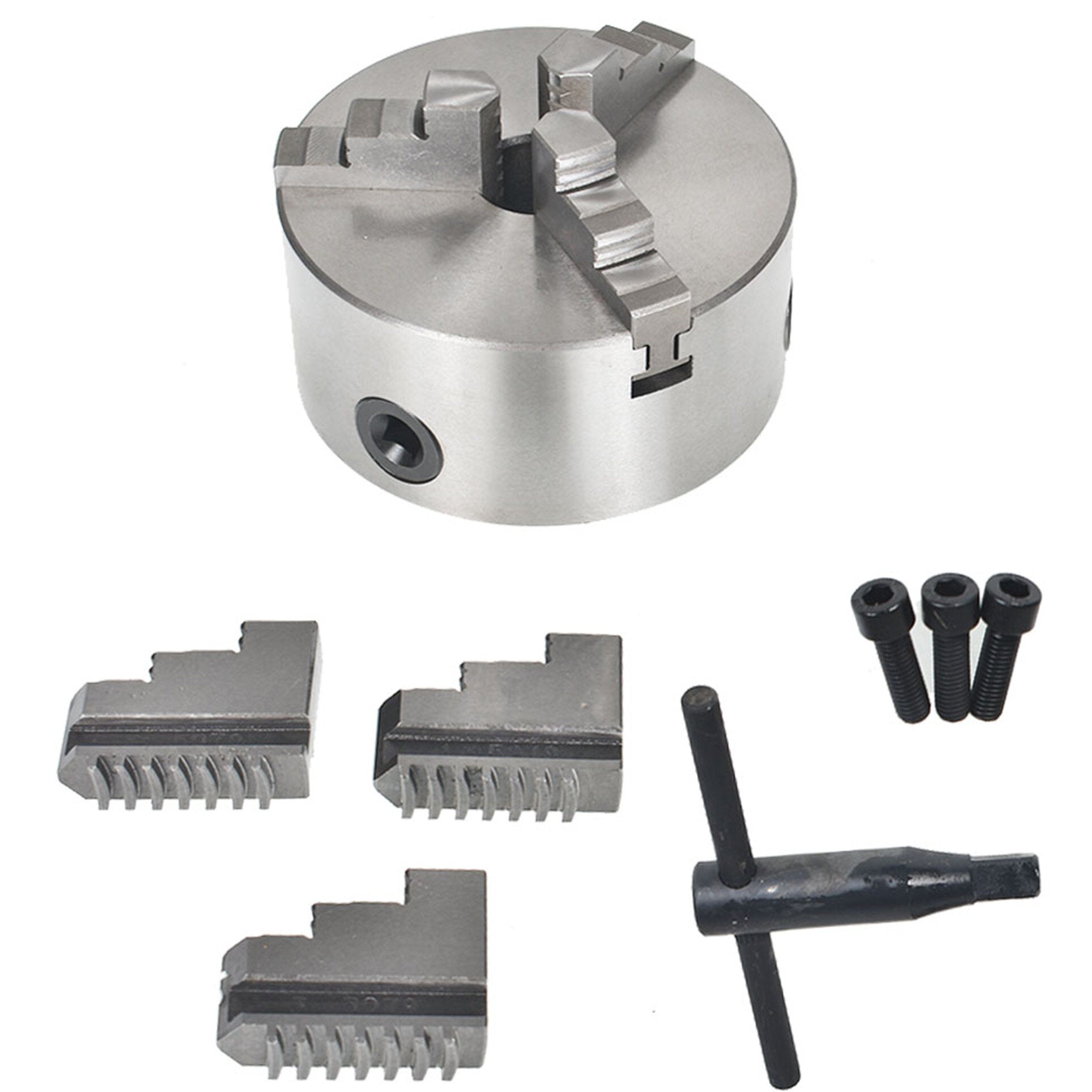

Package Included:
  • 1 X 130 mm/5.1 Inch Lathe Chuck Body

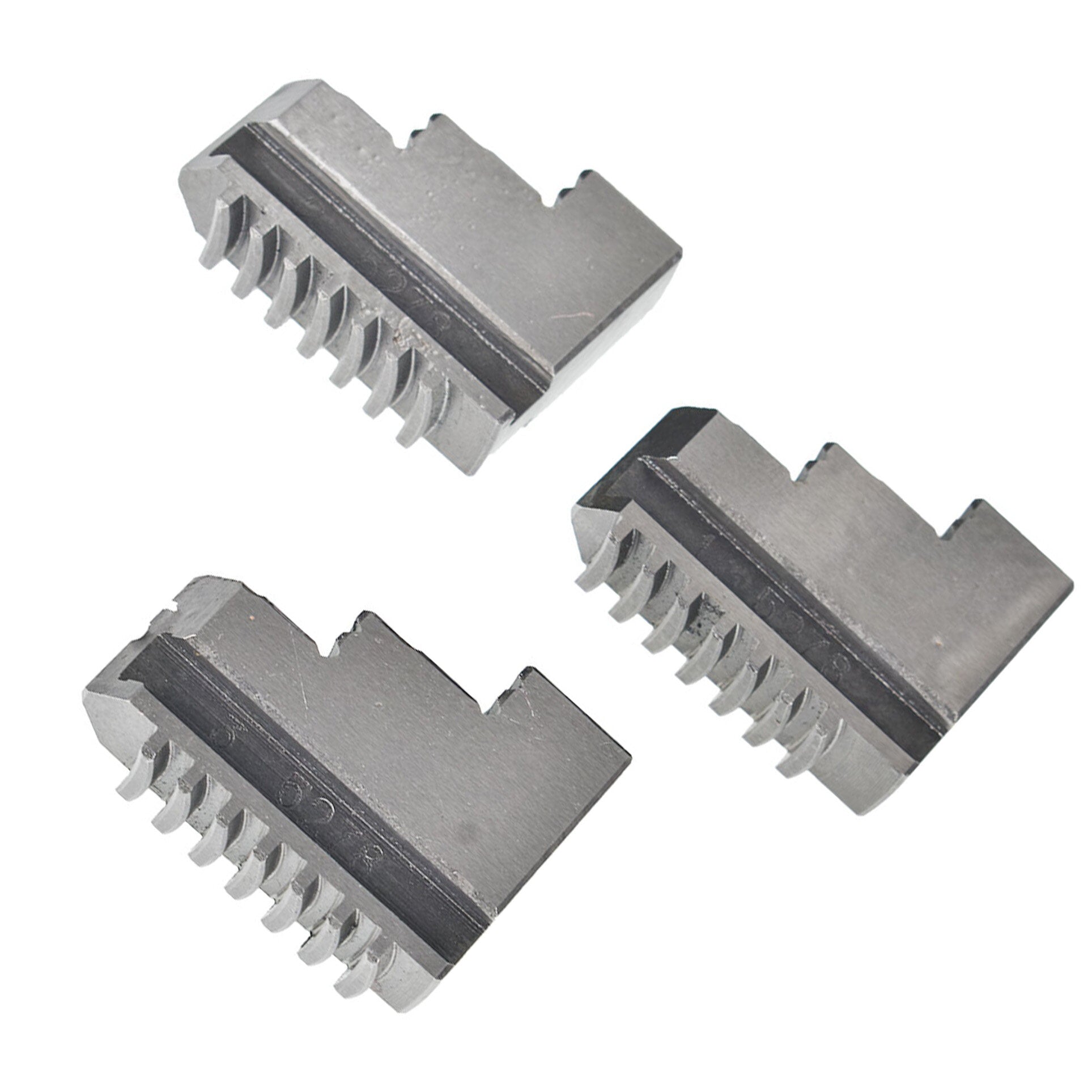

  • 1 X Internal Jaw Set
  • 1 X External Jaw Set

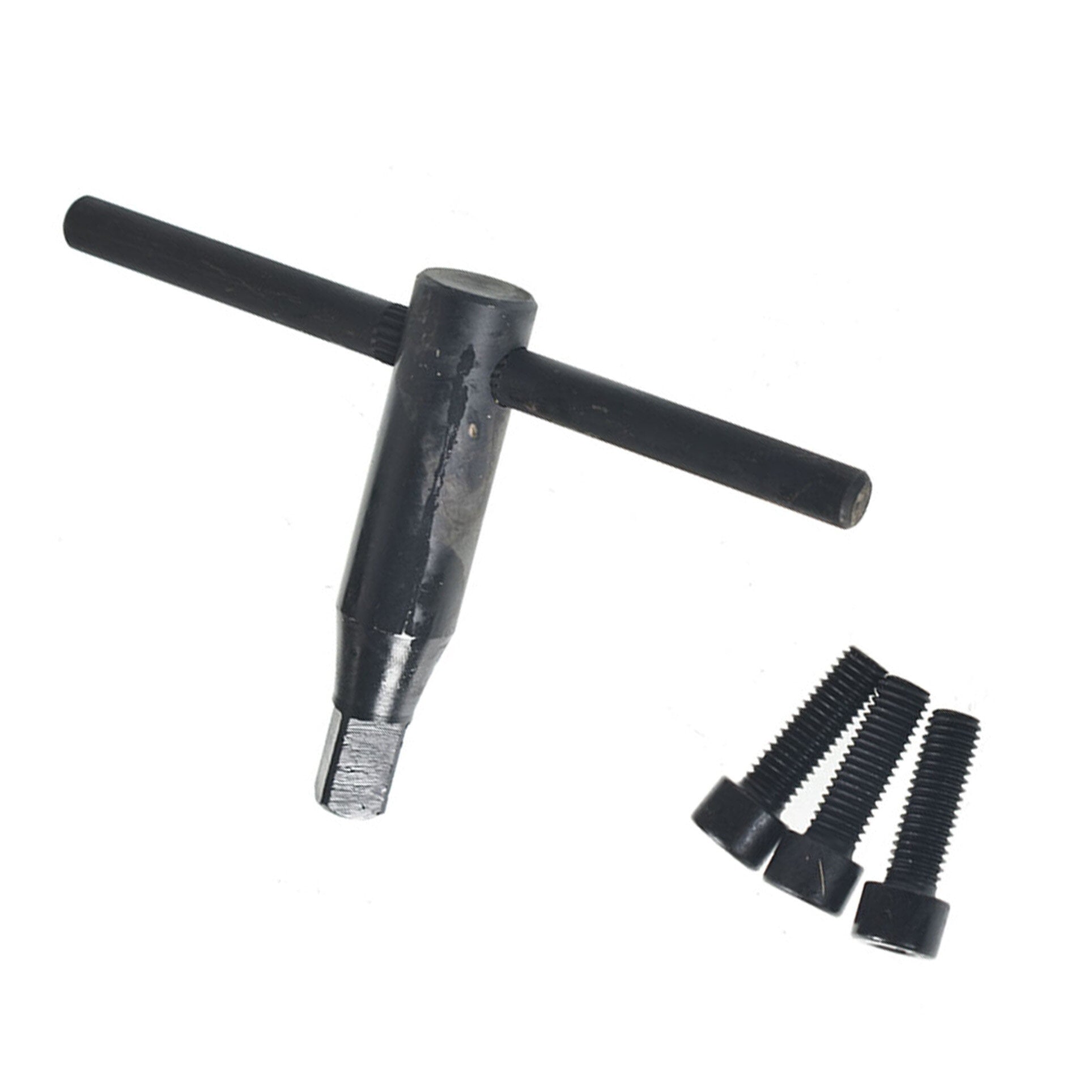

  • 3 X Mounting Bolts
  • 1 X Safety Chuck Key
