Lathe Chuck K11-100 4'' 3 Jaw Self-centering Internal Jaw 100mm Milling Machine
Lathe Chuck K11-100 4'' 3 Jaw Self-centering Internal Jaw 100mm Milling Machine
Regular price
$74.87 USD
Regular price
$0.00 USD
Sale price
$74.87 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
In stock
- Size: 100 mm (3.94")
- Outside Diameter: 100 mm (3.94")
- Bolt Circle Diameter: 84 mm (3.31")
- Center Thru Hole Diameter: 22 mm (0.866")
- Chuck Body Thickness: 55 mm (2.16")
- Internal Jaw Clamping Range (A-A1): 2-30 mm (0.078"-1.18")
- Internal Jaw Jamming Range (B-B1): 30-90 mm (1.18"-3.54")
- External Jaw Clamping Range (C-C1): 30-80 mm (1.18"-3.15")
- Mounting Thread: 3-M8
- Accuracy: 0.002"
- Gross Weight: 7 lb (3.2 kg)
- Package Dimensions (L x W x H): 5.5" x 5.5" x 5.1" (14 x 14 x 13 cm)

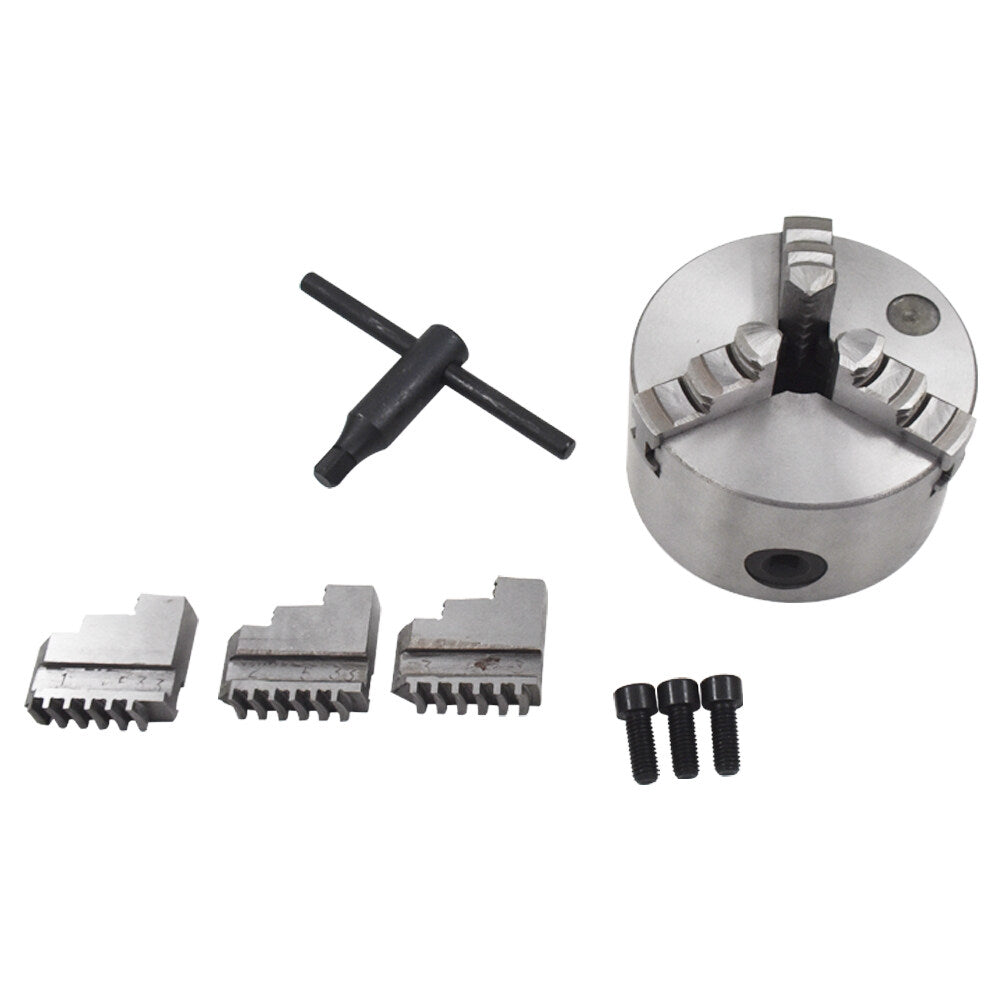

- 1 X 100 mm/4 Inch Lathe Chuck Body

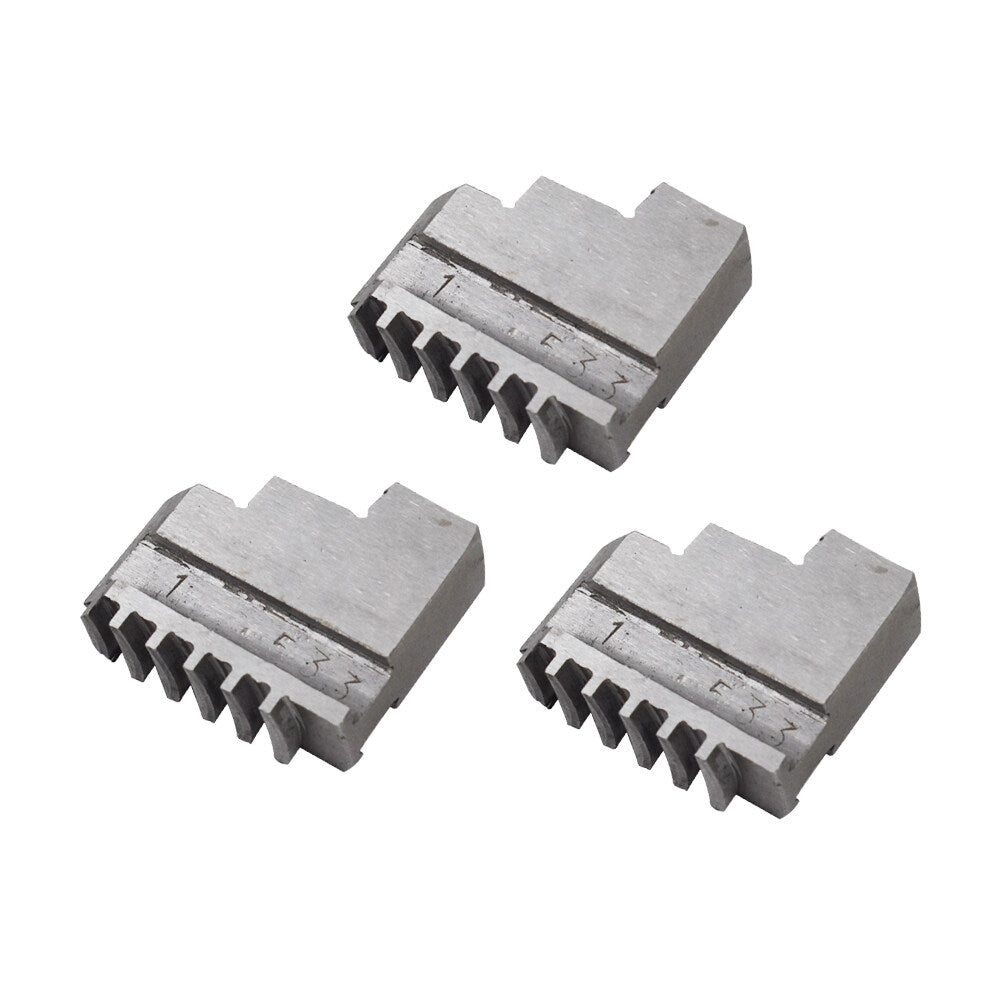

- 3 X Internal Jaws
- 3 X External Jaws
- 3 X Mounting Bolts

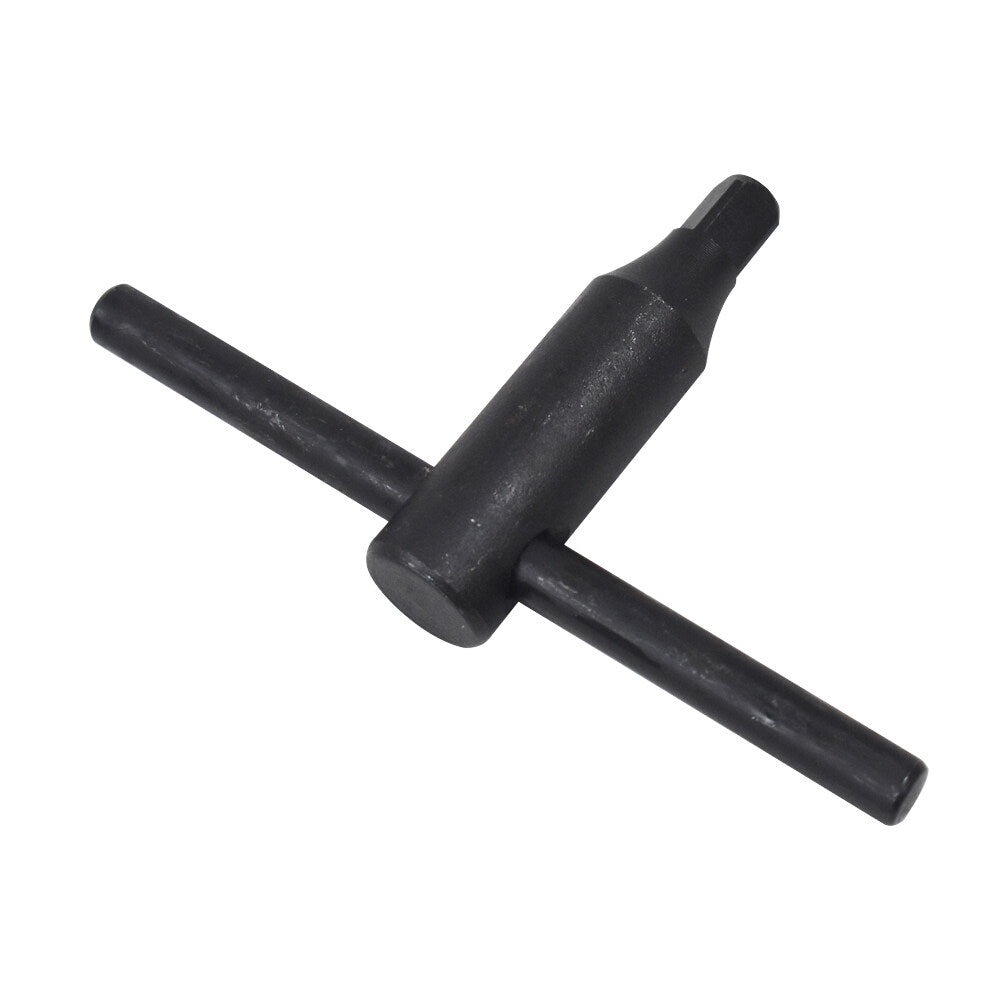

- 1 X Safety Chuck Key
