findmall Pressure Washer Pump 3/4 HorizShaft MAX 3000 PSI 2.5 GPM Oil Sealed

Features:

Engine Type: 3/4" Shaft Horizontal
Max Pressure (psi/bar): 3000/200
Max Flow Rate (gallon/min): 2.5GPM
Engine HP required: 5.5 HP (Minimum)
Head Material: Aluminum
Bearing: Double Bearing
Plunger: Stainless Steel
Plunger seals: Oil Seals
Shaft Depth: 2 5/8"
Hole Distance to hole : 2 9/16”
Keyway Size: 3/16"
Connection: Inlet--3/4'' 14NH Garden Hose (Not 3/4 in. - 11 1/2 NH)Outlet--M22x1.5-14mm
Rated RPM: 3400
Max. Water Supply Temperature: 104°F
Self suction: Yes
Comes with Built-In Unloader
Built-In Chemical Injector
Comes with a FREE Thermal Relief Valve

Will not fit  Shafts By Older GC160 Honda Engines.Thermal Relief Valve for Durability: TRV protects the pump from overheating while in bypass mode'.

Releases small amounts of hot water and intakes cooler water to prevent overheating and extend the life of the pump

Easy Start: Built-in for simple & quick cold starts to make the startup a breeze.

120 hours Running Time: 50 hours longer service life than other pumps!

Maintenance Free: Pre filled Oil and double seal system, set it up directly and prevents oil/water leaks.  The crankcase is manufactured from fully anodized die-cast aluminum for protection against corrosion, and you never have to change the oil.  Precision polished stainless steel pistons deliver extended seal life

Pressure Adjustable-Rotate the unloader valve to adjust the pressure

Easy Connections: The Garden Hose Inlet and M22 high pressure outlet make for a simple setup to get your power washer up and running in no time

Fit For:

Homelite: 308418007, 309515003, 308418004, 308653057, UT80522B, UT80953B, UT80522A, UT80953A, UT80522D, UT80522E, HL252300, UT80953E
Honda: GC190, GC160 (* 7/8" Shaft Engine is not Compatible)
Simpson: MS60753 MS60852 MS60753, MS60788, MS60850, MS60799,MS61043 PS60841 MSH3125 PS80903b ALH3225
Karcher: K2400HH, G2400HH, G2800OH, G3000OH, G3050OH, G2600OR, G2650HH, G2800OH, G3025OH, G3000BH G3025BH
PowerStroke: PS80522, PS80903, UT80522, UT80953, PS80903A, 30841800
Generac: 580.762011, 01675, 01675-0,1671,1675, 1293,1330, AXD2524GT-22mm, G24H,BXD2528, BXD2527G,598759870, 598859880
Briggs Stratton: 020204,020208,020209,020212, 020216 020220 ,020224, 020251, 020263 020275,020309
Troy Bilt: 020200, 020208,020241, 01904, 020242, 020209,194106GS, 01042
AR: RMV2.5G30-EZ, RMV25G30D-PKG
Ryobi: RY80533
Others: Exh2425, 520011, 7106900, 189943GS, 193486GS, 90028, 7108379,7106900 ,580752070, RD80947, RD80955

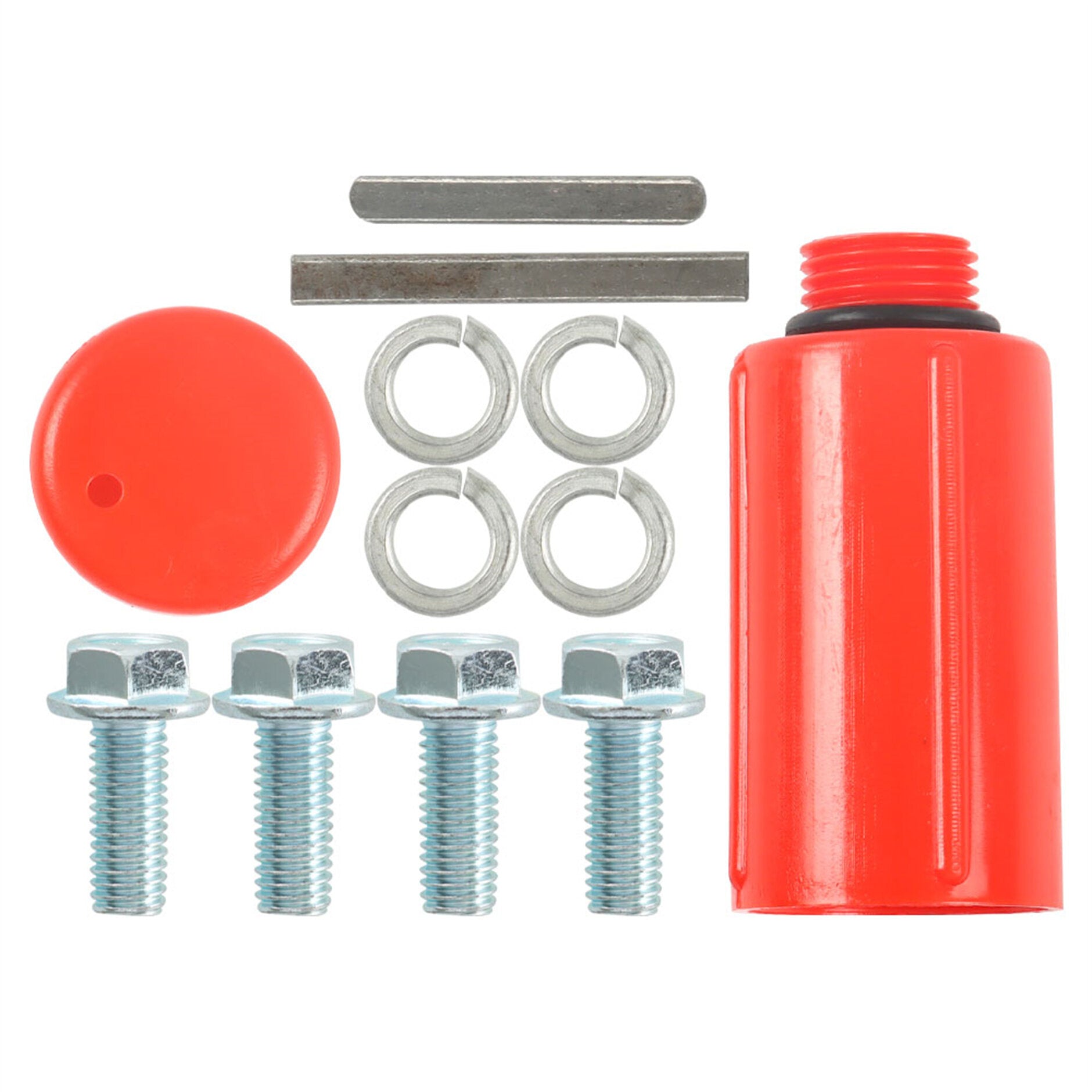

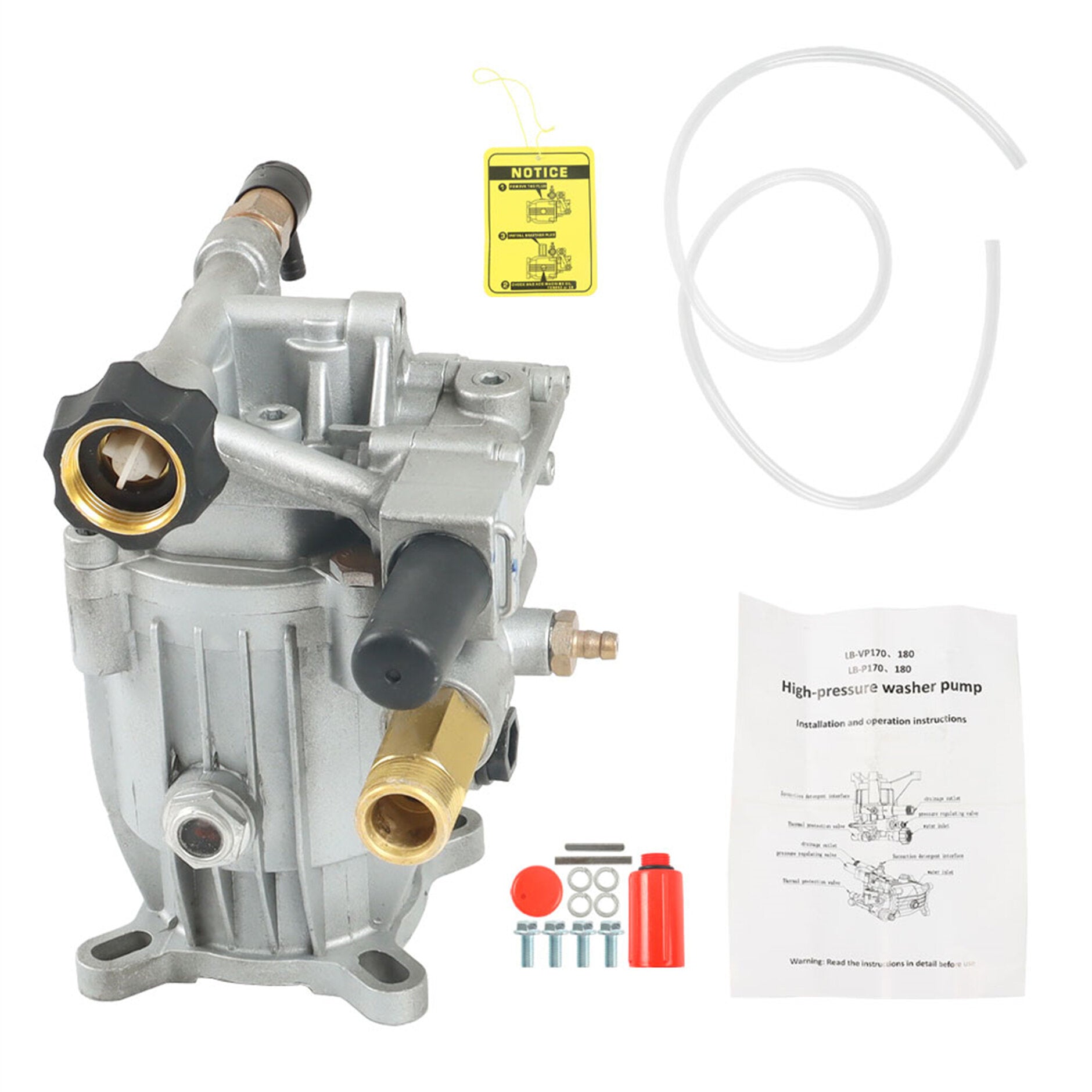

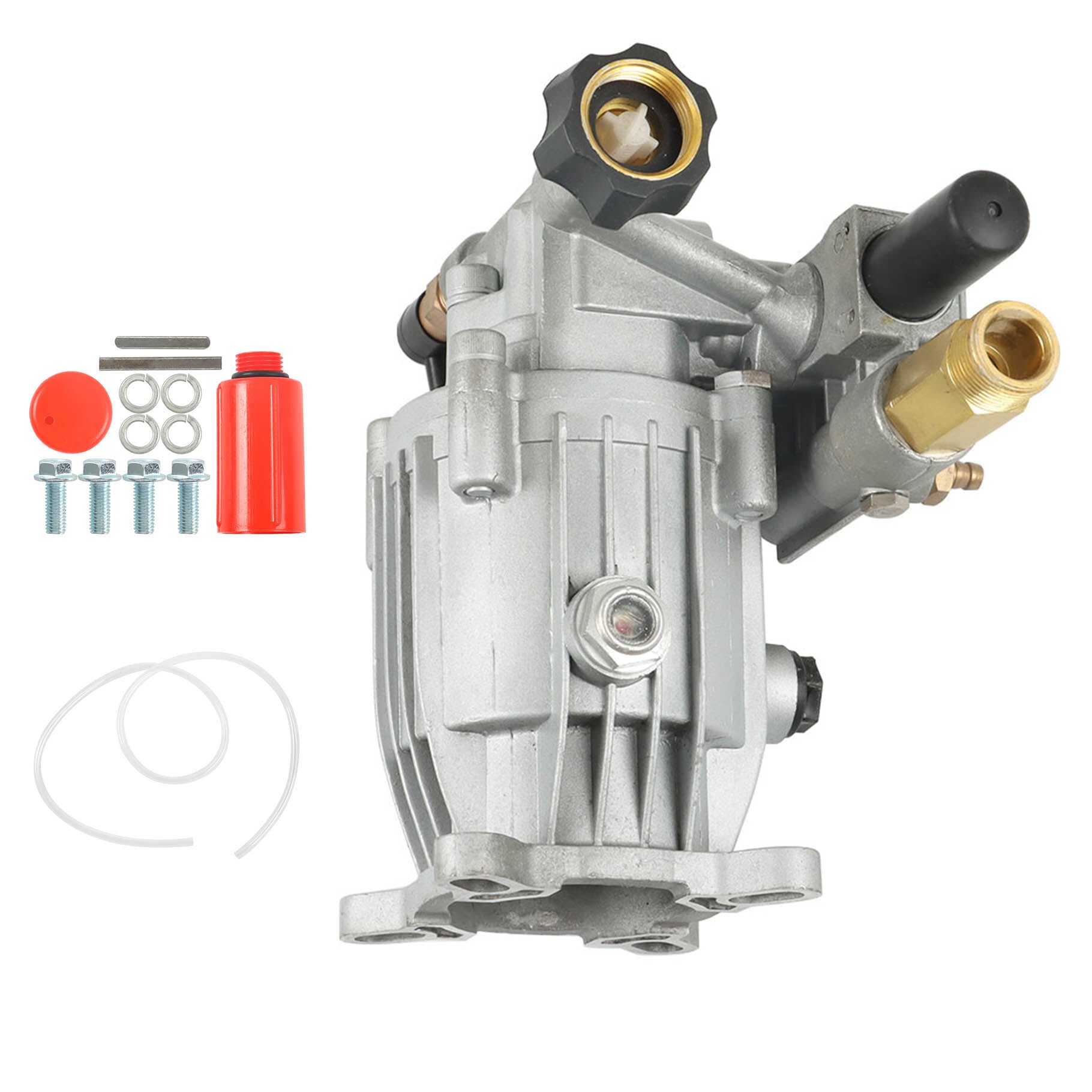

Package Includes:
1 × Pump
1 × User manual
4 × Flange bolts
2 × Keys
1 × Detergent tube

Make sure that the pump shaft key and engine shaft are properly matched and there is no skew. Otherwise, the components will be damaged and the pump will be invalid. *Please make sure your washing machine is ≥ 2400PSI, a lower pressure washer may not be able to drive the pump.
