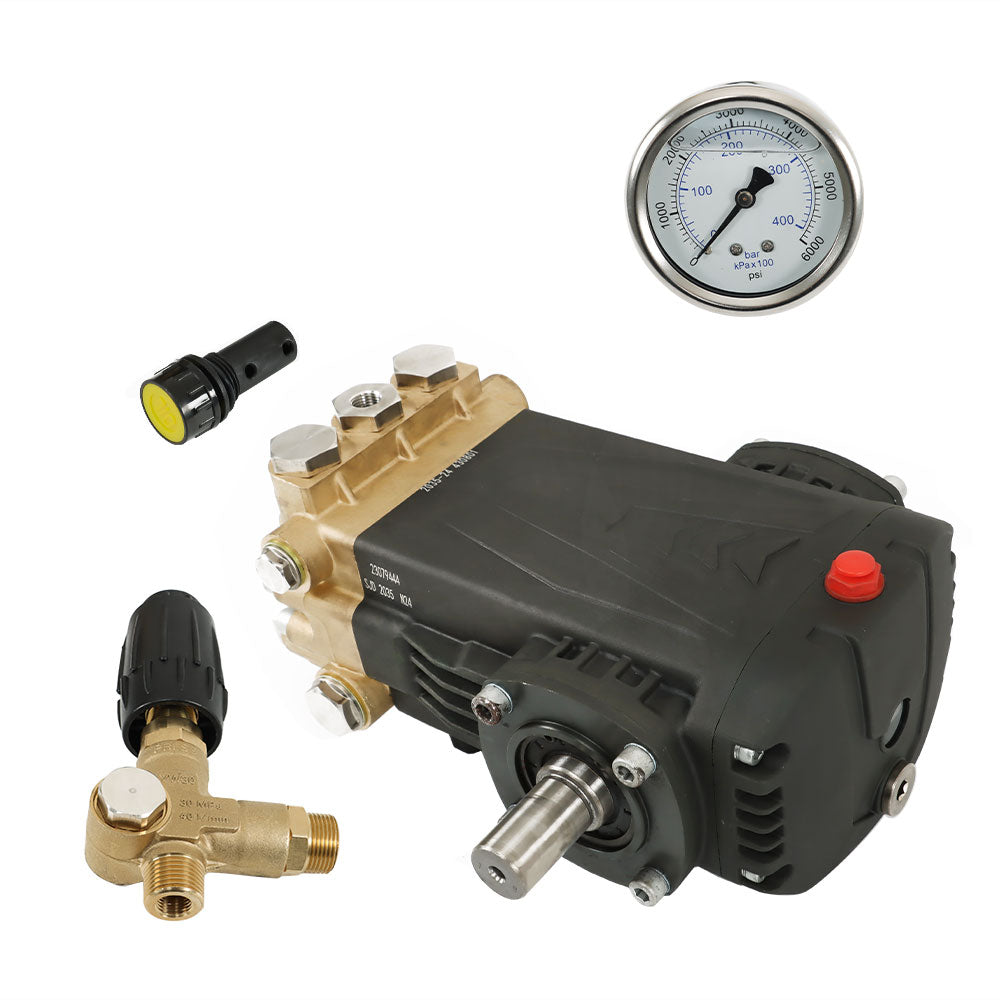

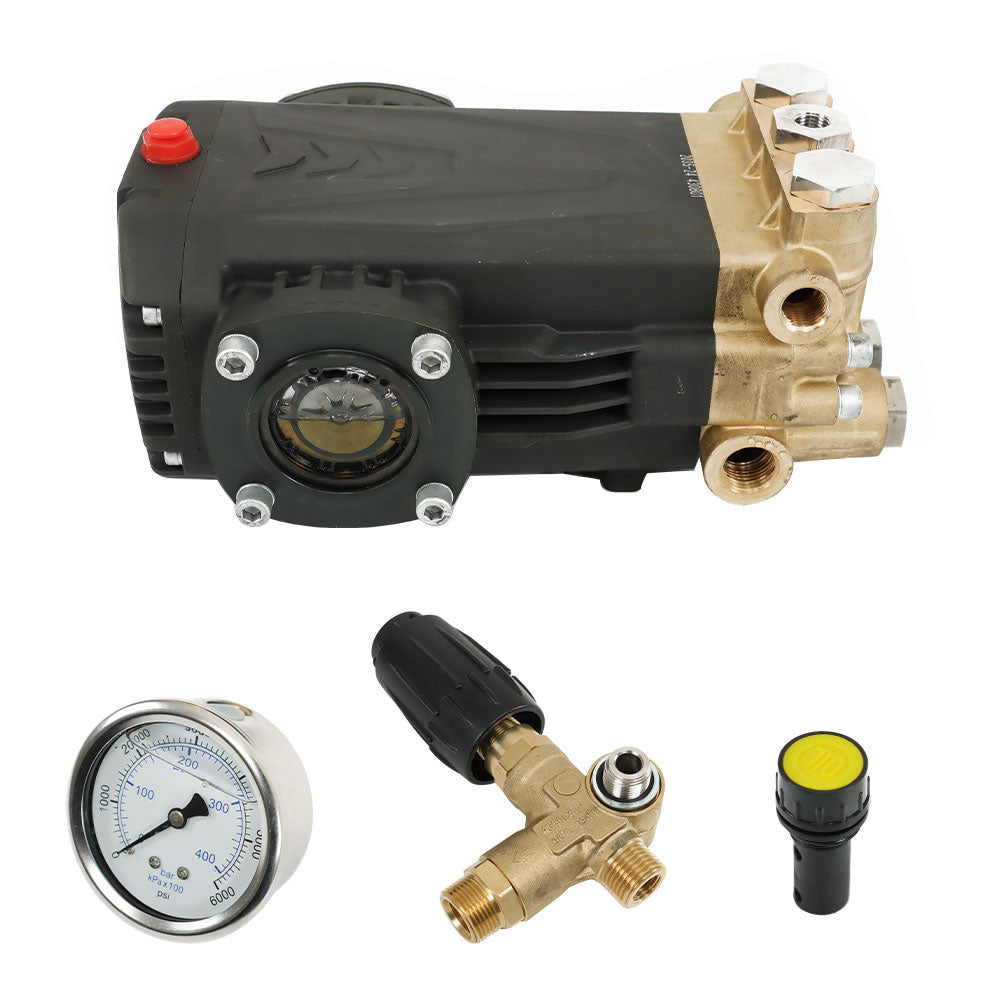

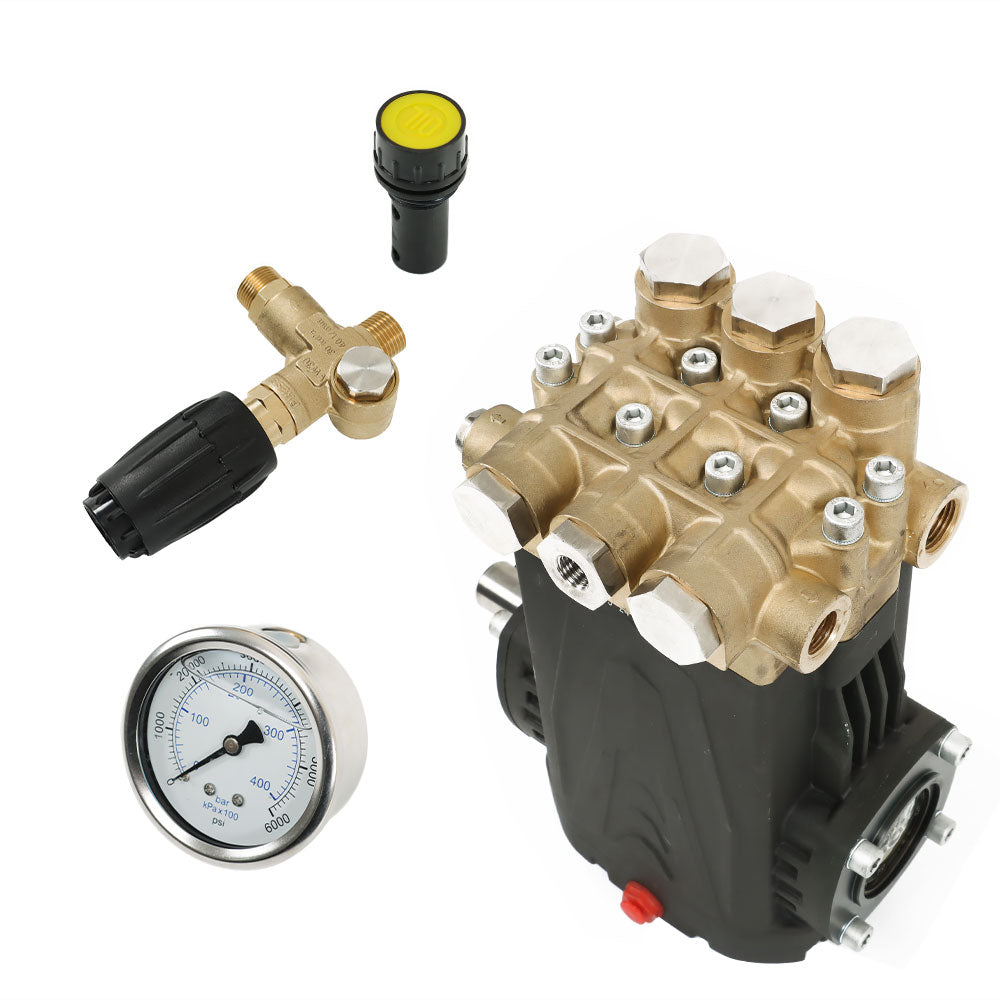

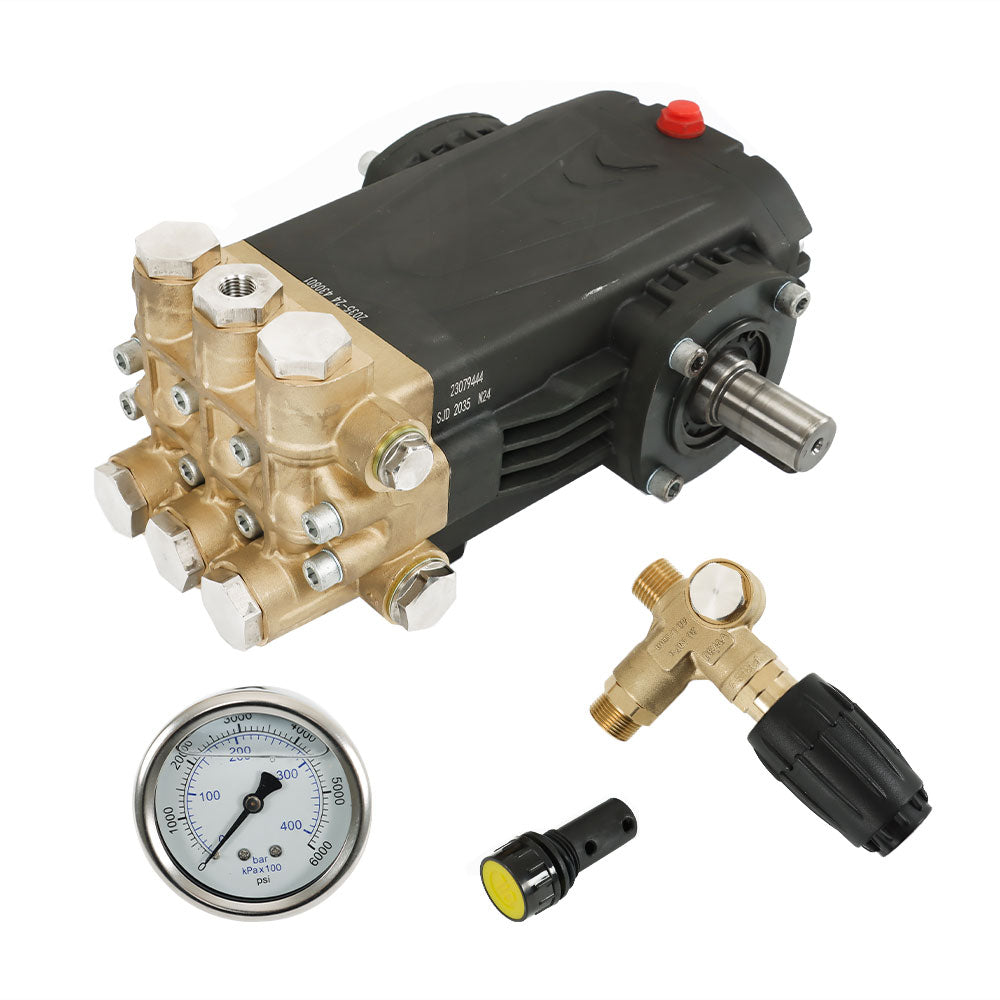

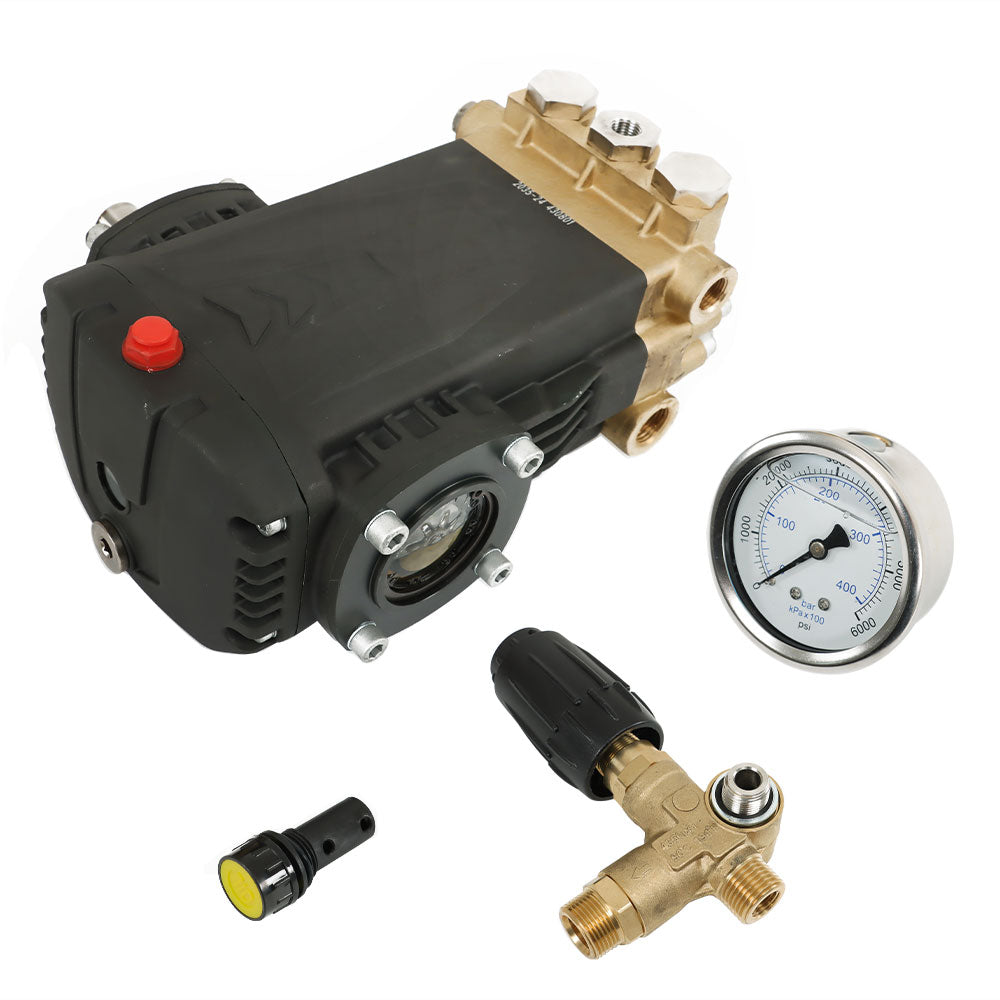

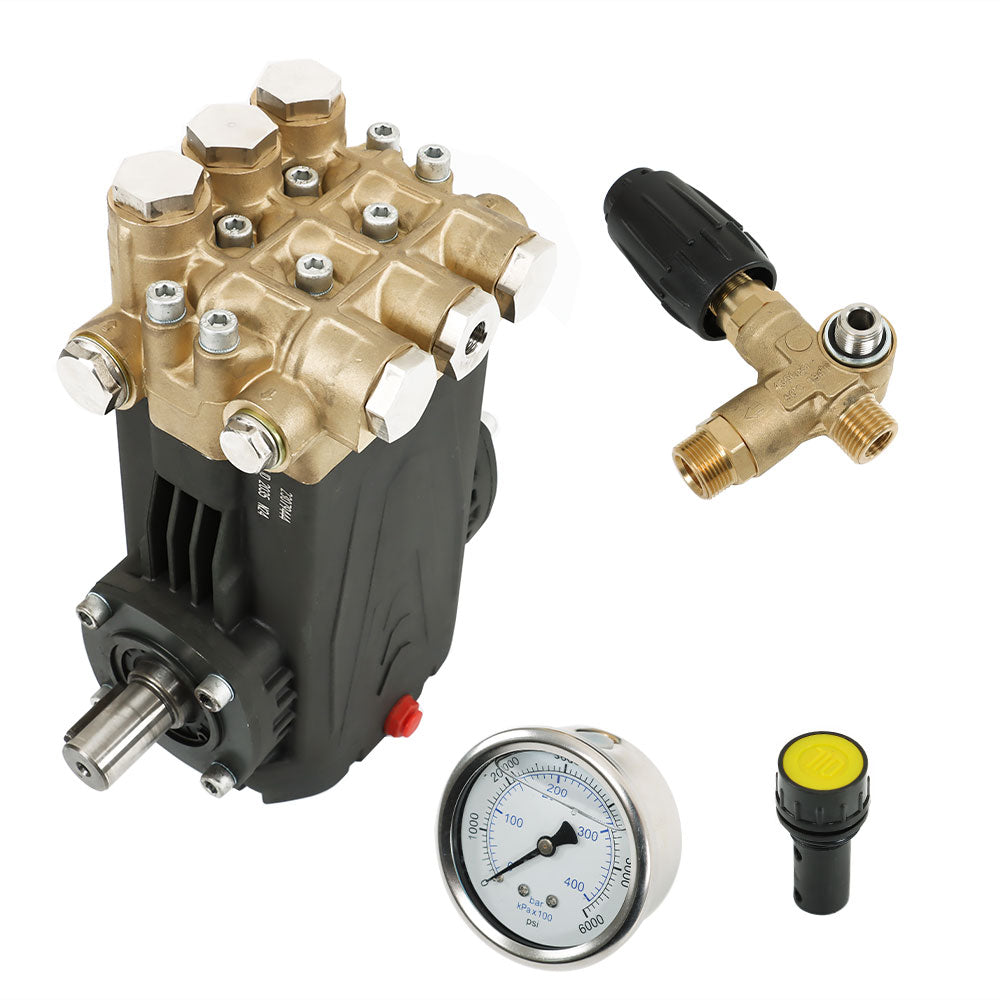

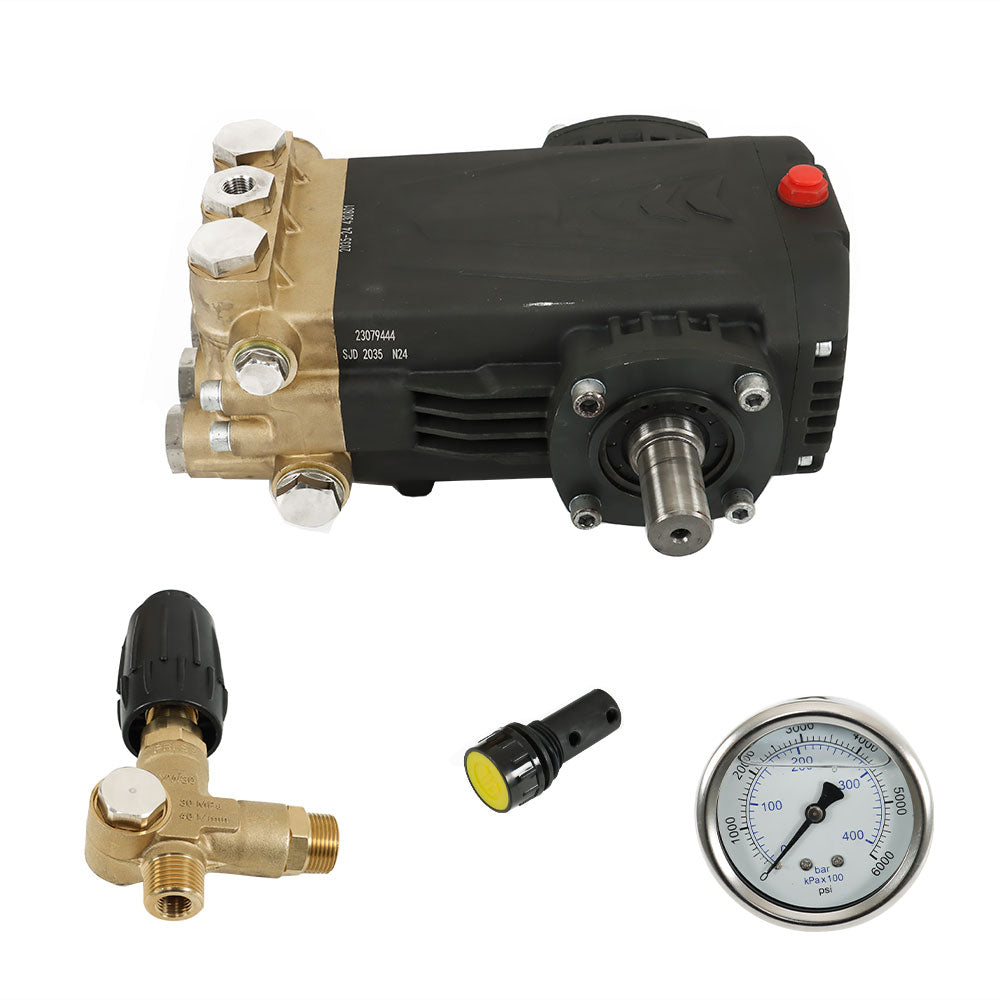

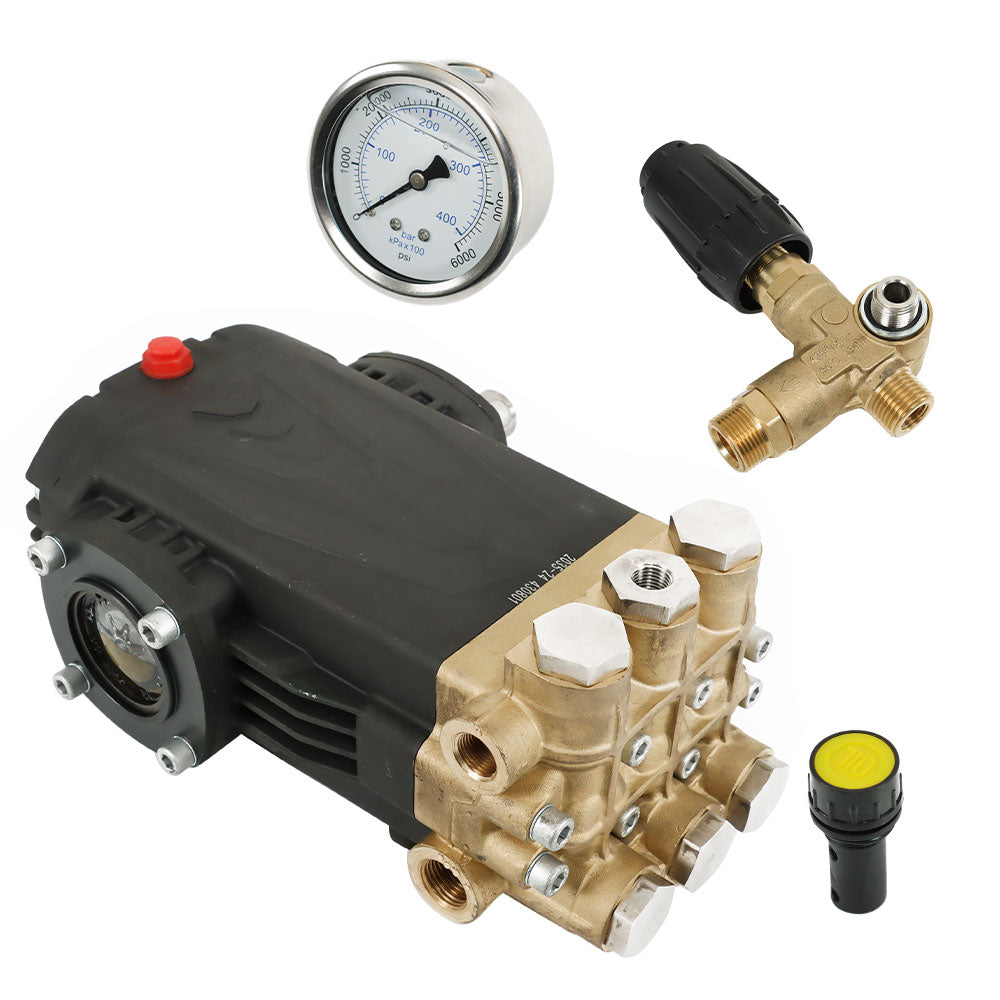

findmall 4.5 HP 5.6 GPM General Right Shaft 3500 PSI Pressure Washer Pump Belt Drive

Specification:

Maximum Volume: 4.5/5.6 gpm

Max. Discharge Pressure: 3500 psi

Maximum Pump Speed: 1125/1450 rpm

Maximum Inlet Pressure: 125 psi

Maximum Inlet Vacuum: 9 ft. water (7.9 in Hg)

Bore: .787 in / 20 mm

Stroke: .630 in / 16 mm

Crankcase Oil Capacity: 40.6 oz

Maximum Fluid Temperature: 165 Degrees Fahrenheit

Inlet Port Thread: 1/2-14 BSPP-F

Discharge Port Thread: 3/8-19 BSPP-F

Shaft Diameter: .945 in / 24 mm

Feature:

General Pump features a Nickel Plated forged brass manifold. The T Series 47 Triplex Plunger Pump is the preferred pump frame in the pressure cleaning industry and has heavy-duty tapered roller bearings and oversized connecting rods for maximum life.

The preferred pump frame in the pressure cleaning industry

Nickel-plated forged brass manifold with an exclusive lifetime warranty

Large-capacity, die-cast, anodized aluminum oil-bath crankcase

Over-sized connecting rods for maximum life

Heavy-duty tapered roller bearing.

Solid ceramic plungers with continuously lubricated packings

Unitized stainless steel inlet and discharge valves

Also available in left-handed shaft

Package Including:

1*General Right Shaft 3500 PSI Pressure Washer Pump
