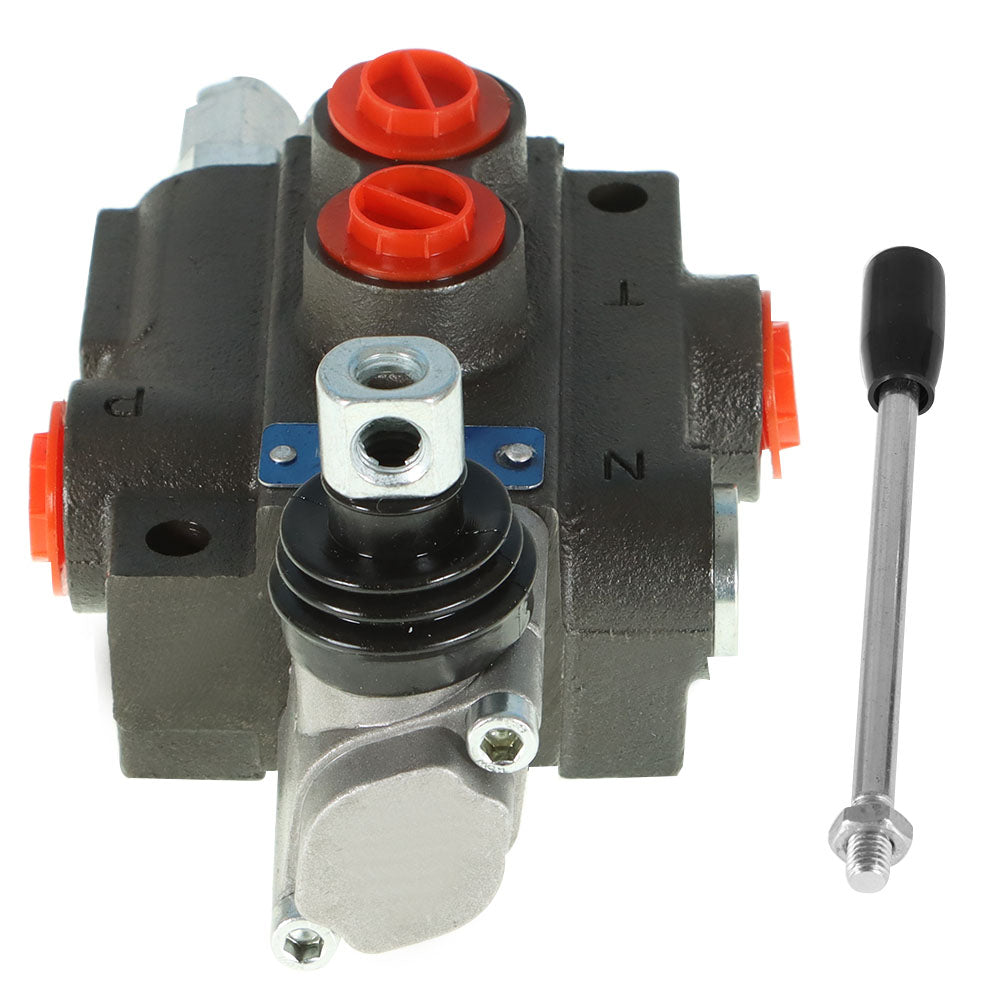

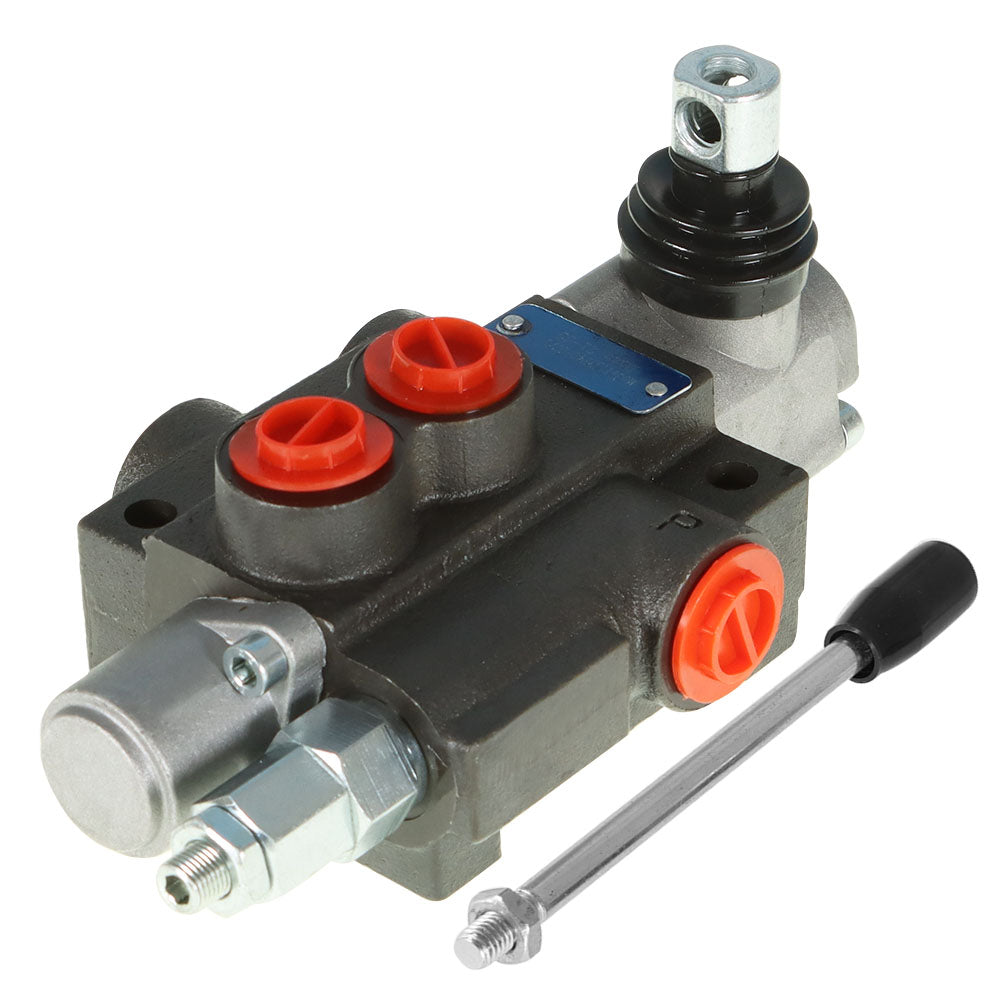

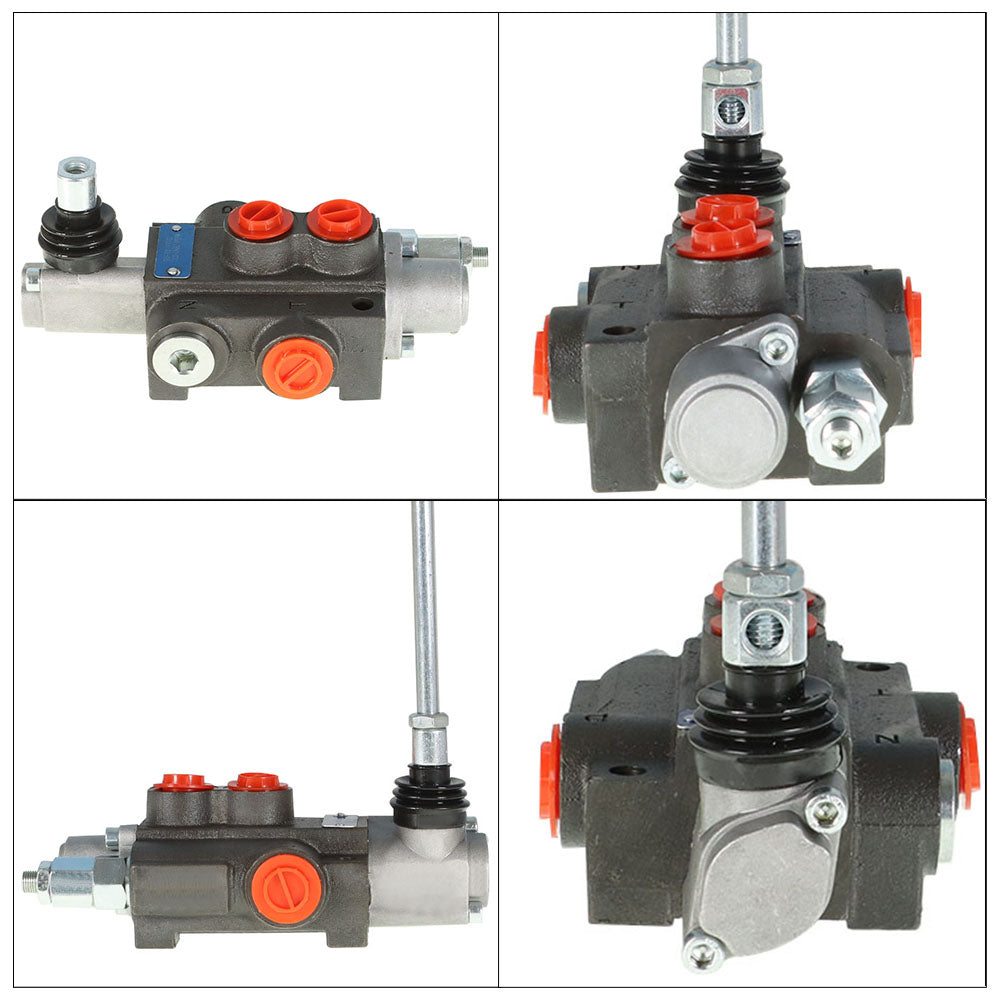

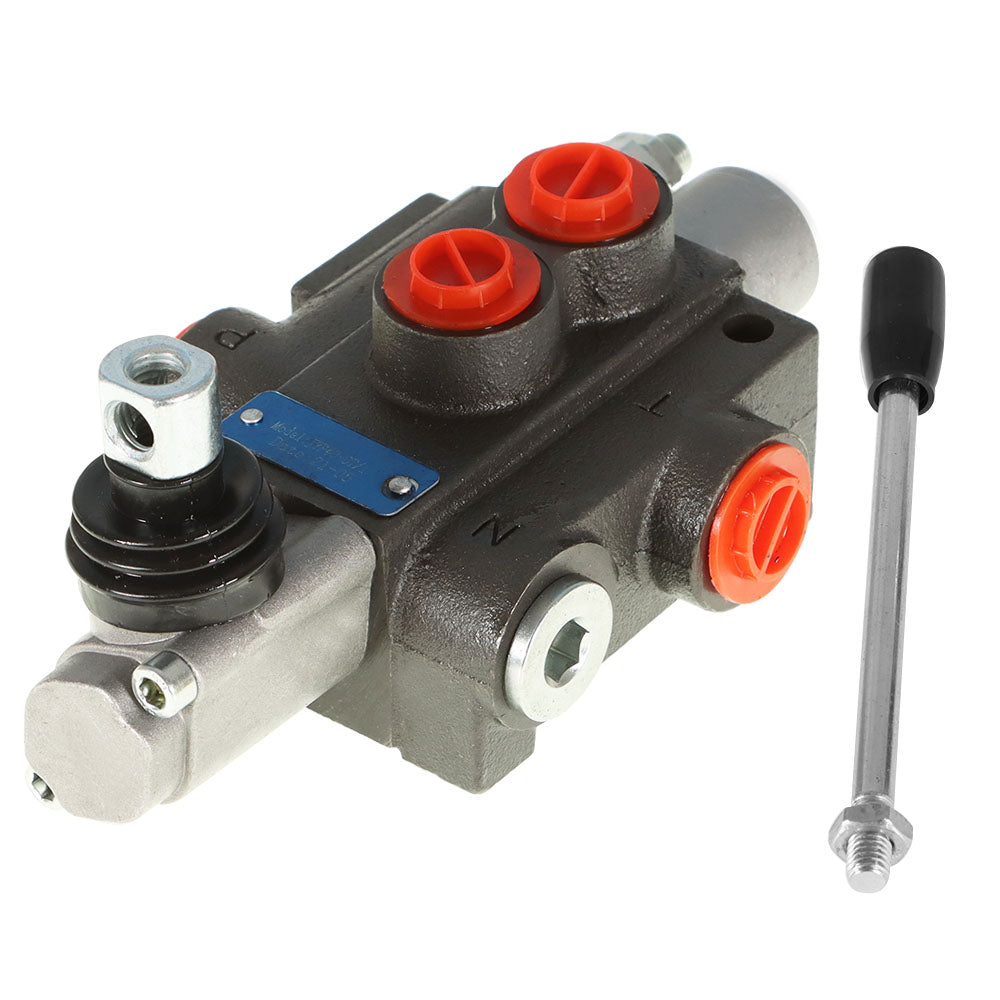

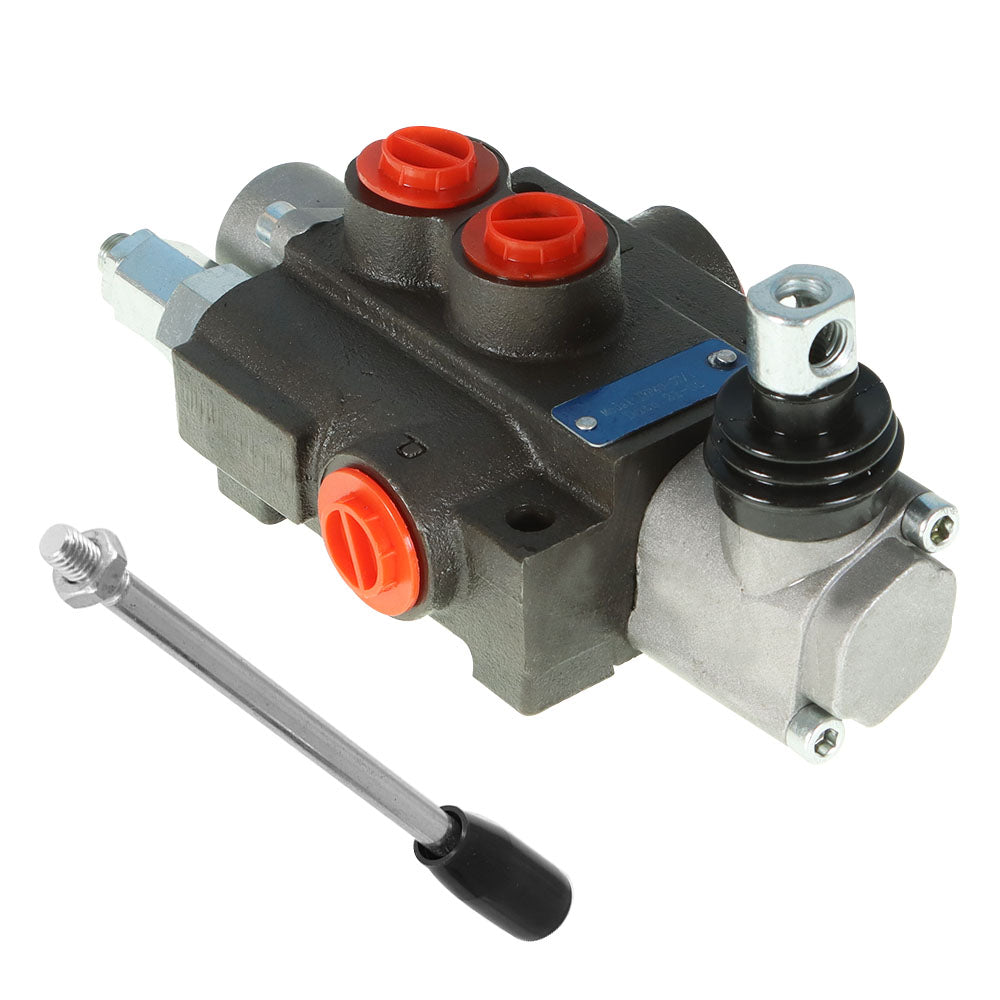

findmall 3600 PSI Hydraulic Controller 1 Spool 13 GPM BSPP Interface New

findmall 3600 PSI Hydraulic Controller 1 Spool 13 GPM BSPP Interface New

Regular price $68.00 USD
Regular price $75.55 USD Sale price $68.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Specification:

Max Operating Pressure: P = 3600PSI (250 Bar);
T = 150PSI (10 Bar);       A ,
B = 4300PSI (300 Bar)
Nominal Flow: 13GPM (60l/min)
Relief Valve: Adjustable
Center System: Open
A, B Ports: 3/8" BSPP
P, T, N Port: 1/2" BSPP
Back Pressure: ≤1MPA
Temperature: -20 - 80℃
Vise Rang: 10 - 400mm2/s
Filtrating Accuracy: ≤10um
Spool Count: 1-Spool
Compatible Equipment: Type Universal
Temperature: -20 - 80℃
Material: Steel
Manufacturer Warranty :1 Year

Features:

 4 Way 3 Positions. Spring center to neutral all spools.

The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

The check valve inside the valve body is to insure the hydraulic oil not to be returned.

 Hydraulic lock is available to be added on A and B port.

Fit for small tractors, tractors loaders, log splitters, and etc.

Inner Check Valve: The Check Valve Inside The Valve Body Is To Insure The Hydraulic Oil Not To Be Returned.

-Inner Relief Valve: The Relief Valve Inside The Valve Body Is Able To Adjust The Hydraulic System Working Pressure.

Oil Way: Parallel Circuit, Power Beyond Option

Control Way: Manual Control, Pneumatic Control, Hydraulic And Electric Control For Optional.

Valve Construction.

Monoblock Construction, 1-7 Levers.
Spool Function: O,Y, PA.
Option: Hydraulic Lock Is Available To Be Added On A And B Port.

Available With Manual,' Pneumatic Control, Electric And Pneumatic Control, Hydraulic And Electric Control And Etc.

Package Includes:

  1 x 1 spool 13 GPM hydraulic directional control valve
