findmall Double ActingHydraulic Valve 1 Spool 11Gpm Hydraulic Control Valve

Specification:

Max operating pressure: 3600 PSI

Inlet Port: SAE 7/8-14

Outlet Port: SAE 7/8-14

Working Ports: SAE7/8-14

Center system: Open

Relief valve: Adjustable

Nominal flow: 11gpm (40l/min)

A, B ports: 3/8" BSPP

P, T, N port: 1/2" BSPP

Weight: 6.8lb (3kg)

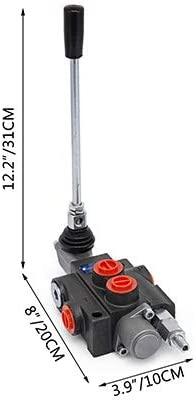

Dimensions (L* W* H): 12.2"*8"*3.9" (31*20*10 cm)

Features:

Double Acting: Hydraulic control valve for operating double acting cylinders.

Durable Quality: Come with 1 spool and #8 SAE O-ring in/out ports, with cast iron construction for long-time use.

High-efficiency: The relief valve range is up to 3600 PSI and the maximum flow is up to 11 GPM.

Spring Return: All spools standard come with spring return, which can return to the neutral position.

Widely Used: Fit for small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.

Package Includes:

1 x 1 spool 11GPM hydraulic directional control valve
All spools are standard double acting with spring return in the neutral position.
