findmall 7 Spool Hydraulic Directional Control Valve 11gpm,40L,2 Joystick,BSPP Interface
findmall 7 Spool Hydraulic Directional Control Valve 11gpm,40L,2 Joystick,BSPP Interface
In stock
Aplication:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction, and well-known industries.
The distributor is adapted to different types of machines, such as B. agricultural machines, tractors, sprayers, round vehicles, cyclo-loaders, HDS loaders, construction machinery, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.
Technical specifications:
Recommended oil flow: 0 - 40 l / min. Example control: two 2-way drives.
Possibility of serial connection to the existing system (pressure sleeve required).
Control:
Joystick with five positions (1 - 2 - 0 - 3 - 4) on the spring, i.e. it returns to the vertical:
Position 0 neutral (joystick positioned vertically) piston rods of both drives are stationary - oil overflows.
Working position 1 (joystick lever tilted forward) The piston rod of the first actuator extends.
Working position 2 (joystick lever in an inclined position) The piston rod of the first drive is retracted.
Working position 3 (joystick lever inclined to the left) The piston rod of the other drive extends.
Working position 4 (joystick lever inclined to the right) The piston rod of the other drive is retracted.
Connection:
Pump supply (P1, P2): BSPP G1/2 internal thread
Back to the tank (T1, T2): BSPP G1/2 internal thread
Sections (A1, A2; B1, B2): BSPP G1/2 internal thread
Serial connection (N): BSPP G1/2 internal thread
Pressure range:
Maximum pressure on the supply: 250bar
Maximum return pressure: 50 bar
Maximum pressure on the sections: 300 bar

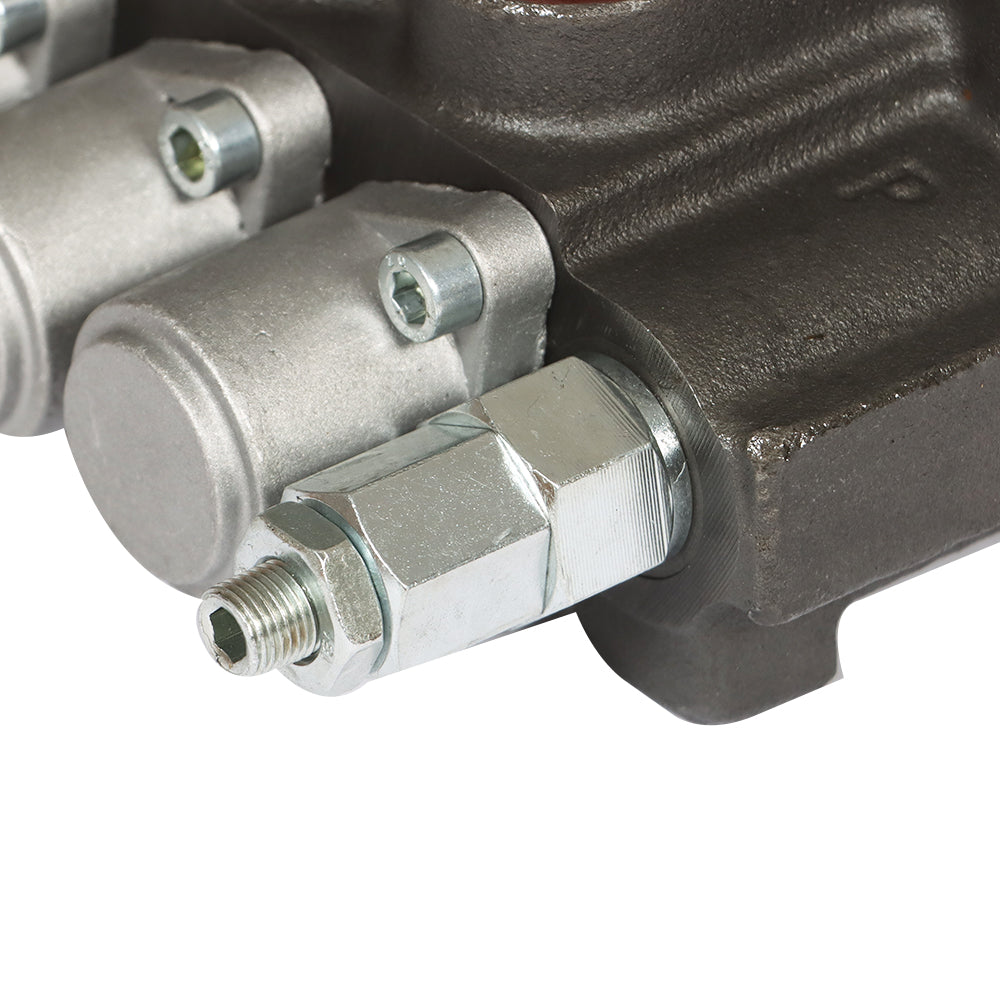

The overflow valve is factory-set to 175 bar
Possibility of self-regulation, full turnover change by 30bar.
