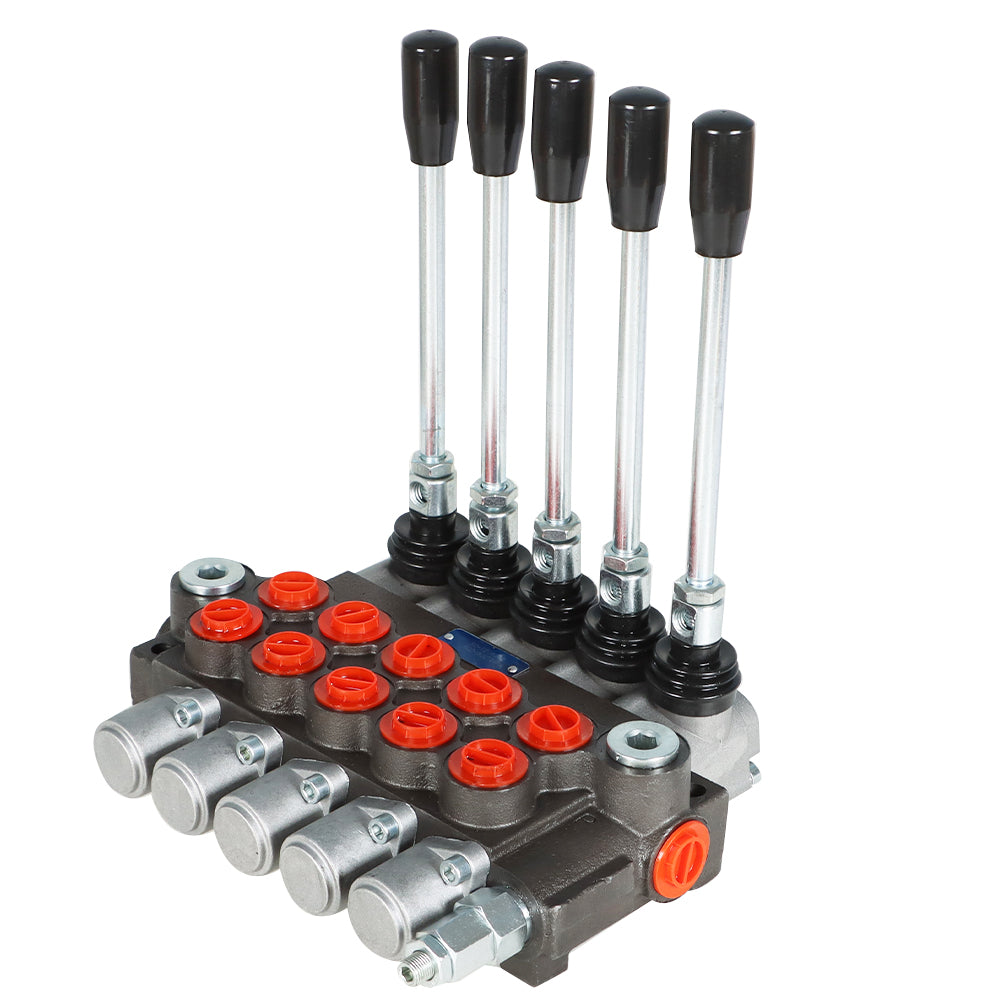

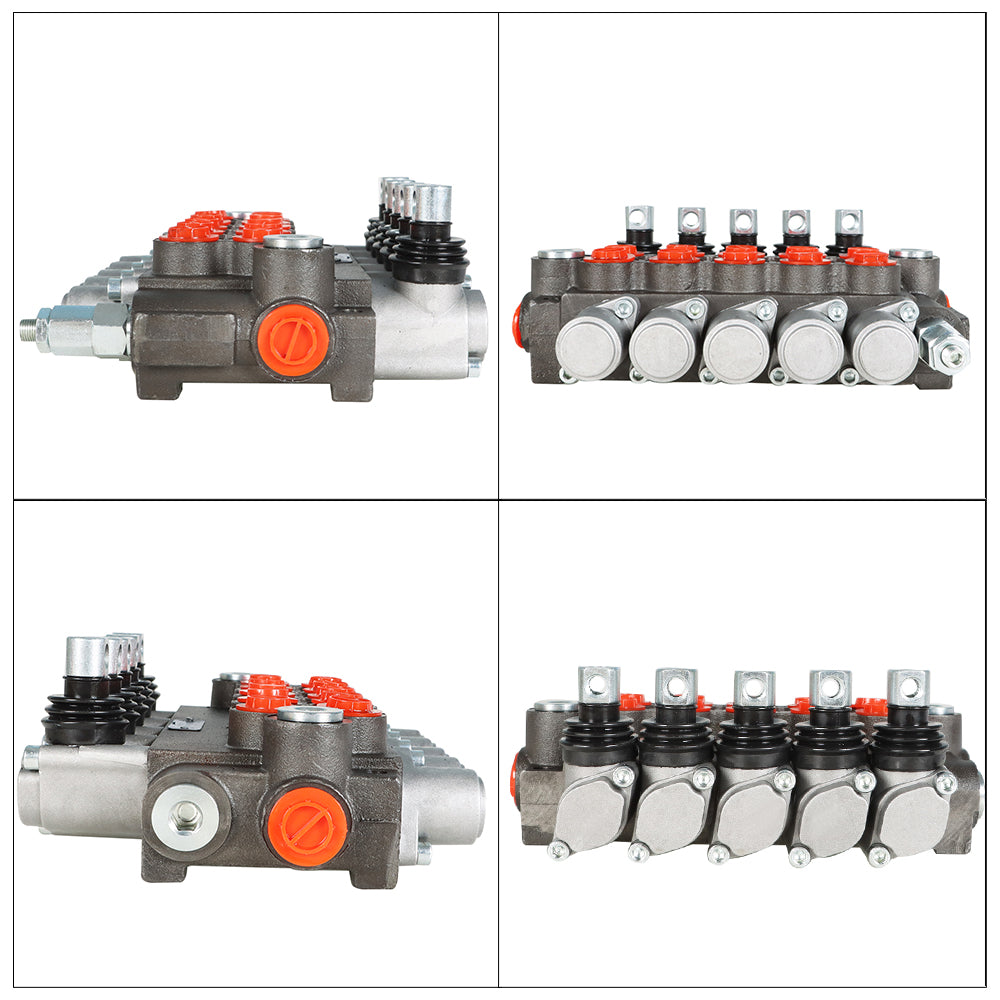

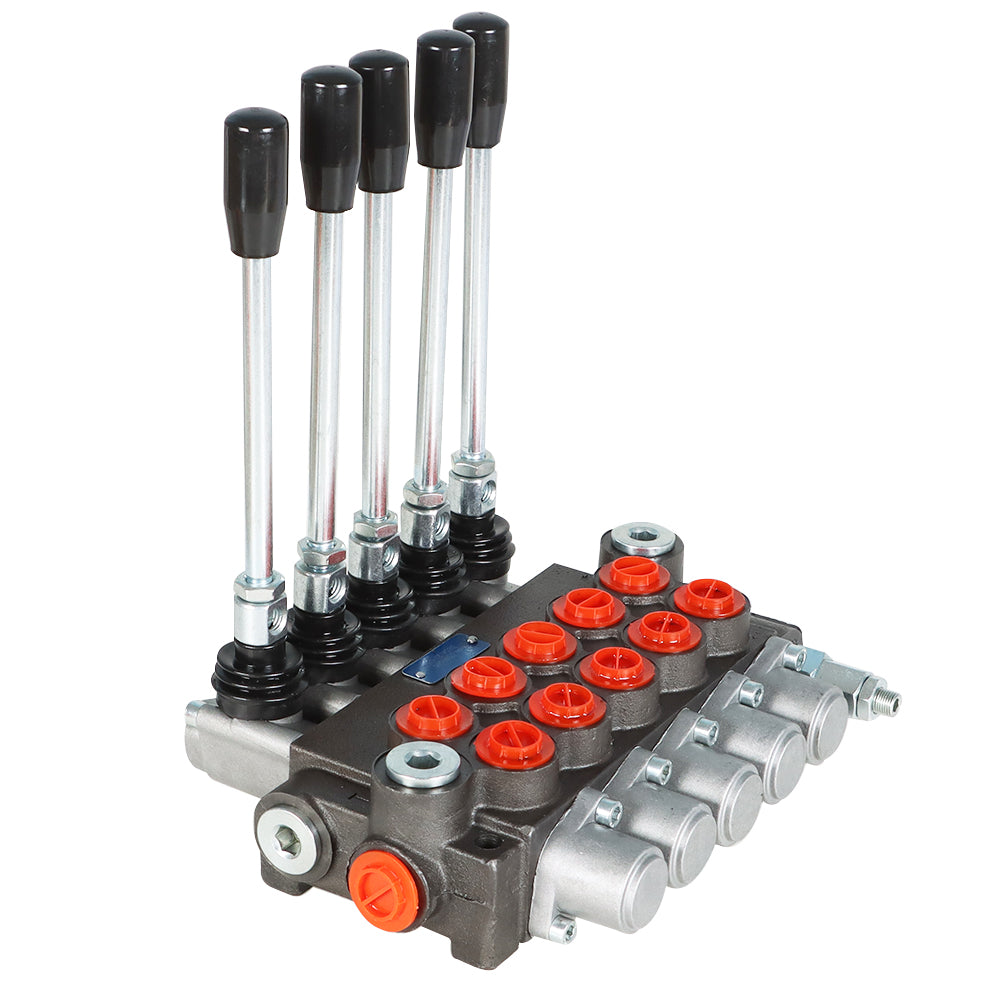

findmall 5 Spools 13 GPM Hydraulic Directional Control Valve 3600Psi SAE Ports NEW

Listing Description:

This hydraulic directional control valve is designed to manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc.
Its' compact design allows to use the control valve in small tractors, tractors loaders, log splitters & other mobile applications.

Product Specifications:

5 Spool monoblock valve
Flow 13 GPM13 GPM (50L)
3600 PSI MAX Pressure
Adjustable release valve
Inlet port SAE 10
Outlet port SAE 10
Working ports SAE 8
4 Way 3 Positions
Spring center to neutral all spools
Durable cast iron body
Fluid temperature from 5 to 176F
Mounting with 2 bolts M8

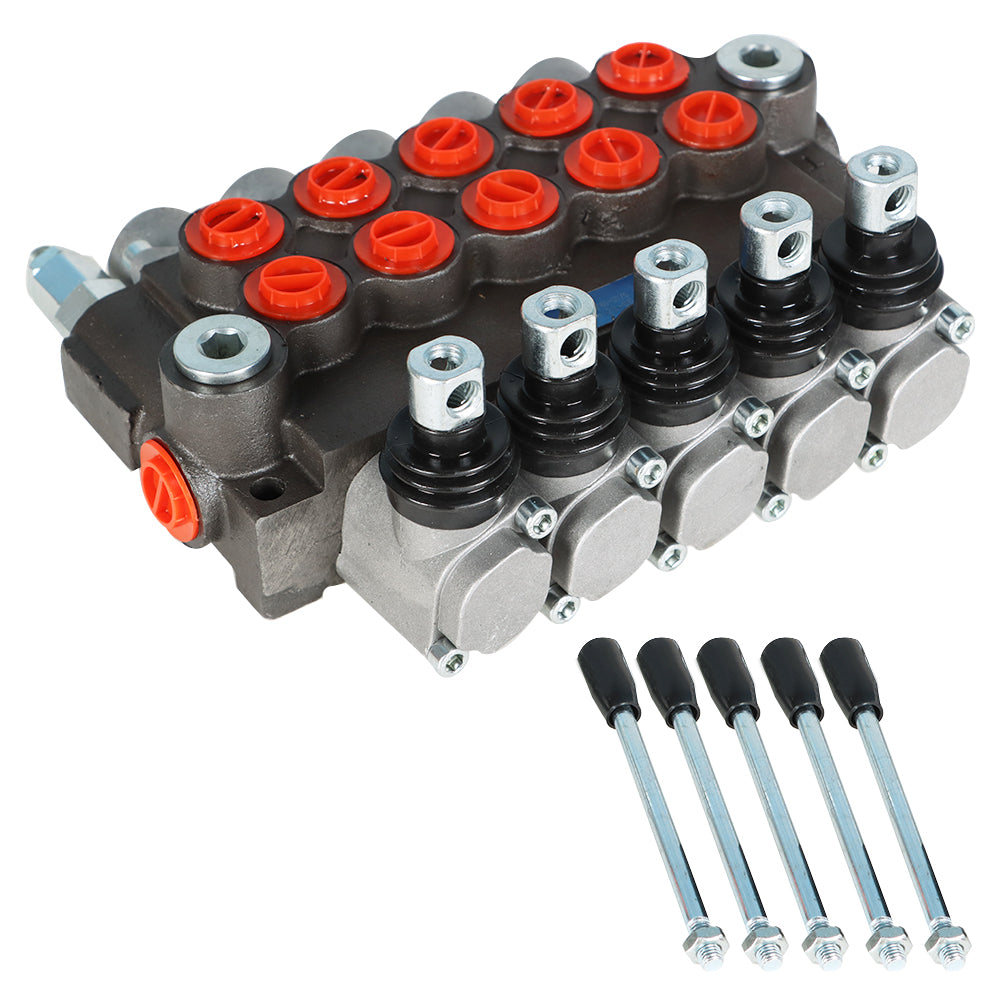

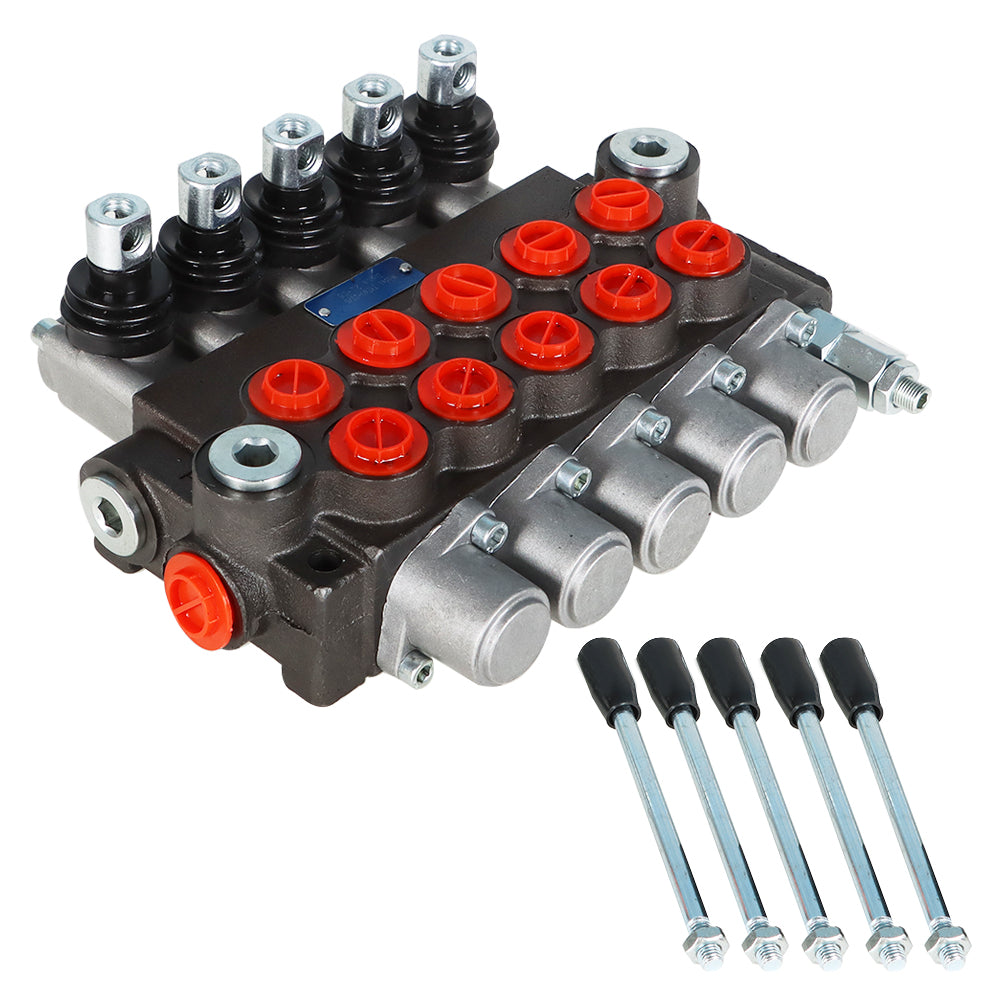

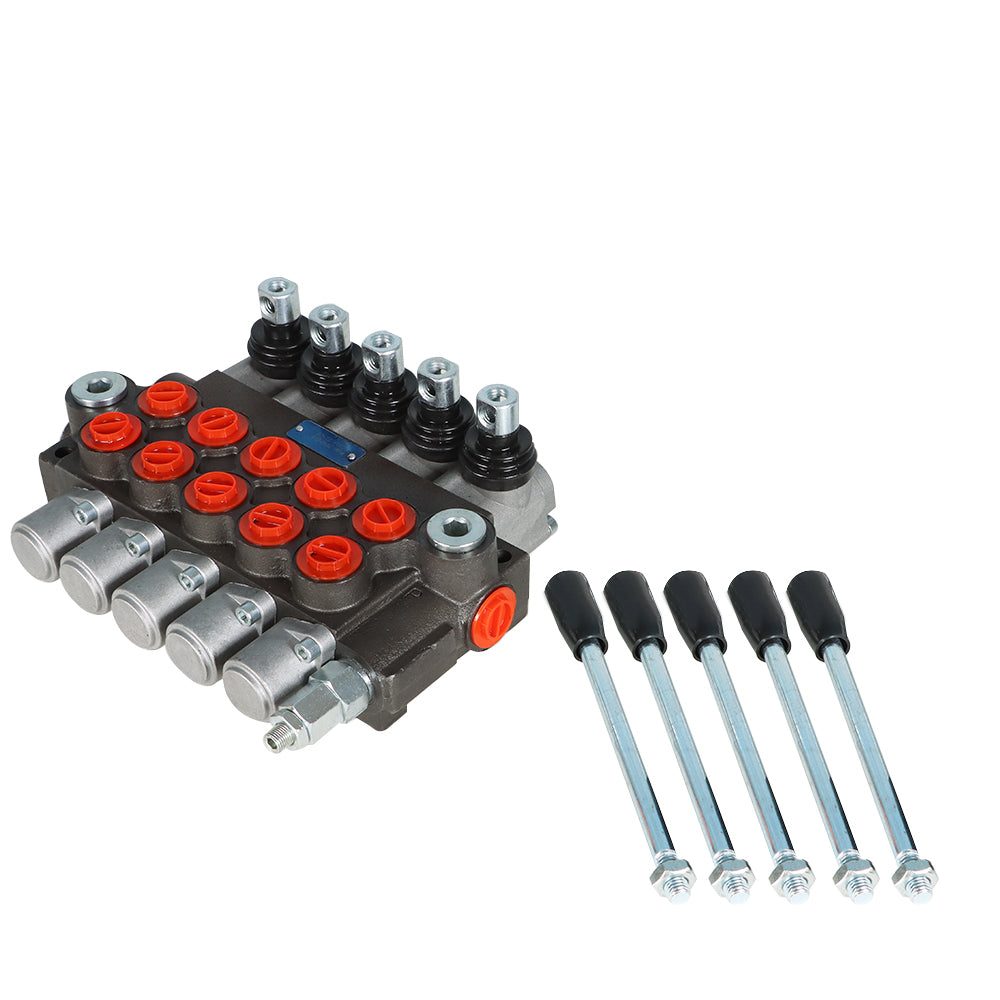

Handle mounting vertically or horizontally
Spool Count: 5-Spool
Valve Operation: Manual

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Please allow slight dimension difference due to different manual measurement. Thank you for your understanding.
