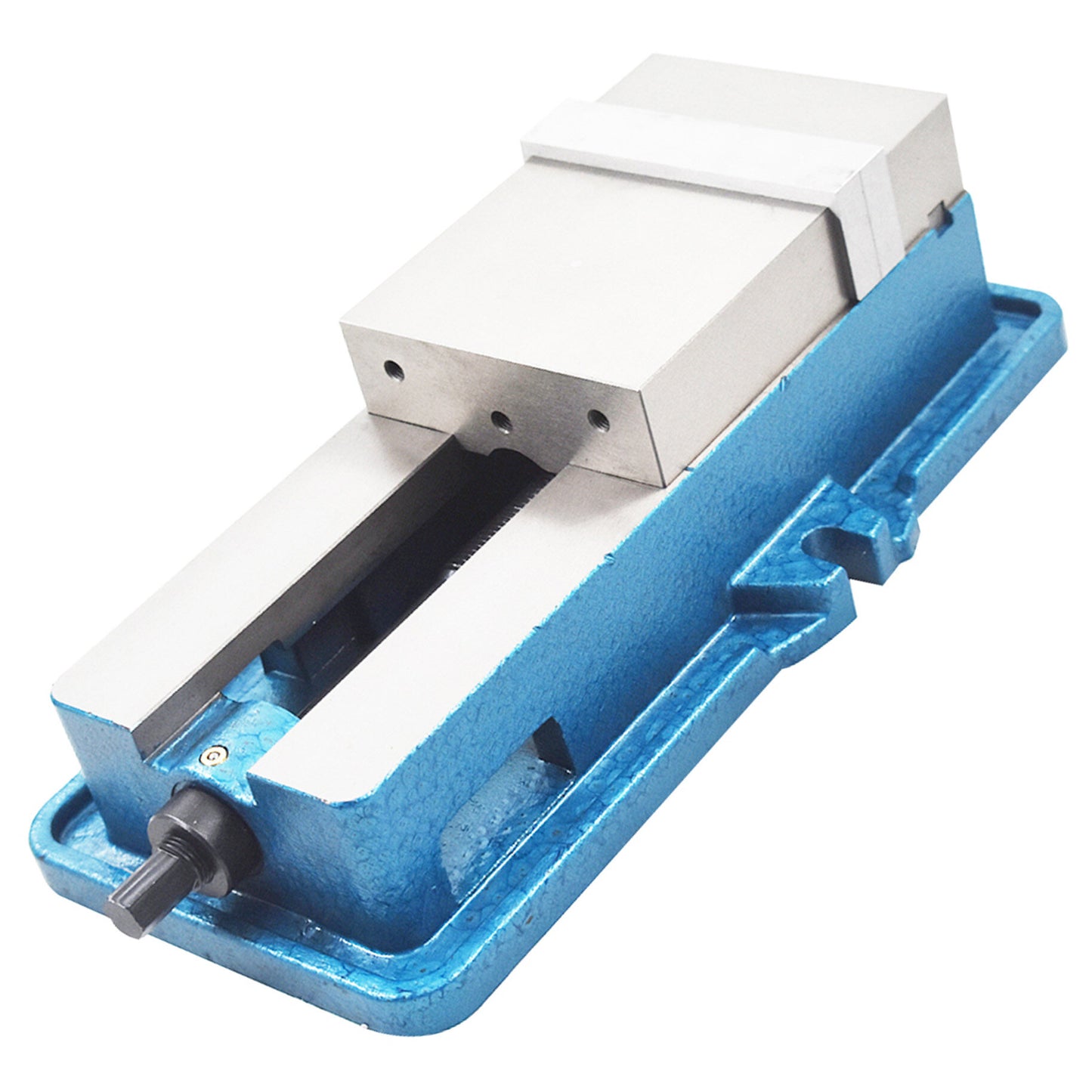

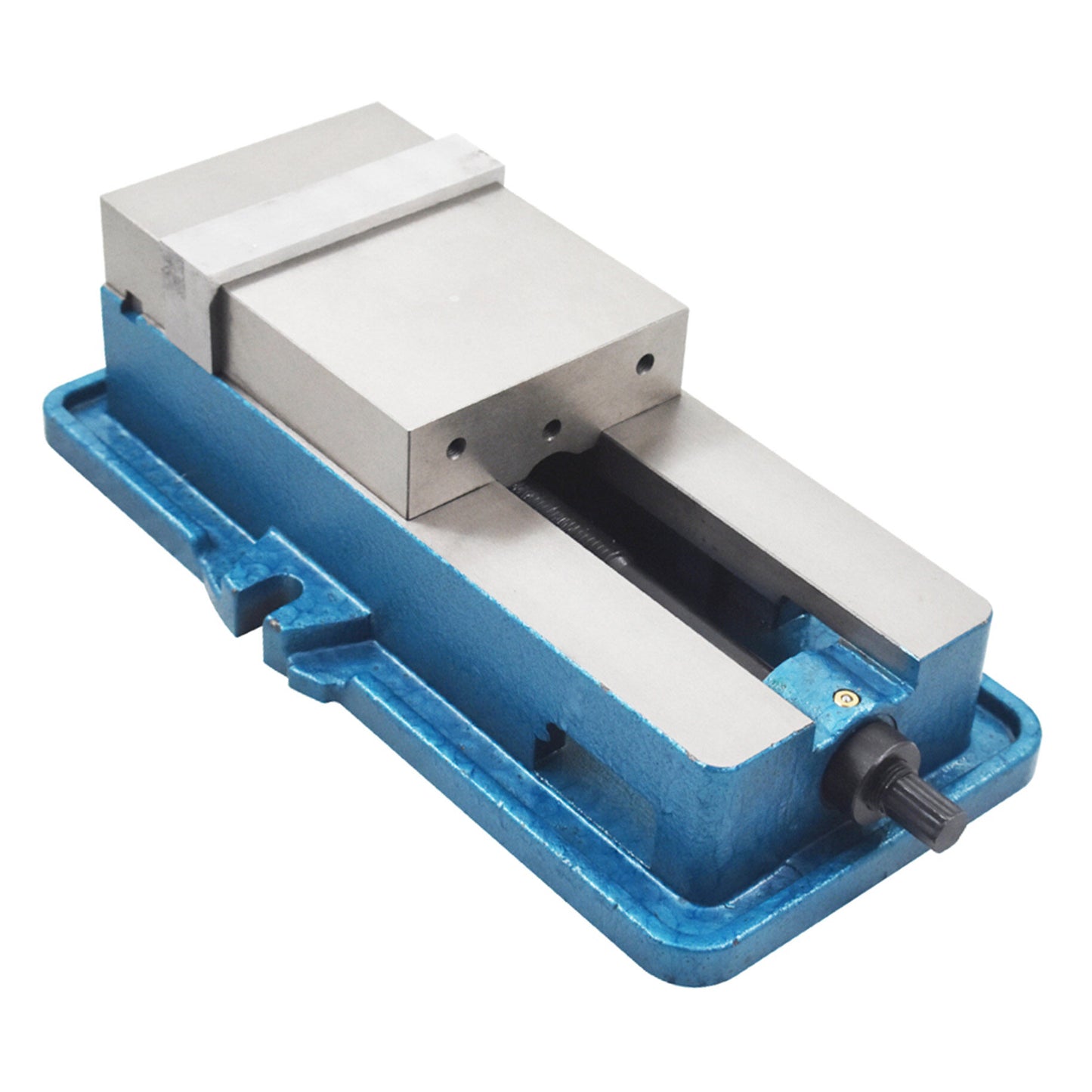

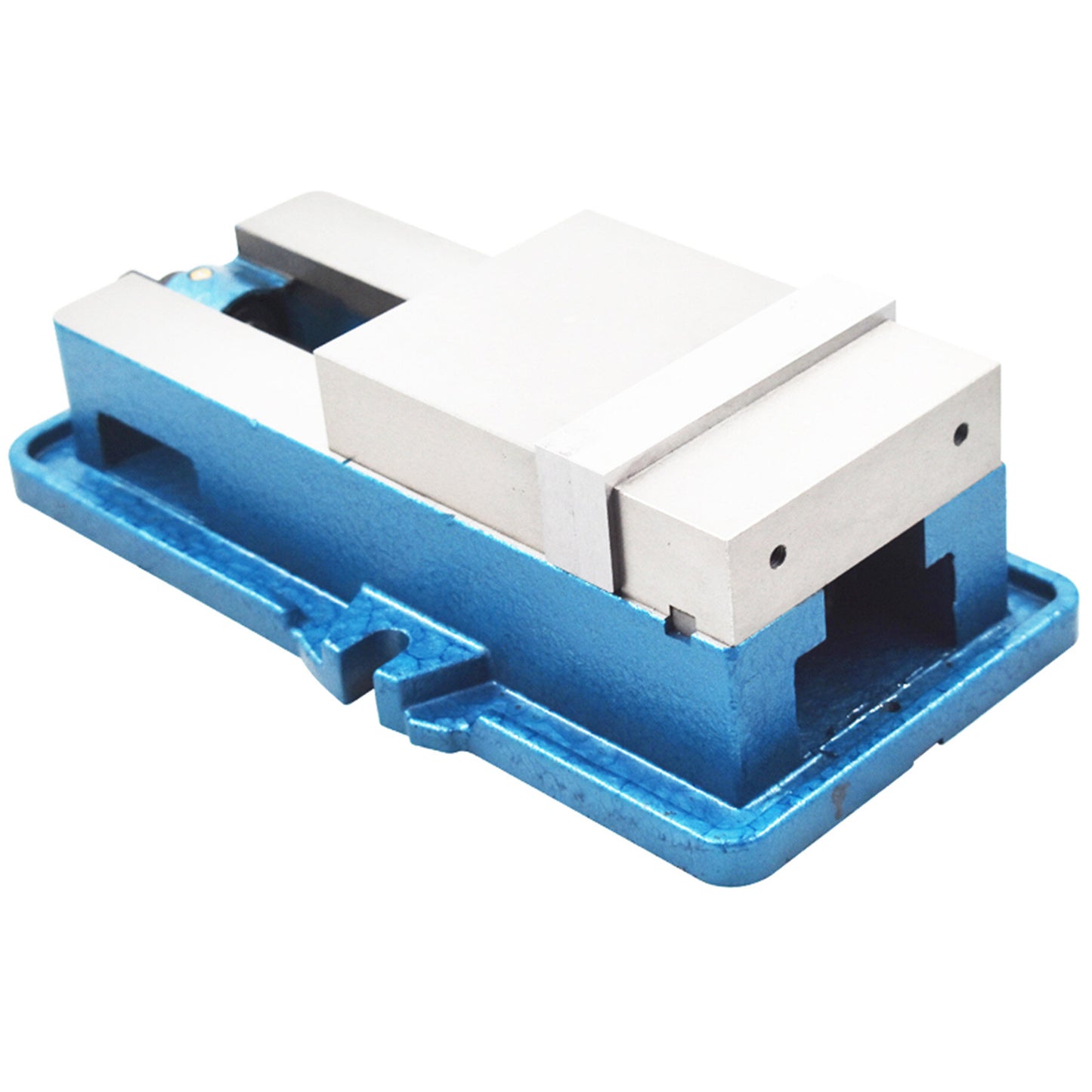

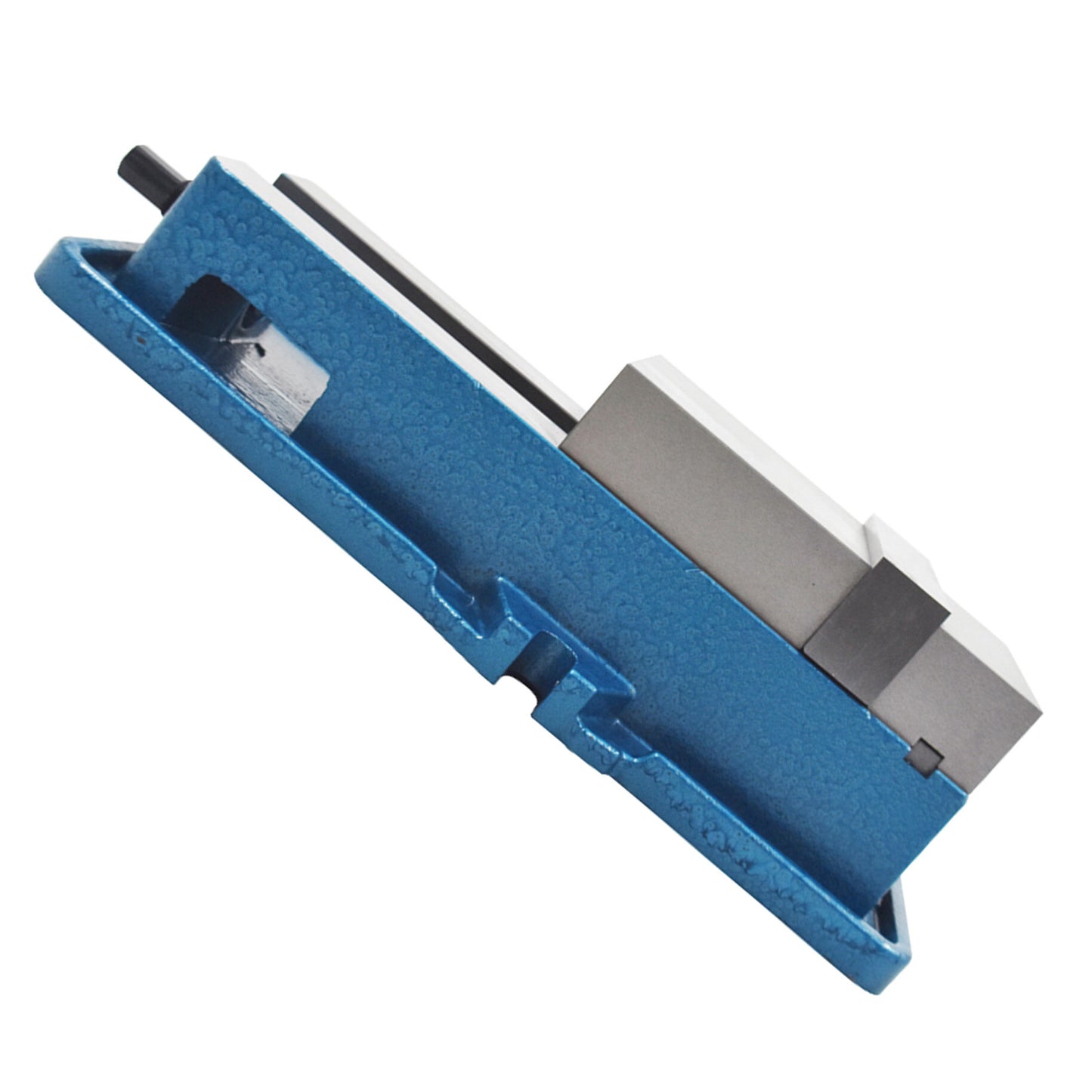

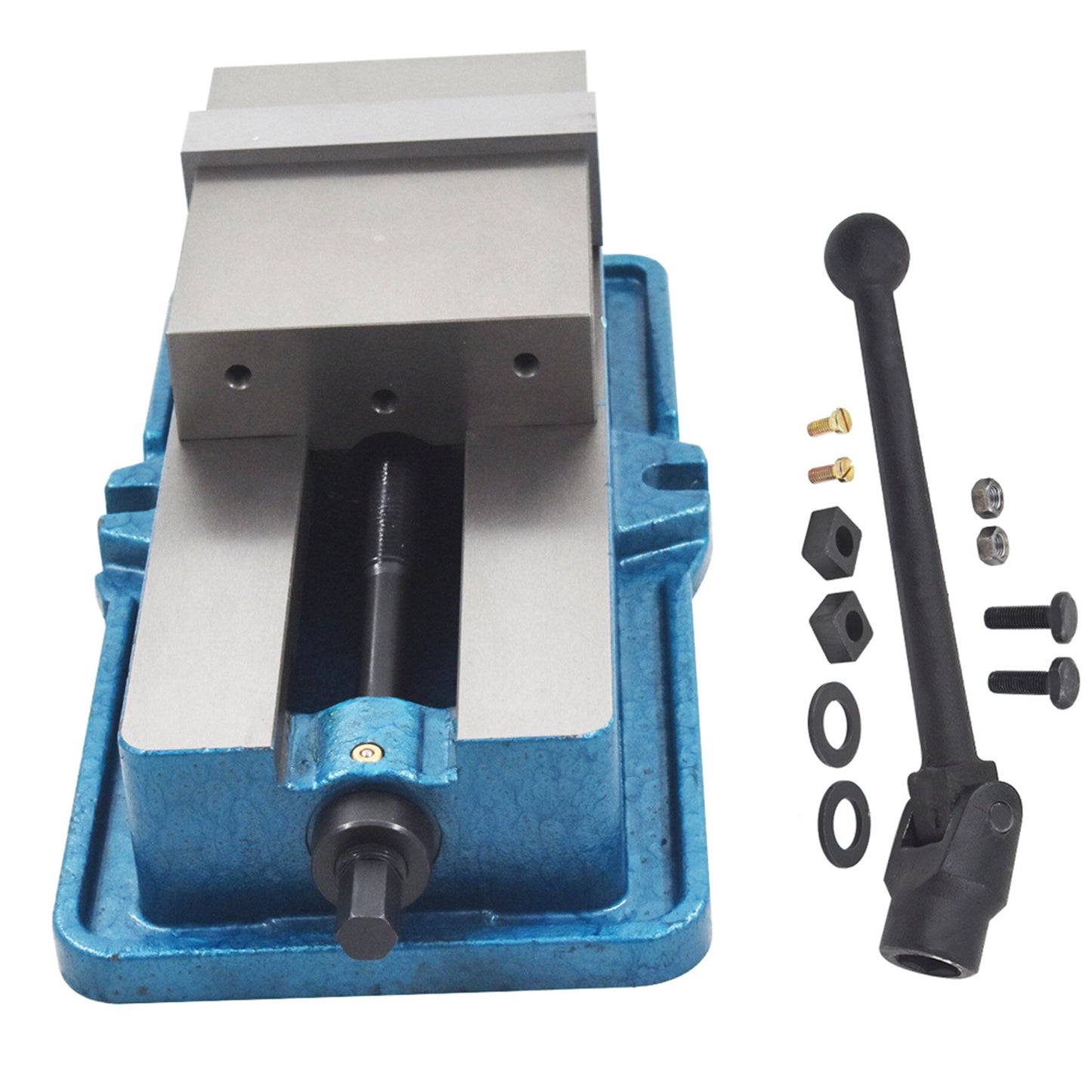

findmall 5 Inch Lock Down Vise Accuracy Milling Vice 5 Inch Jaw Width Drill Press Vise Milling Drilling Machine Bench Clamp Clamping Vice(5")

Dimensions

Jaw Width: 5"

Jaw Opening: 4.92"

Jaw Height: 1-1/2"

Weight: 52 Lbs

Accurate to 0.002 per 4 on squareness and 0.006 per 4 on parallelism without base

Vise Key: 14.00mm table slot width, 15.875mm base width

Product features

Each pound of force in horizontal induces 1/2 lb of downward force, eliminating jaw tilt.

This Vise is so designed that the horizontal force generated by tightening the handle pushes the semi-sphere within the movable jaw and thus thrusts the movable jaw downward. The workplace does not move up, even if it is held at the top of the jaw plates.

Highest clamping power. It's very accurate and durable

Sliding surface of the vise bed is flame hardened and ground

Vise bed is made from grey cast iron and the maximum tensile strength of the vise bed is 28,000 PSI

With Angle Lock / Lock Down Jaw.

K type angle lock nut is made from the highest quality ductile Iron, firm and durable

Acme screws and easy to read 0-360 deg scales

Screws from the top through the jaw make the vise more stable and durable. Taiwan new type

Four setting positions of the jaw plates are available, widening the jaw plates opening
