findmall Electric Motor 5HP 7/8''Shaft Compressor Duty 230V 1Phase 3450RPM 56 HZ

findmall Electric Motor 5HP 7/8''Shaft Compressor Duty 230V 1Phase 3450RPM 56 HZ

Regular price $265.67 USD
Regular price $295.19 USD Sale price $265.67 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Specification:

Open Drip Proof (ODP)

Single Phase

5 HP

3450 RPM

60hz

230 Volts

AMB 40 °C

Frame: 56 HZ

Duty: Cont. Compressor

Service Factor: 1.0

Full Load Amps: 22

INS. CL: F

Non-reversible, CCW Rotation Facing Shaft

Thermally Protected

Overall Length W/O Shaft: 12.5"

Overall Length With Shaft: 14.85"

Overall Height: 8.65"

Overall Width: 6.6"

Shaft Diameter: 7/8"

Shaft Length: 2-3/8"

Standard Size Keyway: 3/16"

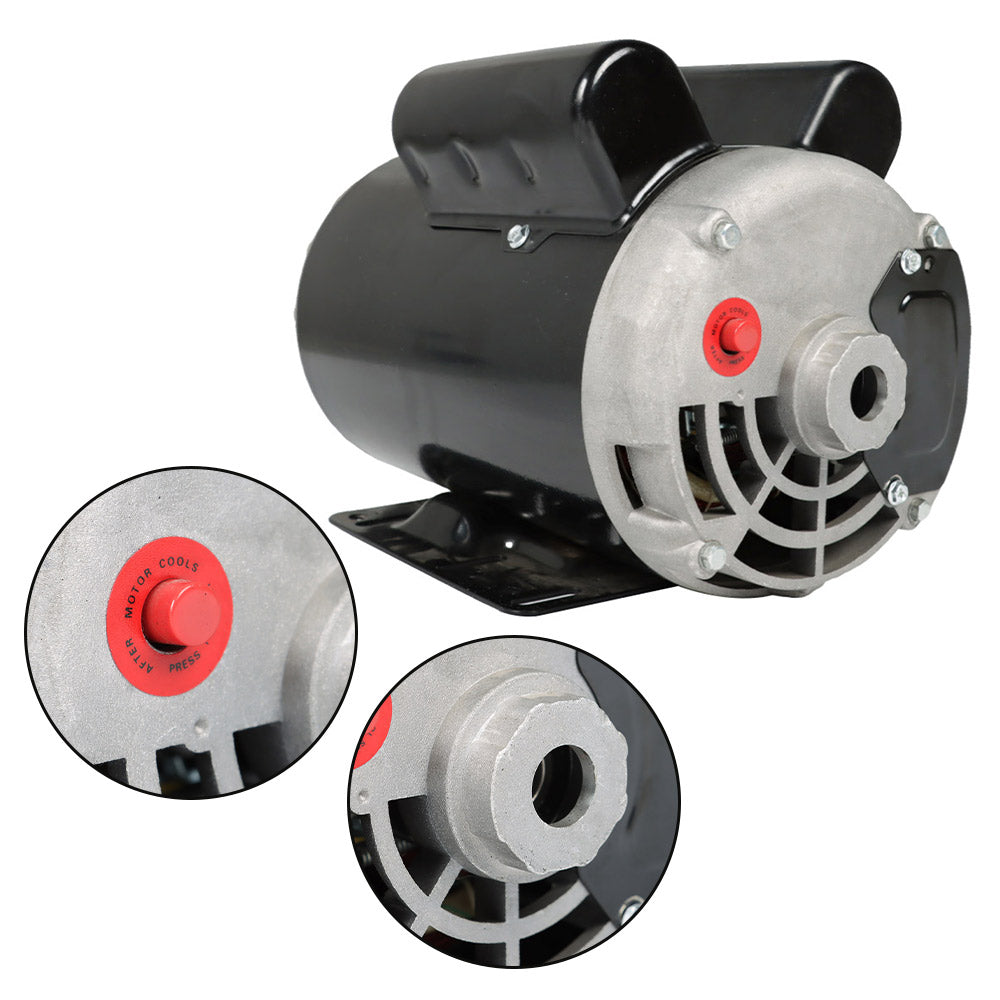

Features Manual Reset Overload Protection


Description:

5 HP 230 volt compressor duty electric motor. This motor features a 56 frame with a 7/8" diameter shaft and is 3450 RPM. This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft. This is a high quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications.


(NOTE:California Residents Warning: This product contains or may contain chemicals including lead known in the state of California to cause cancer, birth defects, or other reproductive harm.  We suggest washing hands after handling.  California law requires this warning be given to all customers in the state of California.  (California Health and Safety Code 25249.5 et seq.)


Package Includes:

1 × Air Compressor Electric Motor
