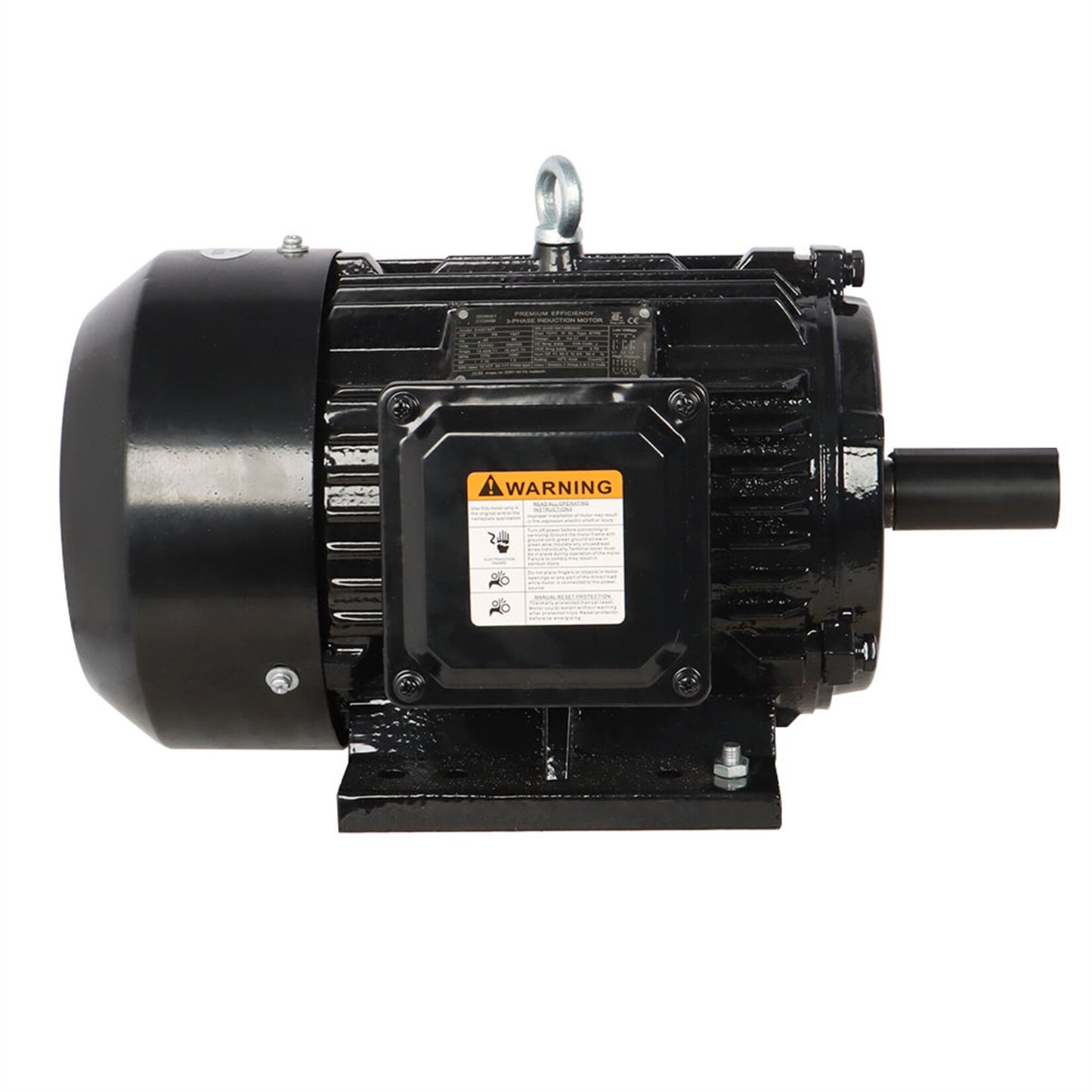

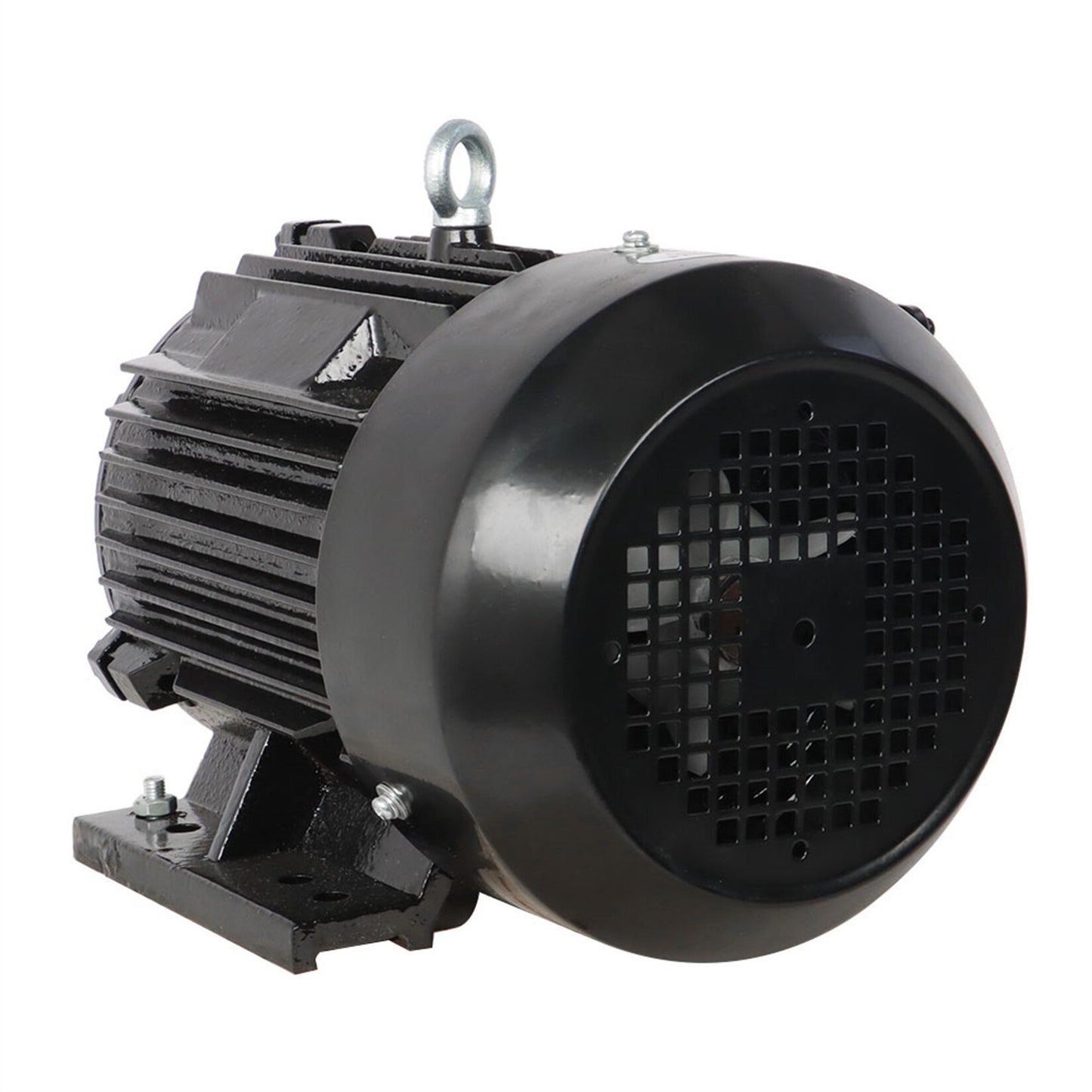

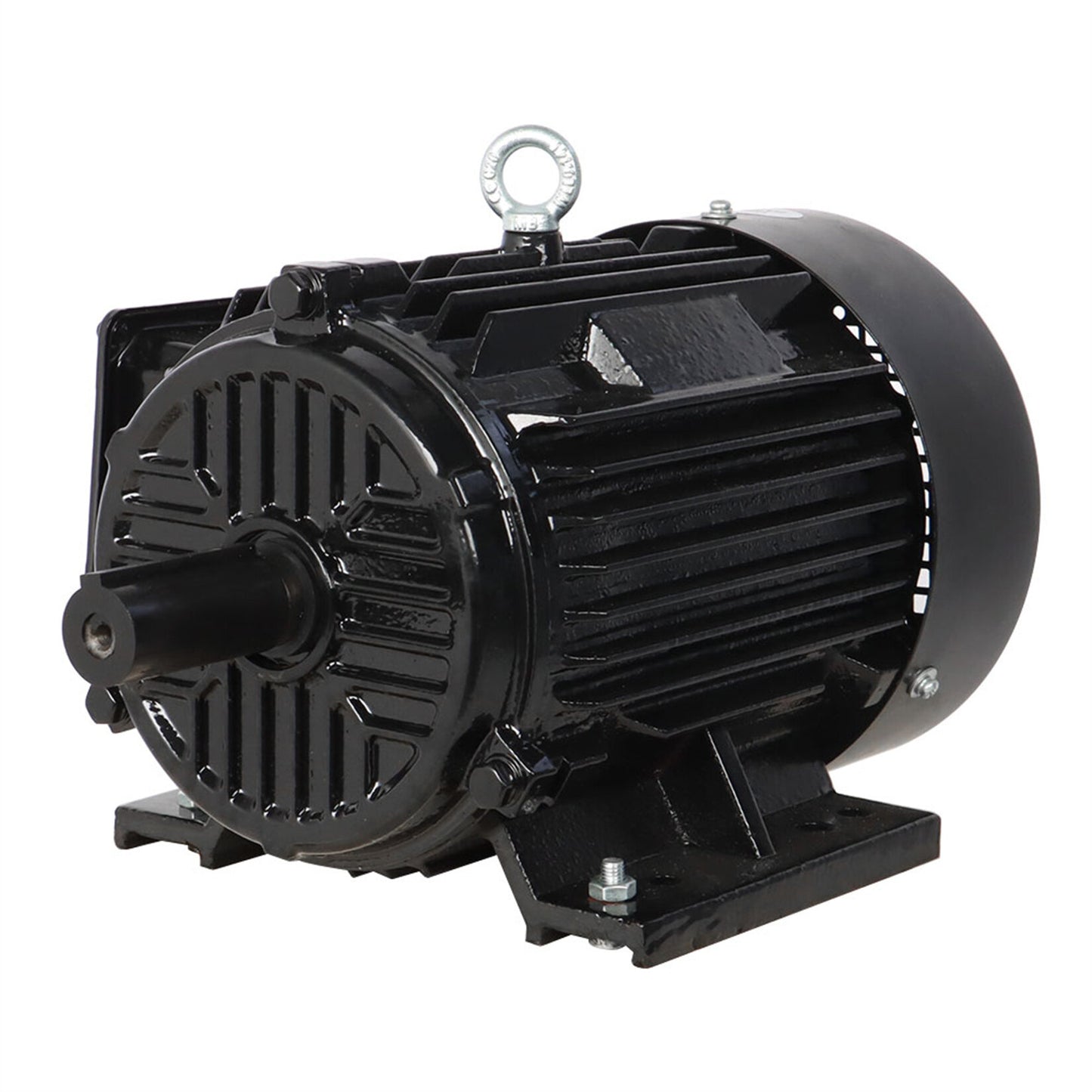

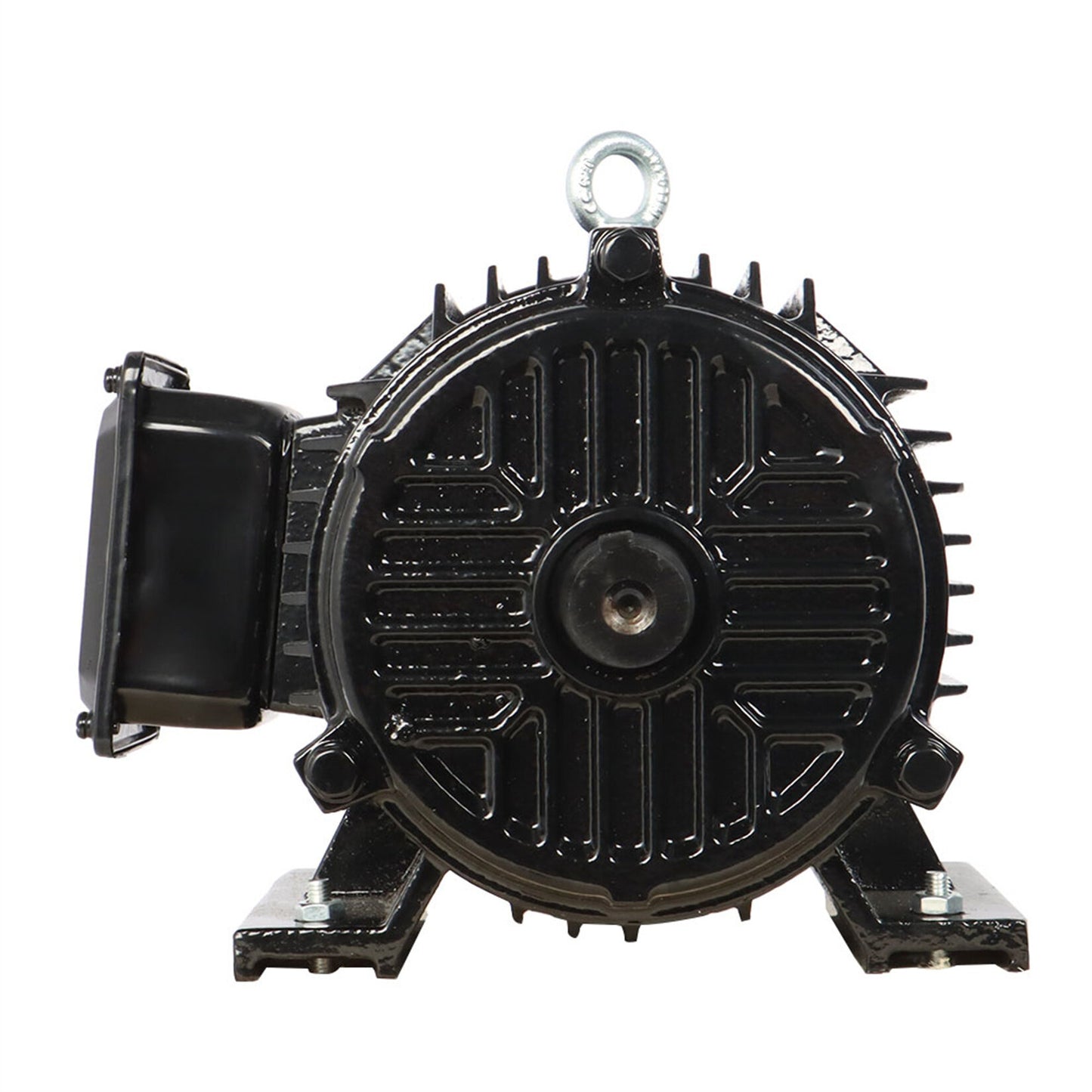

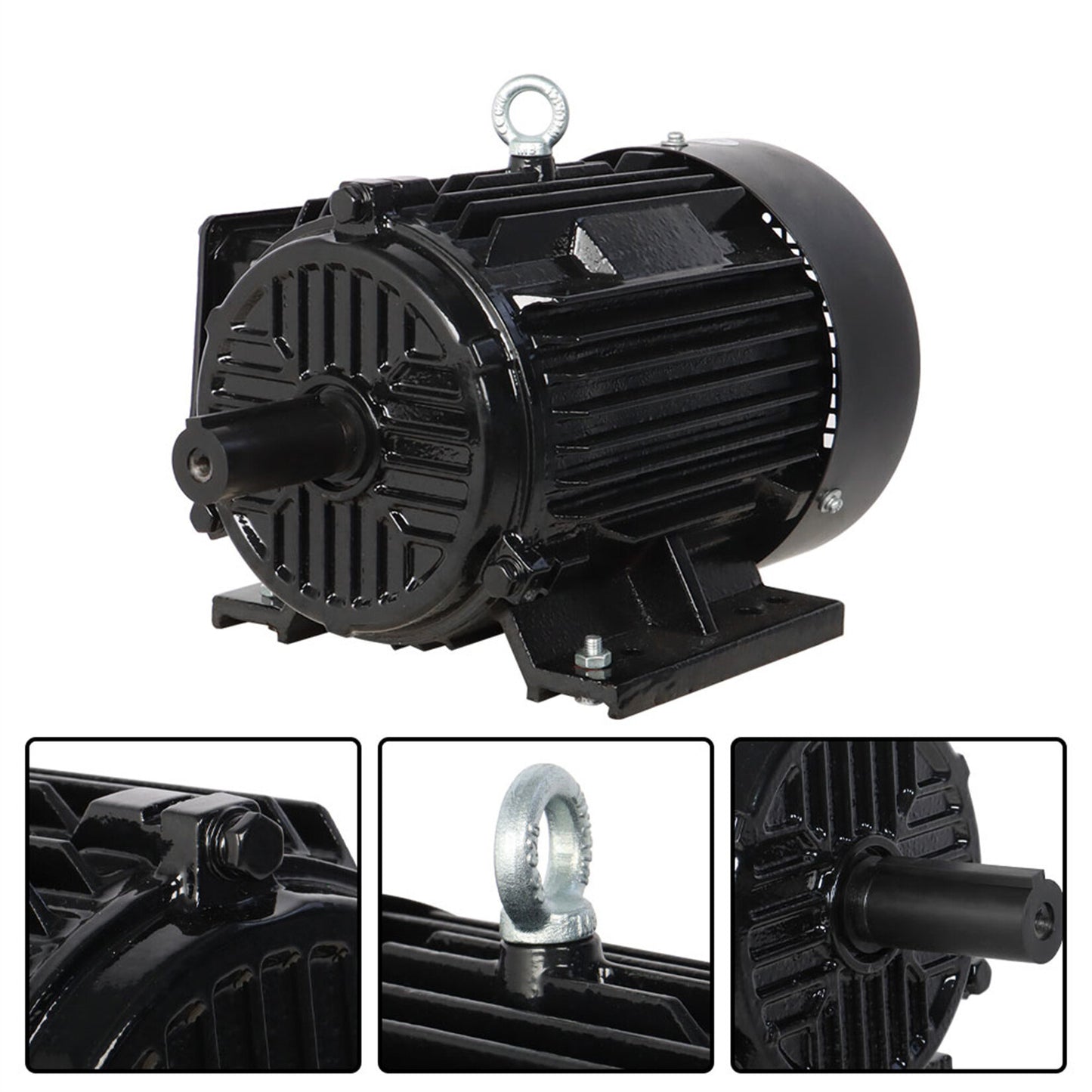

findmall 5 HP Electric Motor 184T Frame 1480/1770RPM 3 Phase Motor General Severe Duty Motor TEFC 50/60Hz 230/460V 1 1/8 Keyed Shaft

findmall 5 HP Electric Motor 184T Frame 1480/1770RPM 3 Phase Motor General Severe Duty Motor TEFC 50/60Hz 230/460V 1 1/8 Keyed Shaft

Regular price $584.39 USD
Regular price $0.00 USD Sale price $584.39 USD
Sale Sold out
Shipping calculated at checkout.

In stock

5 HP Electric Motor 184T Frame 1480/1770RPM 3 Phase Motor General Severe Duty Motor TEFC 50/60Hz 230/460V 1 1/8" Keyed Shaft

Specification:

HP: 5

AC Frequency Rating: 50/60Hz

Nominal Rated Input Voltage: 230/460V

Phase: 3 phase

Rotational Speed: 1480/1770RPM

Enclosure Type: TEFC

Amps: 13.42/6.71A

IEC Frame Size: 184T

Shaft Diameter: 1 1/8" Keyed Shaft

Shaft Length: 2.75"

Model: General electric motor

Mounting Type: Base-Mounted

Features:

Iron material, not easily damaged, long service life

High work efficiency, multiple heat dissipation holes, good heat dissipation

Equipped with installation brackets, the bracket structure is stable

The fan can cool the motor and dissipate heat during operation

If faults such as overcurrent, phase loss, short circuit, overvoltage, leakage occur during use, the motor will be shut down, making it safer to use

Can be used for various general equipment, please carefully check the model to meet your needs

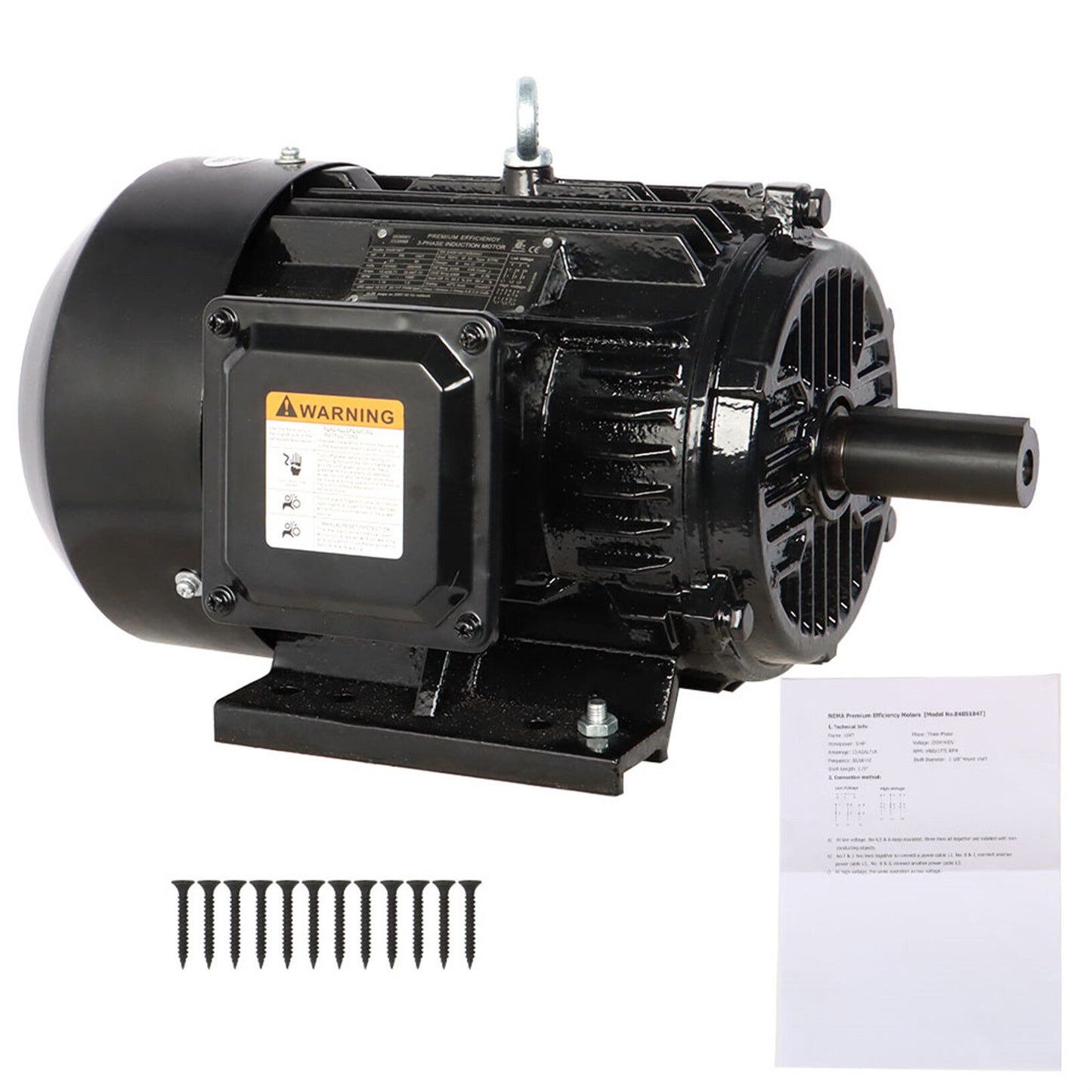

Package Includes:

1 x 5 HP electric motor

1 x Manual
