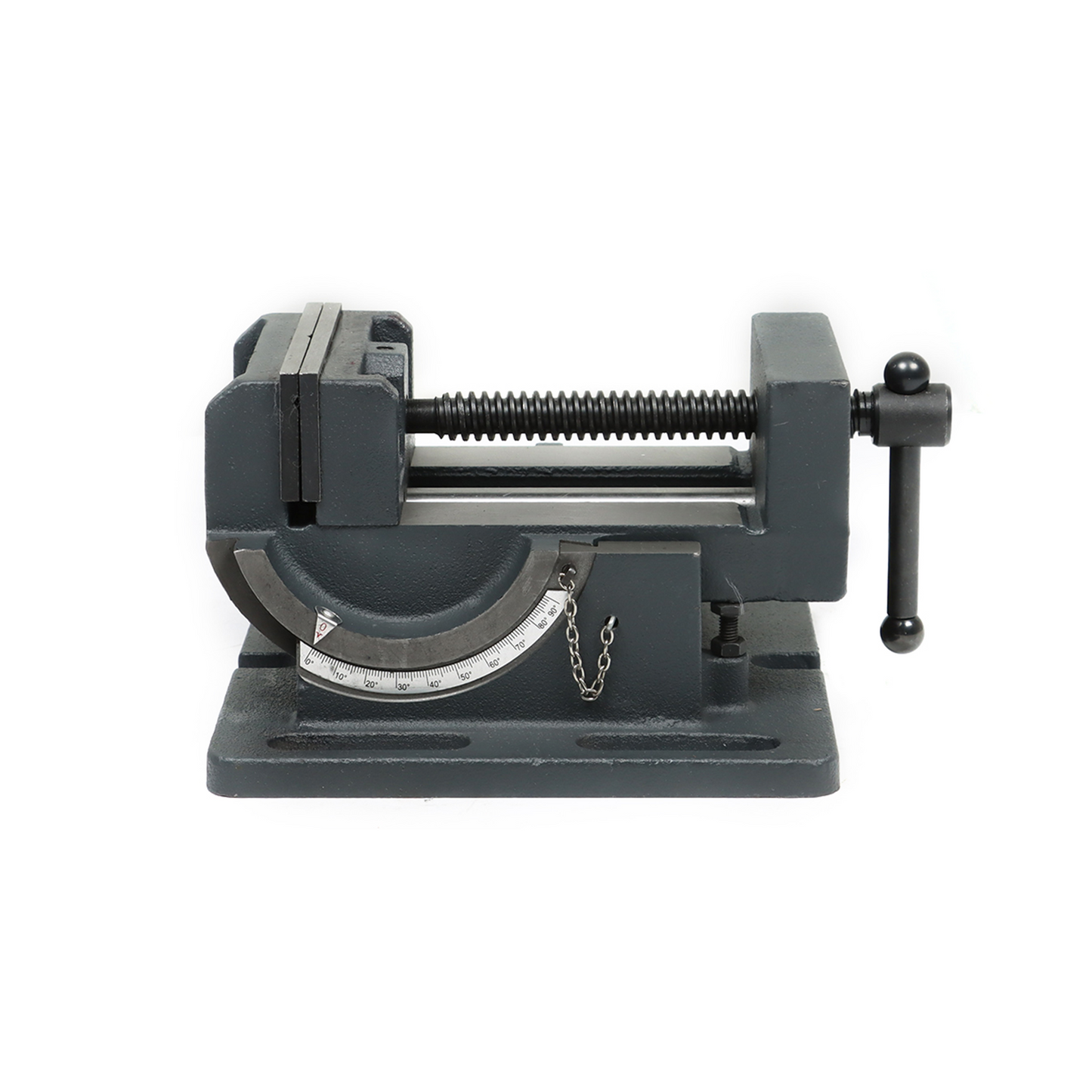

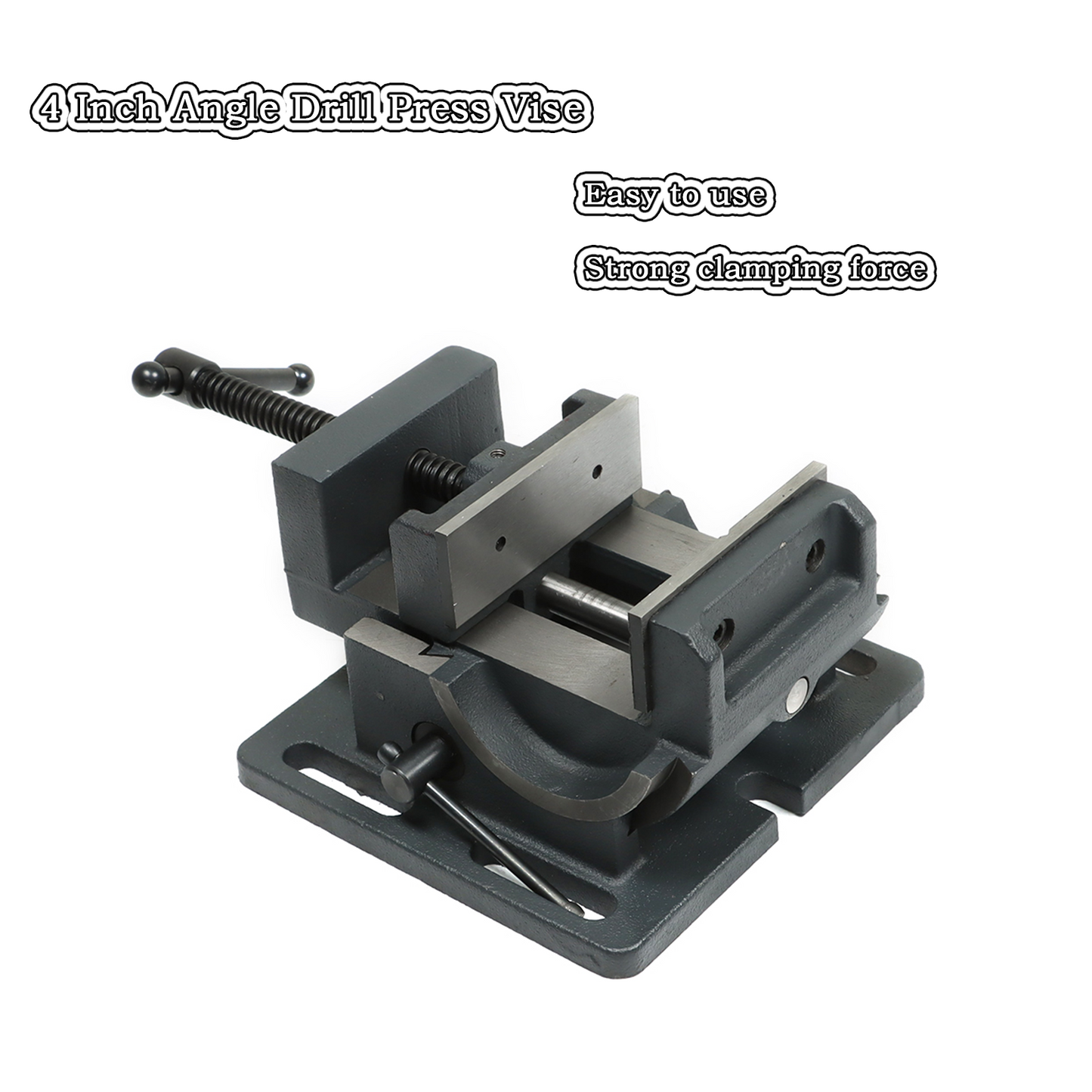

findmall 4 Inch Angle Drill Press Vise 0-90 Degree Tilting Angle Vise Iron Cradle Style Angle Vise Fit for Drilling Machine

4 Inch Drill Press Tilting Angle Vise 0-90 Degree Tilting Angle Vise Iron Cradle Style Angle Vise

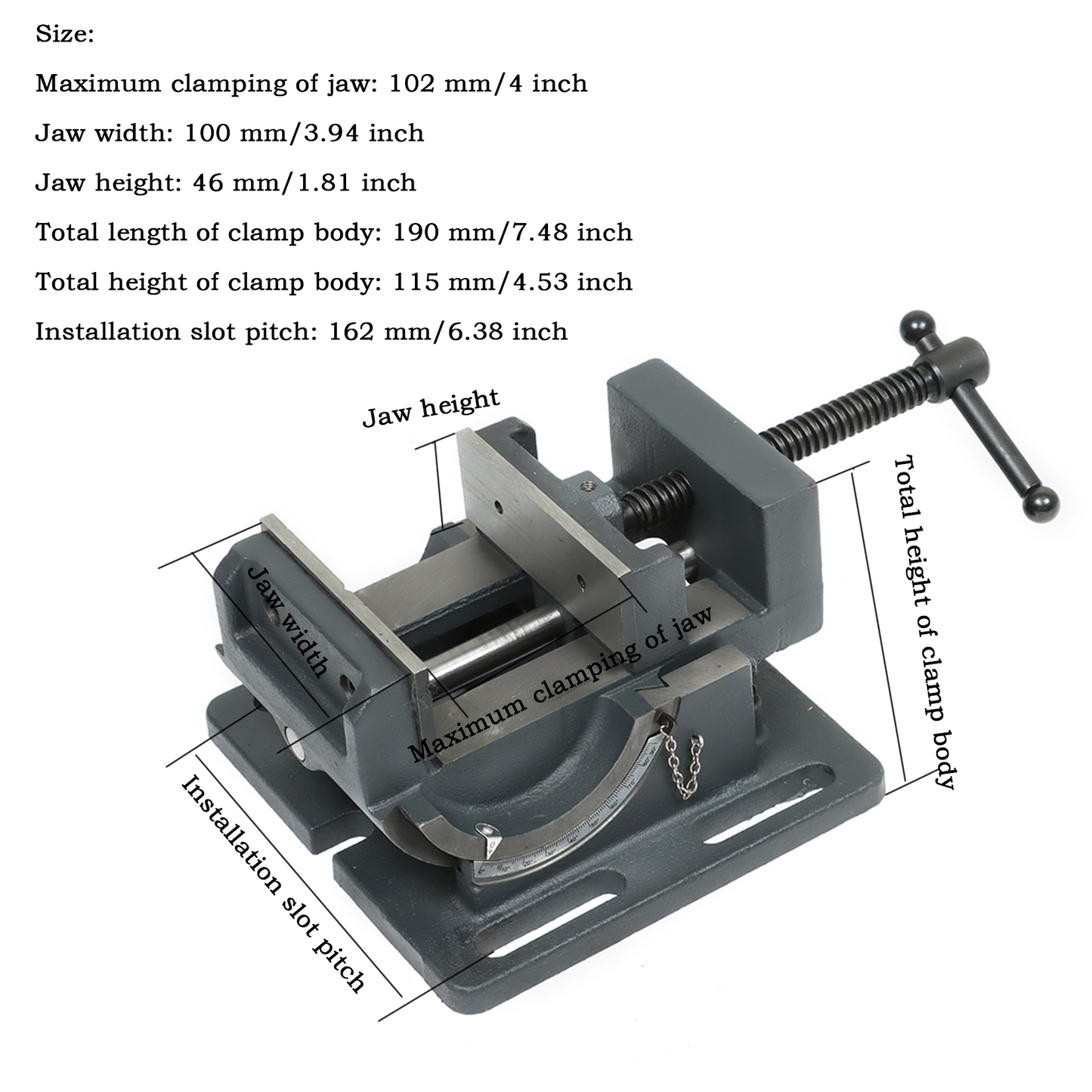

Specification:
Maximum clamping of jaw: 102 mm/4 inch
Jaw width: 100 mm/3.94 inch
Jaw height: 46 mm/1.81 inch
Total length of clamp body: 190 mm/7.48 inch
Total height of clamp body: 115 mm/4.53 inch
Installation slot pitch: 162 mm/6.38 inch
Jaw material: steel
Main material: iron

Features:
1. The main body of the angle drill press vise is made of iron, which is high in strength, more durable, not easy to wear, and prolongs the service life.

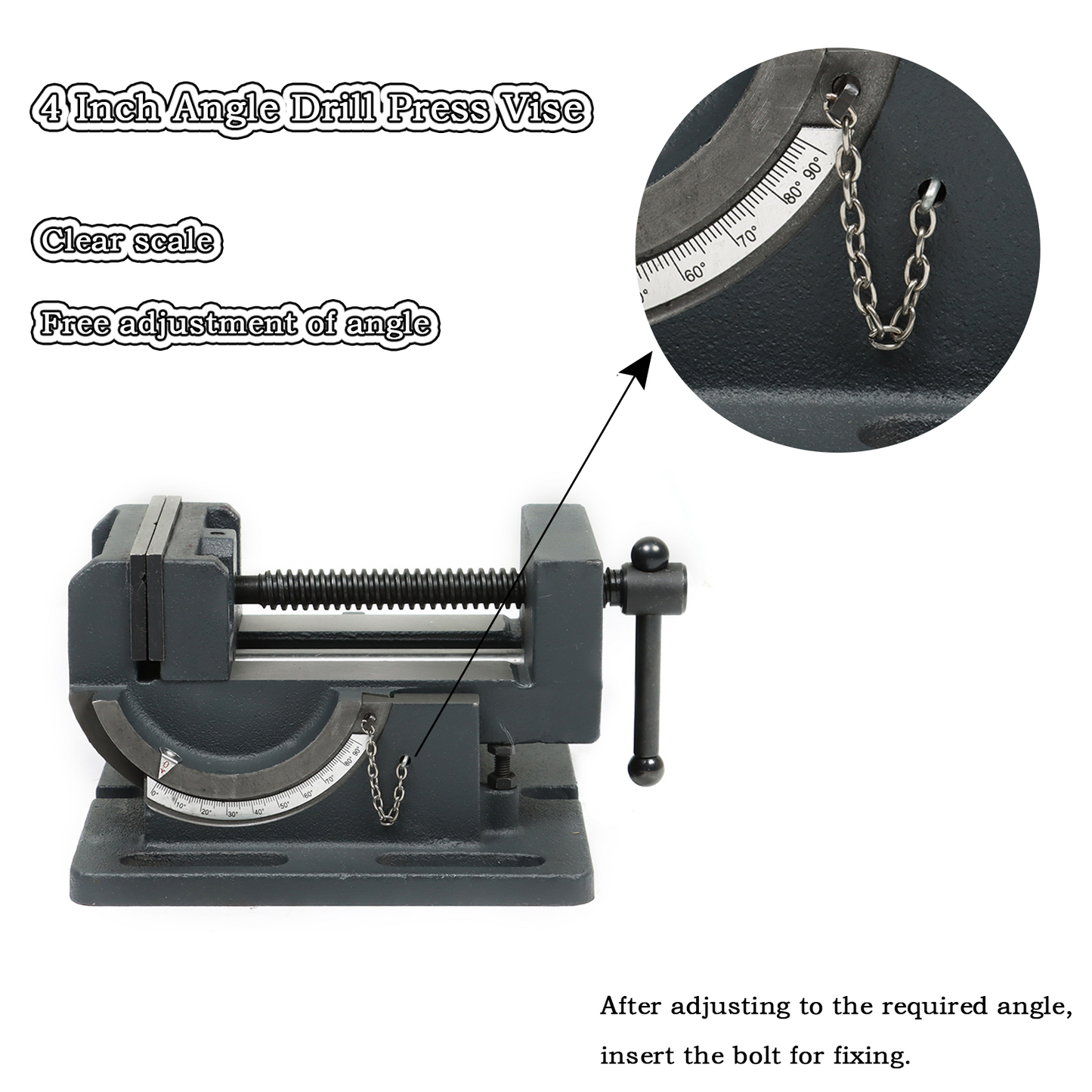

2. The 4 inch drill press tilting angle vise can be tilted at any angle of 0-90 degrees, and the dial scale is clear to meet the needs of different angles of your processing.

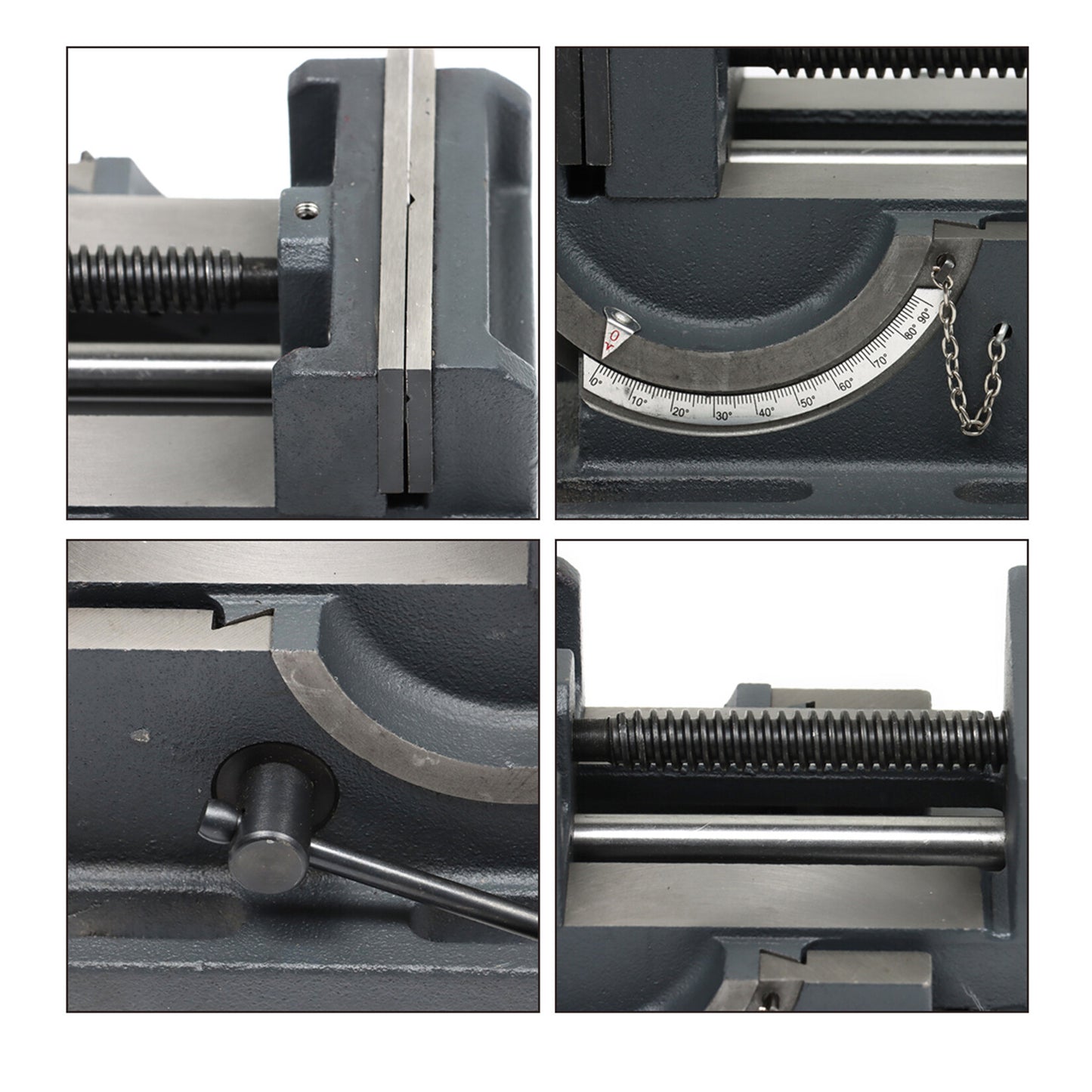

3. The cradle style angle vise  jaw is more smooth and flat after fine grinding, the cross-shaped deep groove increases the friction force, and the workpiece clamping is more stable.

Note:
1. Clean and oil on time to extend service life.
2. Pay attention to the correct operation and uniform force when clamping the workpiece.

Package includes:
1 x 4 inch drill press tilting angle vise
