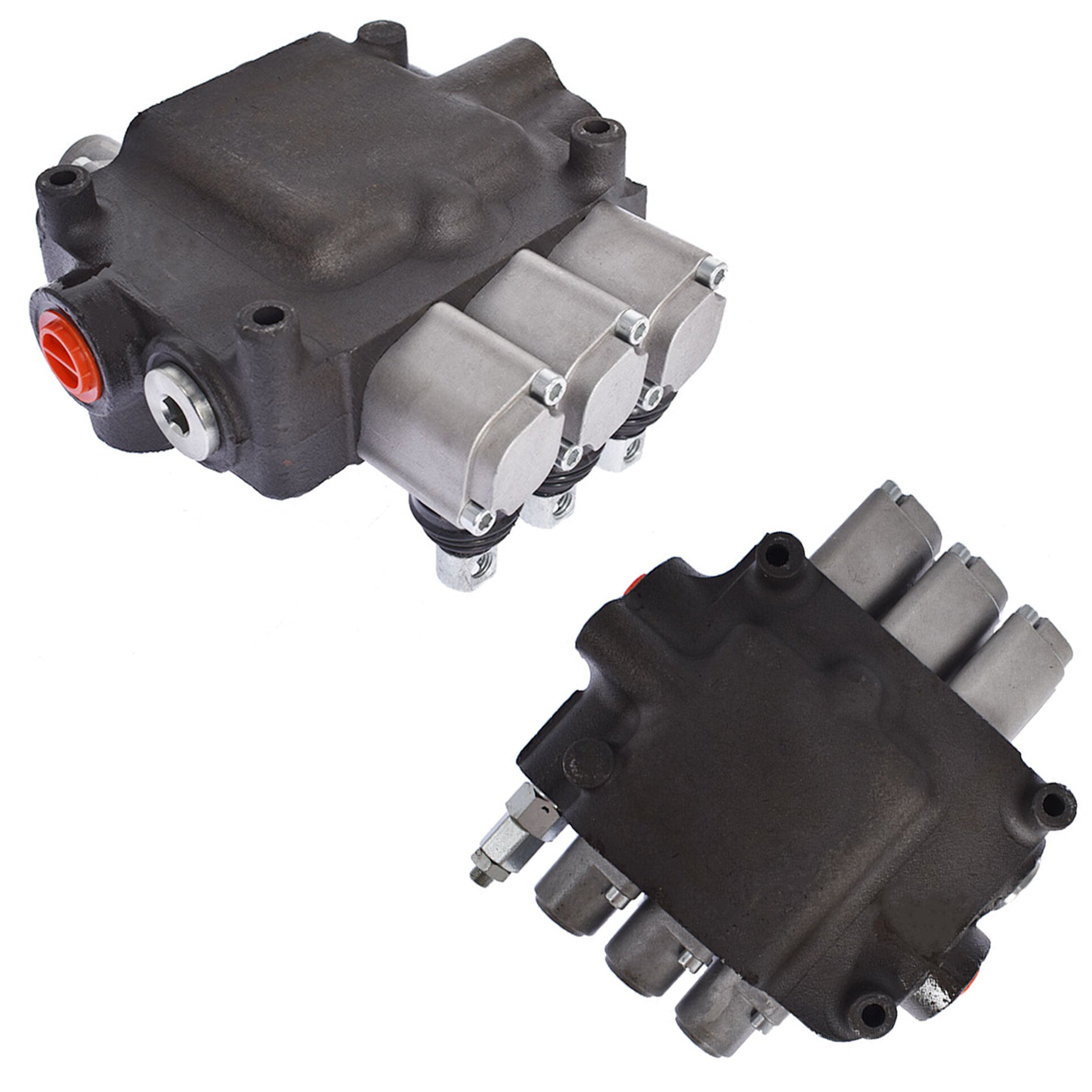

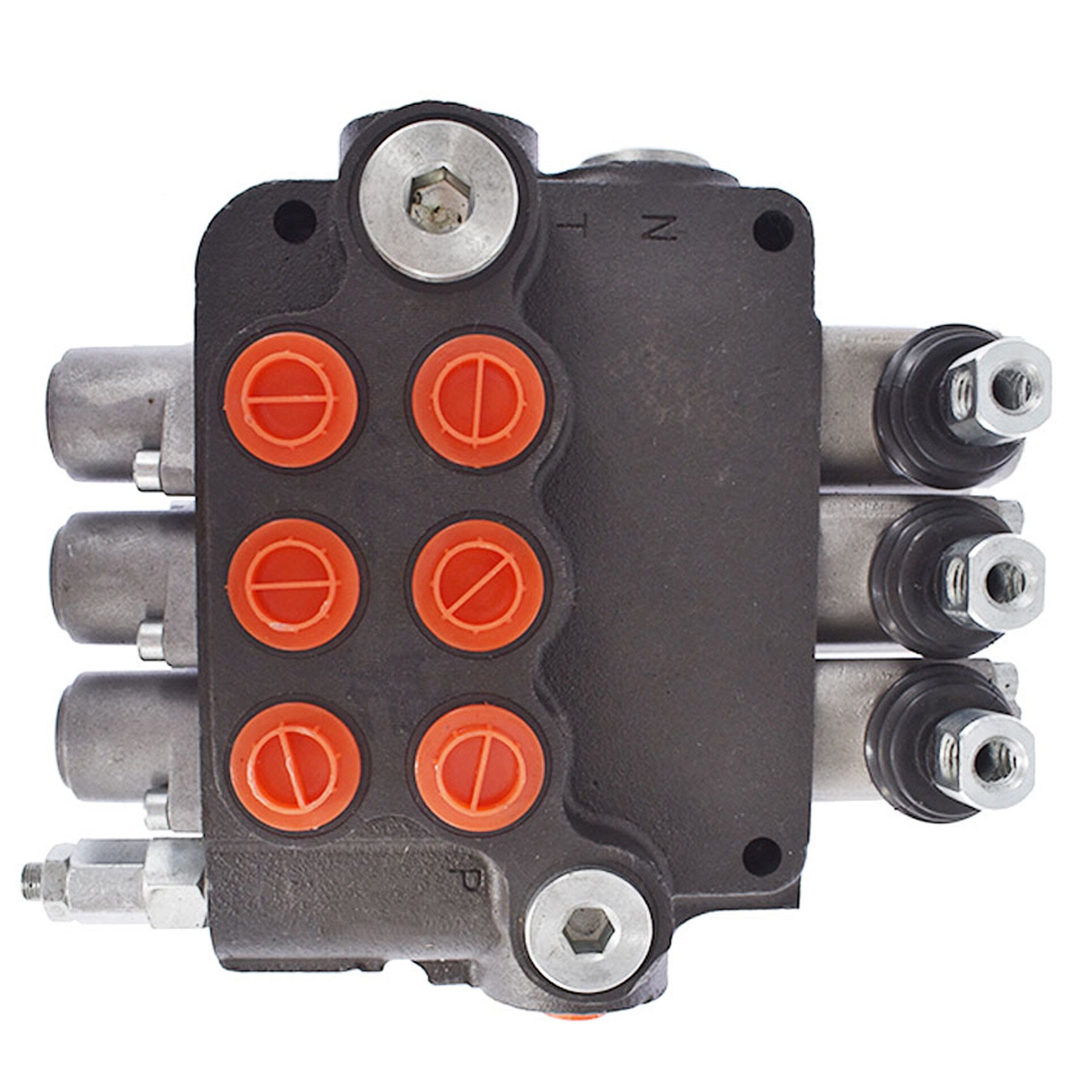

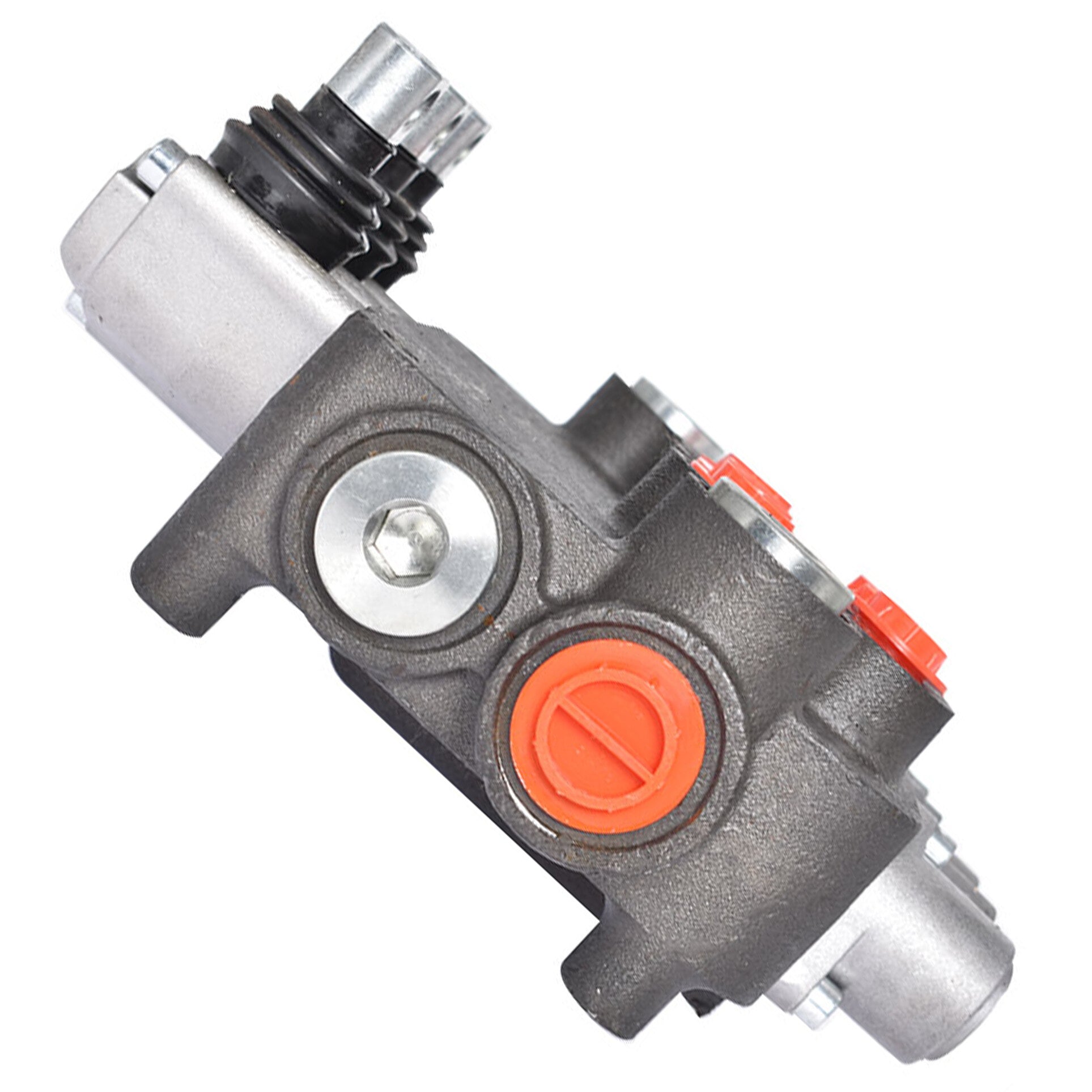

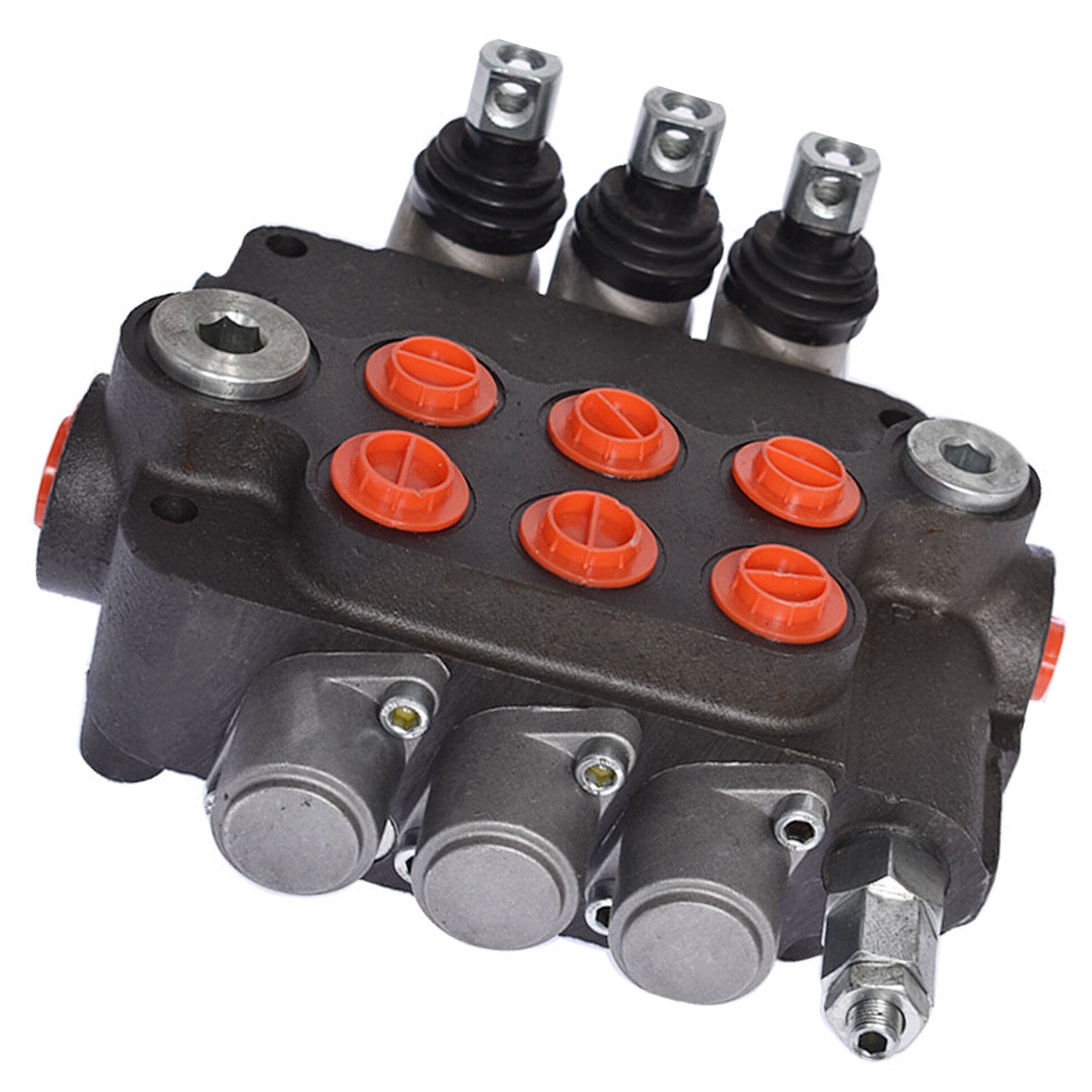

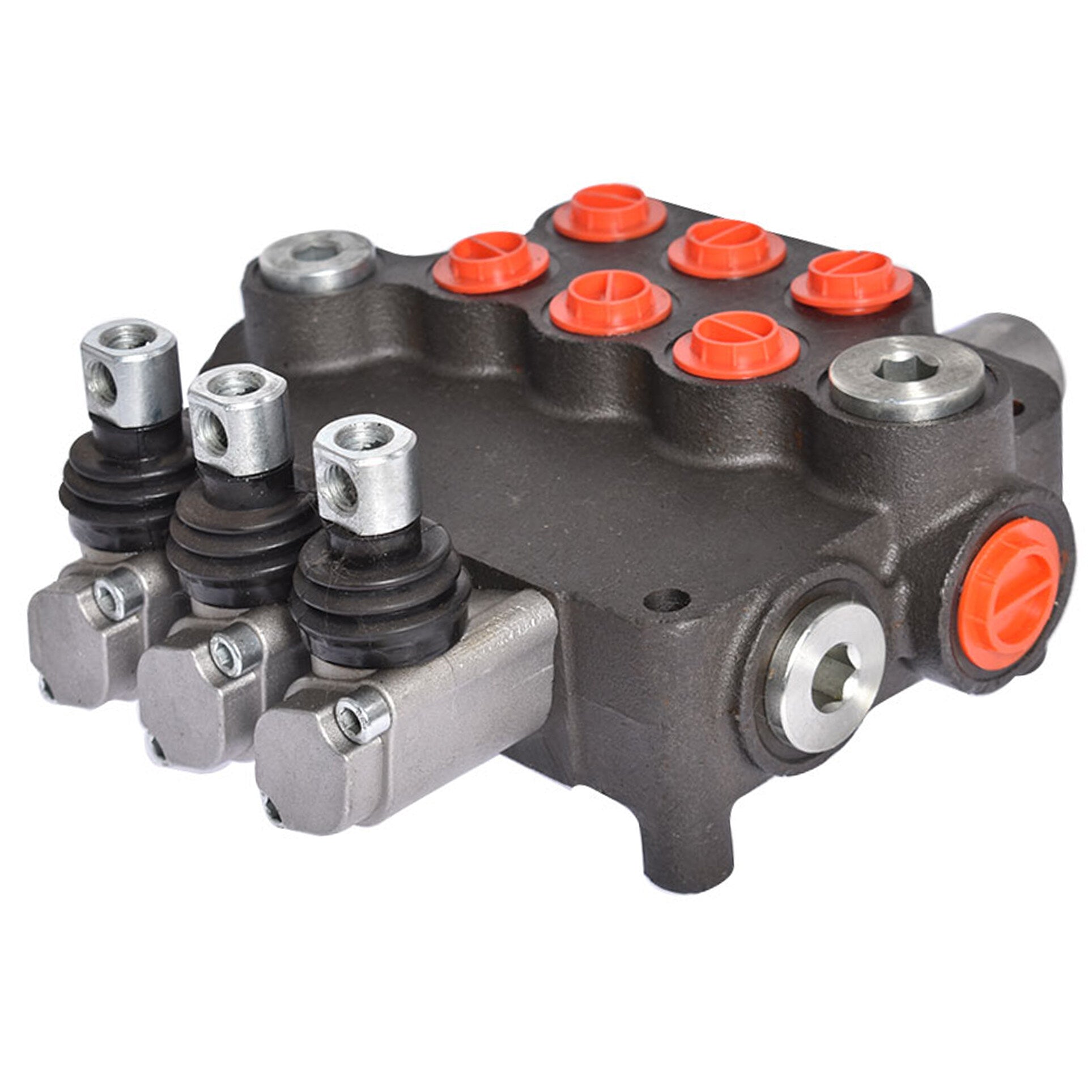

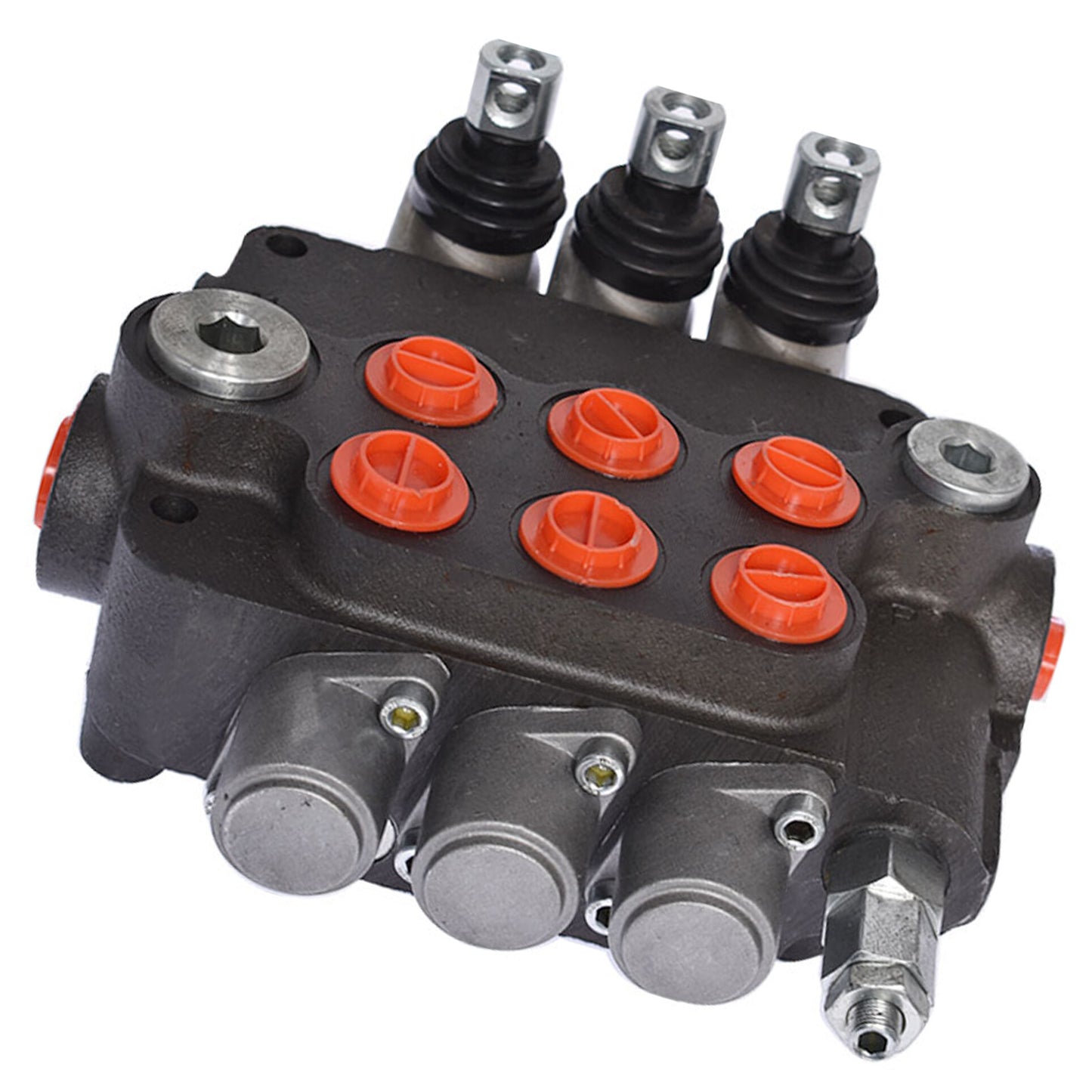

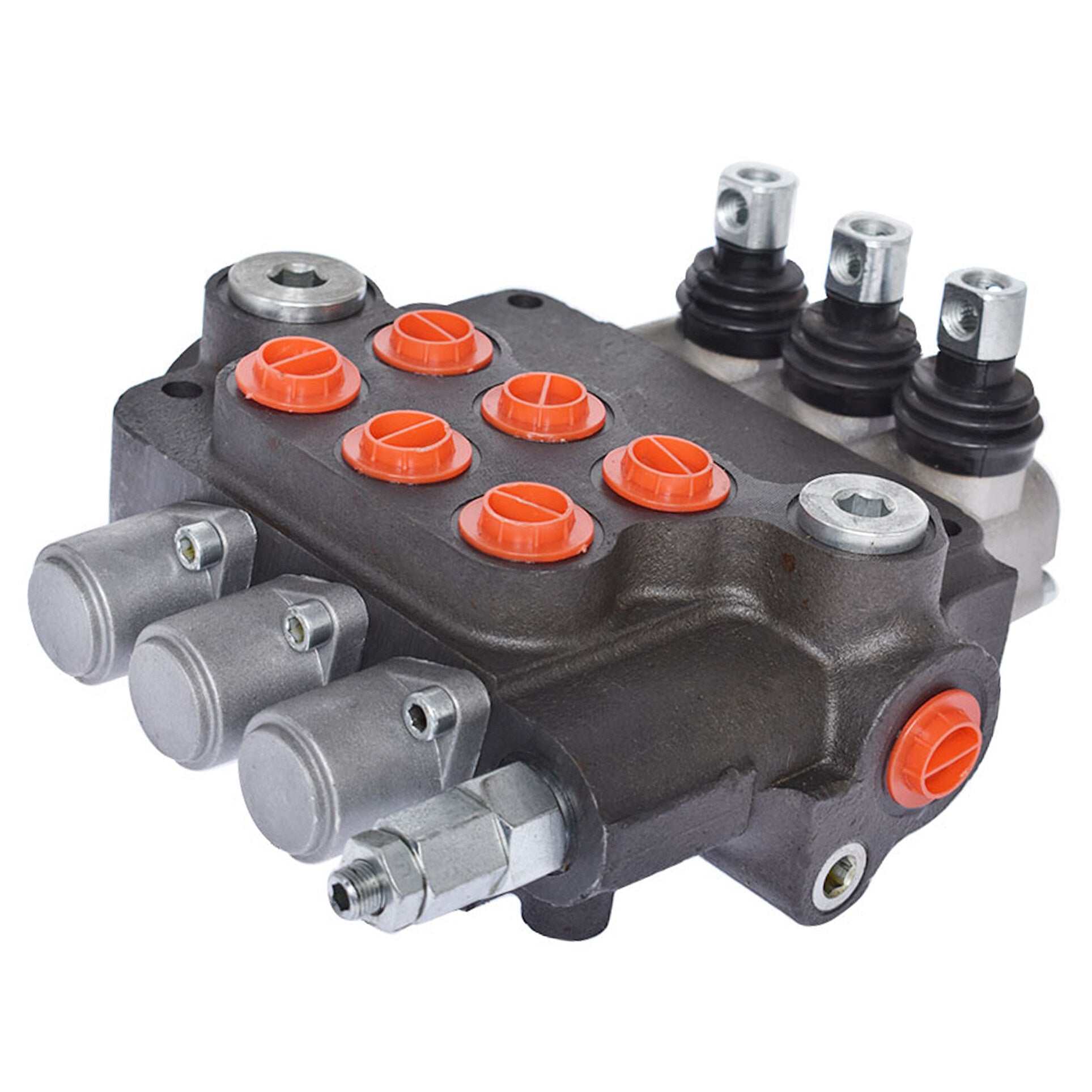

findmall 3 Spool 21 GPM 3625 PSI Hydraulic Directional Control Valve, SAE Ports Double Acting Valve for Small Tractors, Tractors, Loaders, Log Splitter

Features:

Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI

Flow Rating: 21 GPM (80 l/min)

A & B Work Ports: 10 SAE O-Ring (7/8"-14) Thread

Inlet Port: 10 SAE O-Ring (7/8"-14) Thread

Outlet Port: 12 SAE O-Ring (1-1/16"-12) Thread

Advantages:

3 Spool valve with compact design allows for installations in tight areas

All spools are standard double acting with spring return to neutral place which are ideal for double acting cylinders

Used for open center systems (Pump to Tank Flow) - closed center option available

Precision ground and hard chrome-plated spools assure a long life

High-tensile strength cast iron monoblock construction

SAE O-Ring ports ensure solid seal and prevent blockages

Capable of Closed Center or Power Beyond (conversion plug required)

Vertical or horizontal handle mount

Adjustable Relief Valve Range: 1500 to 3625 PSI

Used as motor or single-acting spool possible (10 SAE port plug required)
