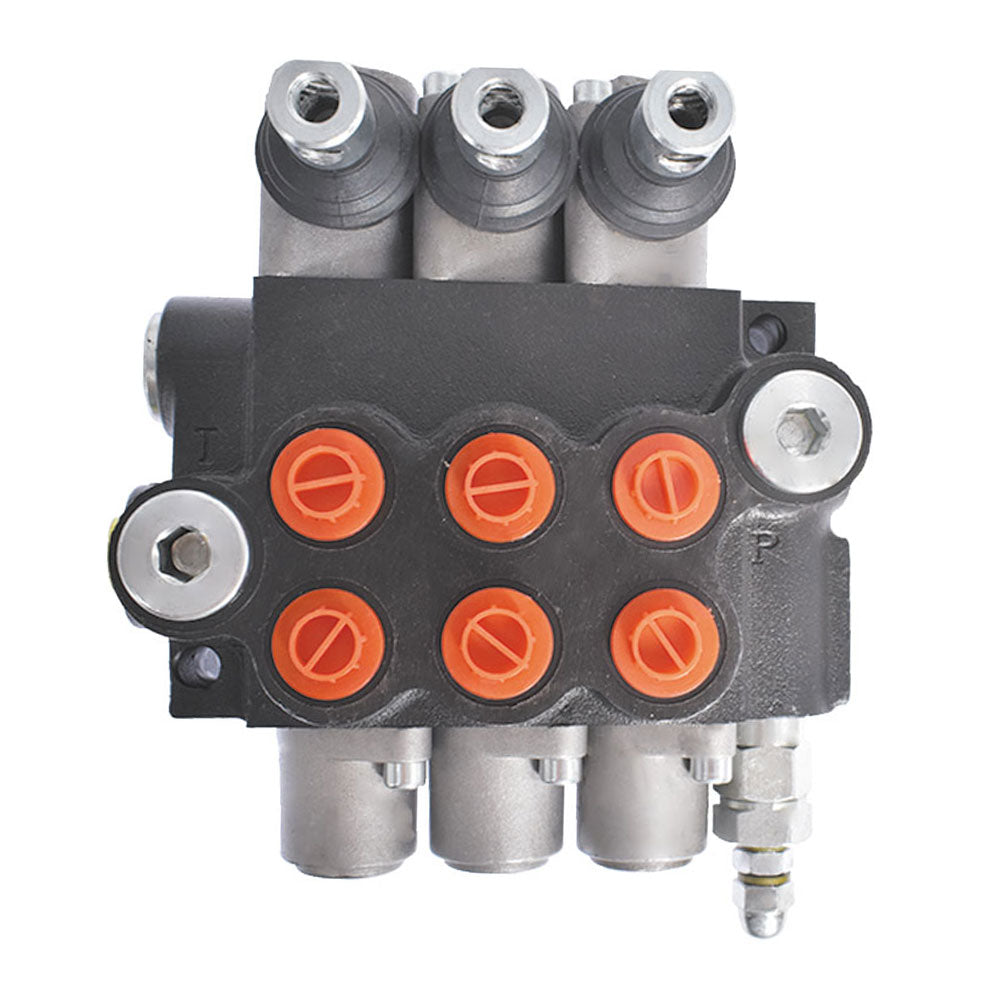

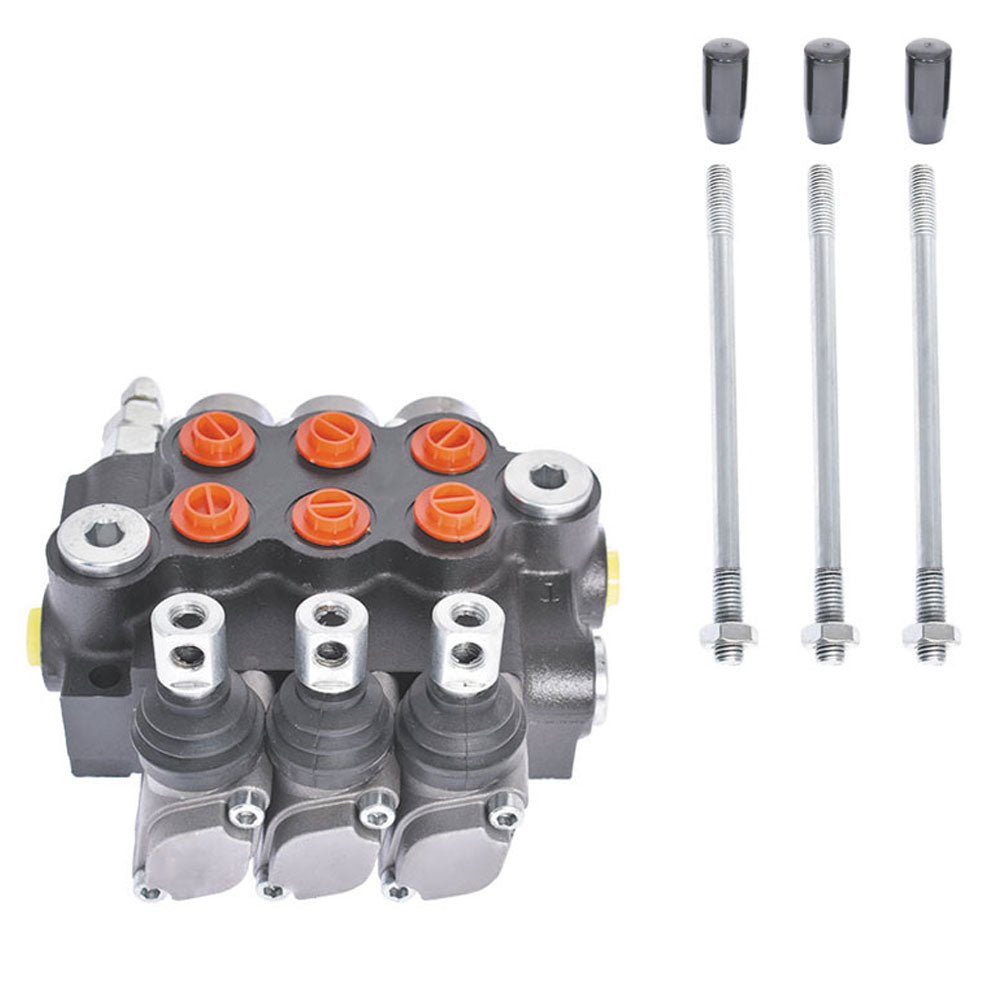

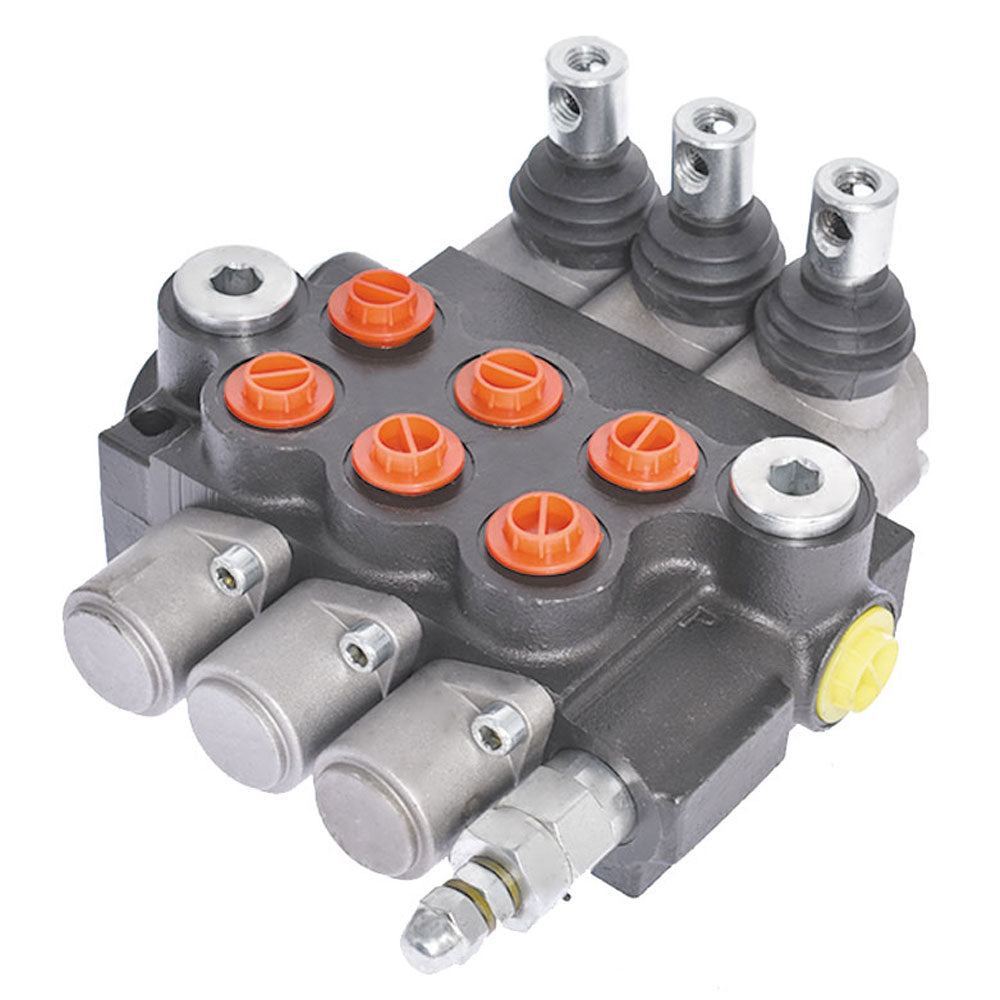

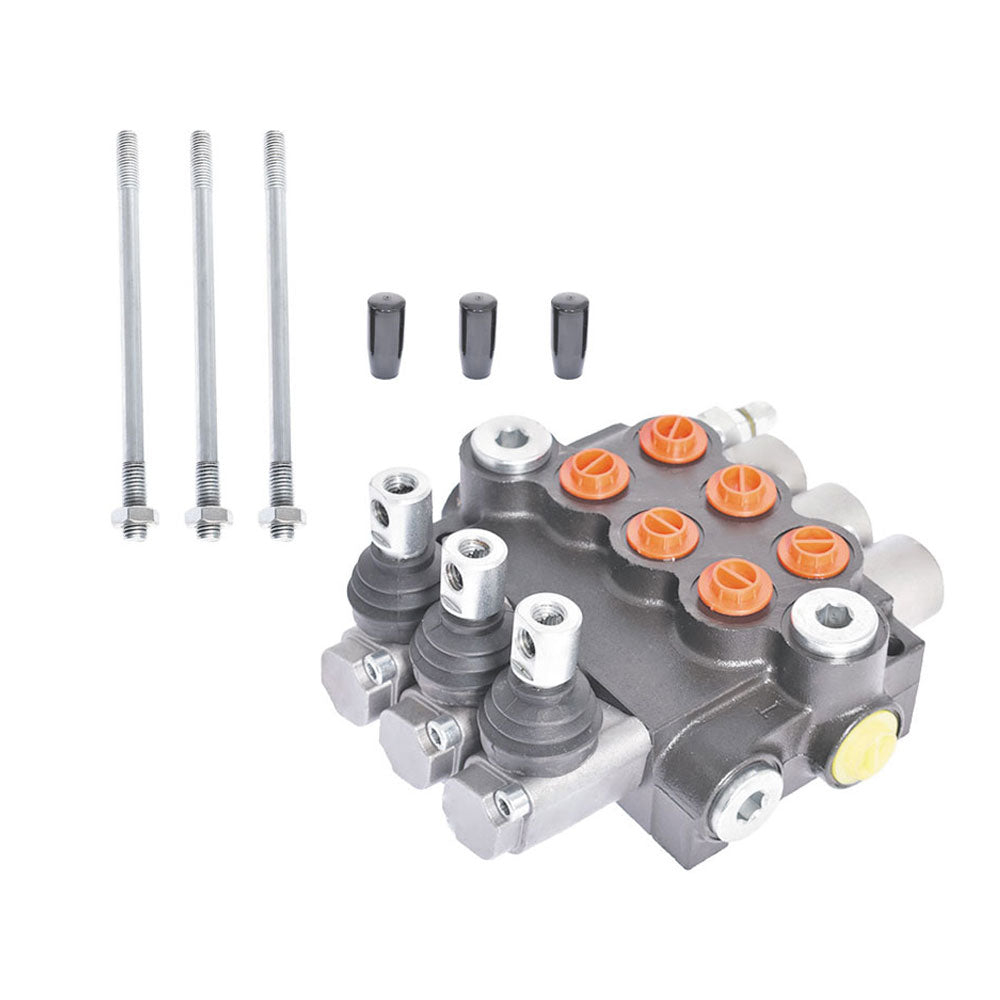

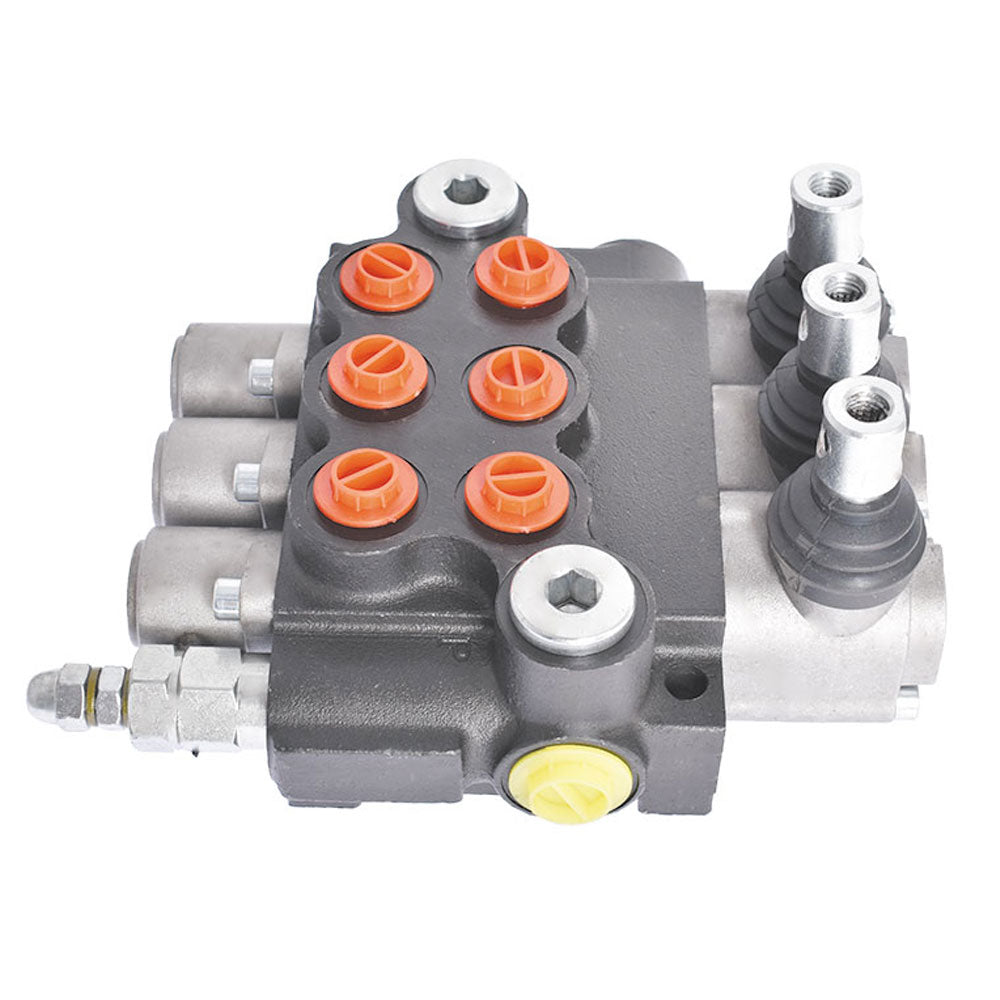

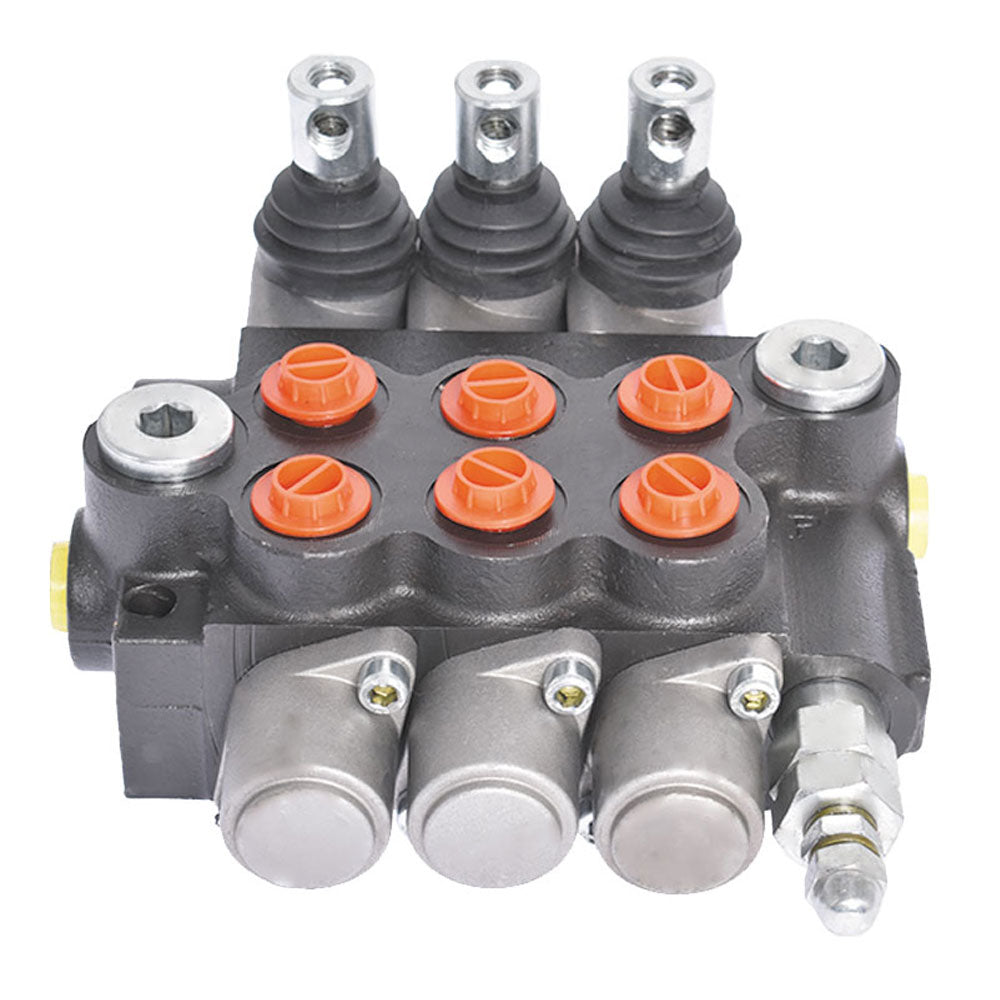

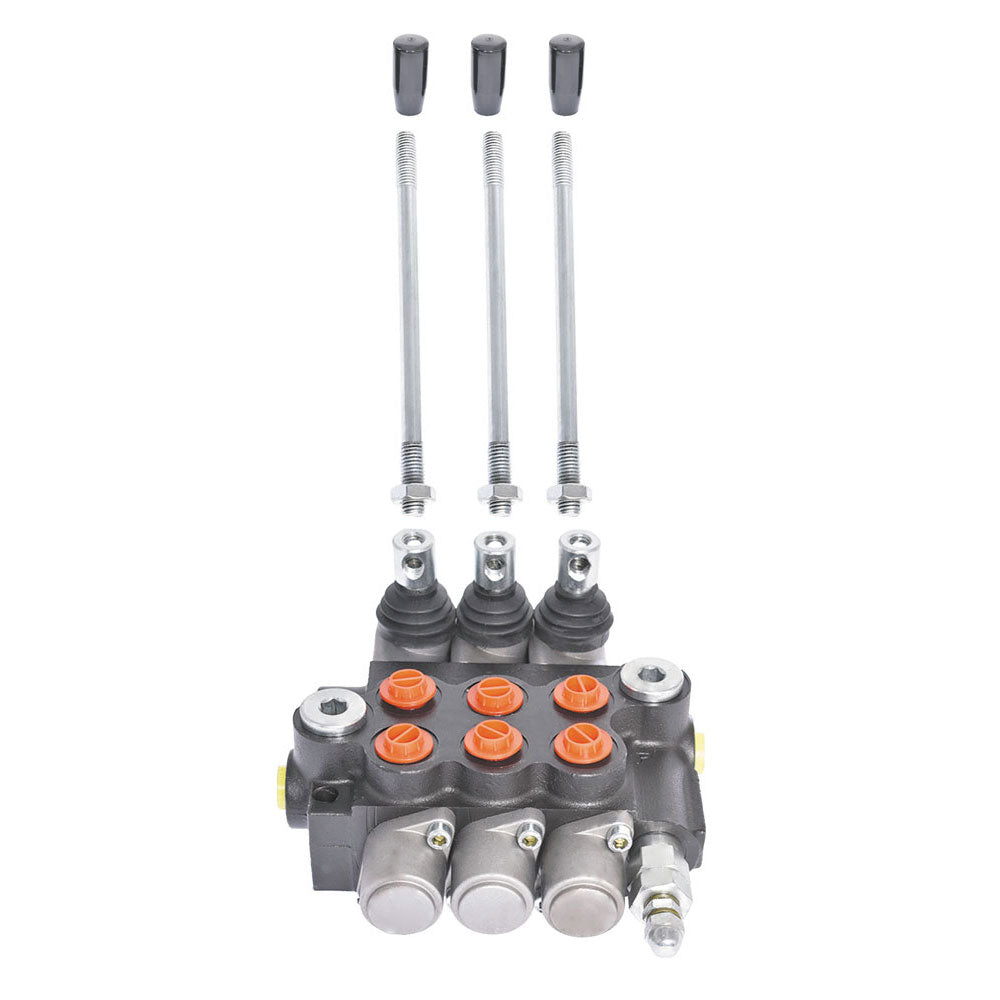

findmall 11GPM Adjustable Hydraulic Directional Control Valve Double Acting 3 Spool

findmall 11GPM Adjustable Hydraulic Directional Control Valve Double Acting 3 Spool

Regular price $118.79 USD
Regular price $0.00 USD Sale price $118.79 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Points:

The new design of 3 spool 11 GPM hydraulic control valve can manage pumps and hydraulic cylinders, motors, tanks, etc. The durable cast iron body provides long term service life. All spools for neutral spring-center with adjustable release valve are easy to use, and the hydraulic control valve is for operating double-acting cylinders.


Key Features:

Double Acting

Our hydraulic control valve is made for operating double-acting cylinders.

Solid Construction

This control valve comes with 3 spools and 3/8 " Unthreaded sealed cylindrical pipe threads O-ring in/out ports, with cast iron construction for long-time use.

High Performance

The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

Spring Return

All spool valves come with spring return, All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.

Inner Check/Relief Valve

The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.

Wide Application

The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.


Details:

Nominal flow: 11gpm (40l/min)

Spool count: 3 Spool

PABTN: 3/8 " Unthreaded sealed cylindrical pipe threads

PTN: 1/2"

AB: G3/8

7/8-14UNF;3/4-16UNF

Relief valve: Adjustable

Center system: Open

Weight: 14.6 lb (6.6 kg)


Package Including:

1 × 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
