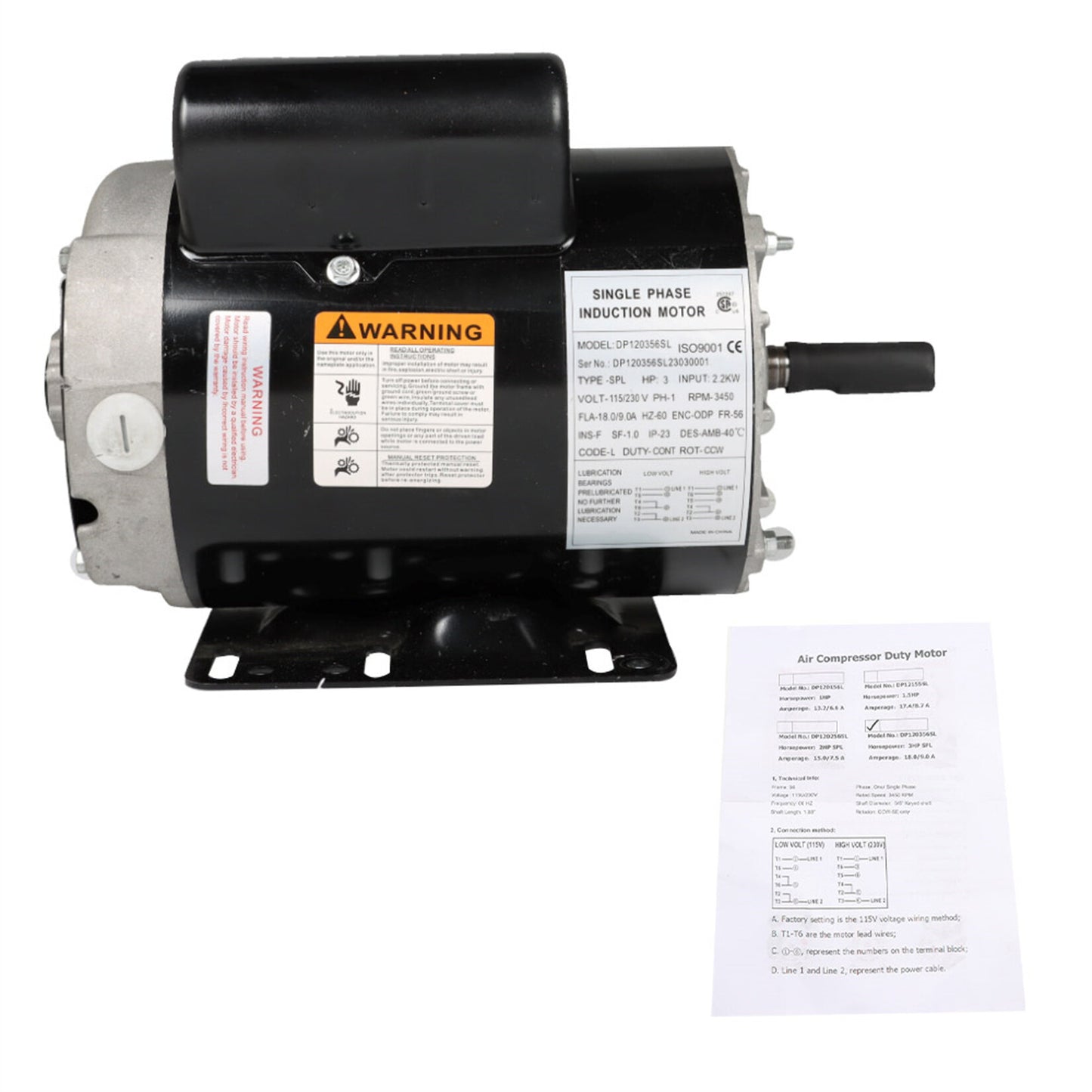

findmall 3HP 3450RPM Compressor Duty Electric Motor 5/8" Shaft 56 Frame 1Phase 115-230V

Specification:

Model: DP120356SL

Type: SPL

Input: 2.2 kW

Horsepower: 3 HP SPL

Voltage: 115/230V

Phase: Single Phase, 2 Pole

Amperage: 18/9A

Rated Speed: 3450 RPM

Frequency: 60 Hz

Synchronous Speed: 3600 RPM

Frame: 56 Frame

Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft

Shaft Length: 1.88 in / 4.8 cm

Rotation: CCW

Service Factor: 1

Efficiency: 75%

Insulation Class: F

Mounting Type: Base-Mounted

Enclosure Type: ODP (Open Drip-Proof)

IP Rating: IP 23

Current Type: AC

Single Phase Electric Motor

Sturdy Steel Construction

Overload Thermal Protector

Fast Heat Dissipation

ODP for Dry Environments

Feature:

Single Phase Electric Motor: This air compressor electric motor runs at 3 HP SPL. Rated Speed: 3450 RPM, Input: 2.2 kW, Voltage: 115/230V, Amperage: 18/9A, Frequency: 60 Hz, Synchronous Speed: 3600 RPM, Frame: 56 Frame, Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft, Shaft Length: 1.875 in / 4.8 cm, Rotation: CCW. Push your air compressor to the limits with this well-balanced motor!

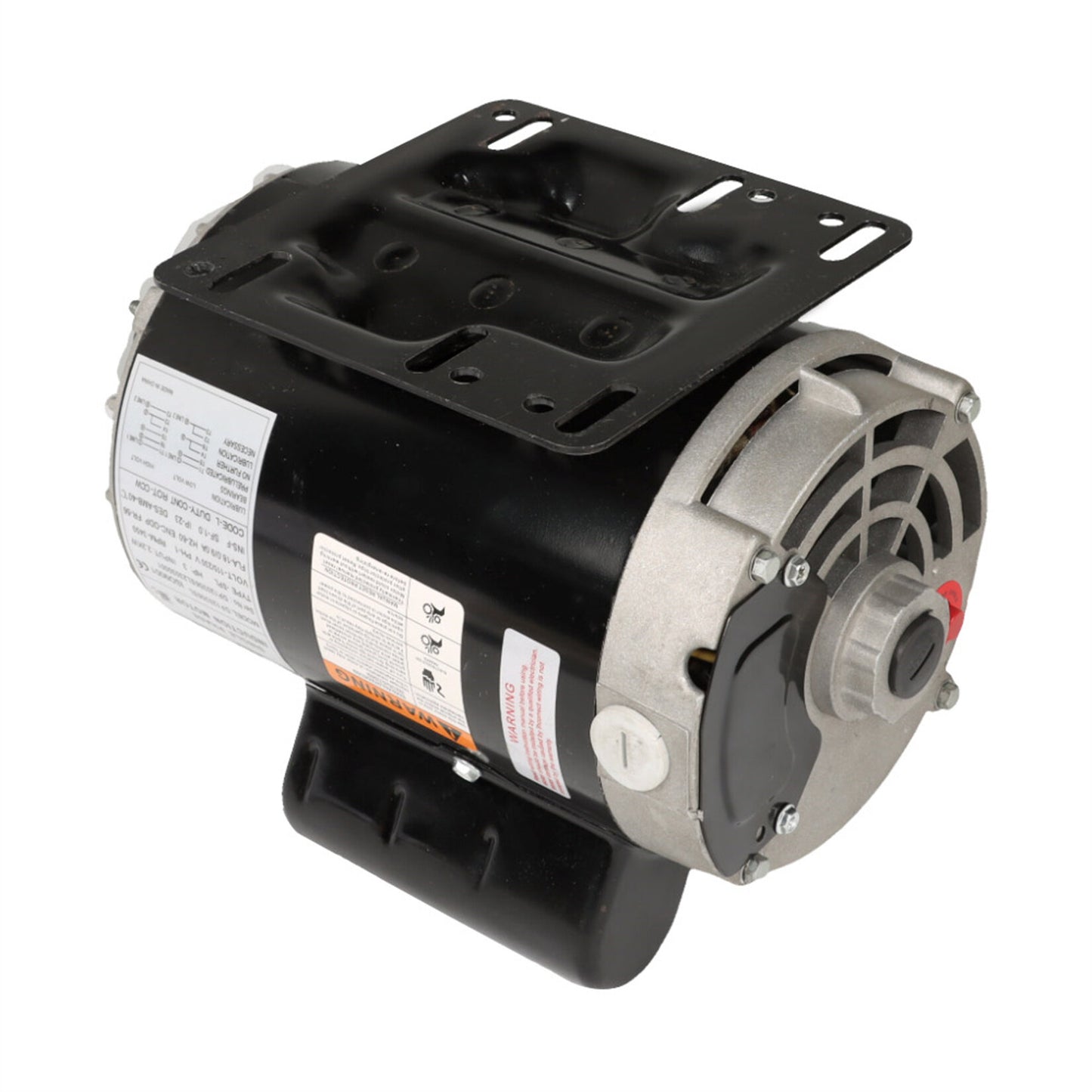

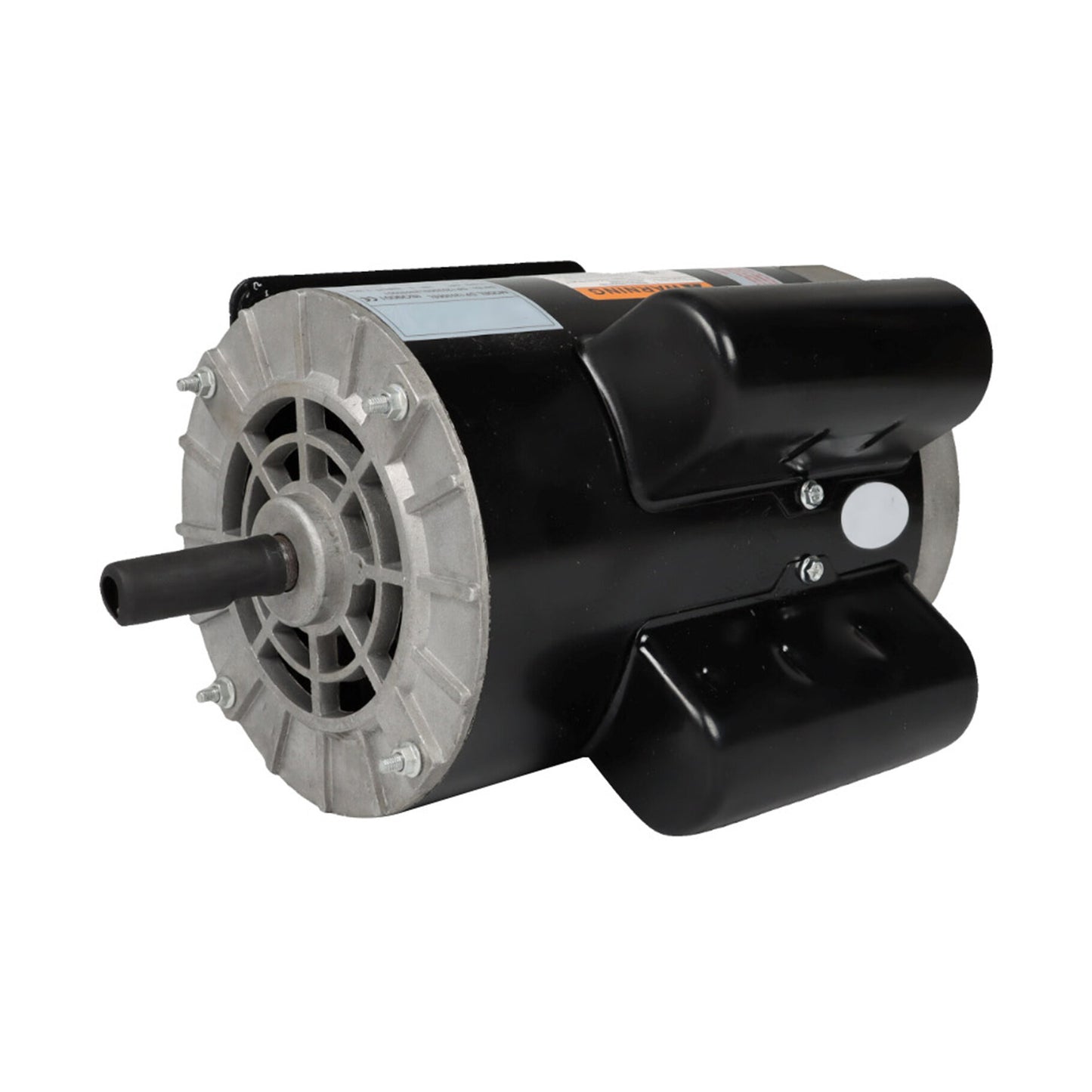

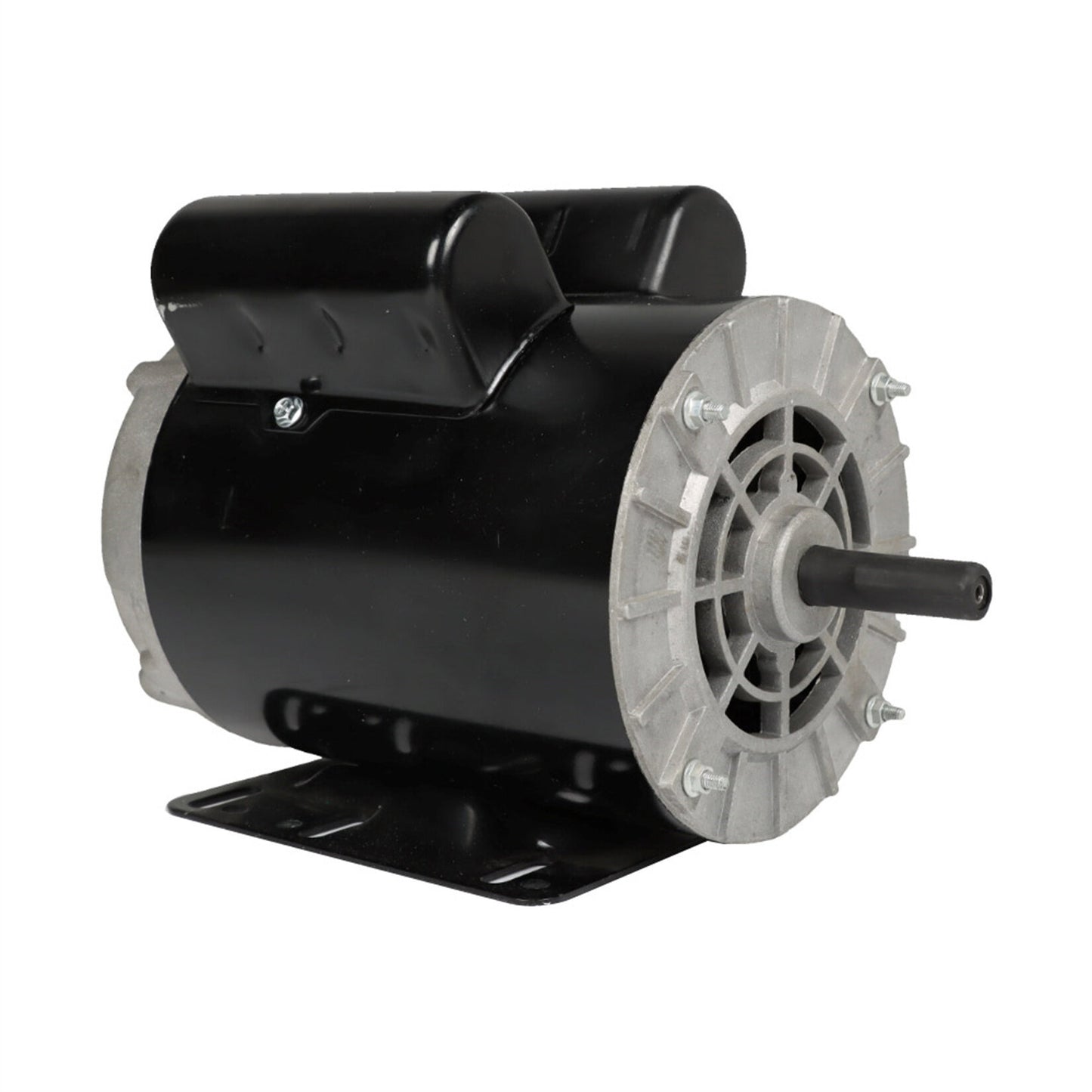

Sturdy Steel Construction: The 3 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. Two capacitors and high-quality ball bearings ensure long service life. Mounting Type: Base-Mounted.

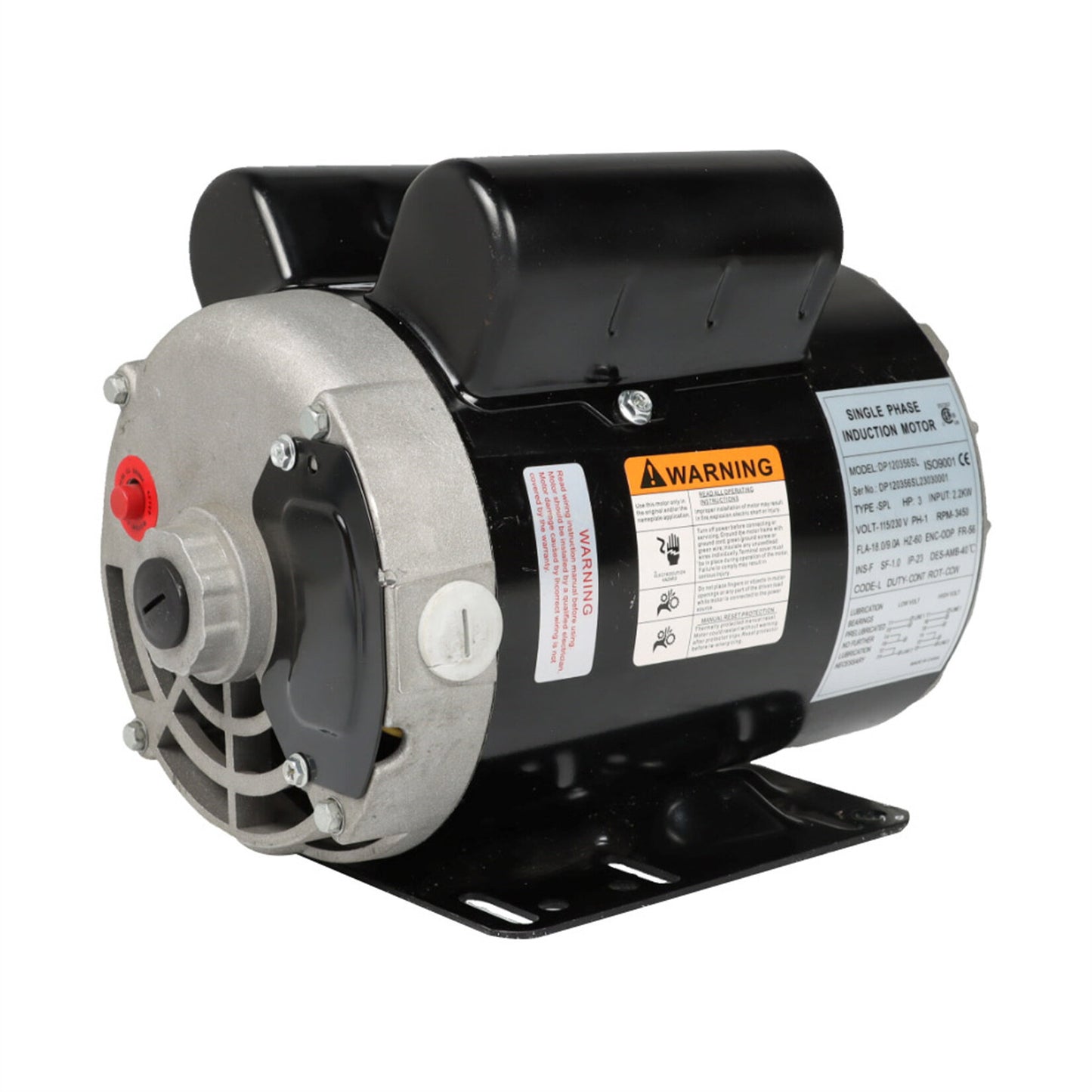

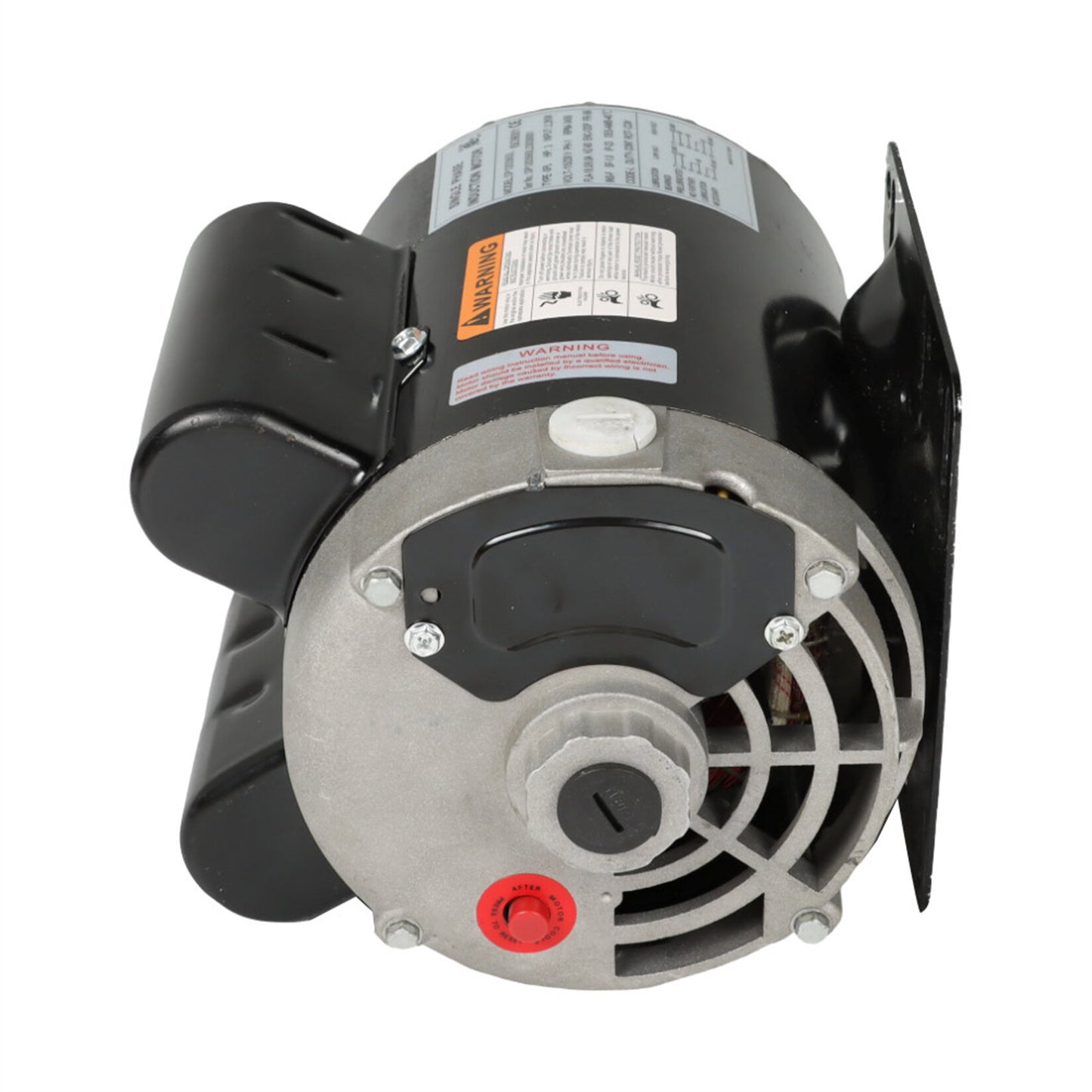

Overload Thermal Protector: The 3HP electric motor for air compressor adopts a manual reset knob allowing it to stand up against high-temperature overloads. A Reduced starting amperage design ensures the reduced voltage will start at a rated load. Insulation Class: F, Service Factor: 1.

Fast Heat Dissipation: The 56 frame electric motor has multiple heat dissipation strips for heat dissipation. It can also guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust. Works hard while maintaining high performance.

ODP for Dry Environments: The open drip-proof motor demonstrates optimal performance when used in a relatively clean and dry environment. Specifically designed for air compressor duty uses. Ensure our motor matches the specific specifications listed on your compressor before purchase.

Package Contents:

1 x Air Compressor Electric Motor

Excluding product manuals
