findmall 2HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8" Shaft 115/230V

Feature:

Open Drip Proof (ODP) Enclosure

Single Phase

2 HP

3450 RPM

60hz

115/230 Volts

AMB 40 °C

Frame: 56

Duty: Cont. Compressor

Service Factor: 1.0

Full Load Amps: 15/7.5

INS. CL: F

Non-Reversible, CCW Rotation Facing Shaft

Thermally Protected

Overall Length W/O Shaft: 9.75"

Overall Length With Shaft: 12.3"

Overall Height: 8.5"

Overall Width: 6.35"

Shaft Diameter: 5/8"

Shaft Length: 1.88"

Standard Size Keyway: 3/16"

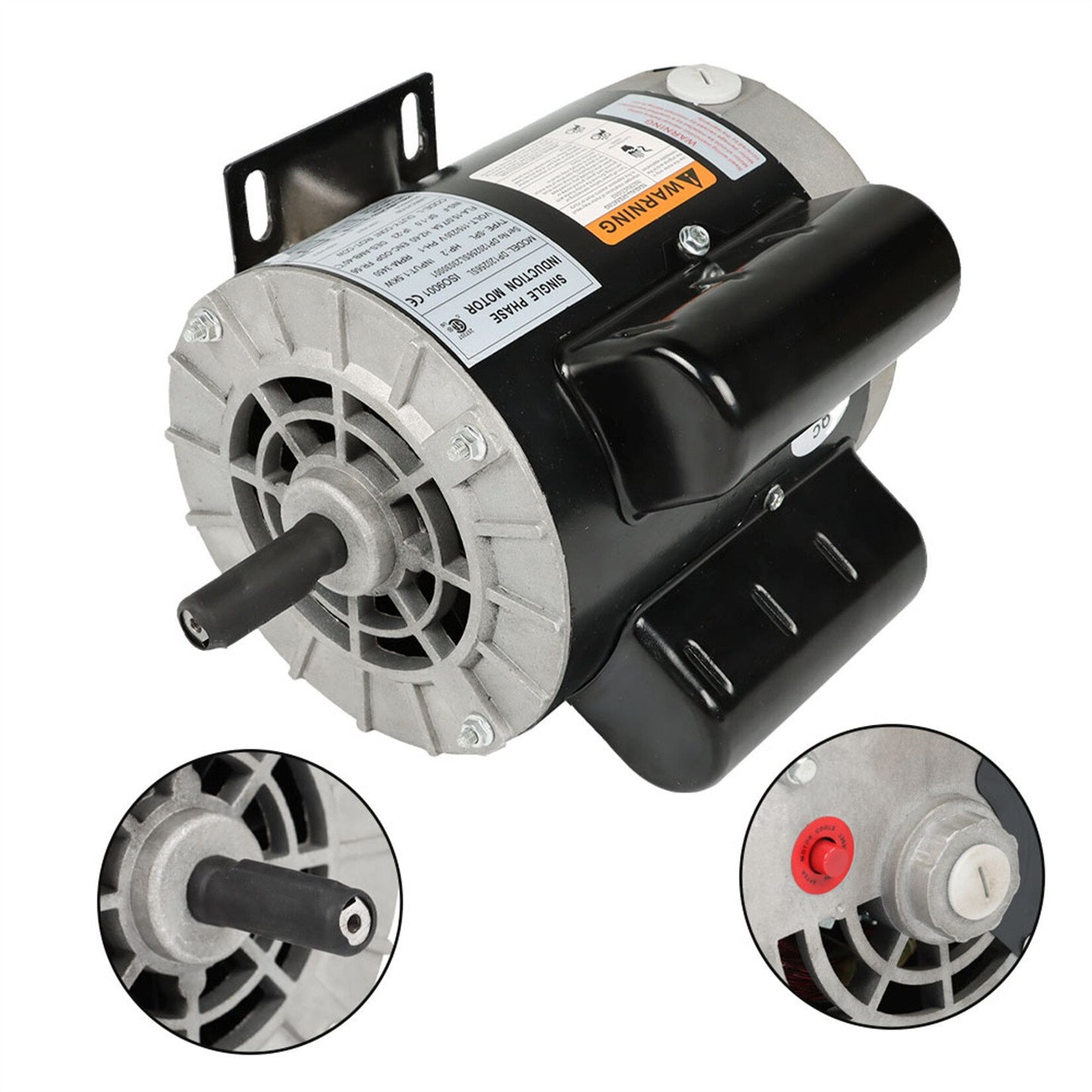

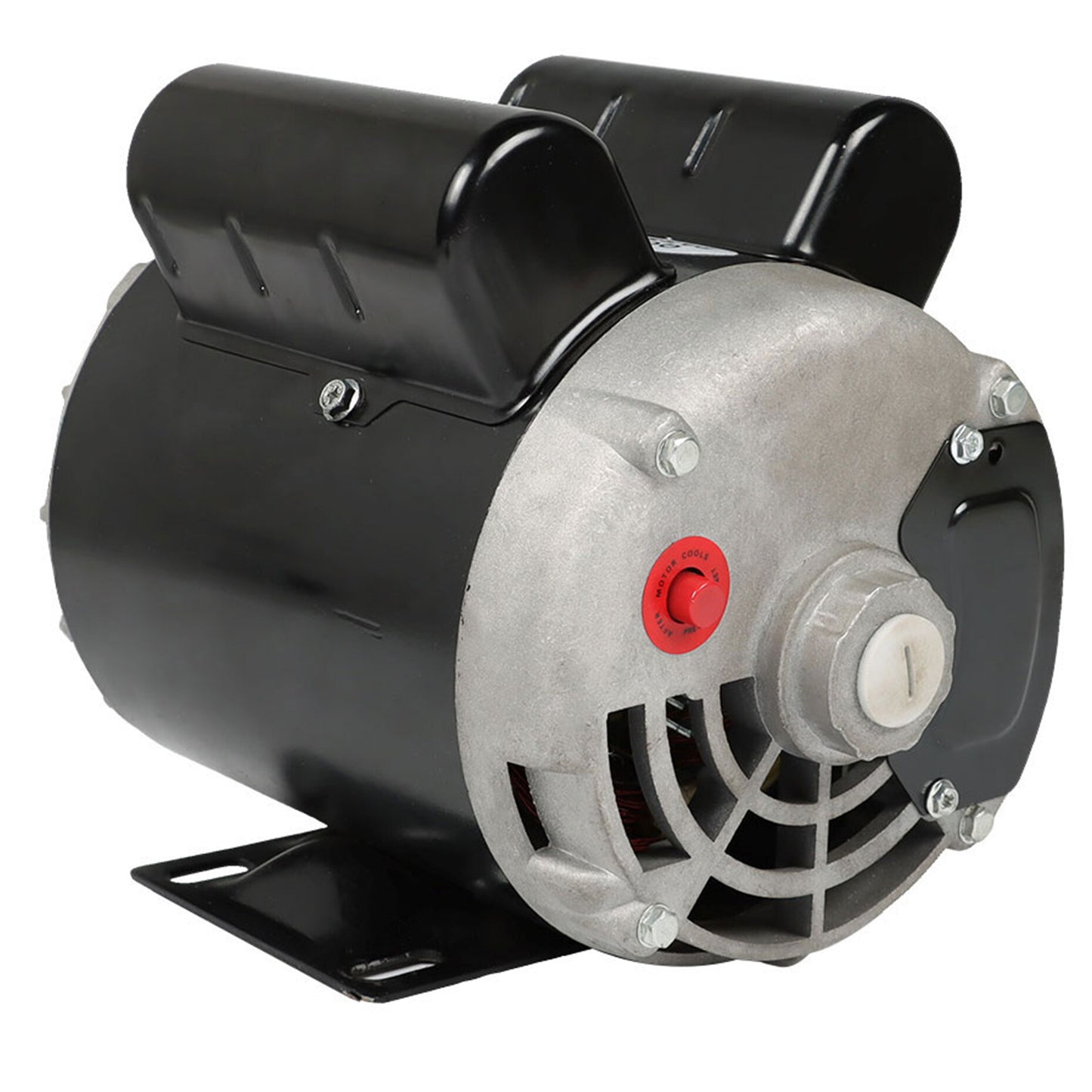

Features Manual Reset Overload Protection

Description:

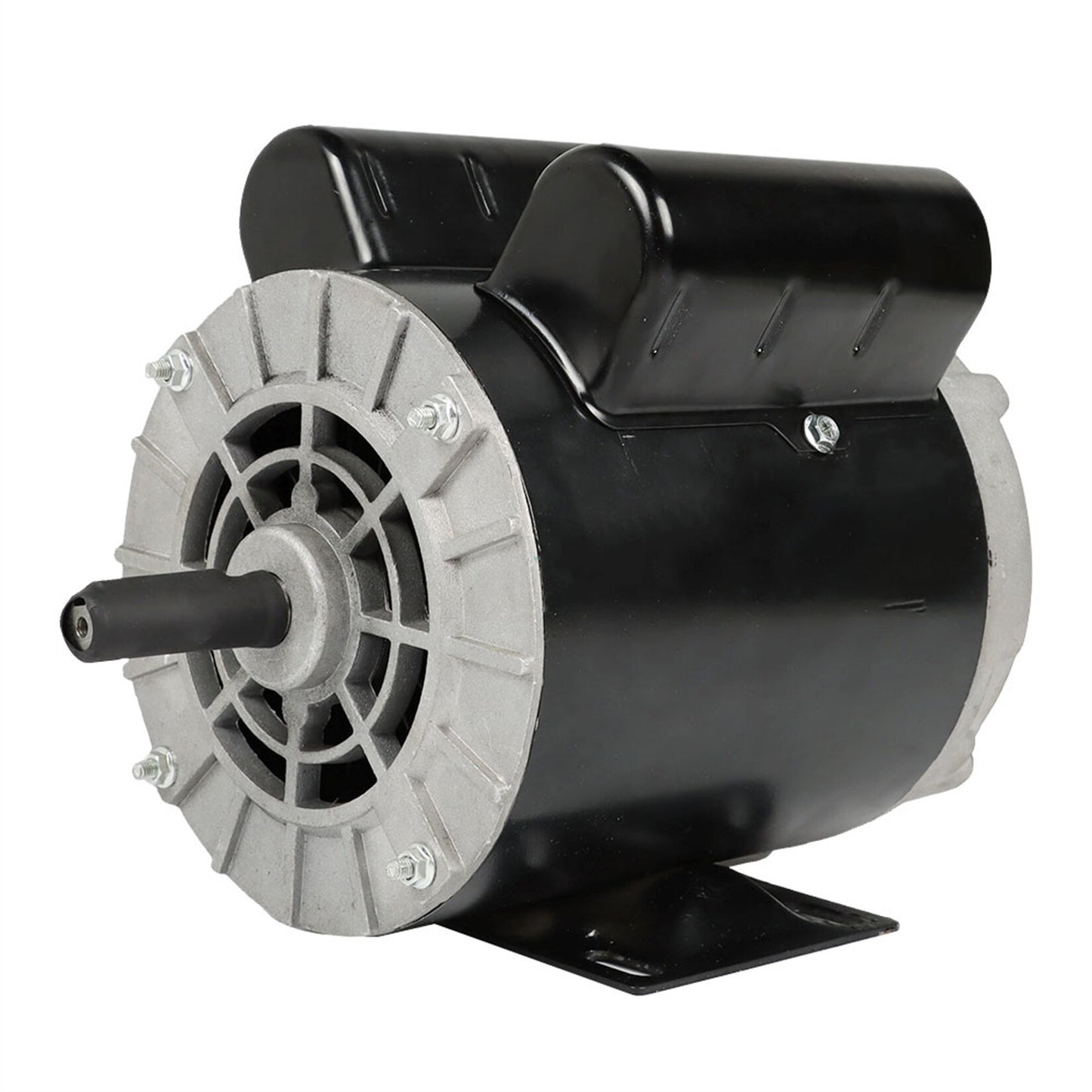

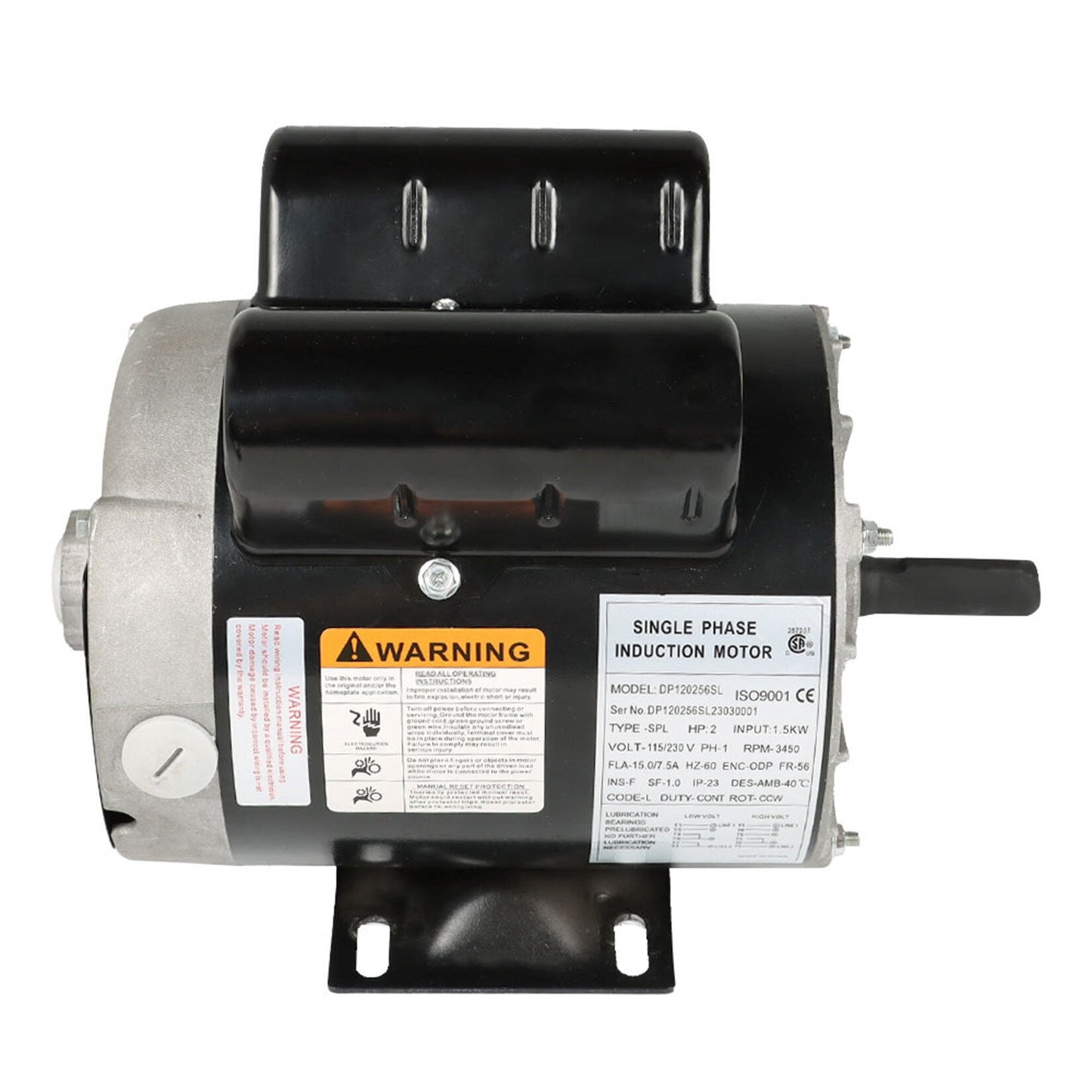

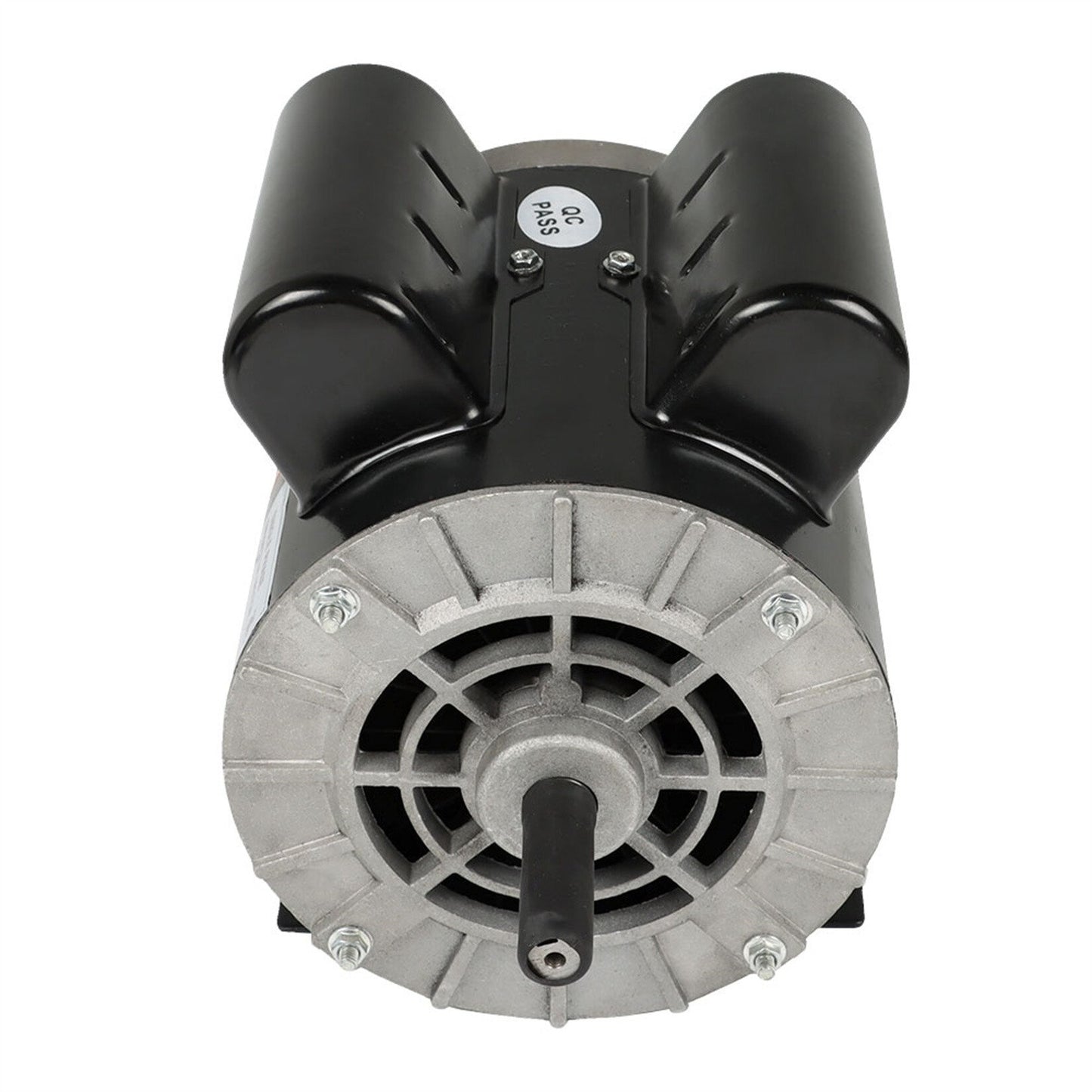

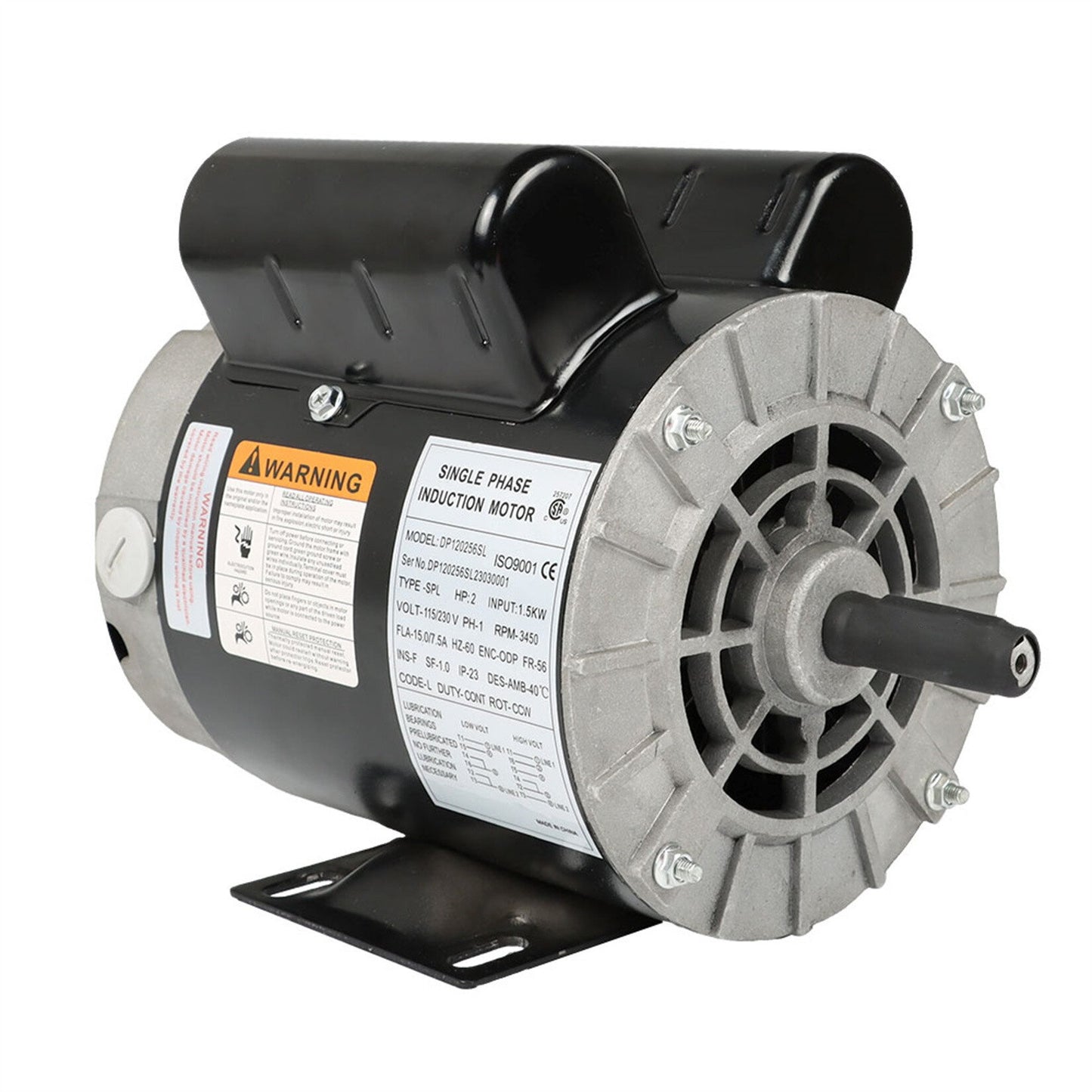

Brand new 2 HP 115/230-volt compressor duty electric motor.  This motor features a 56 frame with a 5/8" diameter shaft and is 3450 RPM.  This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft.  This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications.  The wiring diagram is listed on the side of the motor for reference.  Below is a full list of specifications.
