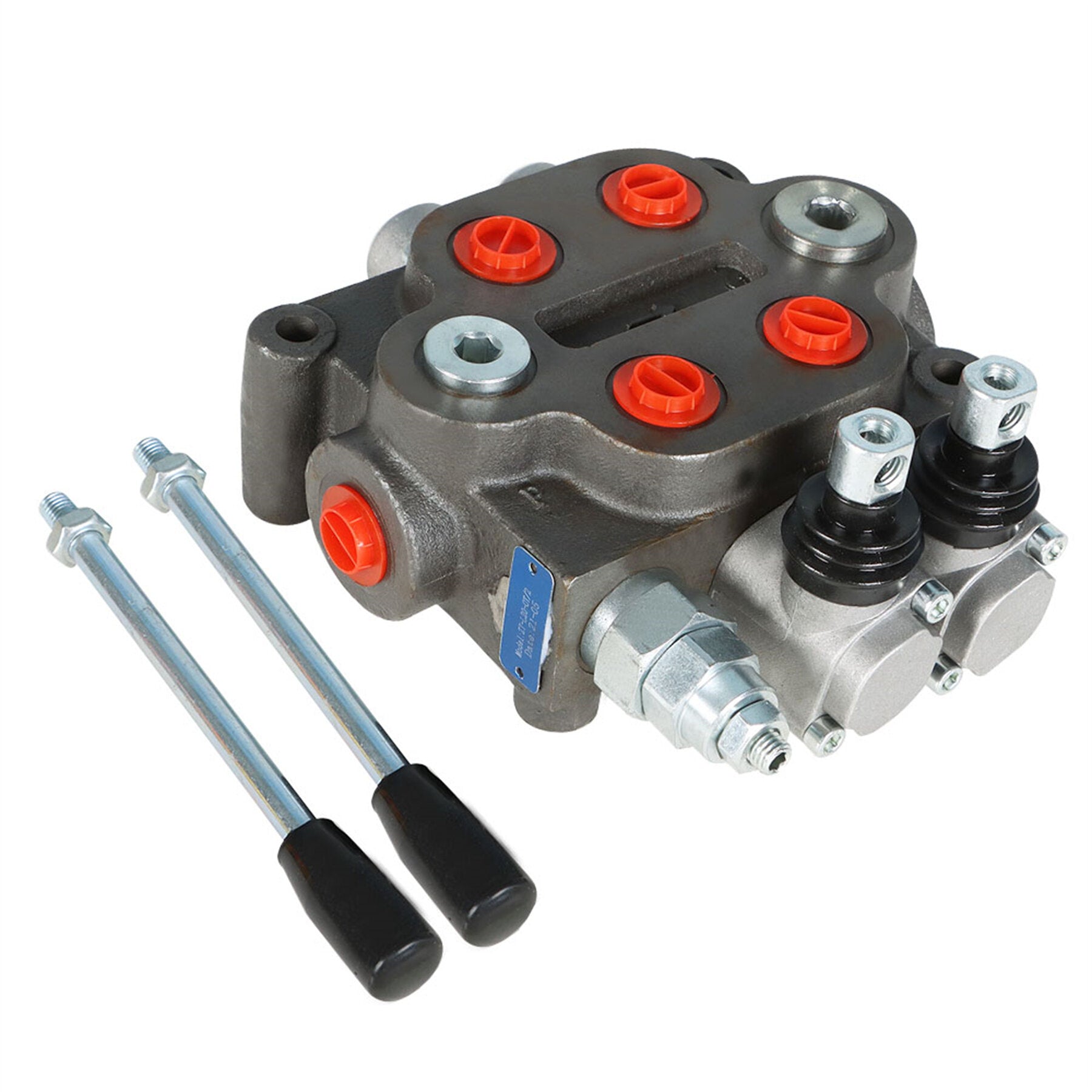

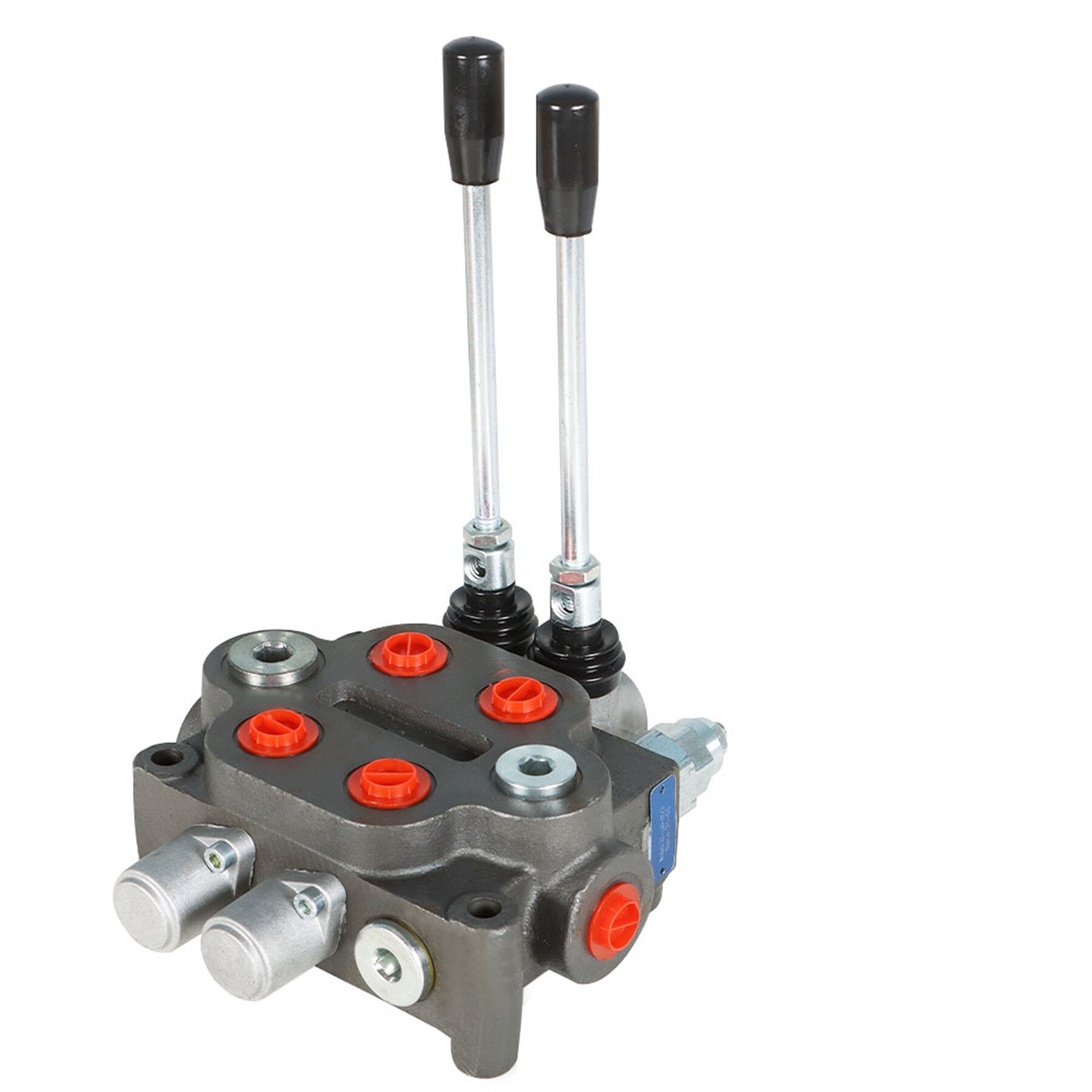

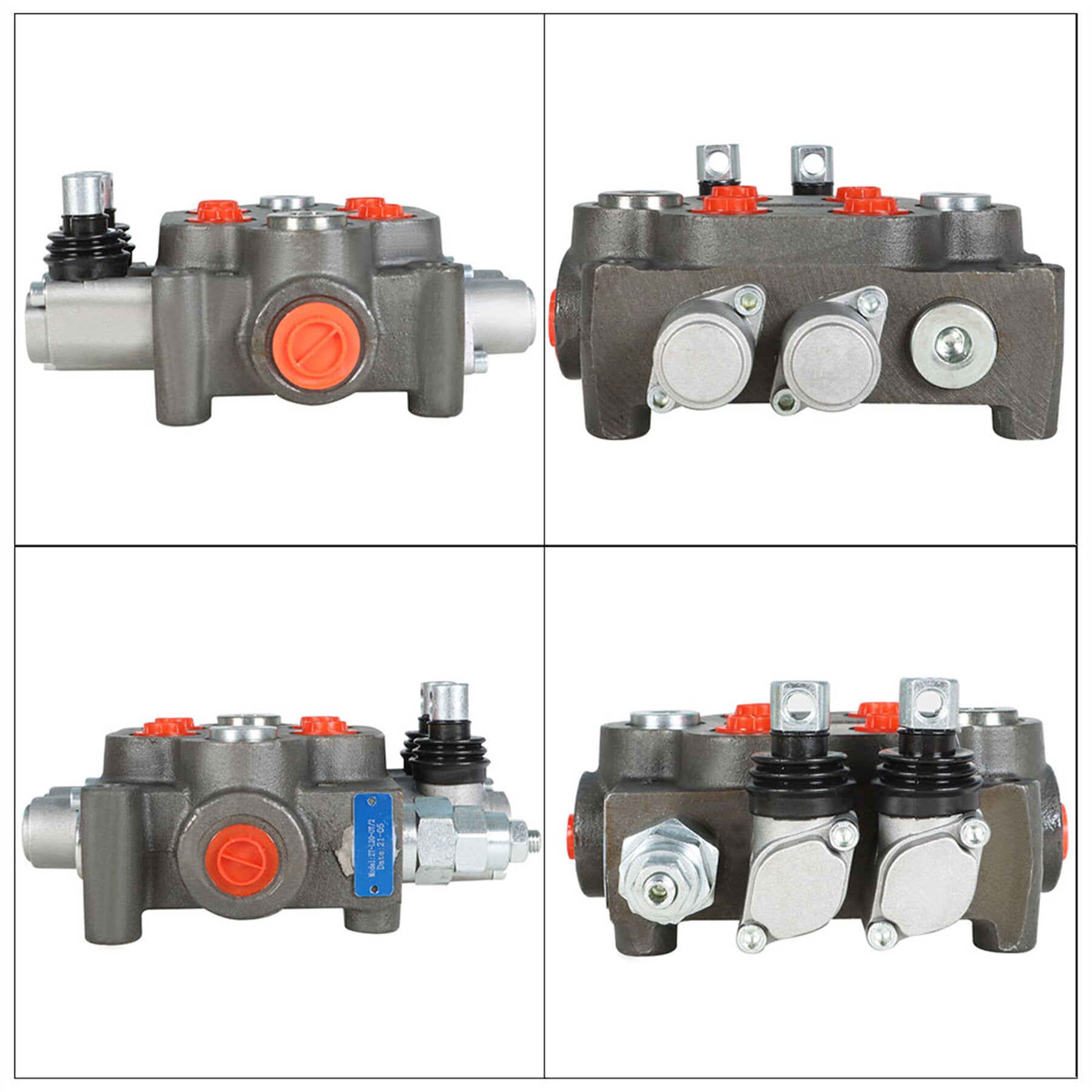

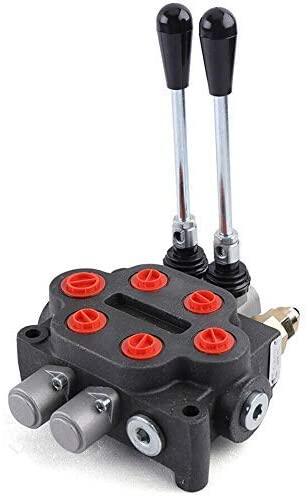

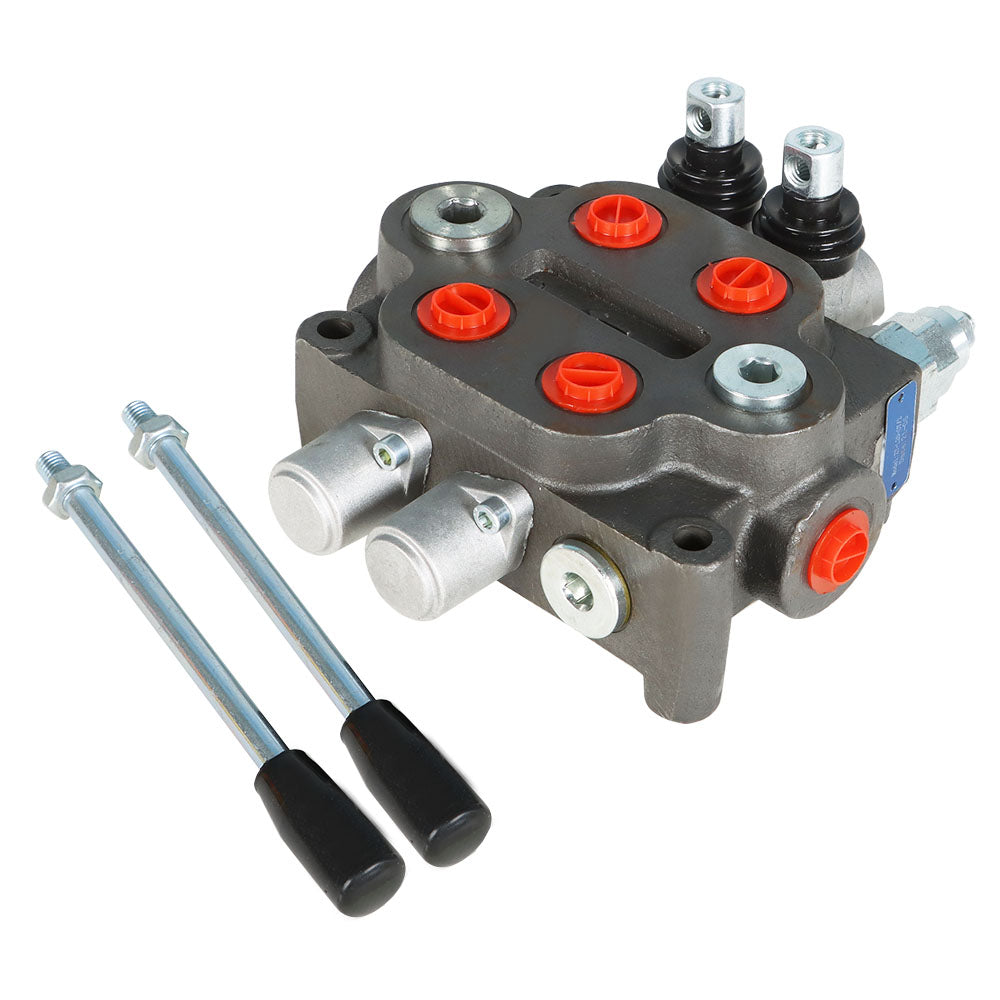

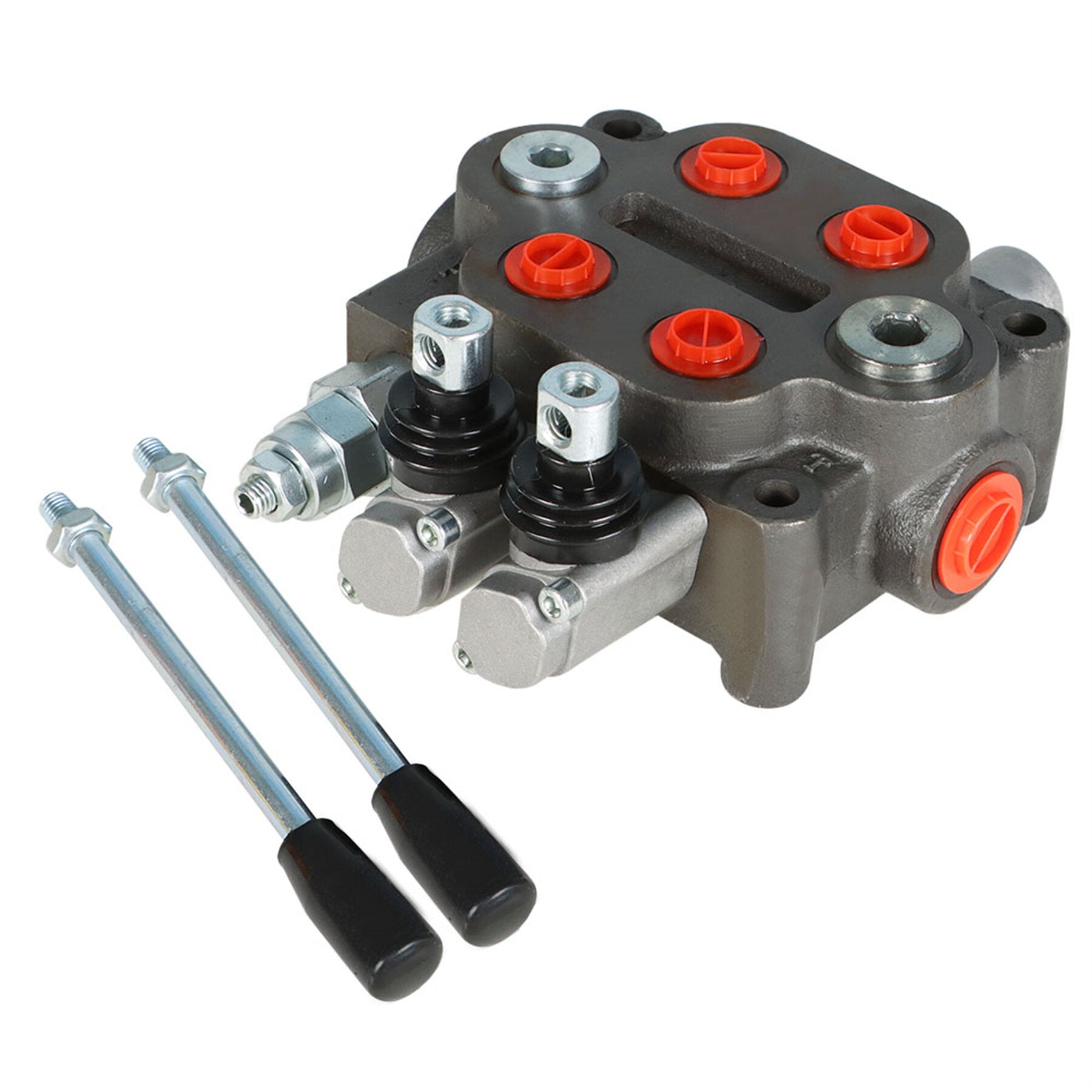

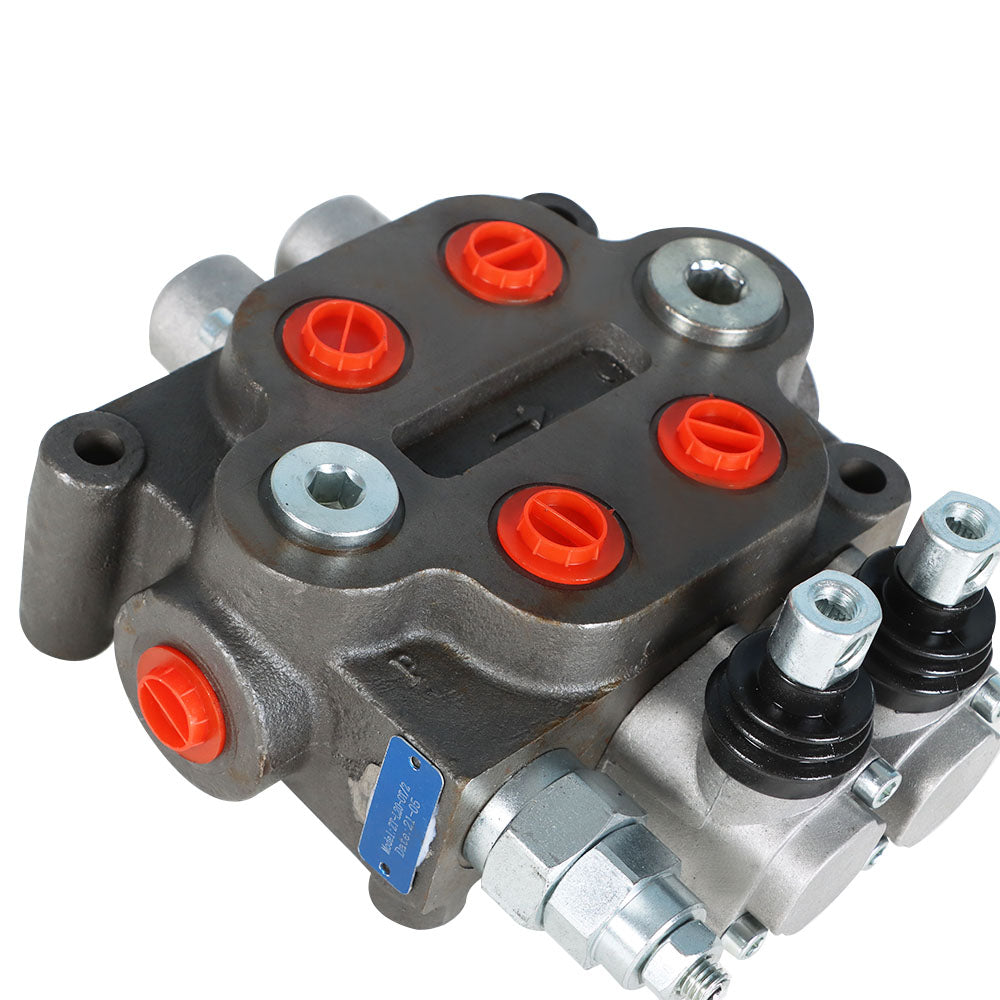

findmall 25 GPM Hydraulic Directional Control Valve 2 Spool Double Acting Hydraulic Valve

Specifications:

Nominal pressure:20 Mpa
Max pressure: 31.5Mpa
Nom.flow: 90L/min
Allowable pressure: ≤1Mpa
Temperature: -20 - +80℃
Visc. Range: 10-400mm2/S
Filtrating accuracy: ≤10 um
Note: the maximum permissible degree of contamination of the oil is according to GB/T14039-19/16


Features:

Inner check valve: The check valve inside the valve body is to ensure the hydraulic oil not to be returned.
Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
Oil way: Parallel circuit, power beyond option
Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
Valve construction: monoblock construction, 1-5 levers.
Spool Function: O, Y, P, A.
The valve is widely used in the hydraulic system of forklift environment vehicles and light loading machines.

Details:

DOUBLE ACTING：- Our hydraulic control valve is made for operating double-acting cylinders.
DURABLE QUALITY：- This hydraulic directional control valve comes with2 spool  with cast iron construction for long-time use.
HIGH PERFORMANCE：- This hydraulic relief valve range can reach up to 3000 PSI and the maximum flow is up to 25 GPM.
SPRING RETURN：- All spool valves come with spring return, which can return to the neutral position.
WIDELY USED：- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

Package:

1 ×  Monoblock Directional Control Valve
