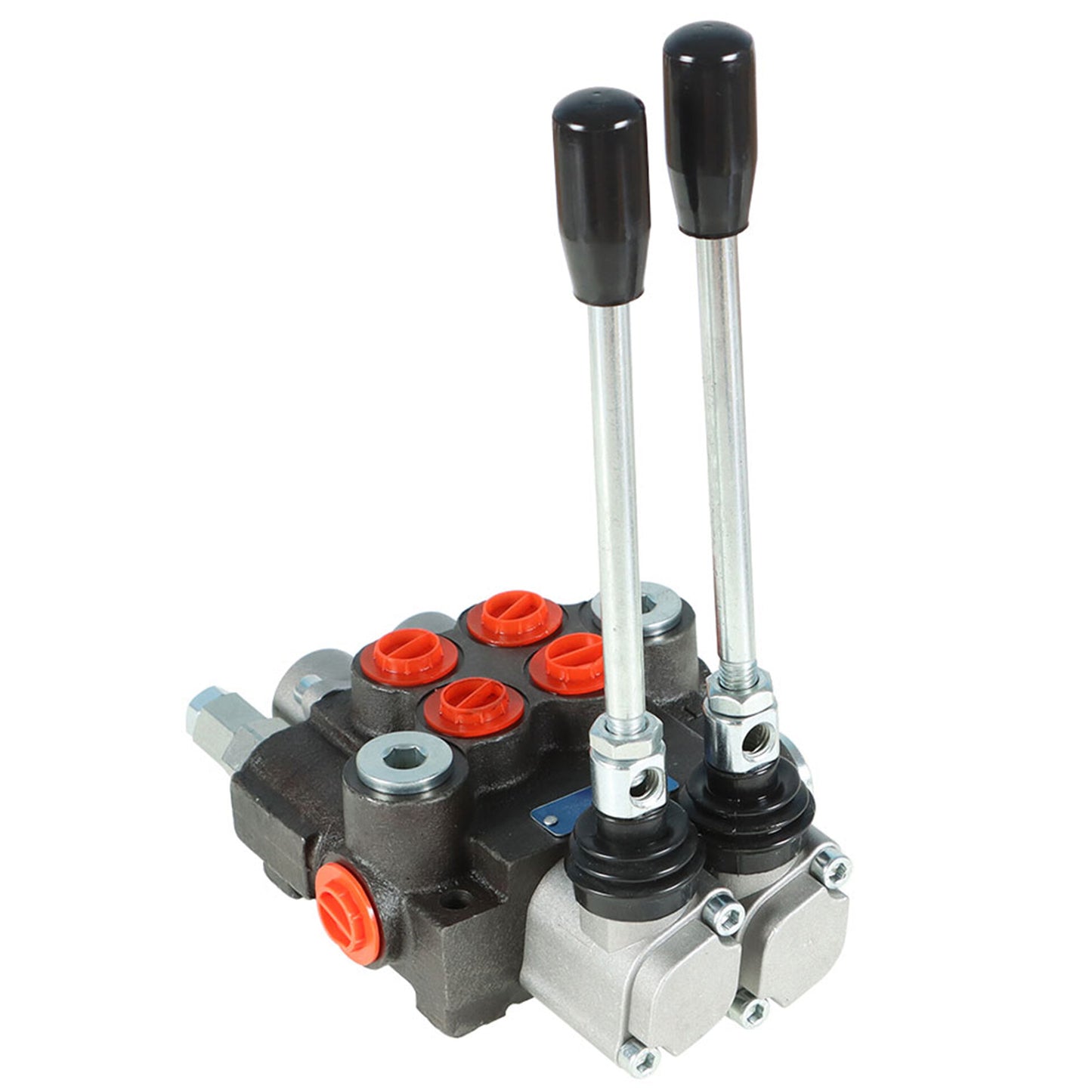

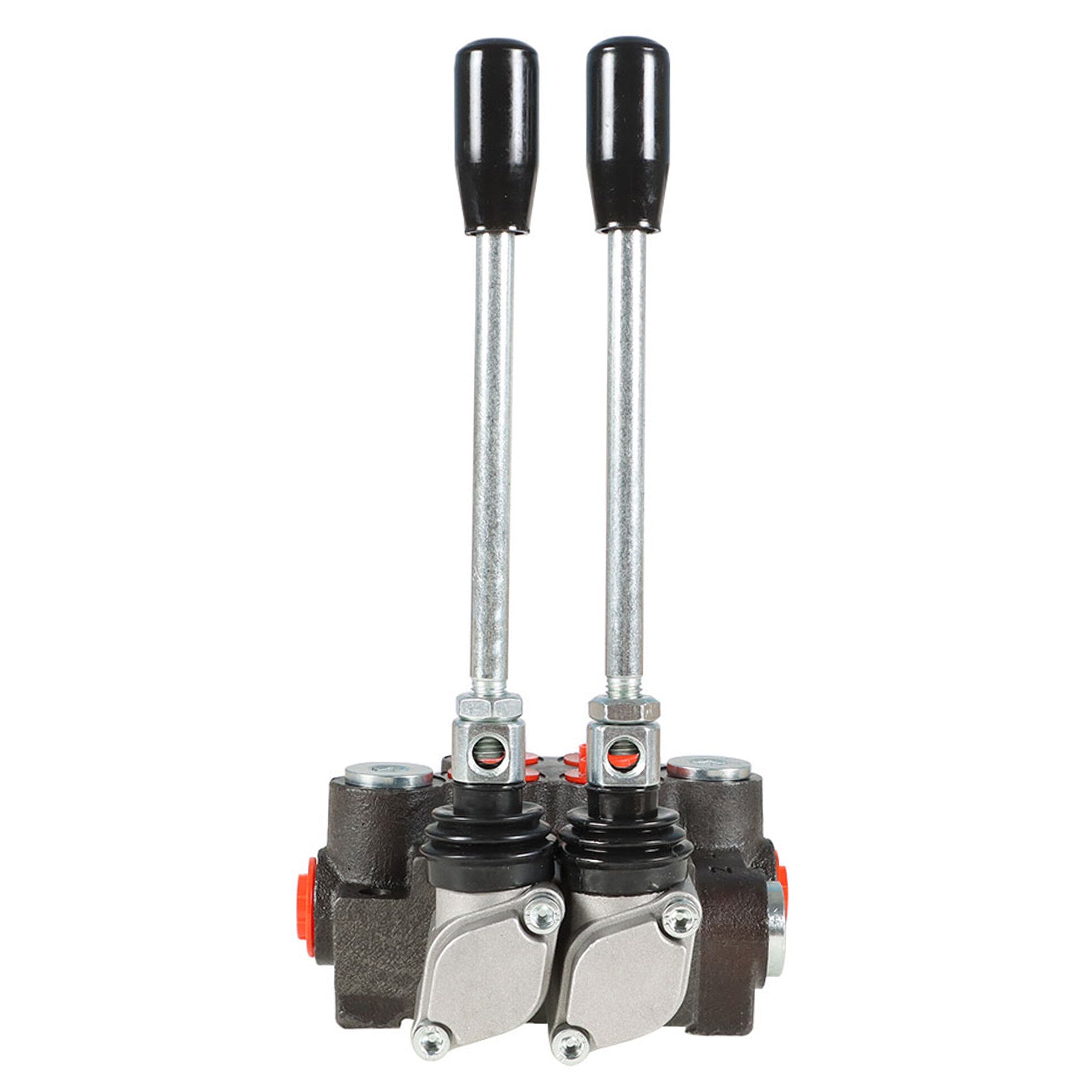

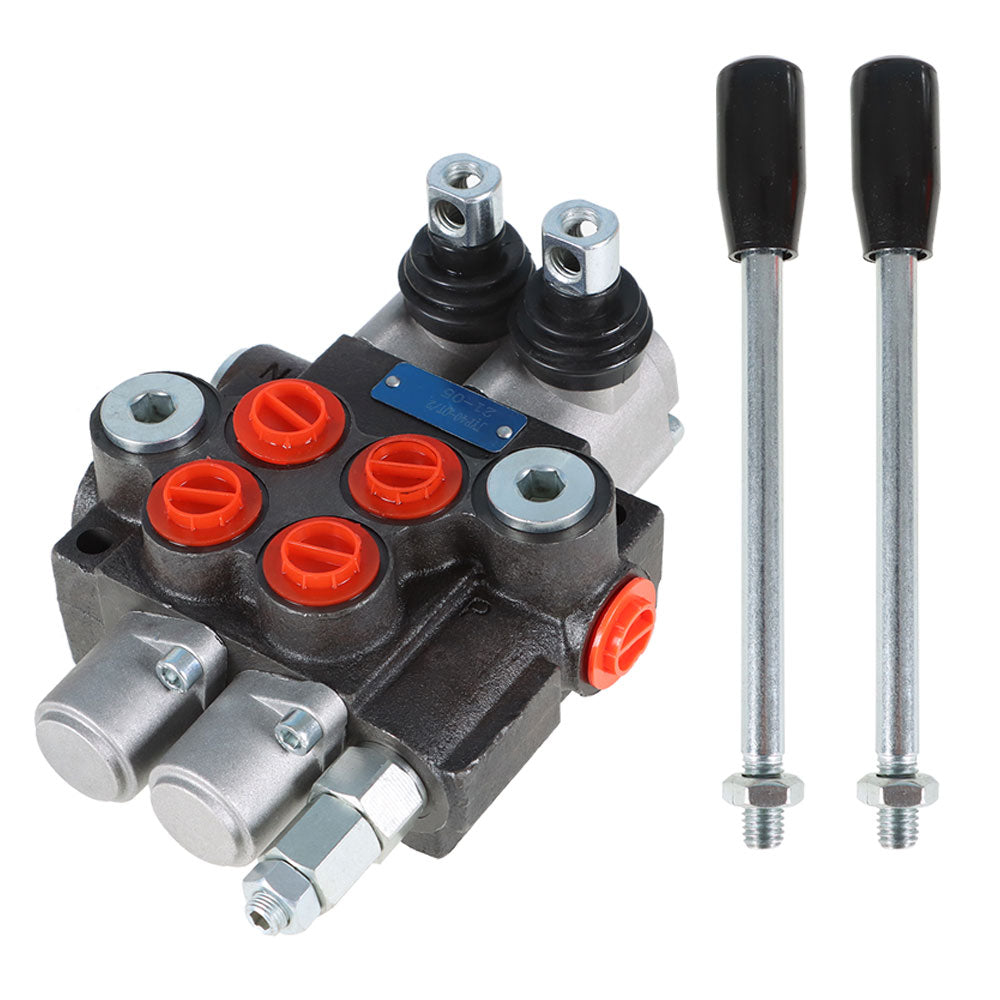

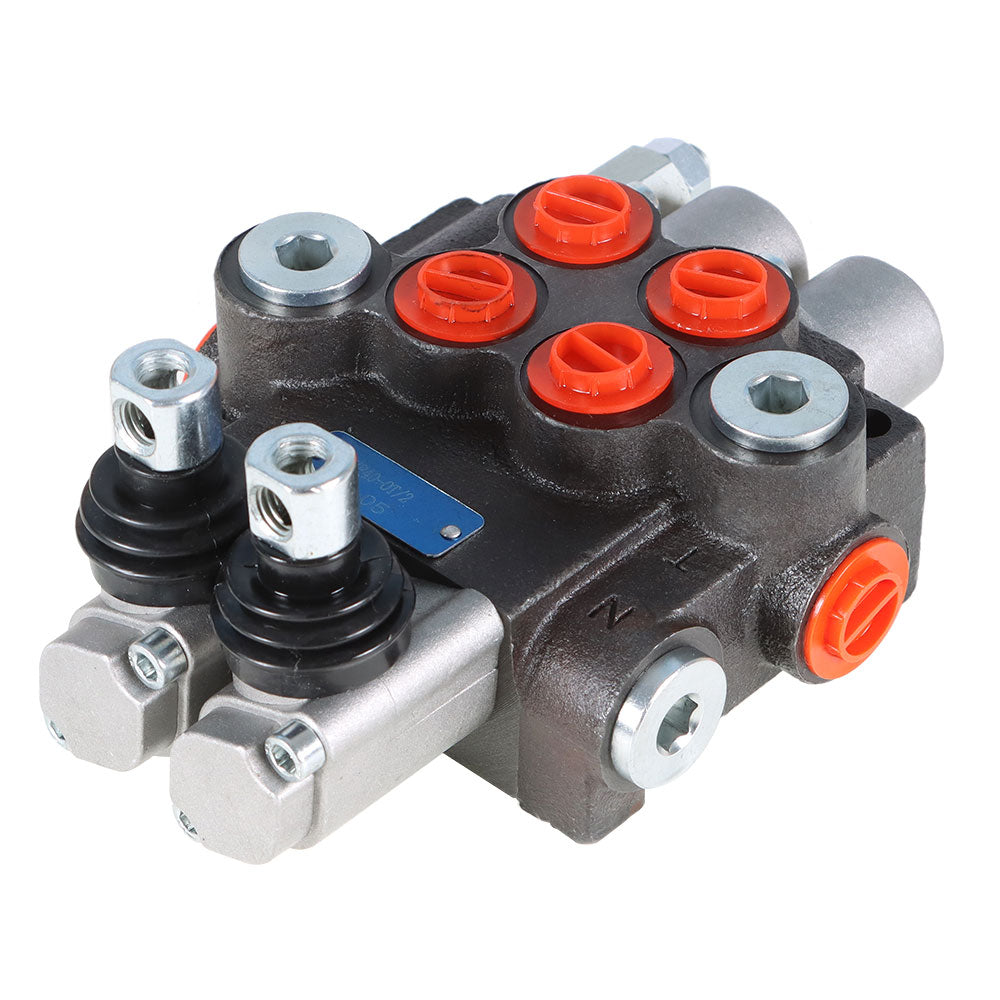

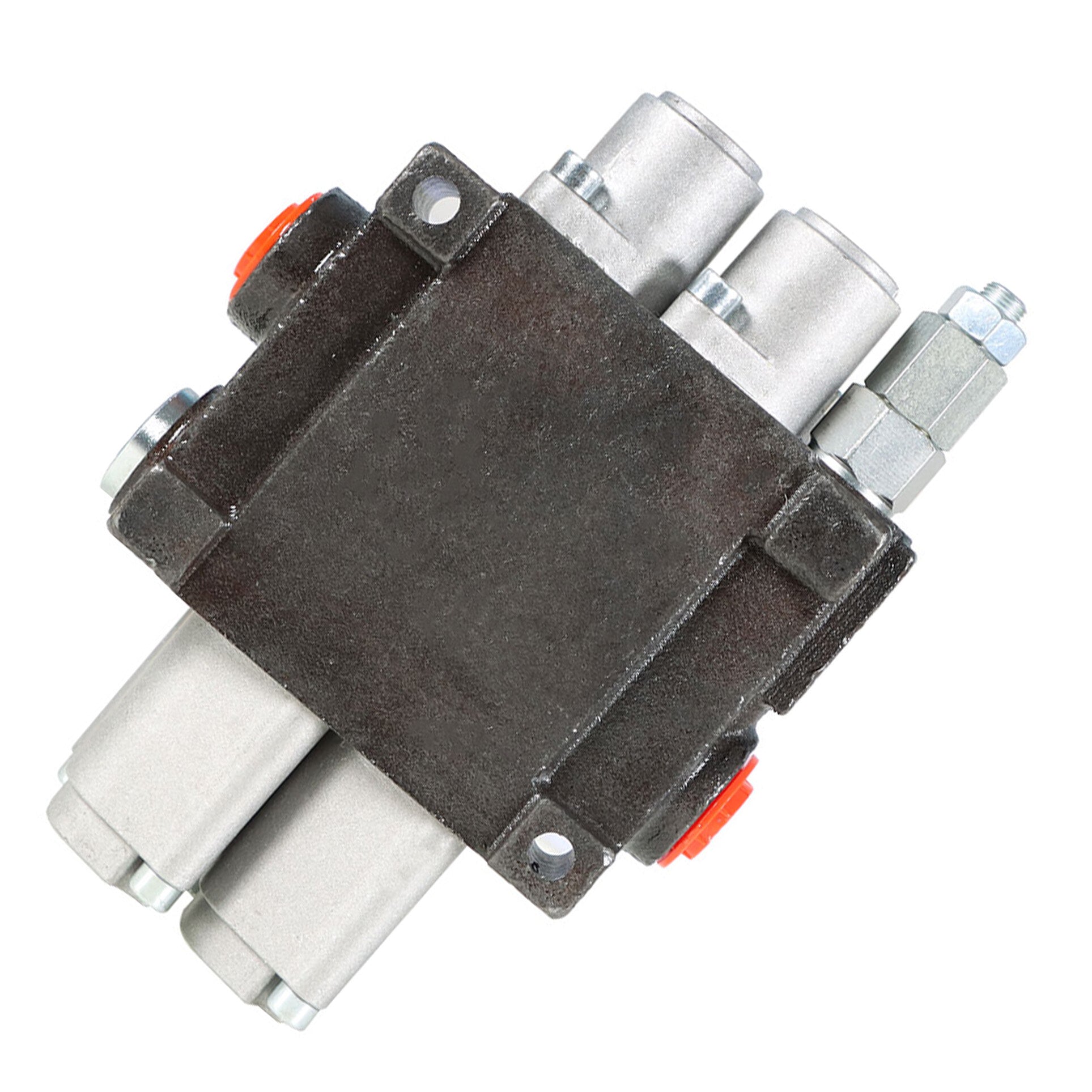

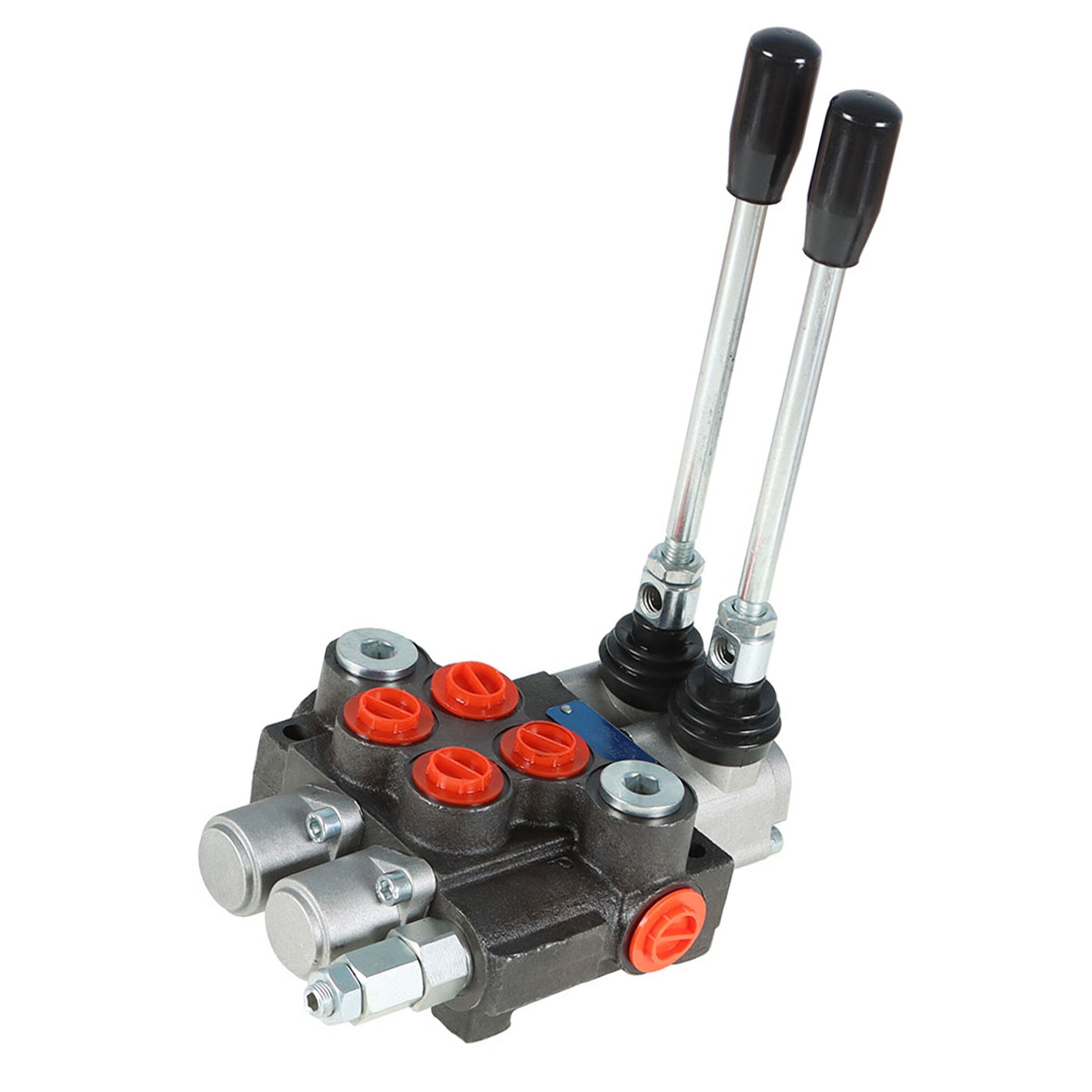

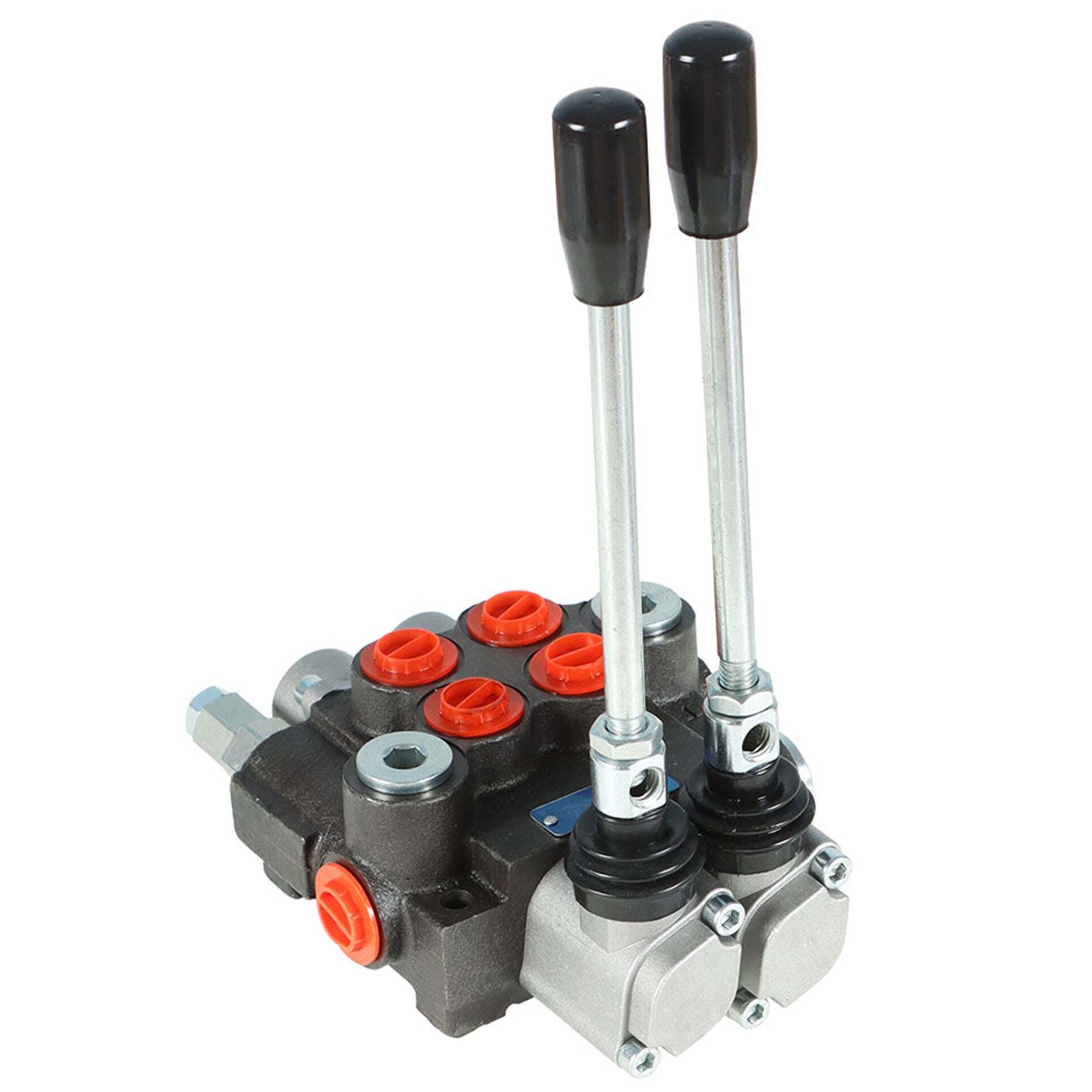

findmall Hydraulic Monoblock Double Acting Control Valve 2 Spool 11 GPM SAE Ports New

Features:

Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 11 GPM (40 l/min)
A & B Work Ports:  #8 SAE O-Ring (3/4”-16) Thread
Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
Outlet Port: #10 SAE O-Ring (7/8”-14) Thread
2 – 5/16” Mounting Holes

Description:

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.

2 Spool valve with compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (Pump to Tank Flow) - closed center option available
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of Closed Center or Power Beyond (conversion plug required)
Vertical or horizontal handle mount
Adjustable Relief Valve Range:  1500 to 3625 PSI
Used as motor or single-acting spool possible (#8 SAE port plug required)

Suitable for:

Operate hydraulic cylinders (Double-Acting or Single-Acting)
Operate hydraulic motors ("D" Spool Required)
Install rear remotes on a tractor

Includes:

1 × 2 Spool Hydraulic Monoblock Double Acting Control Valve
