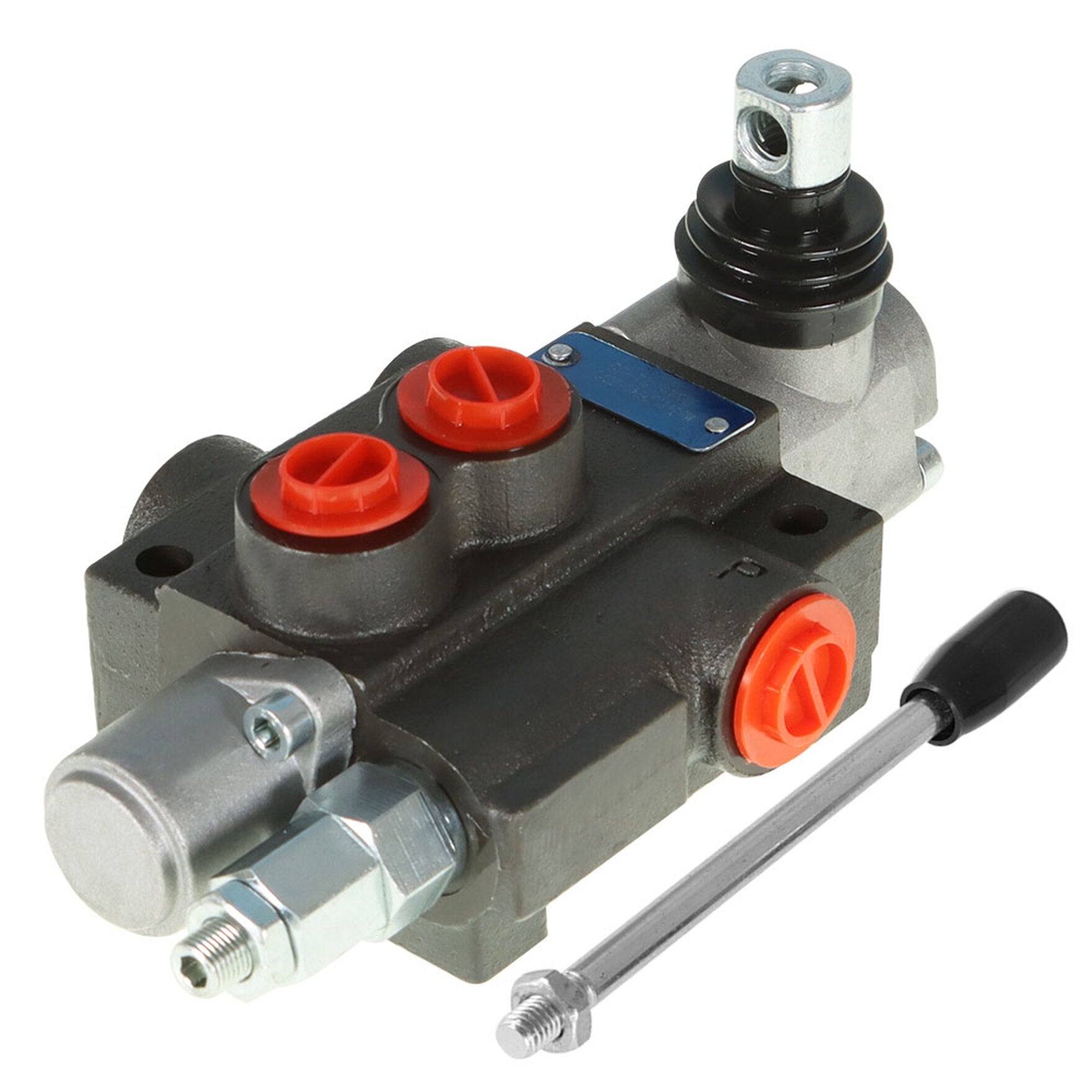

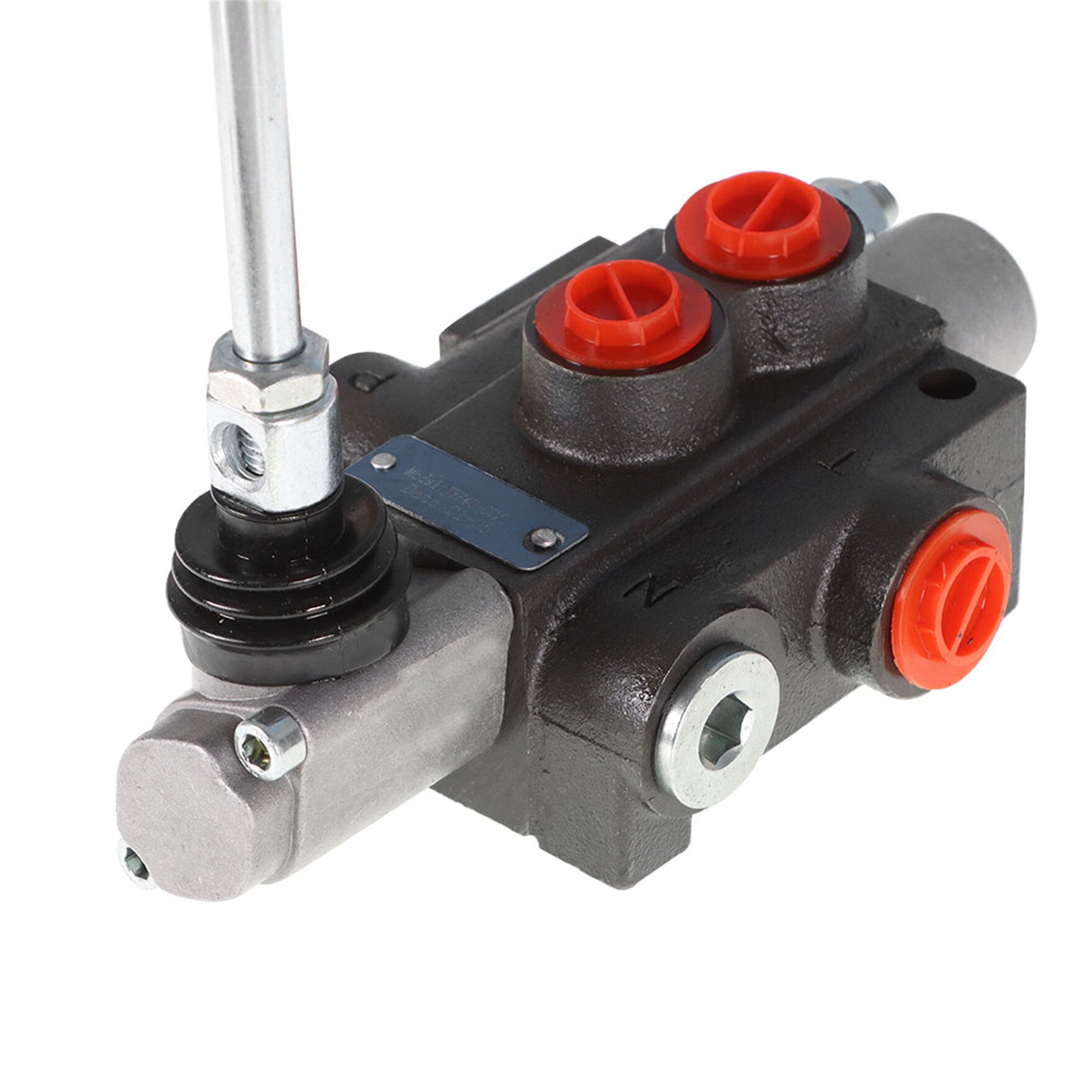

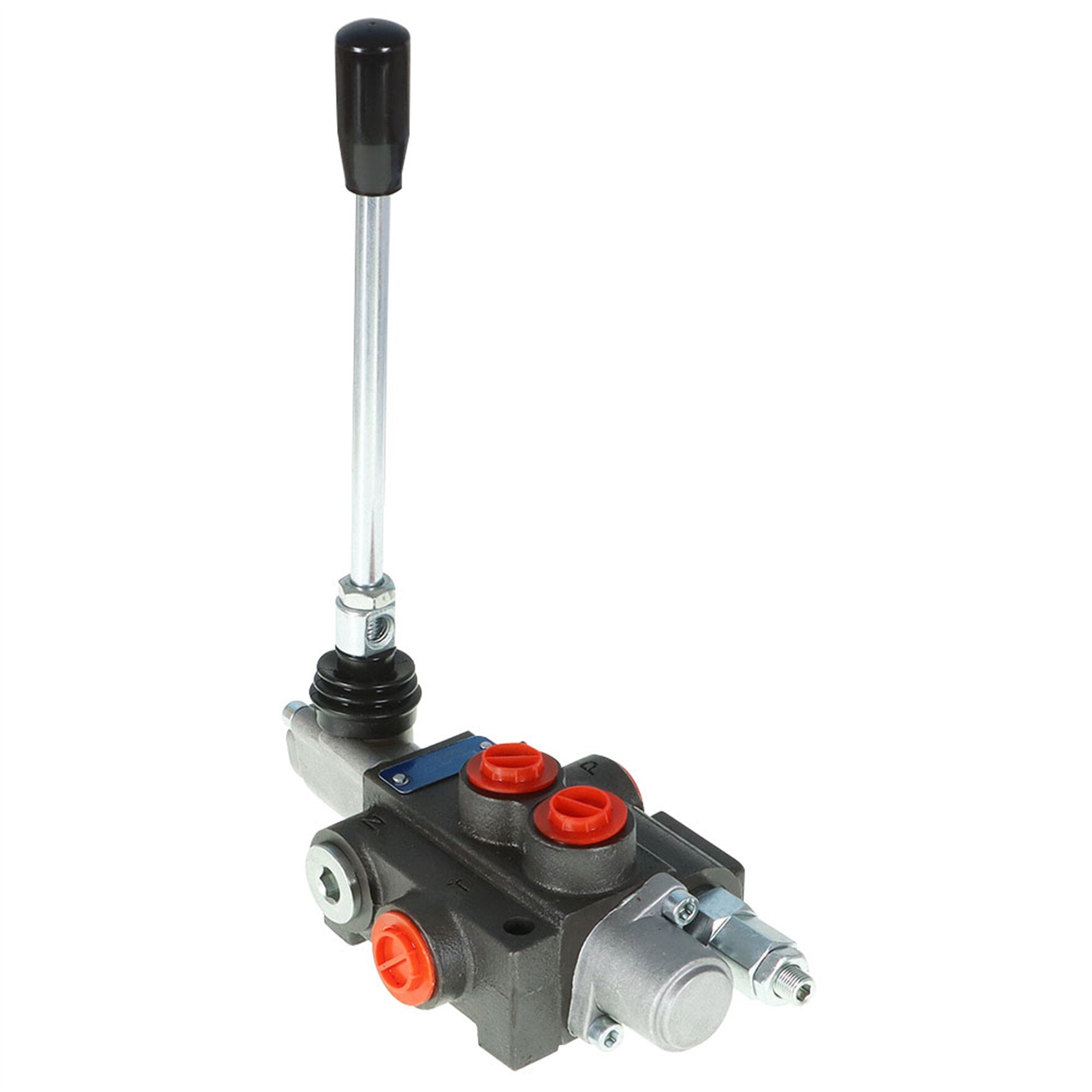

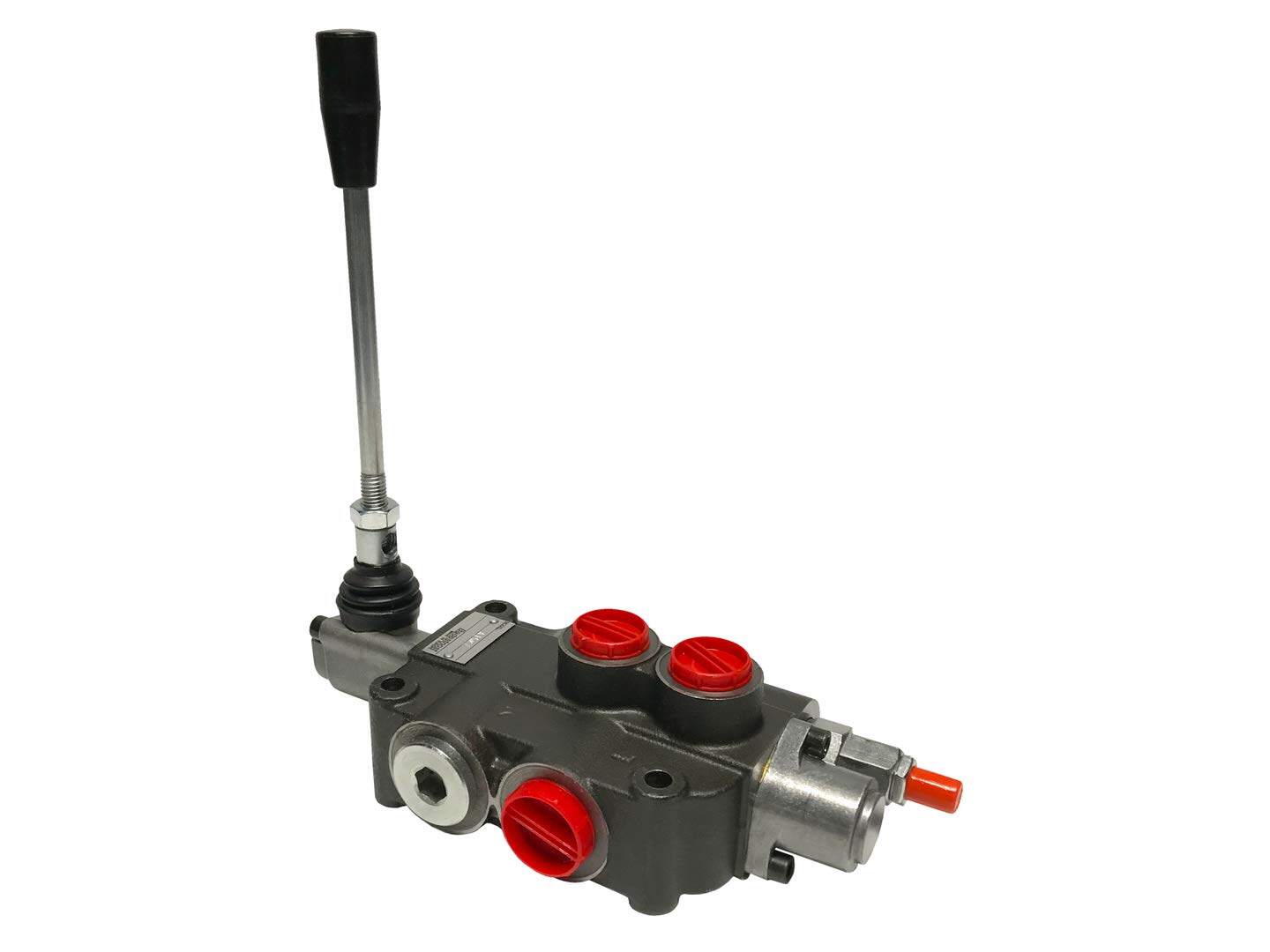

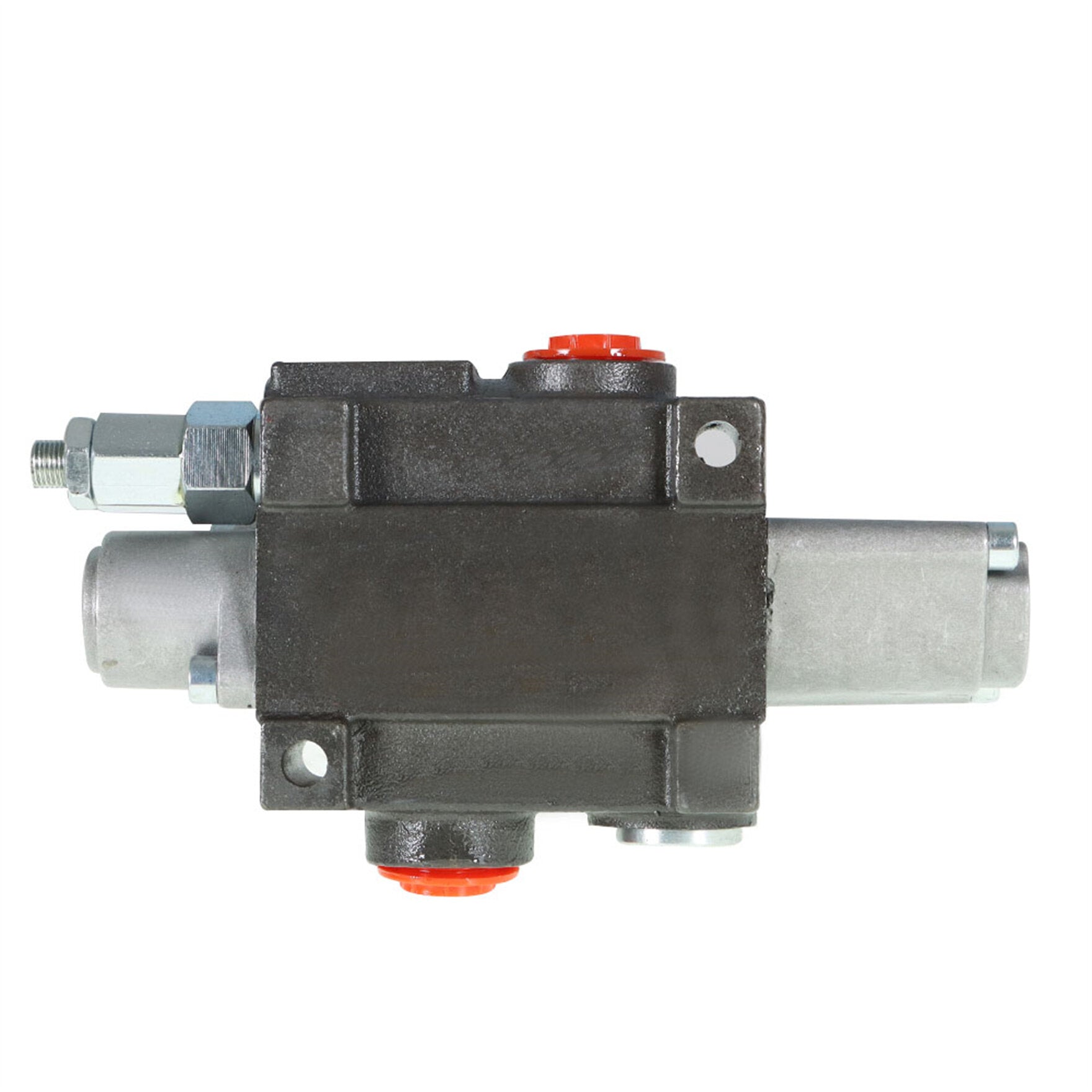

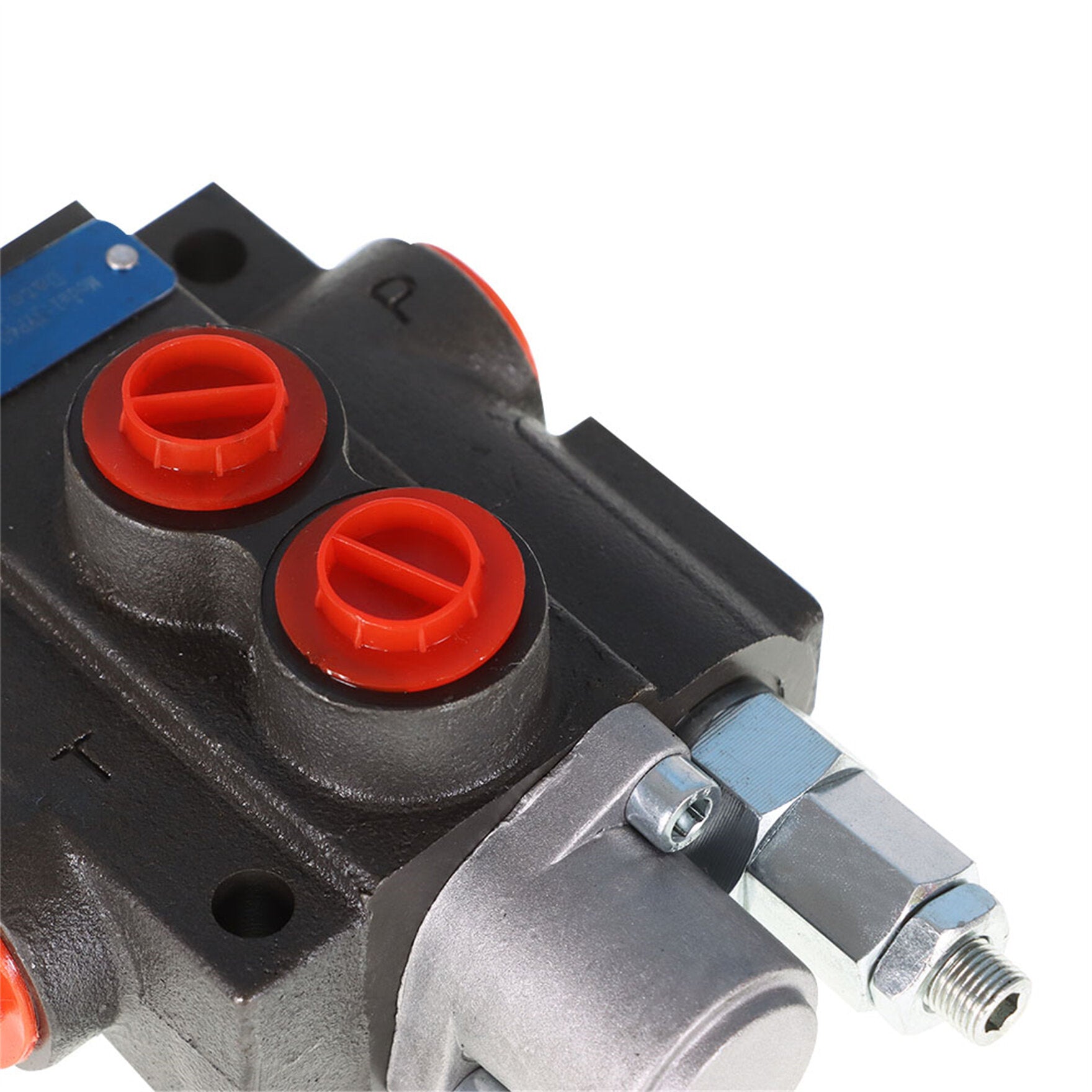

findmall SAE Ports Hydraulic Directional Control Valve 13GPM 1 Spool 3600Psi

Features:

Economical hydraulic multi-way valve

Integral structure, stable and reliable performance

Widely used in engineering machinery, agricultural machinery and other fields

Application: Agricultural machine、Dump truck、Construction Vehicle、Special purpose vehicle、Drilling machine

Specification:

MPN 973012

Spool Count 1-Spool

Nominal flow 13gpm (50l/min)

MAX Pressure 3600 PSI

Model: P40-1

Manual Control

Nominal flow: 13gpm (50l/min)

3600 PSI MAX Pressure

Relief valve pressure: 17MPa

A, B ports: G 3/8"

P, T, N port: G 1/2"

O function, spring reset

Gross Weight: 3kg

Package Size: 22*12.5*10cm(8.7*4.9*3.9")

Package Content:

1 × 1 spool hydraulic directional control valve
