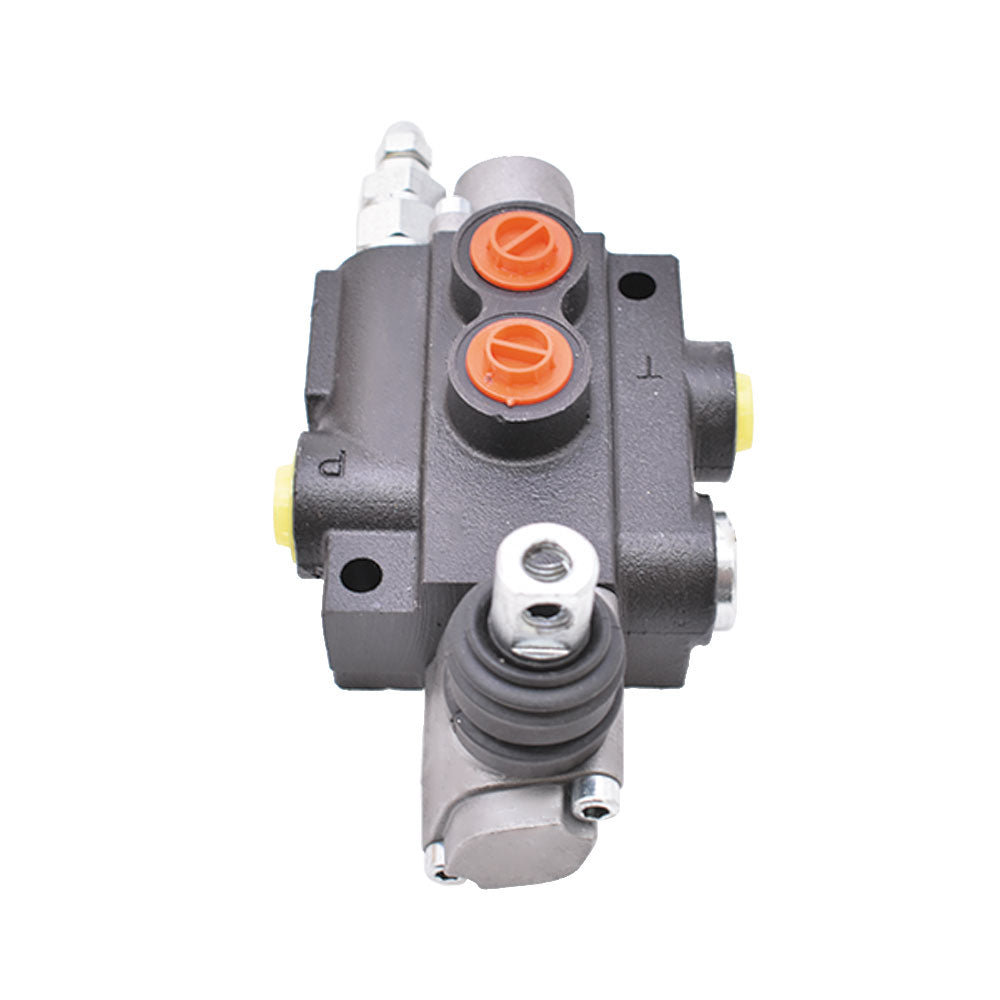

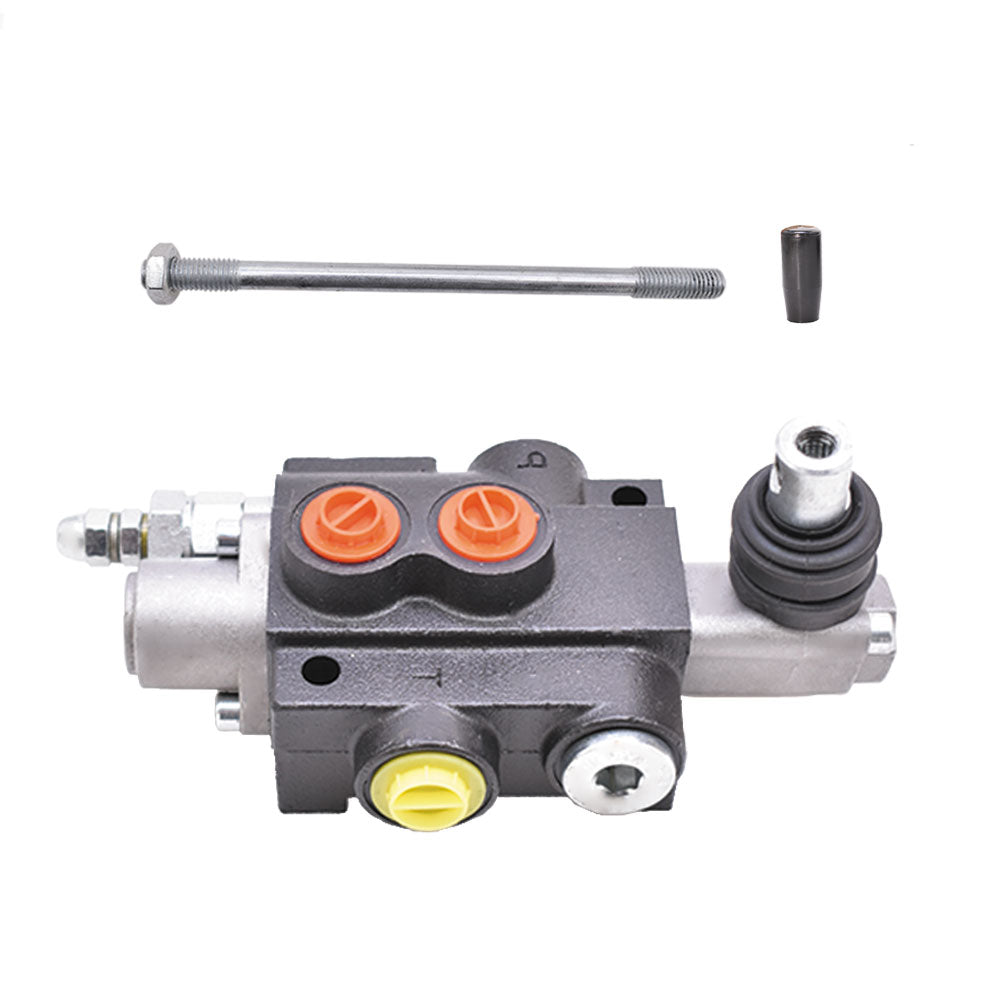

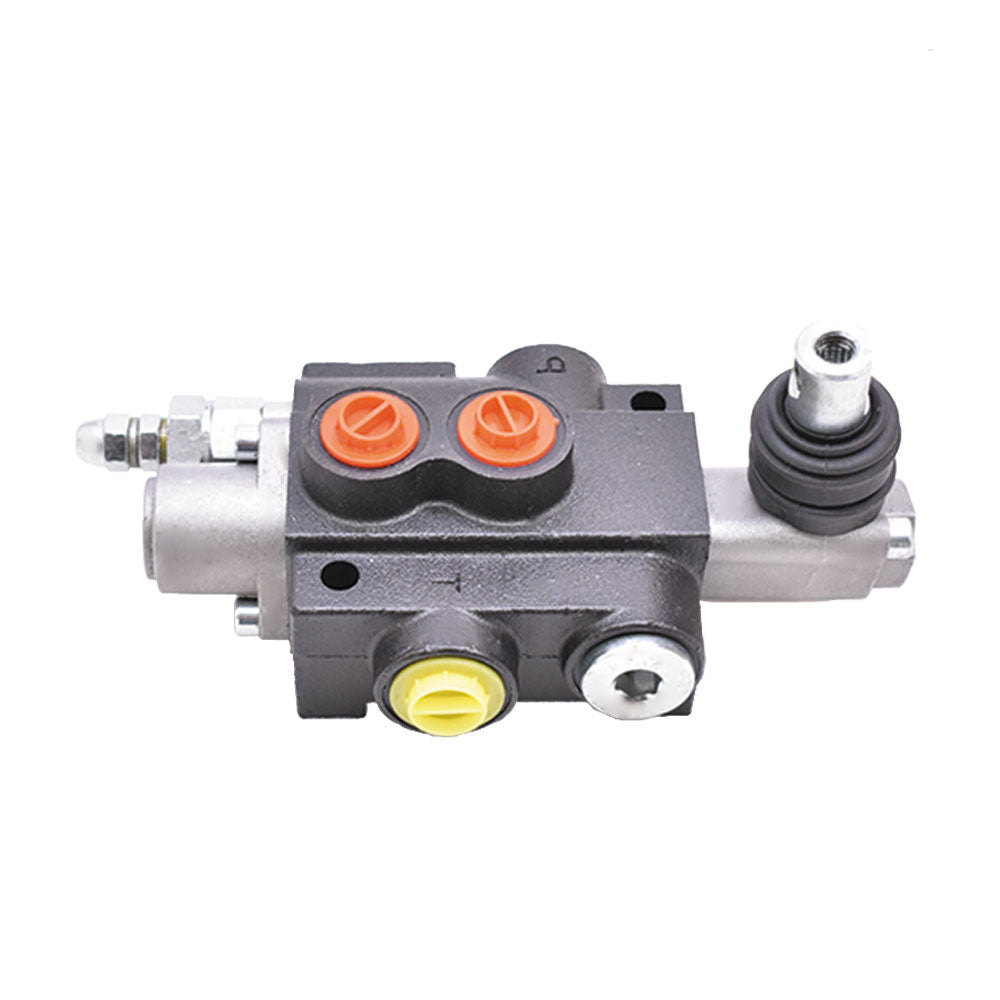

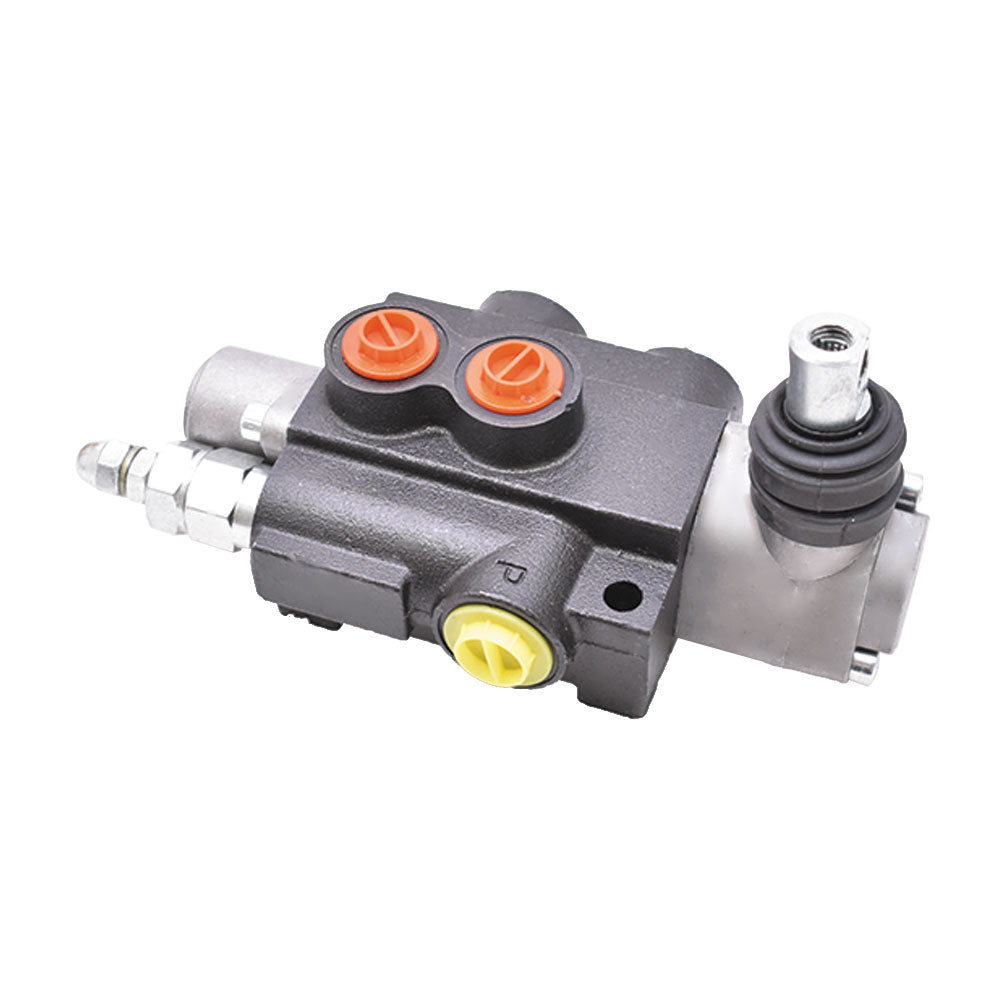

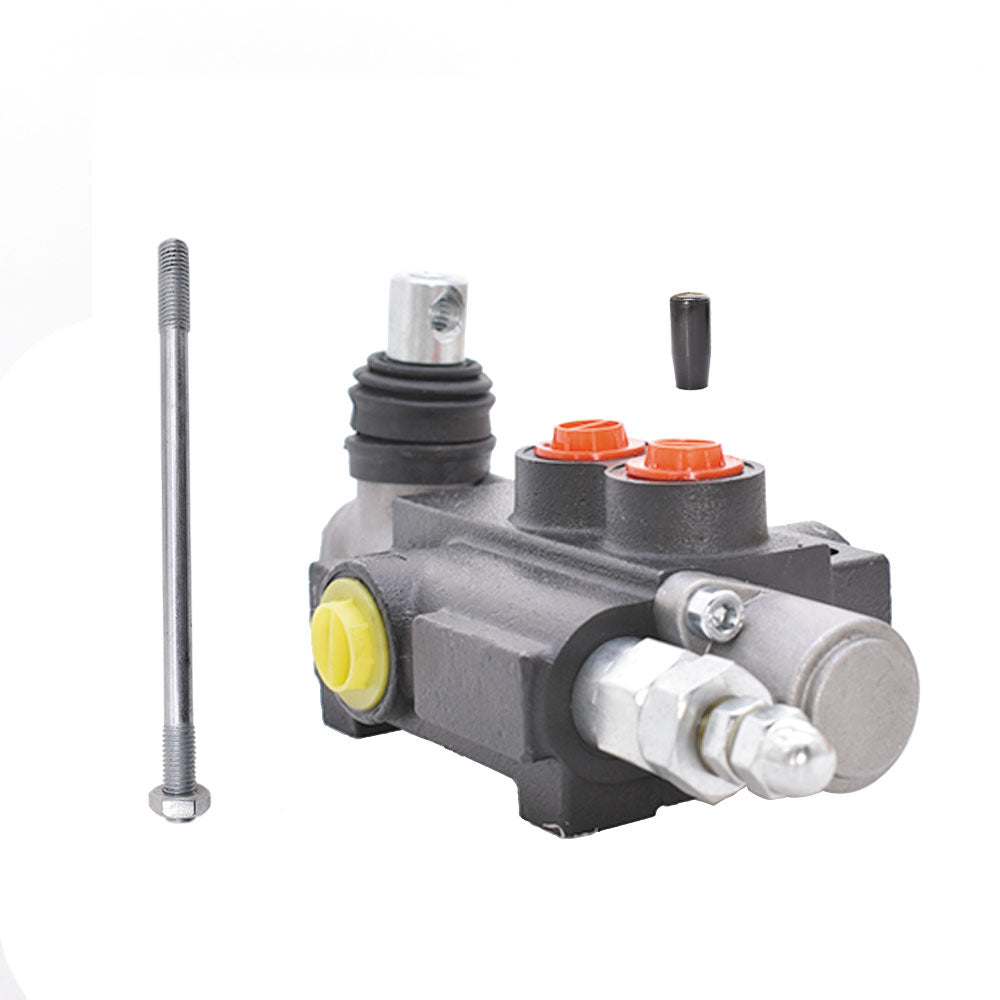

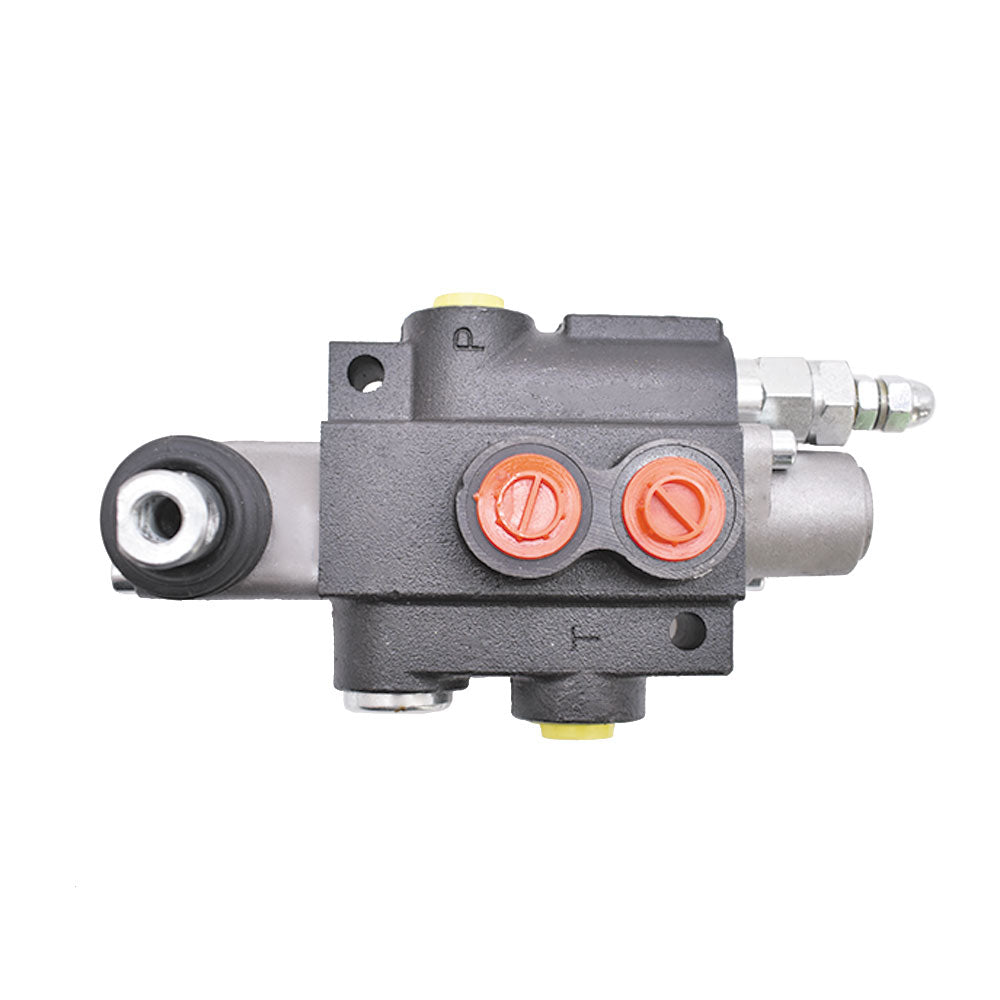

findmall 21 GPM 1 Spool Hydraulic Directional Control Valve Motors Spool Double Acting

Specifications

Max pressure: 3600 PSI

Inlet port: SAE 10

Outlet port: SAE 12

Working ports: SAE 10

Fluid temperature: 5 to 176F

Mounting: 2 bolts m8 needed

Valve type: 4 way 3 positions

Key Features:

DOUBLE ACTING : Our hydraulic control valve is made for operating double-acting cylinders.

DURABLE QUALITY : This hydraulic directional control valve comes with 1 spool and #8 SAE O-ring in/out ports, with cast iron construction for long-time use.

HIGH PERFORMANCE : This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 21 GPM.

SPRING RETURN : All spool valves come with spring return, which can return to the neutral position.

WIDELY USED : This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

Please check product compatibility carefully to ensure it is the product you need
So as not to waste your time and energy on return

Package Including:

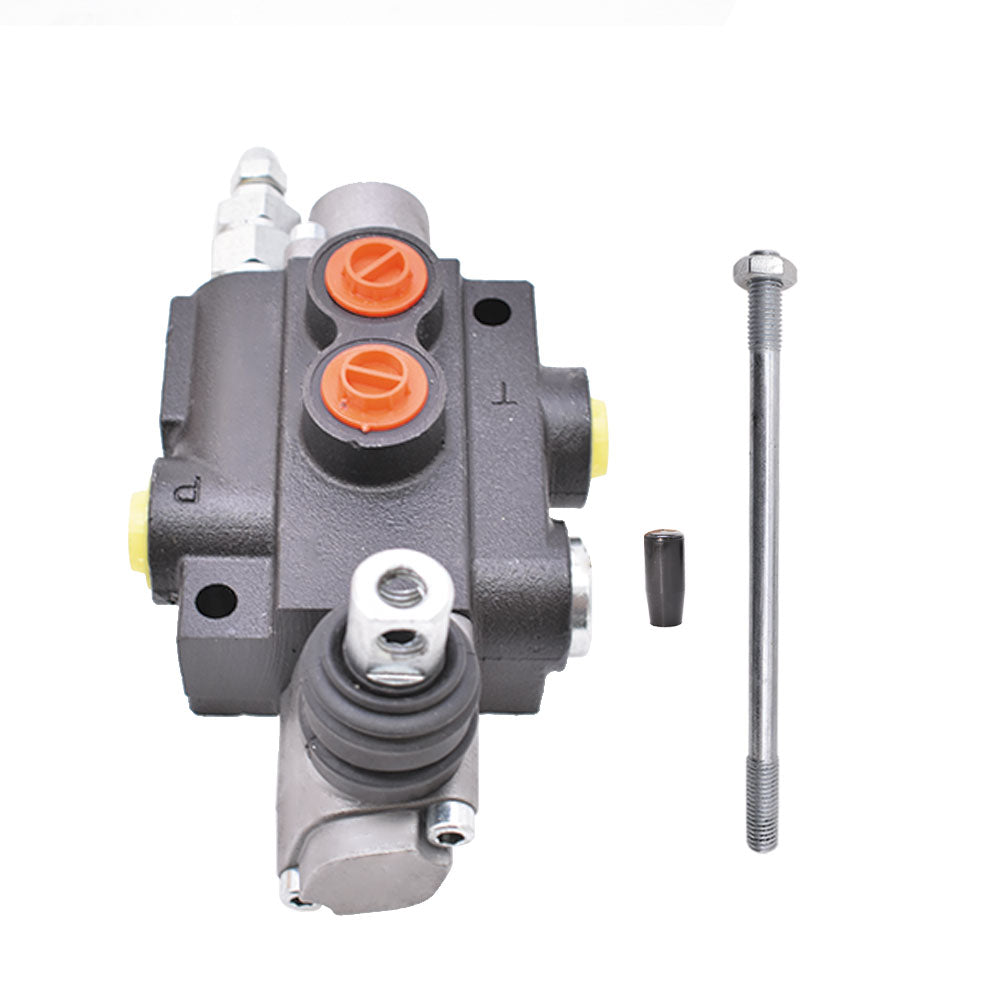

1× 1 Spool 21 GPM Hydraulic Directional Control Valve
