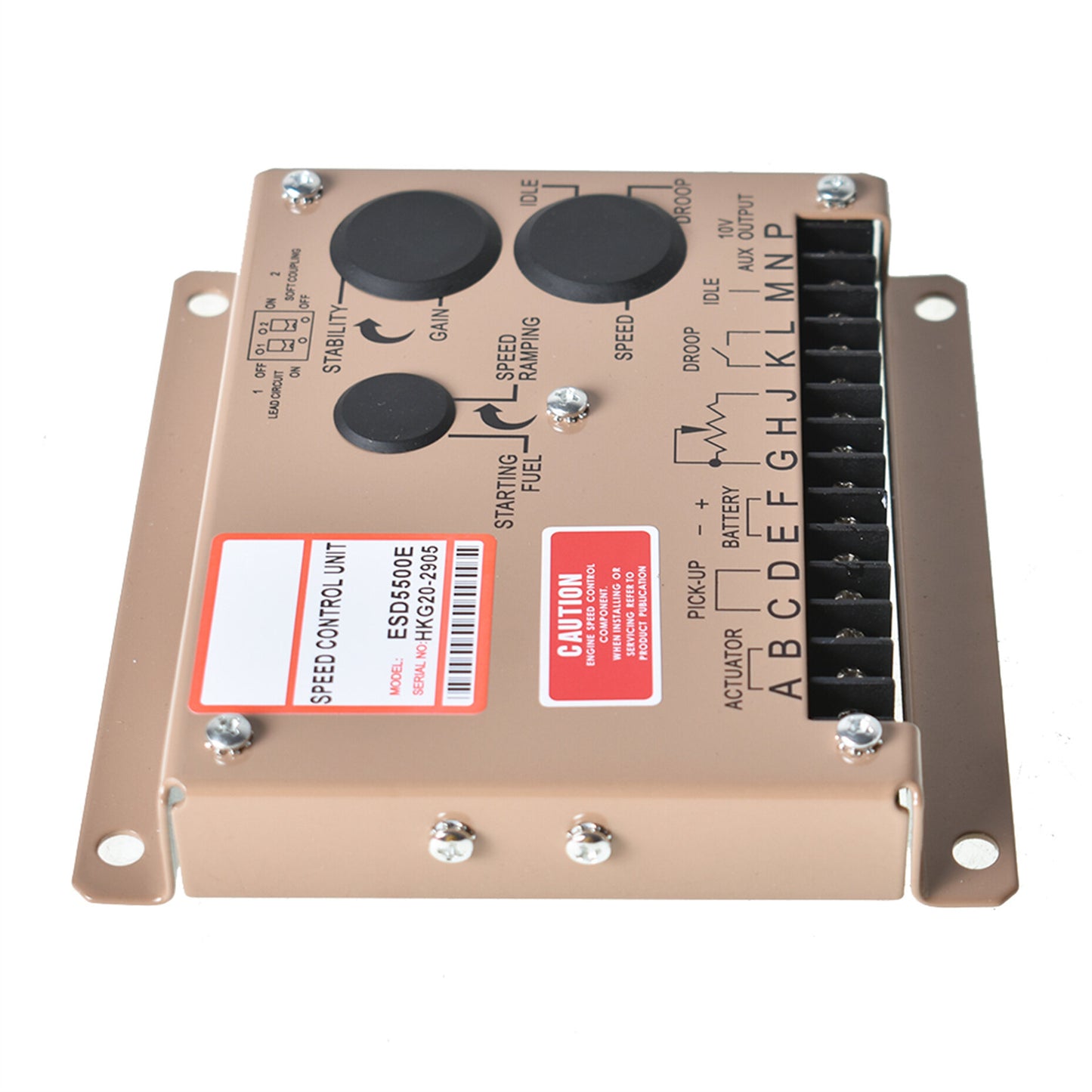

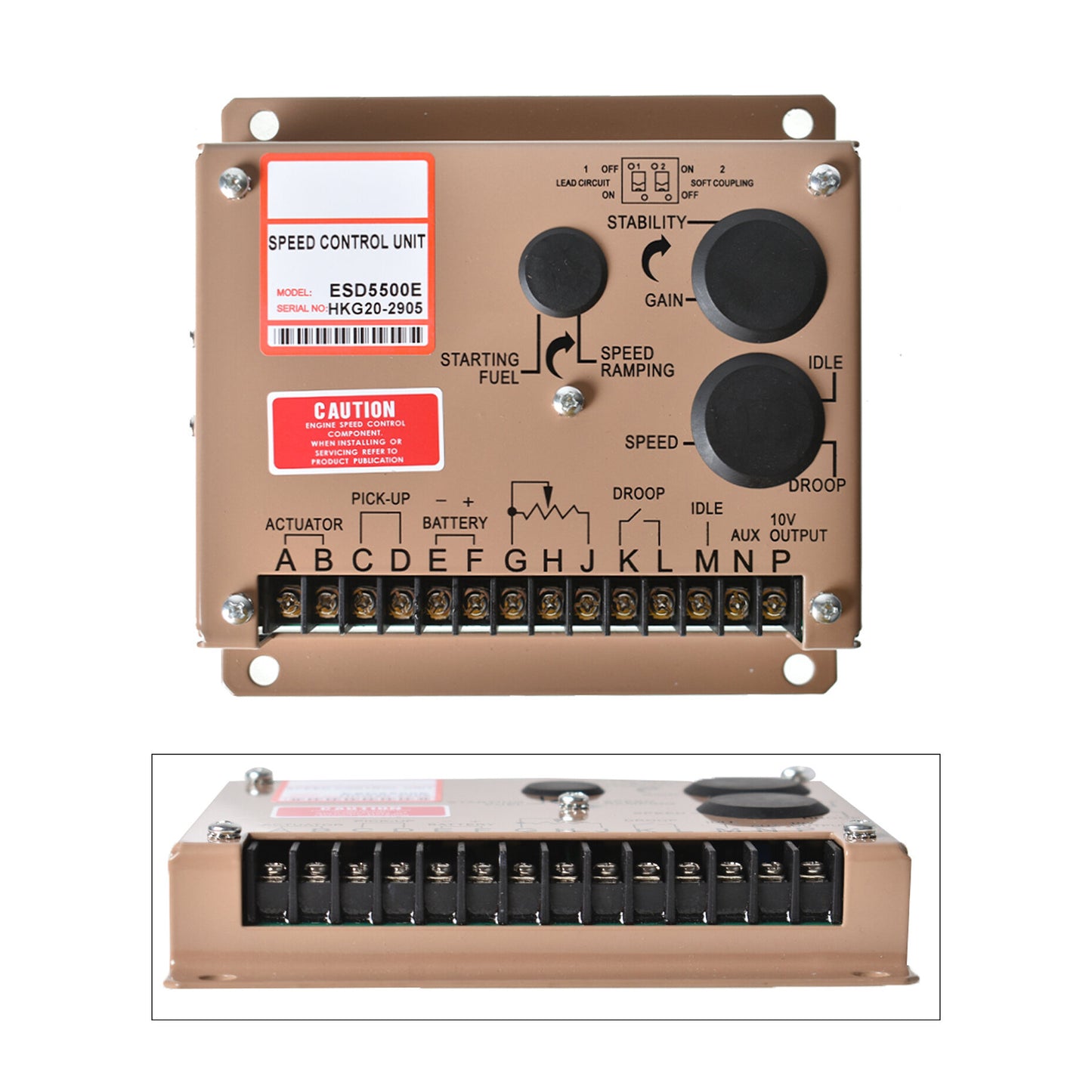

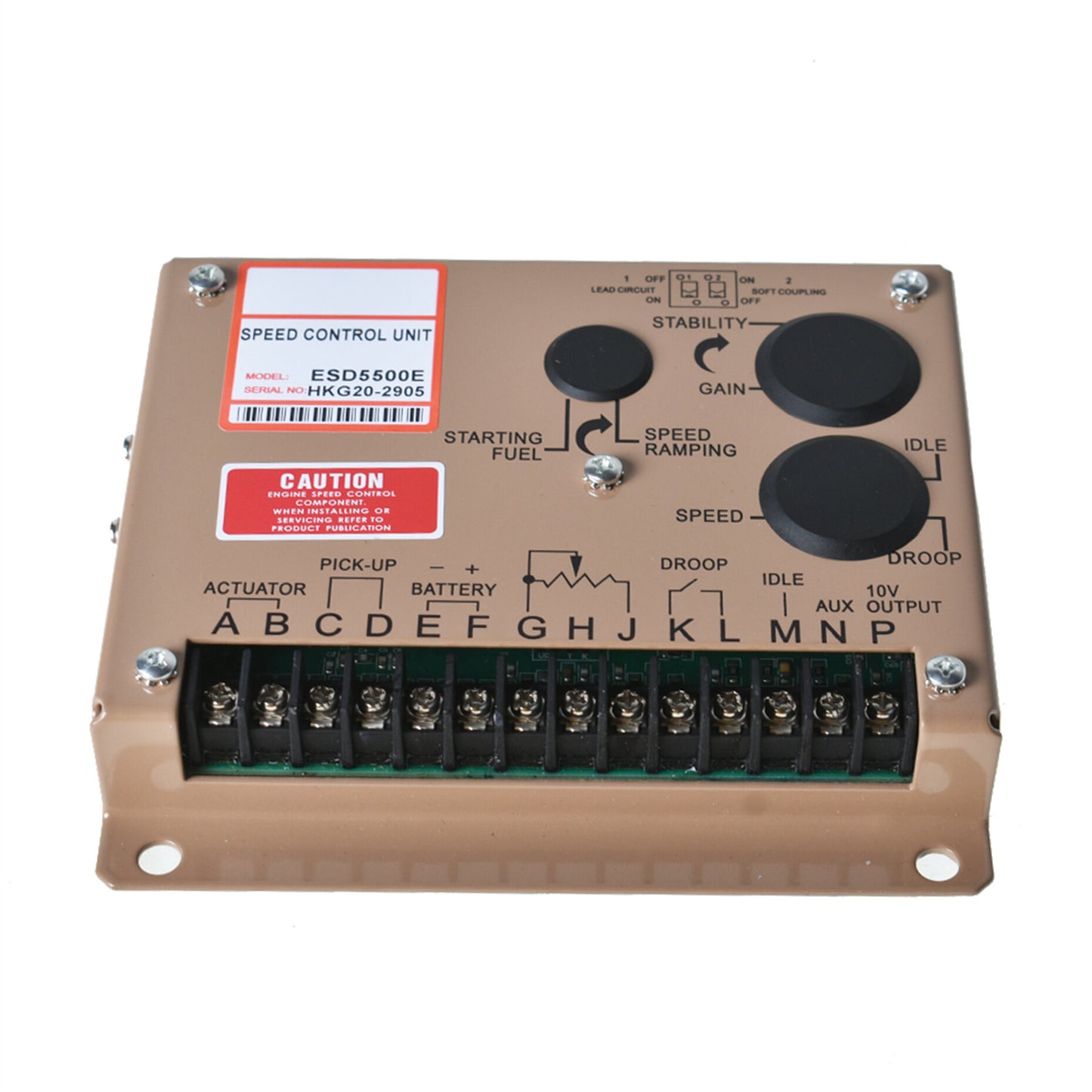

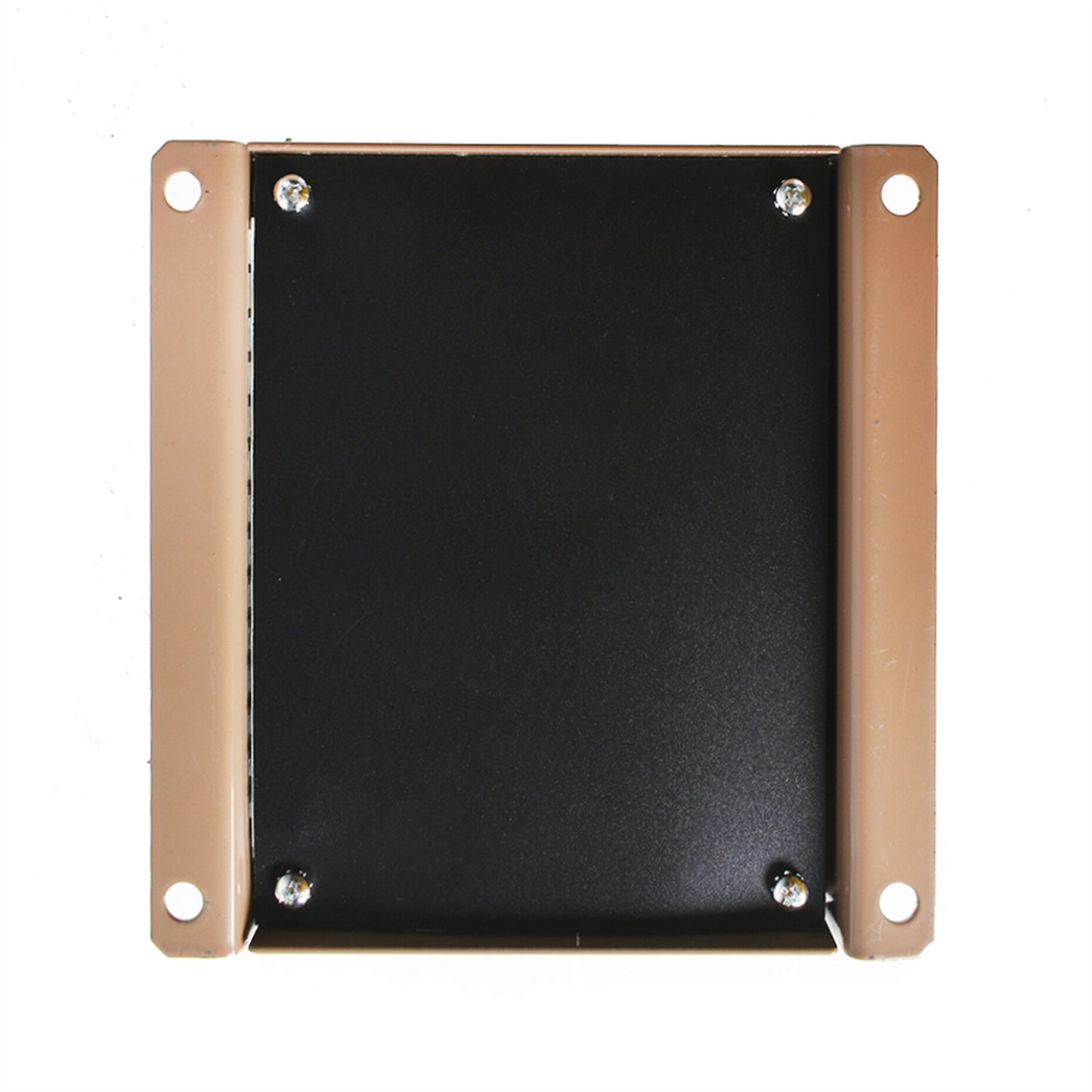

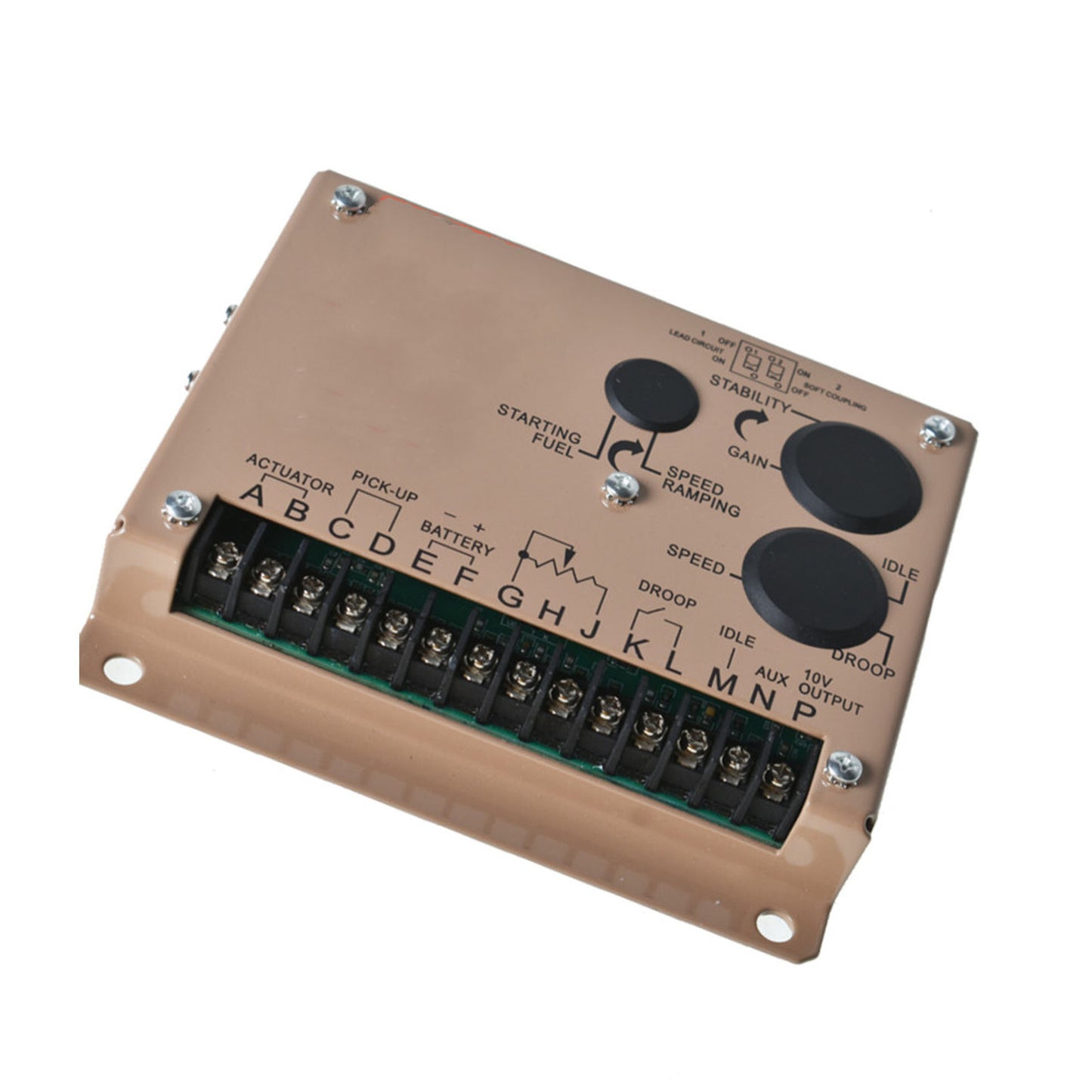

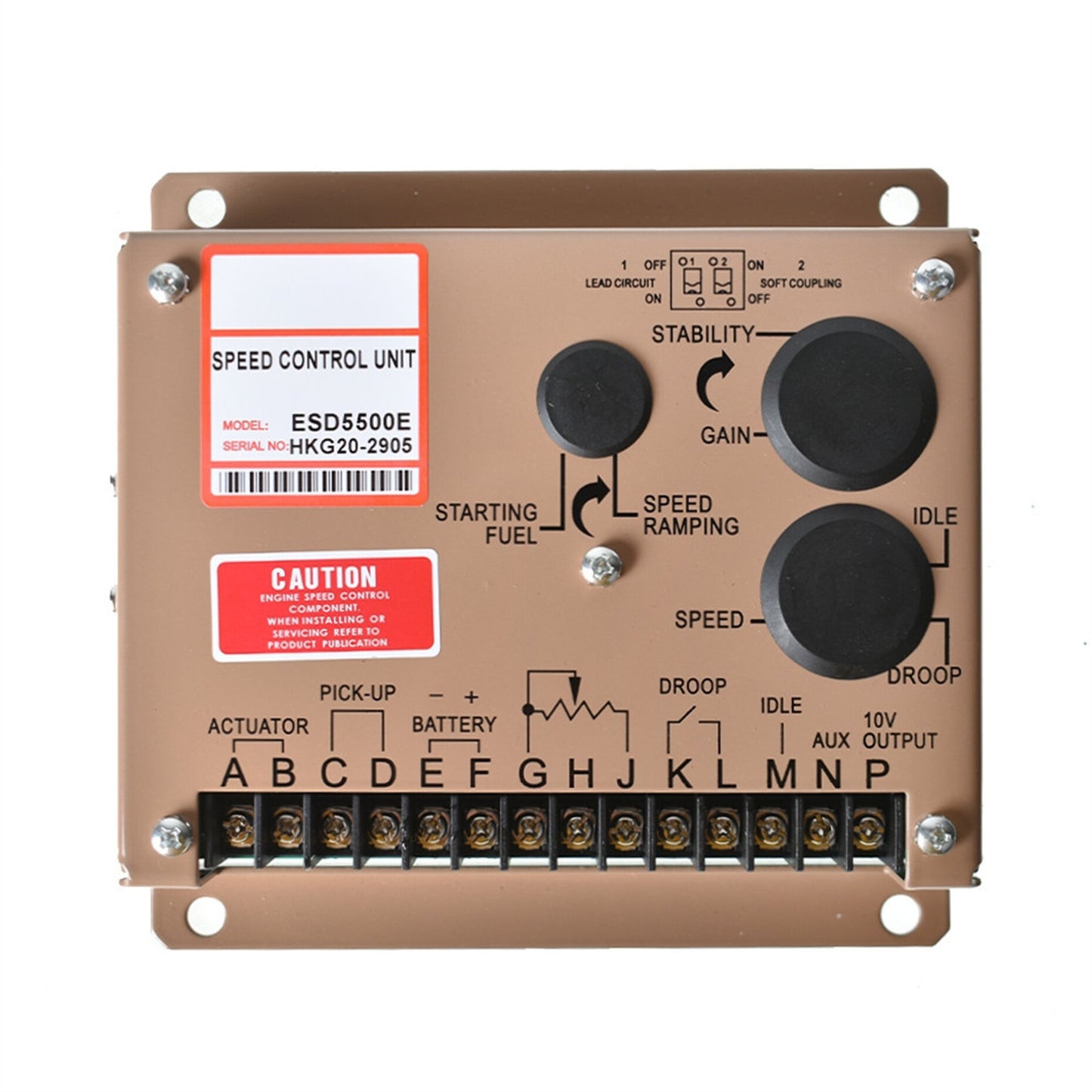

ESD5500E Electronic Engine Speed Controller Governor Generator Genset Parts

ESD5500E Electronic Engine Speed Controller Governor Generator Genset Parts

Regular price $58.42 USD
Regular price $0.00 USD Sale price $58.42 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Adaptive Image

Isochronous Operation/Steady State Stability ± 0.25% or better

Speed Range/Governor 1K-7.5K Hz continuous

Speed Drift with Temperature ± 1% Maximun

IDLE Adjustment 160±20Hz - 60% of set speed

Droop adjustment Min.(K-L Jumpered) 15Hz. ±6Hz. per 1.0 A change

Droop adjustment Max.(K-L Jumpered) 400Hz. ±75Hz. per 1.0 A change

Droop Adj. Max. (K-L Jumpered) 875Hz., ±75Hz. per 1.0 A change

Droop Adj. Min. (K-L Jumpered) 15Hz.,±6Hz. per 1.0 A change

Speed Trim Range±200Hz

Remote Variable Speed Range 500 -7.5Hz. or any part thereof

Terminal Sensitivity

J: 100Hz., ±15Hz/Volt @ 5.0 K Impedance

L: 735Hz., ± 60Hz/Volt @ 65 K Impedance

N: 148Hz., ±10Hz/Volt @ 1Meg. Impedance

P: 10V DC Supply @ 20ma Max.

Speed Switch Adjustment Range 1000-10000Hz.

Environmental:Ambient Operating Temperature Range -40℃ to +85℃

Relative Humidity up to 95%

Storage Temperature -55℃- 90℃

Shock 20-100HZ 500mm/Sec

Input power:Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)

Polarity Negative Ground(Case Isolated)

Power Consumption 50mA continuous plus actuator current

Actuator Current Range @ 25℃-(Inductive Load) Min. 2.5 Amps, Max. 10 Amps continuous

Speed Sensor Signal 0.5-120 V RMS

Speed Switch Relay Contacts(N.O.and N.C.) 10Amp
