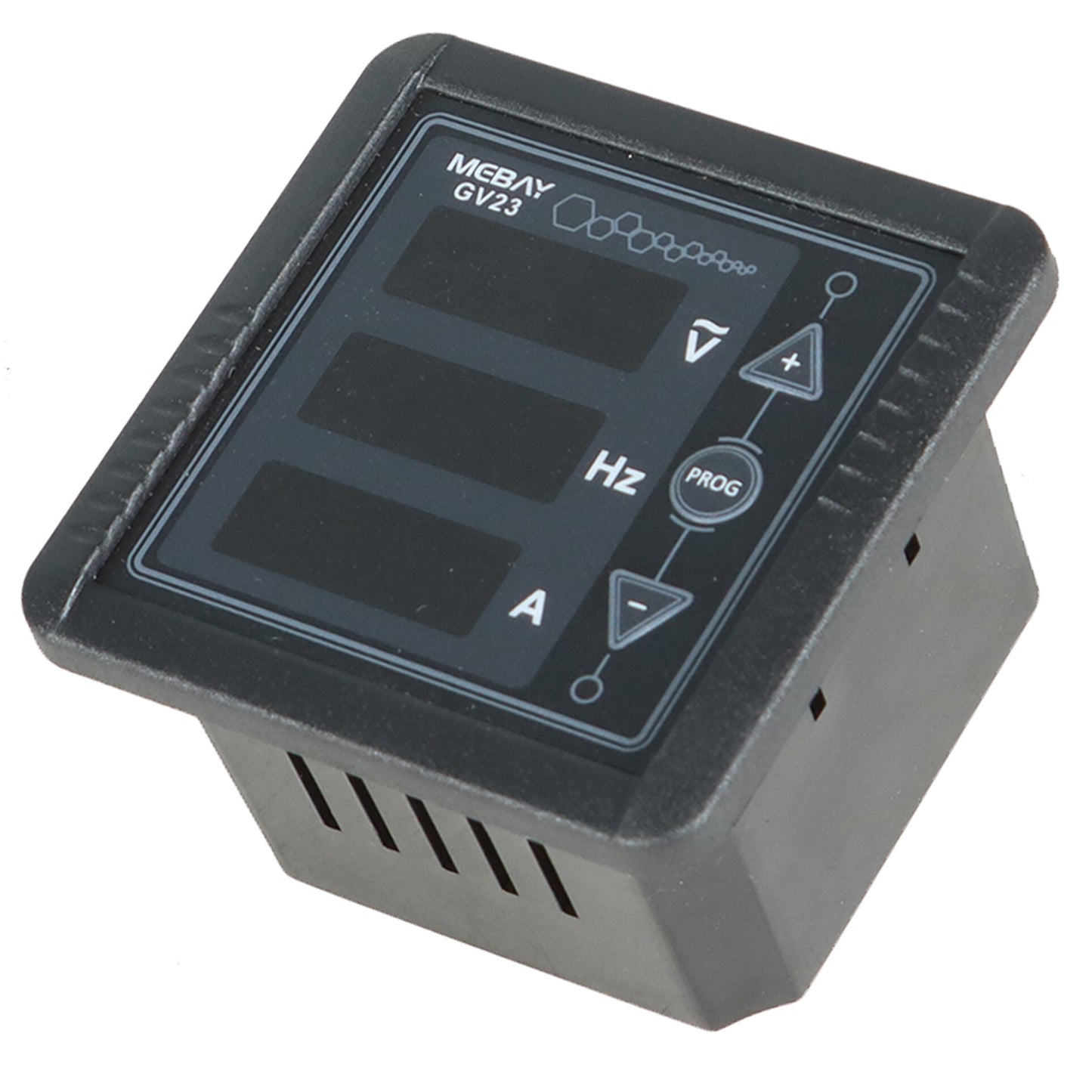

findmall Digital Meter AC Voltage Frequency Current Meter Testing Panel BC-GV23 Generator

BC-GV23 parameters edition:

Press “PROG” to come in CT Primary surface, the default is "500---5" which means the ratio is 500:5A.

The secondary current is 5A Max which can not be changed.

Press "+" to increase the CT Primary, press "-" to decrease the CT Primary.

After edition, press "PROG" to save the parameters and exit from surface.

The system will automatically exit within 6 seconds if no other buttons are pressed but the edited parameters can not be saved.

Note:

When the parameters' range is 5-100, the distance of adjustment is 5.

When the parameters' range is 100-200, the distance of adjustment is 10.

When the parameters' range is 200 above, the distance of adjustment is 50.

Package List:

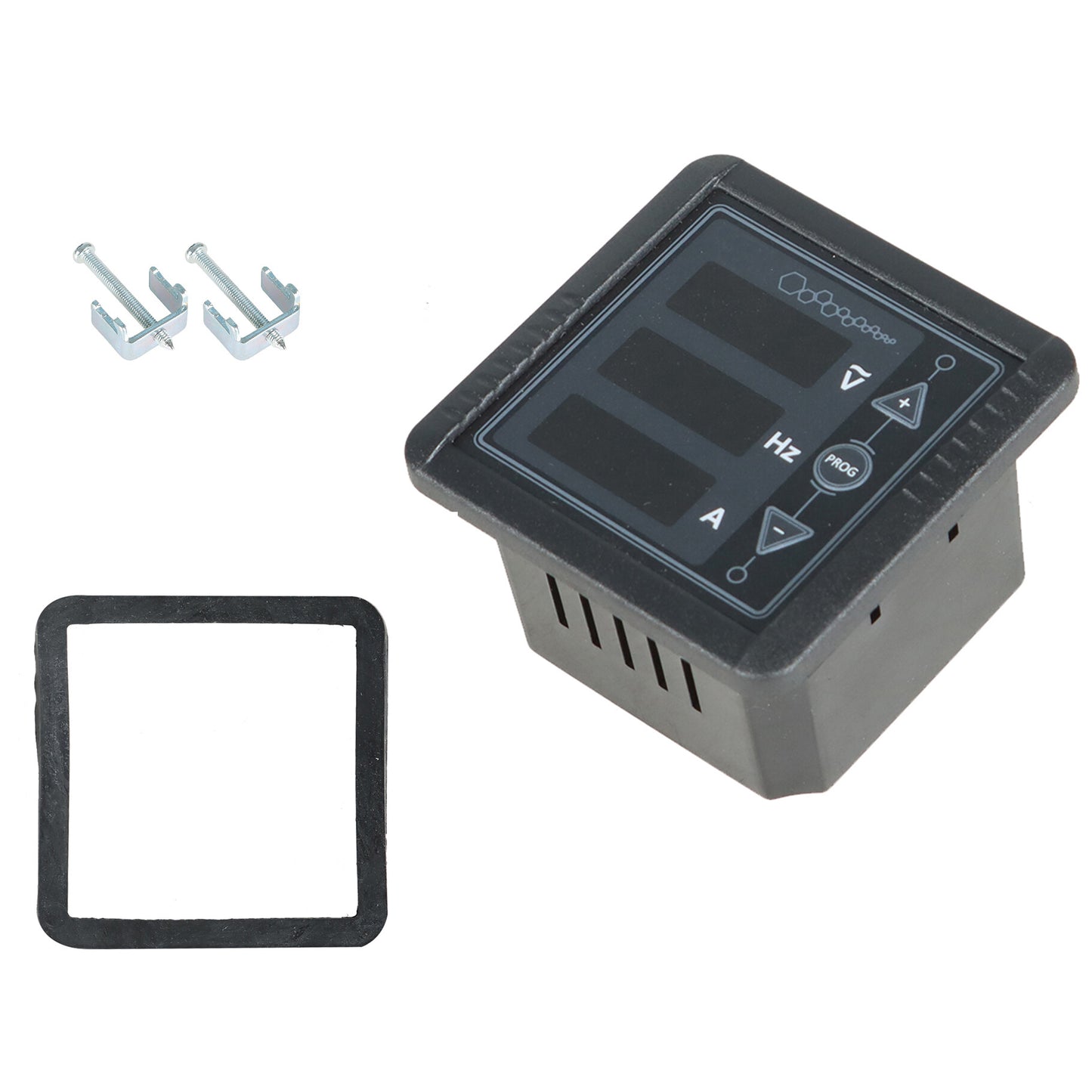

1 x GV23 Digital Meter
