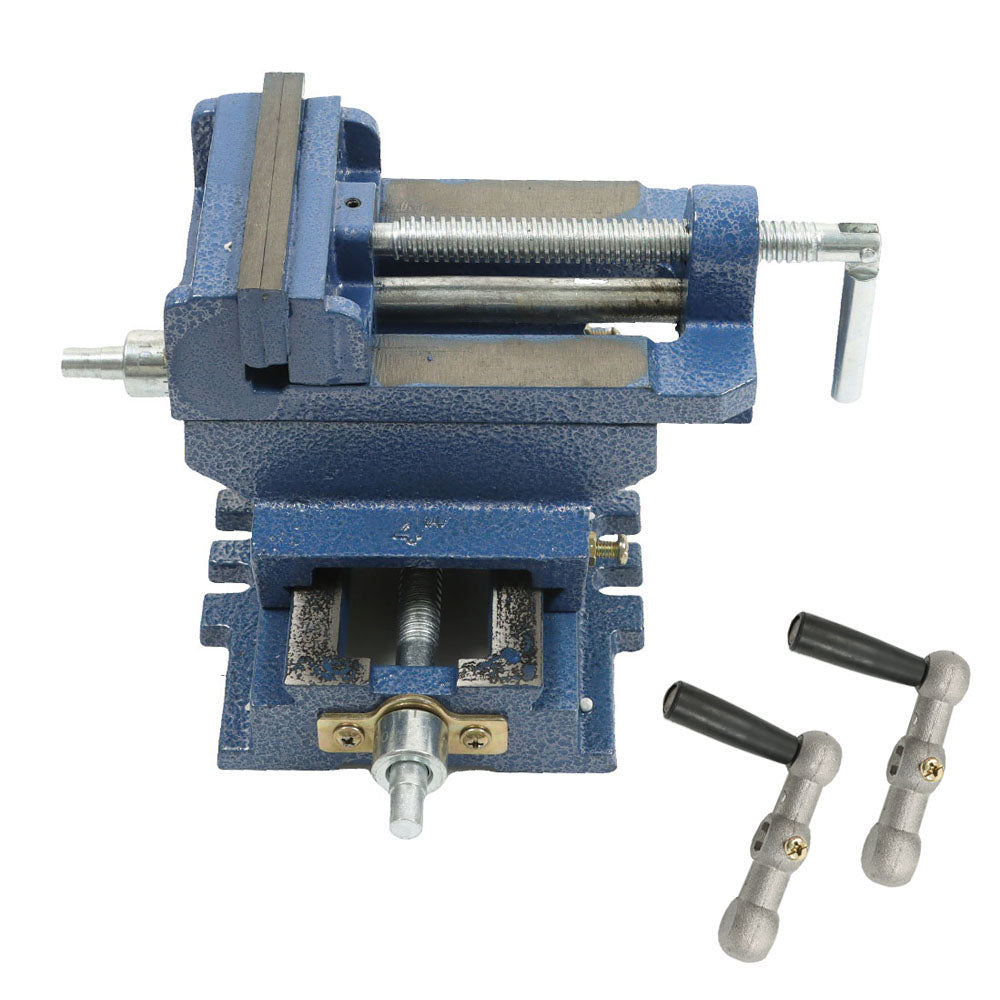

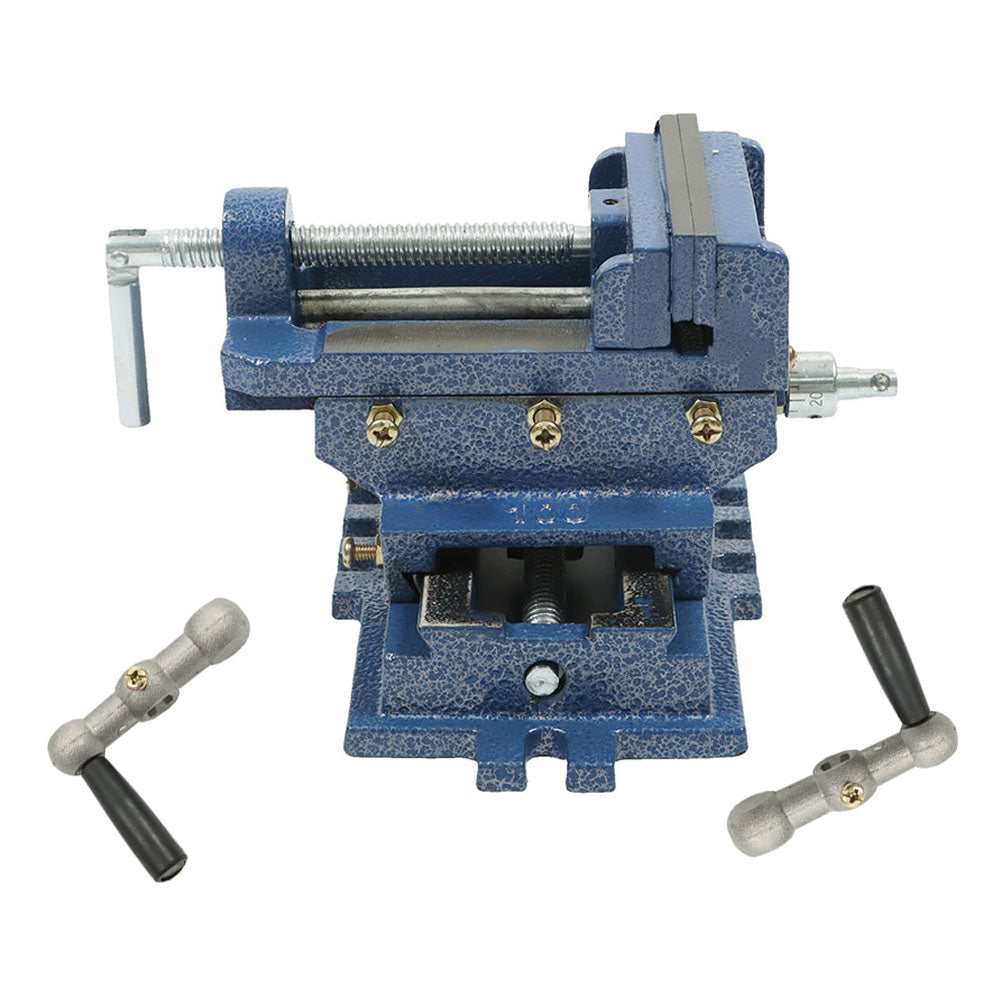

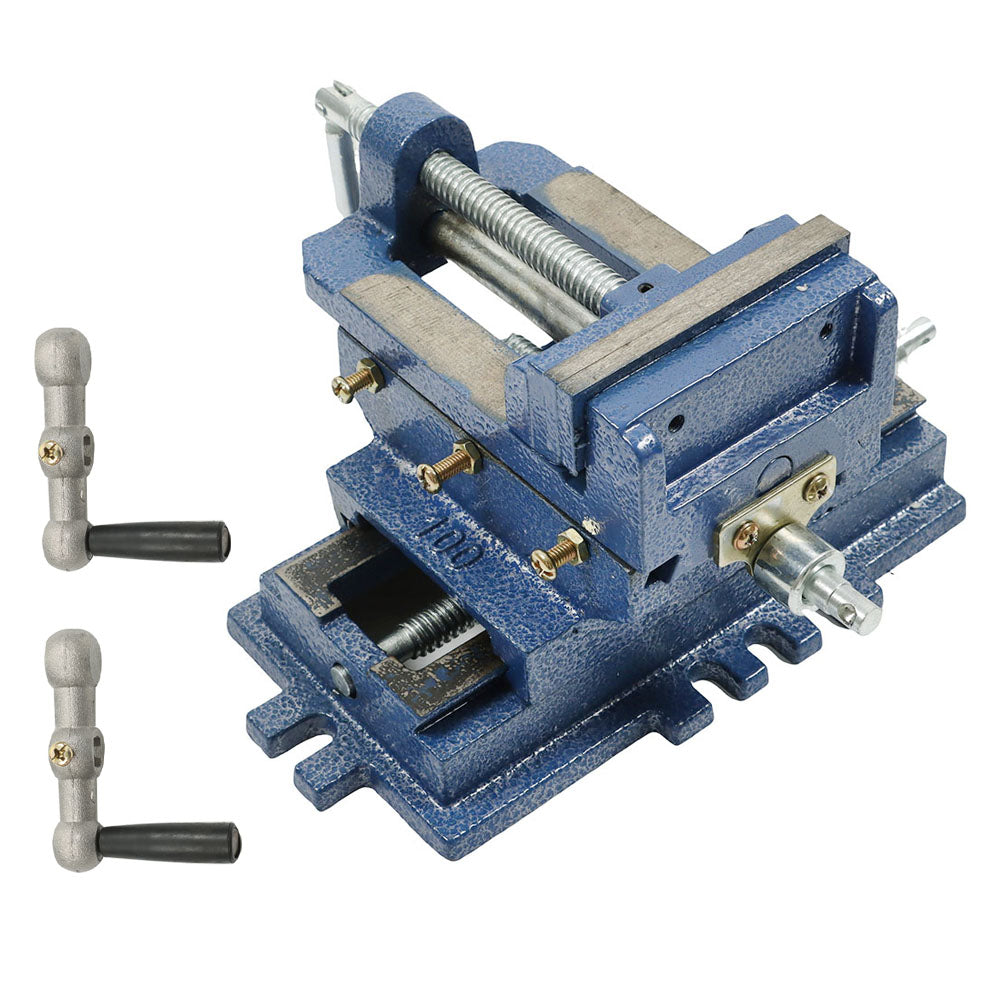

findmall 4" Drill Press X-Y Compound Vise Cross Slide Mill Precision Milling

Specification:

Maximum clamping: 3.54 inch/90 mm

Jaw width: 3.94 inch/100 mm

Jaw height: 1.3 inch/33 mm

Jaw thickness: 0.24 inch/6 mm

Width of mounting slot: 0.41 inch/10.5 mm

Base length and width: 141 x 235 mm

Material: Carbon Steel, Cast Iron

Process: Spraying

Color: Blue

Jaw width: 4"

Maximum jaw opening: 3-1/2"

Vise travel: 5-1/2"

Base size: 9" × 5"

Overall unit size: 11" × 11" × 6-1/4"

Cross Travel: 4.5"

Throat Opening: 3.5"

Longitudinal Travel: 5"

Features:

Cast iron material, sturdy and durable

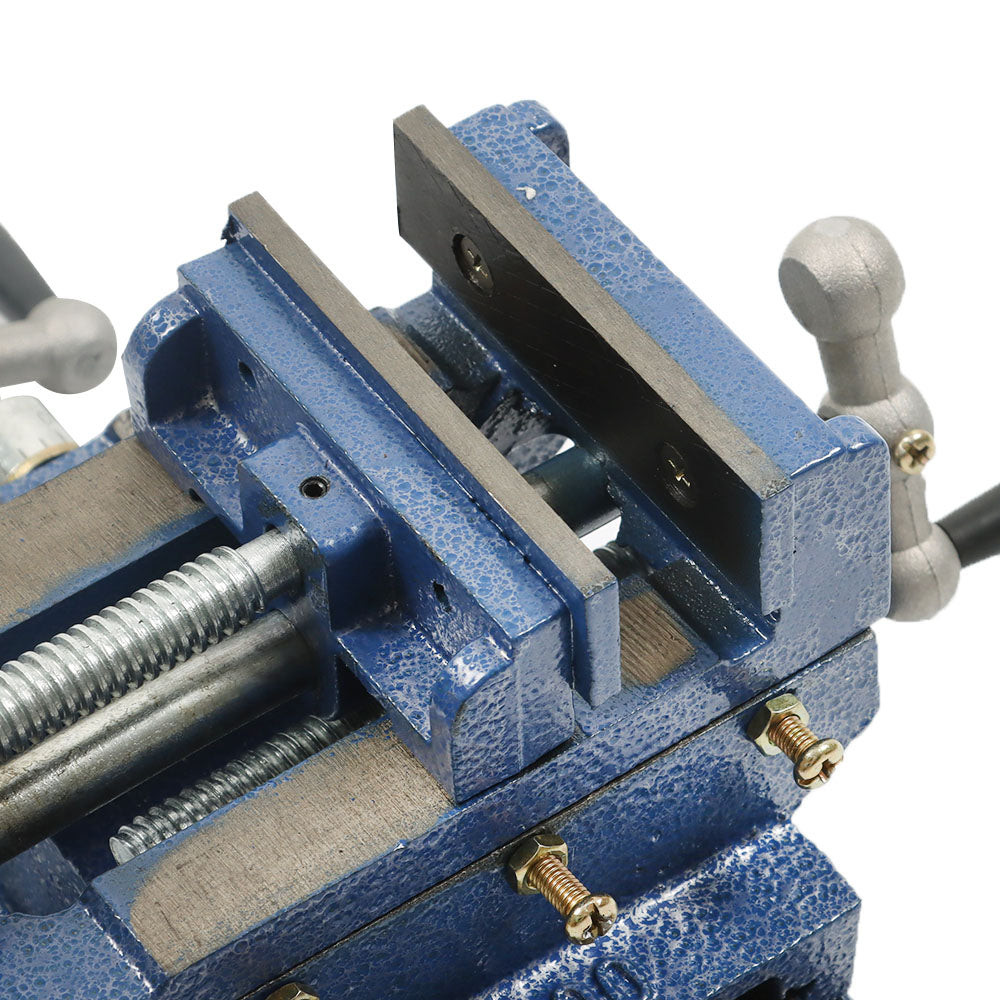

Harden the jaws for stable clamping

Clear moving scale and precise fine tuning

Bi-directional movement, easy to use

Accuracy slide, smooth operation

Smooth Handles.

High Hardness Screw.

Anti-slip Groove.

Accurate Scale.

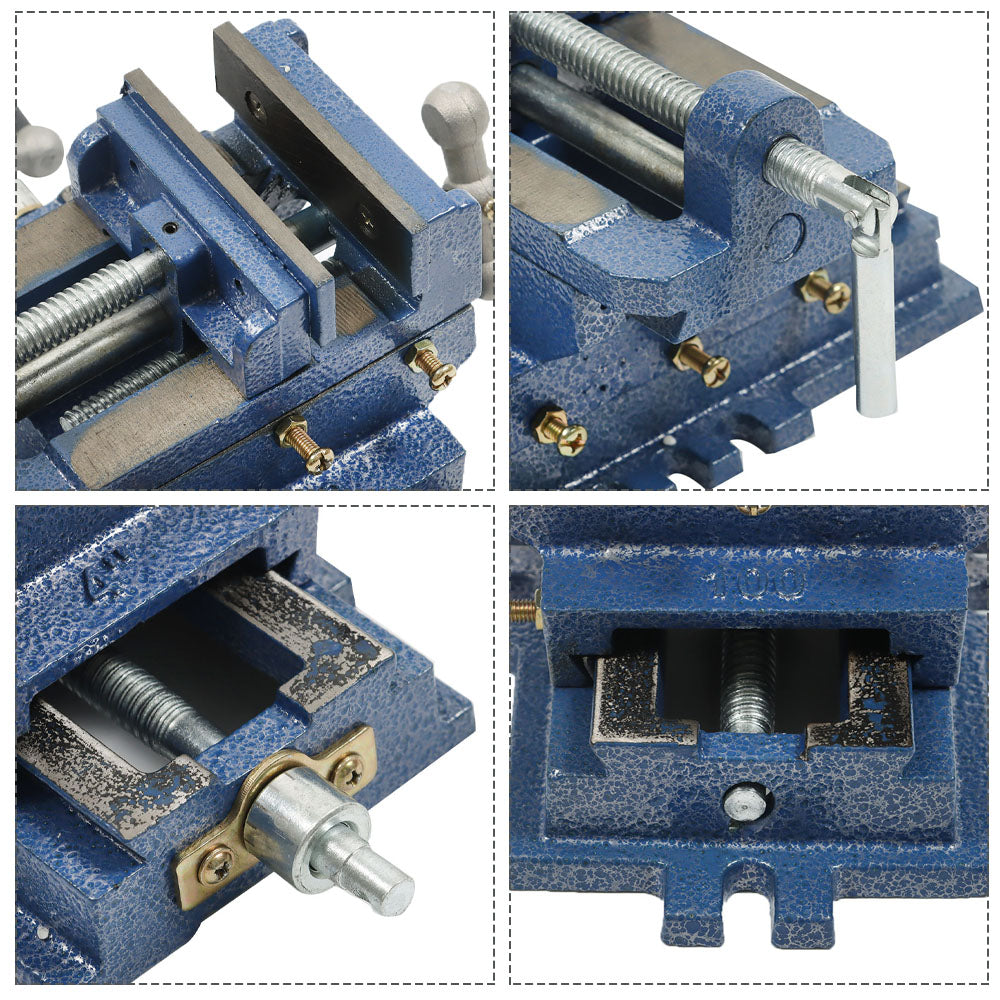

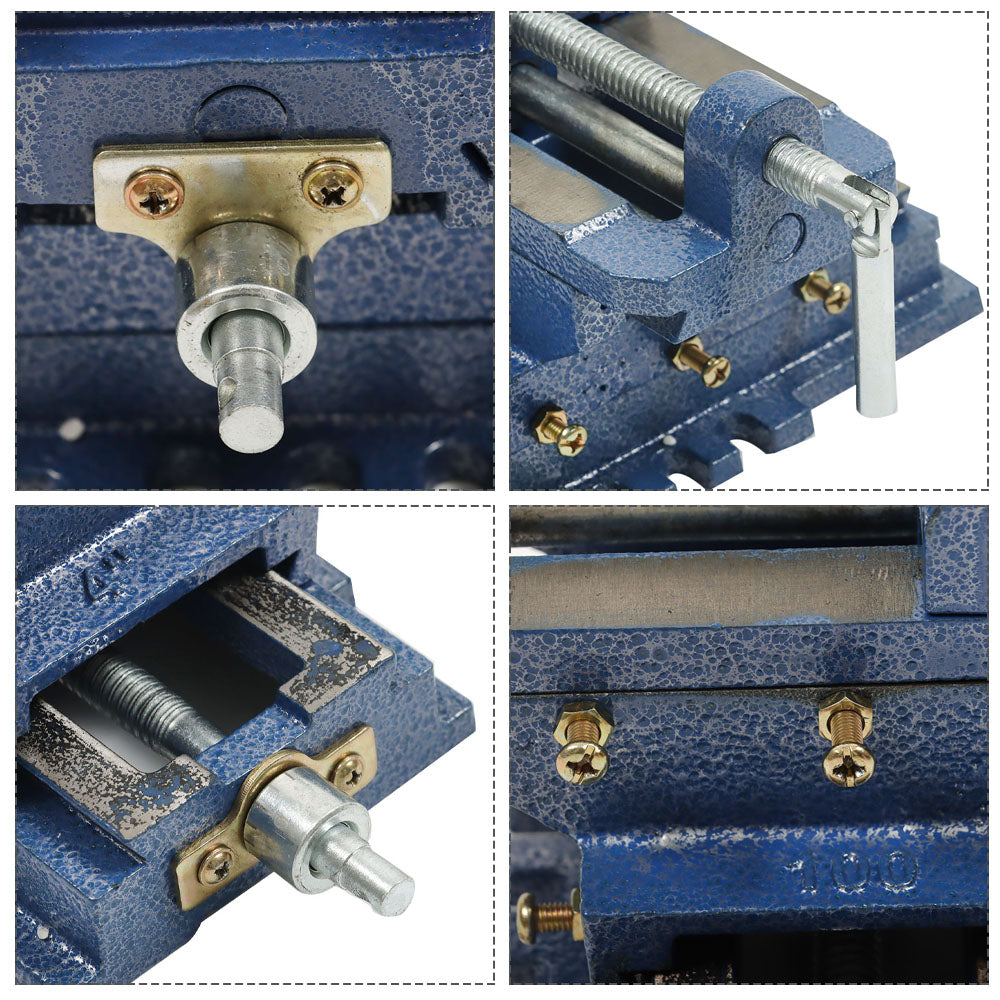

Vise and cross slide have adjustable shims for fine adjustment.

Precision threaded clamping and cross slide screws.
Removable 2" swivel handles easily slide on and off.

Note :

Clamp the workpiece to ensure uniform force on the jaw.

When the handle is installed, the screw cap is tightened to leave a gap to ensure the smooth operation of the screw.

Package Includes:

1 x 4 inch cross slide drill press vise
