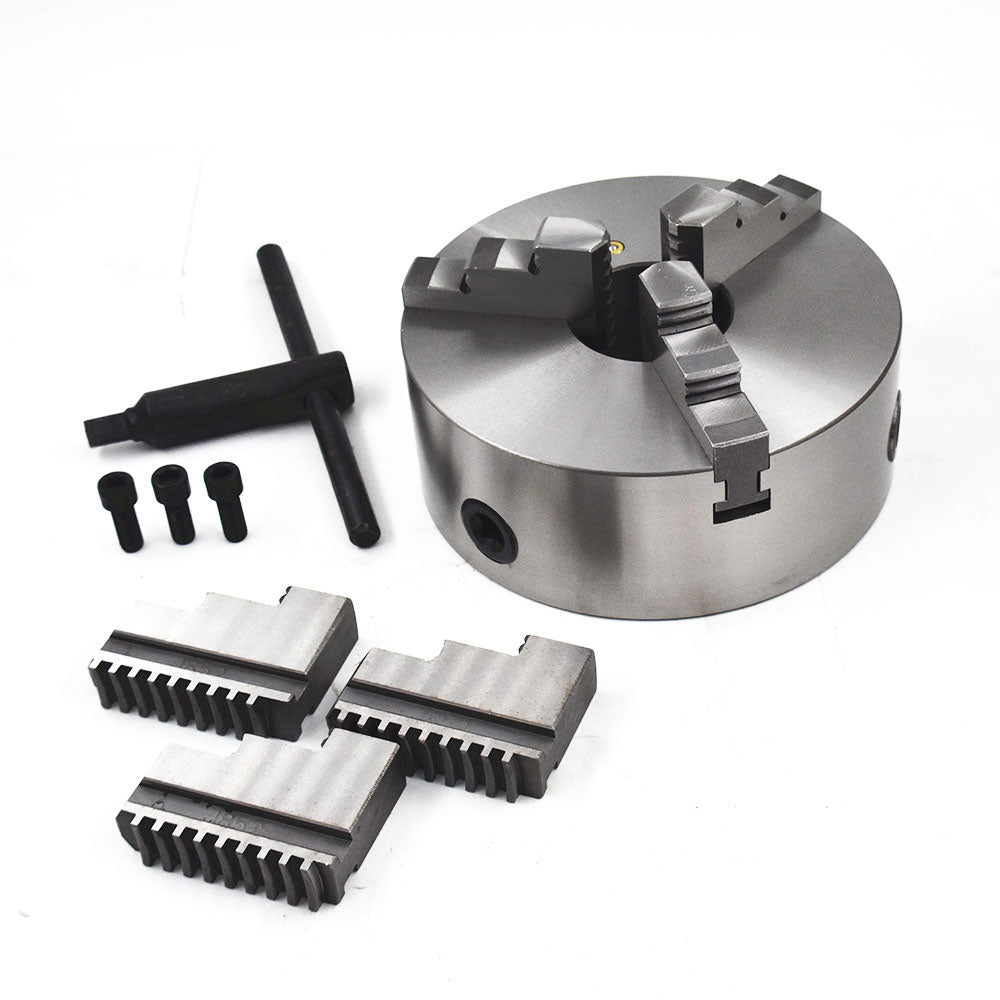

3 Jaw 8'' K11-200 Lathe Chuck Self Centering Reversible Hardened Steel 200mm
3 Jaw 8'' K11-200 Lathe Chuck Self Centering Reversible Hardened Steel 200mm
Out of stock

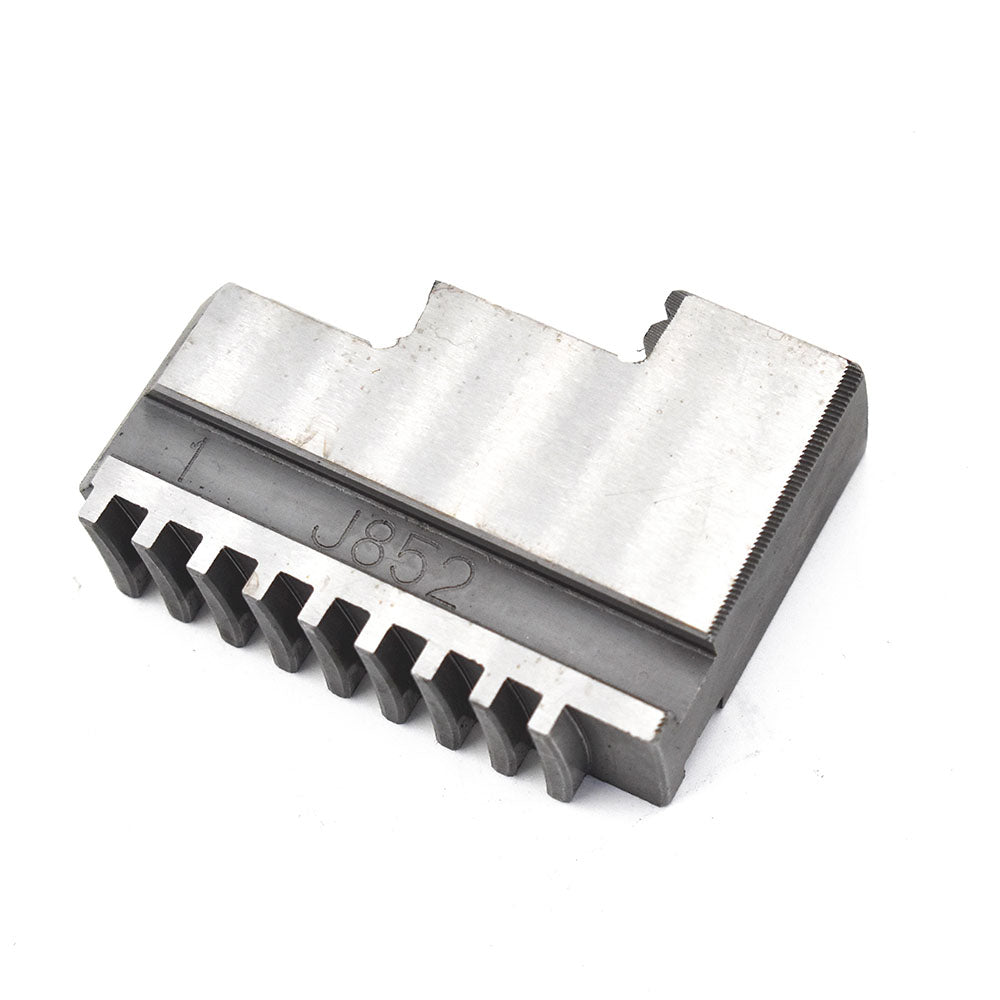

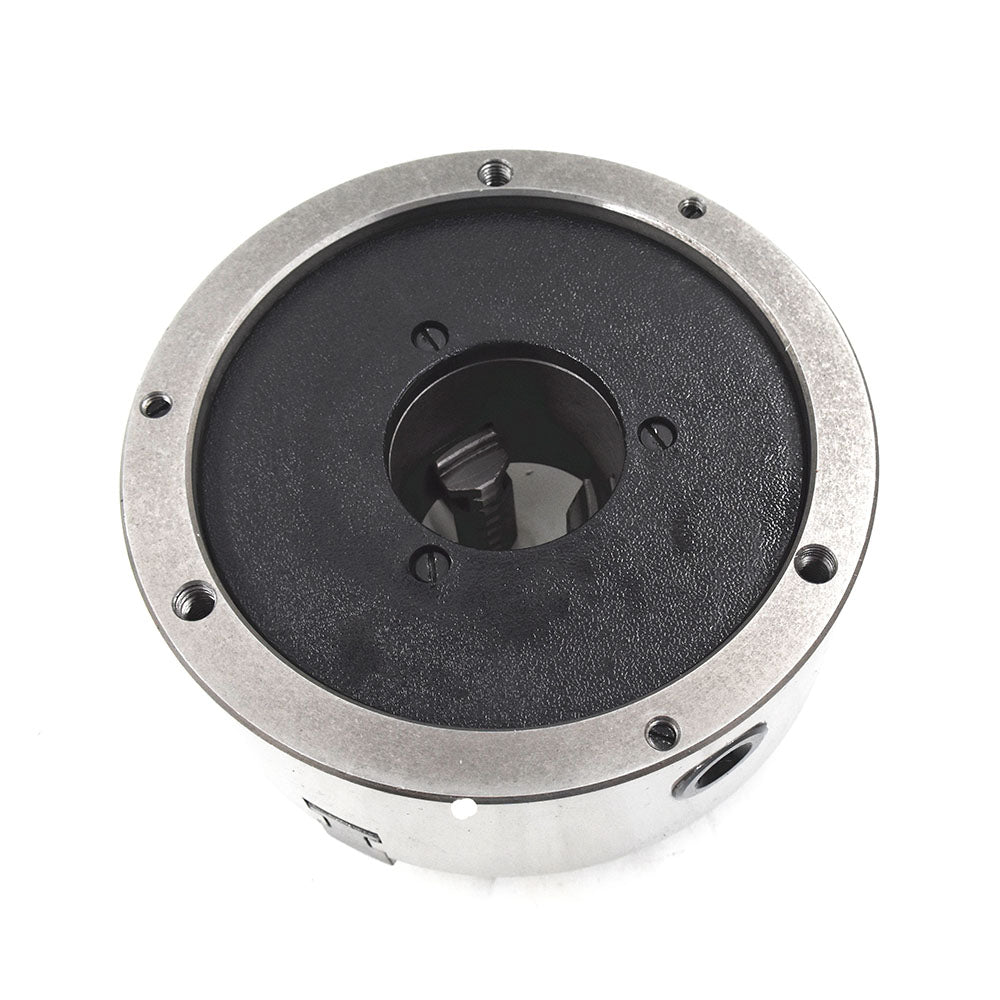

Features: Short cylindrical center mounting. Model K11 chucks are provided with jaws(which include a set of internal jaws and a set of external ones ).The jaws for K11A, K11C,K11D and K11E chucks are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment
Applicable machine tools and accessories: General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc.. Specification:
Material:Hardened Steel
Model: K11-200
Max RPM: 3000 r/min
Jaw: 3 Jaw
High precision: 0.05mm
Application: for CNC Drilling Milling Machine
Color: Silver
Diameter: 200mm(7.874")
Thickness: 75mm(2.953")
Center Hole: 65mm(2.559")
Bolt Circle Diameter: 180mm(7.087")
Runout: 0.08mm(0.003")
Internal Jaw: Clamping Range A-A1: 4- 85mm(0.157- 3.346")
Jamming Range B-B1: 65- 200mm(2.559- 7.874")
External Jaw: Clamping Range C-C1: 65- 200mm(2.559- 7.874")
Package: 1 x Self-Centering

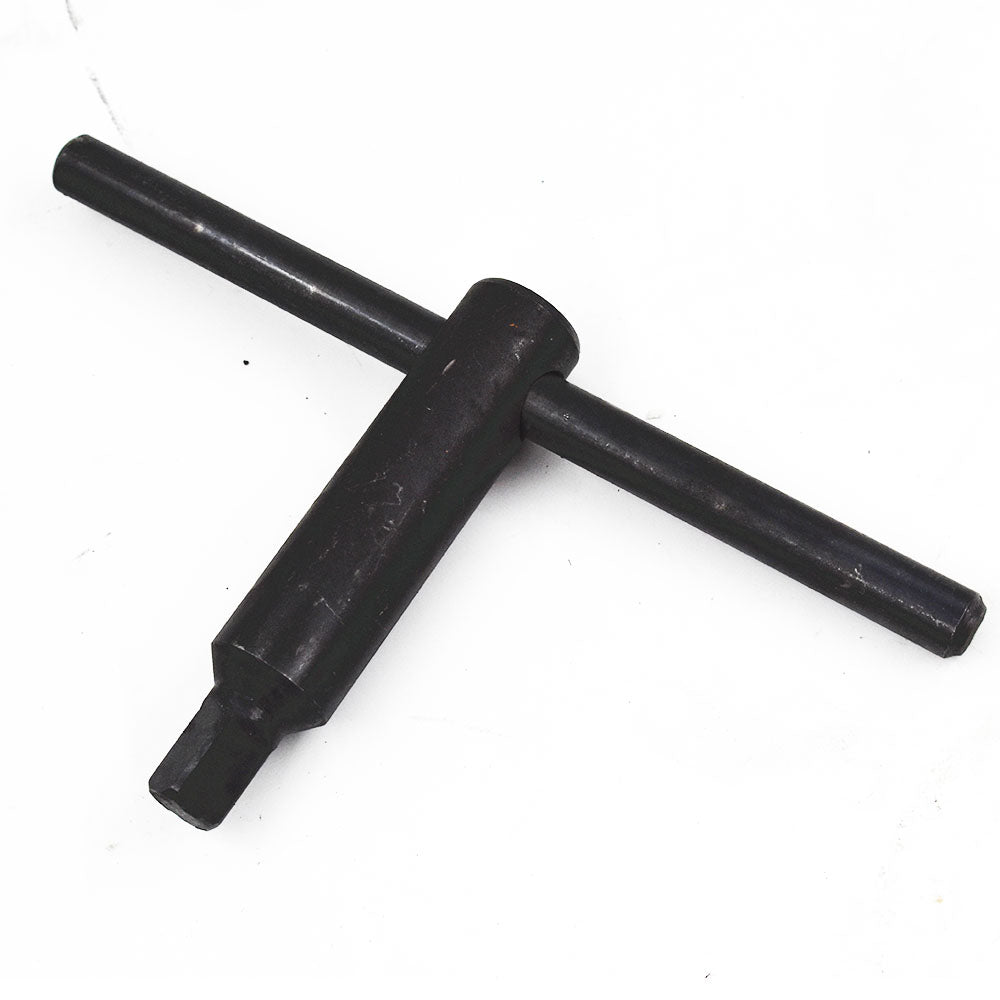

1 x chuck key

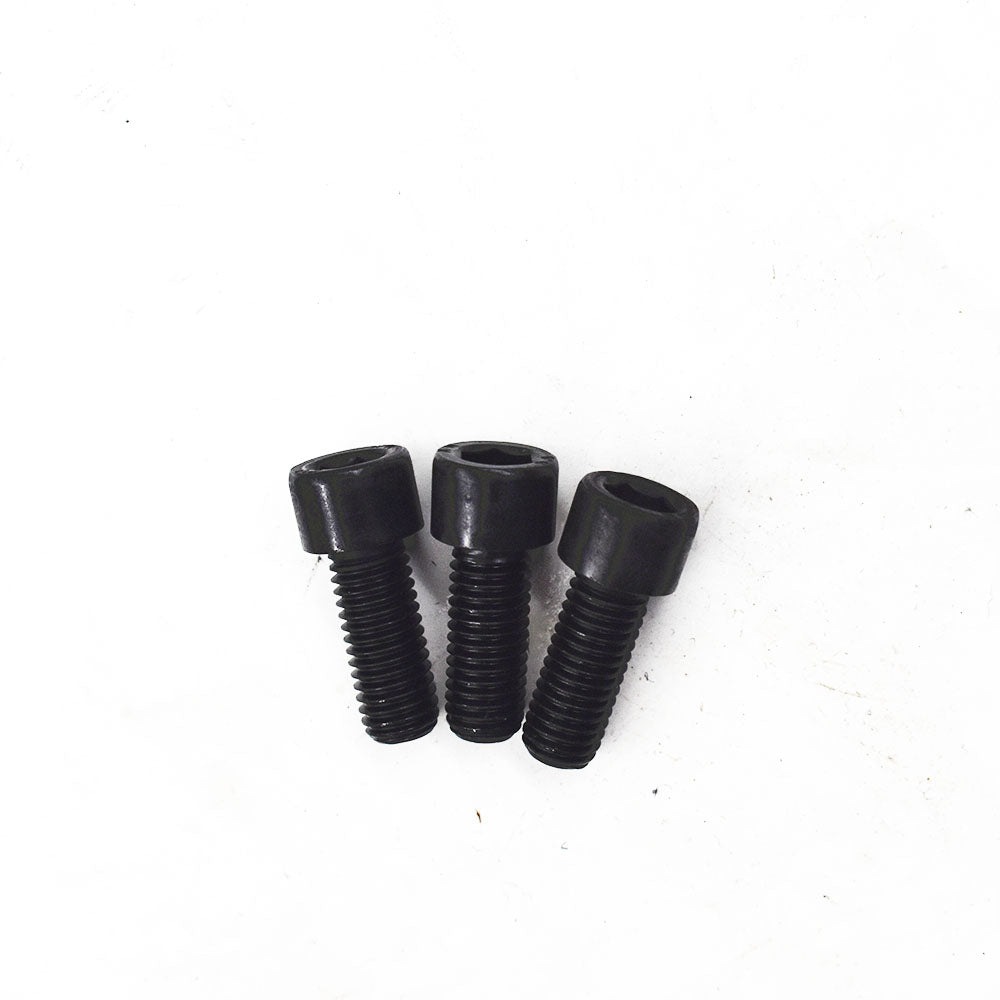

3 x Mounting bolts
