findmall 2 Spool 11GPM Hydraulic Control Valve Double Acting 3600 PSI BSPP Port

Specifications:

Max operating pressure: 3600psi
Nominal flow: 11gpm (40l/min)
Relief valve: Adjustable
Center system: Open
A, B ports: 3/8" BSPP
P, T, N port: 1/2" BSPP
Weight: 10.3 lb (4.7 KG)
Dimensions: 9.06''×7.48''×3.94'' (23.5×19×10 cm)

About this item:

Widely Used: Comes with 2 spool and #8 BSPP in/out ports, with cast iron construction for long-time use

Double Acting: Hydraulic control valve for operating double acting cylinders.

Spring Return: All spools standard come with spring return, which can return to the neutral position.

High-Efficiency: The relief valve range is up to 3600 PSI and the maximum flow is up to 11 GPM.

Widely Used: Fit for small tractors, tractors loaders, log splitters, and etc.

Solid Construction

Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.

High Performance

The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

Spring Return

All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.

Inner Check/Relief Valve

The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.

Multiple Control Ways

We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control.

Wide Application

The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.

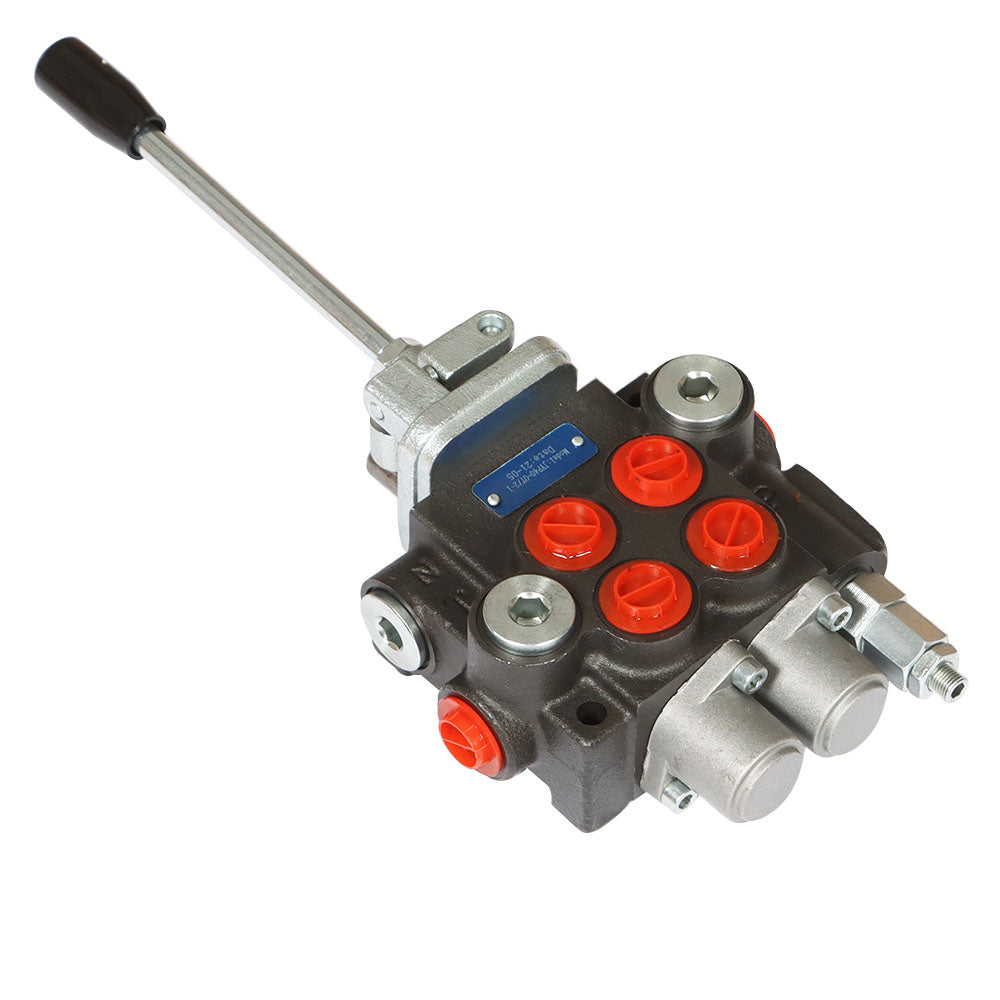

2 Spool Directional Hydraulic Control Valve

The 2 spools hydraulic directional control valve 2P40 with joysticks. The adjustable release valve and durable cast iron body are easy to use. All spools are standard double acting with spring return in the neutral position.

Package Content:

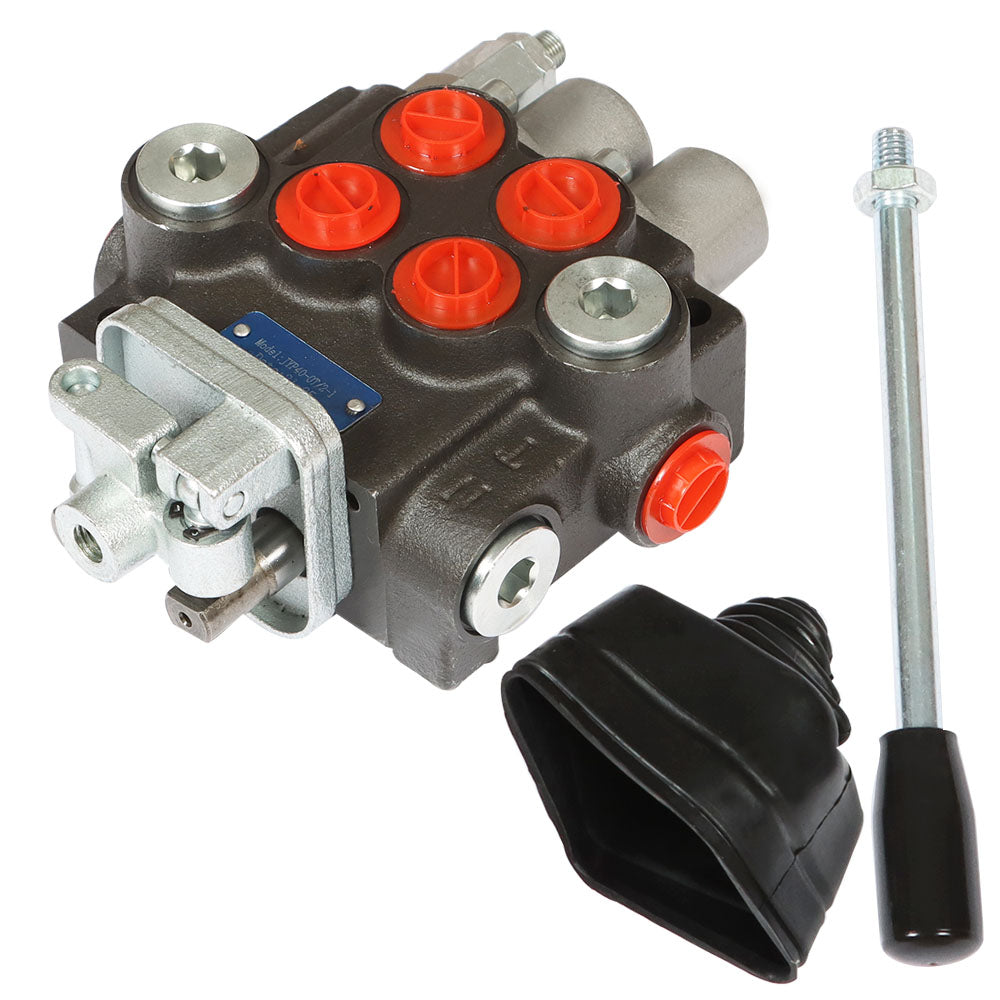

1 × 2 Spool Hydraulic Joystick Control Valve 11gpm, Double Acting Cylinder Spool
