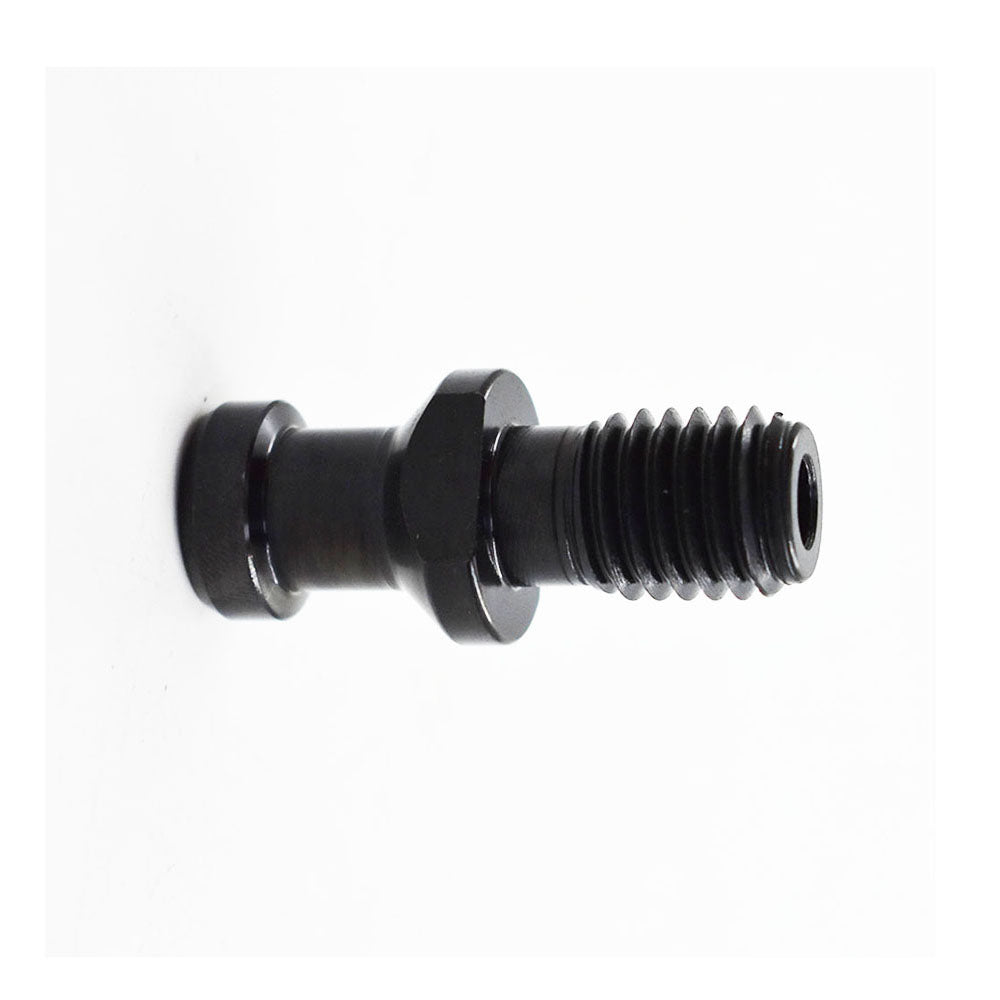

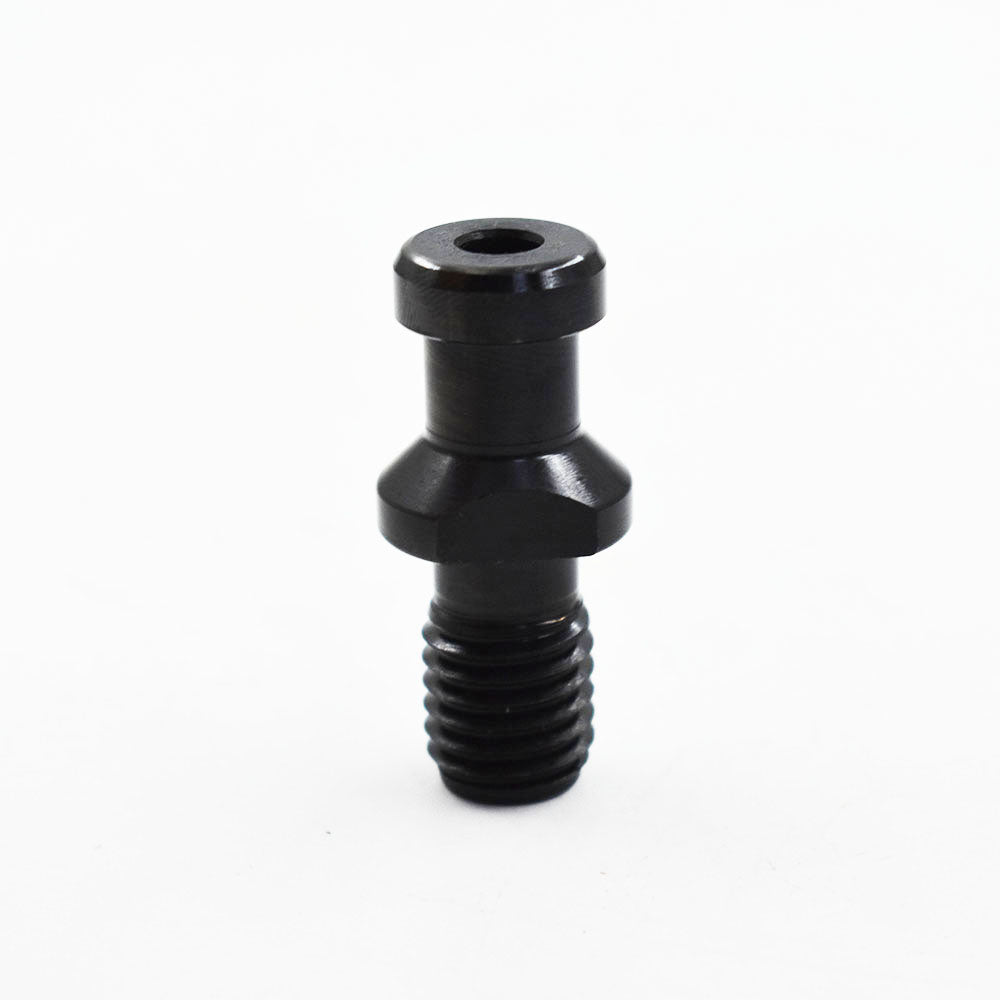

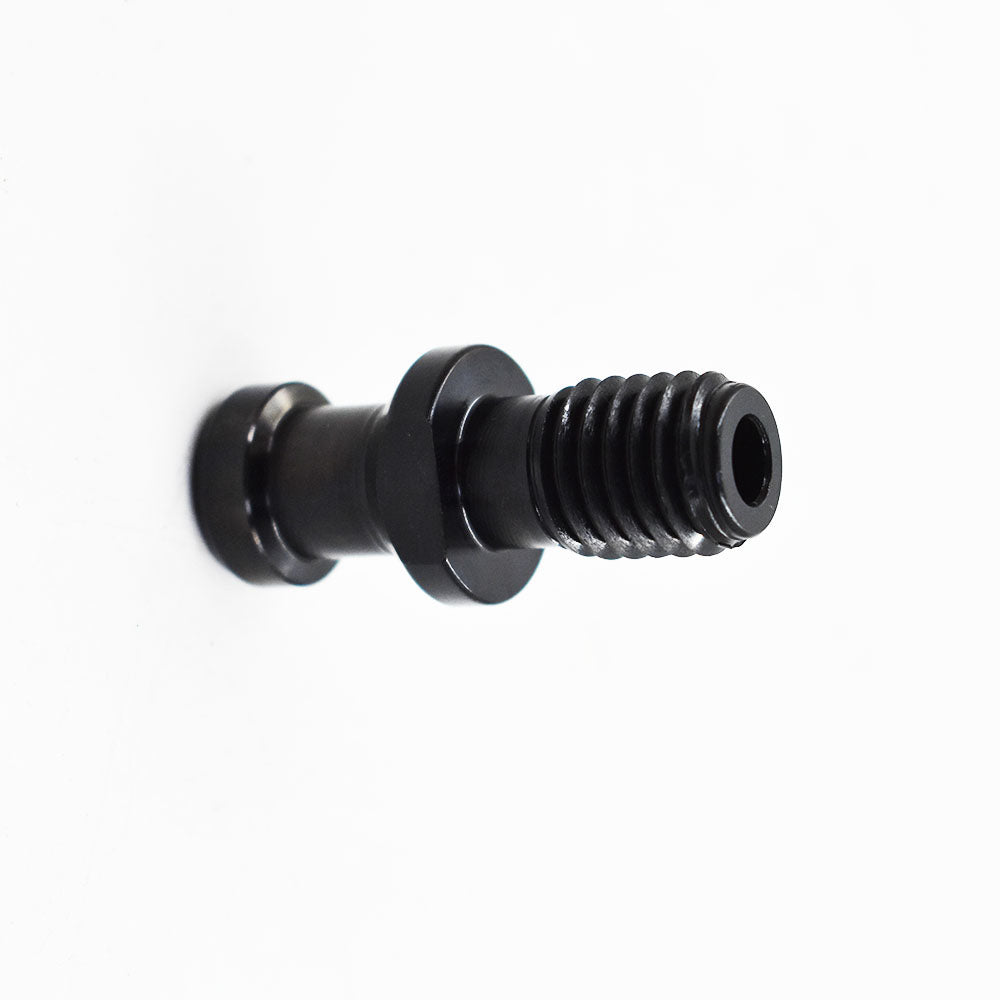

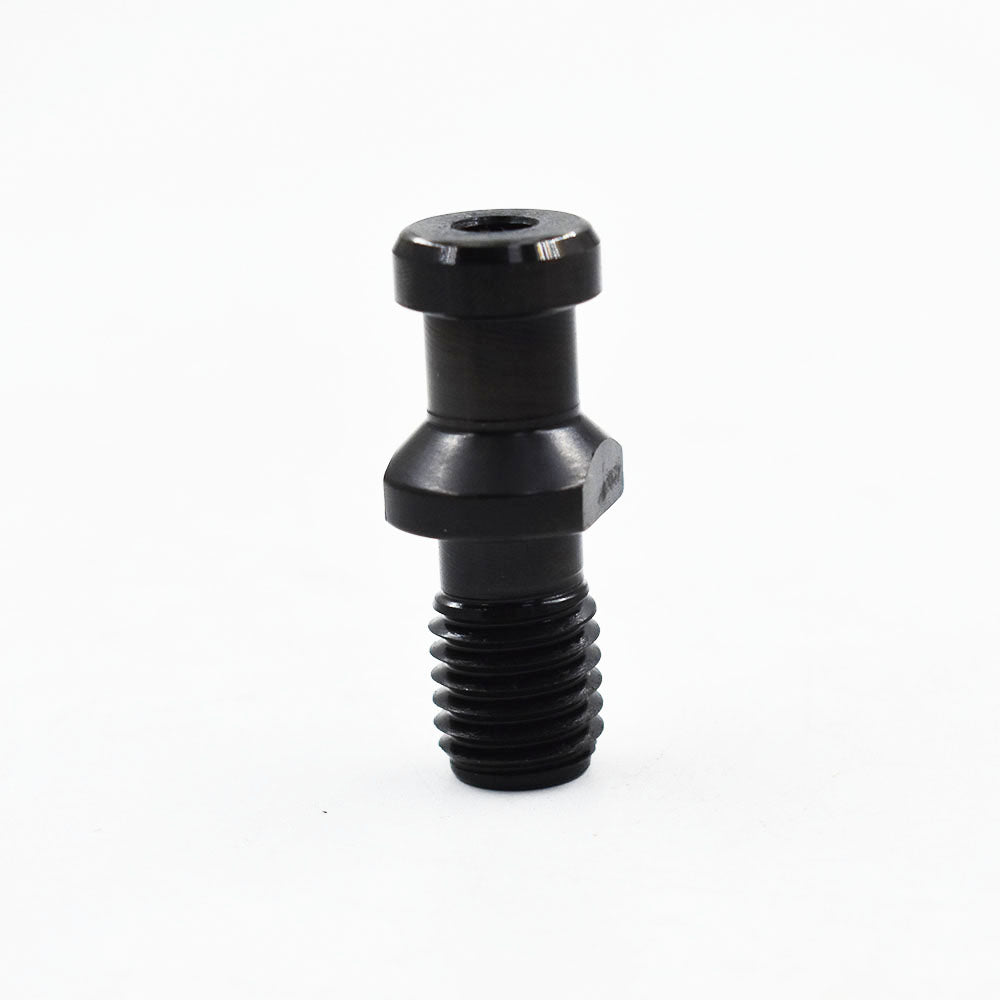

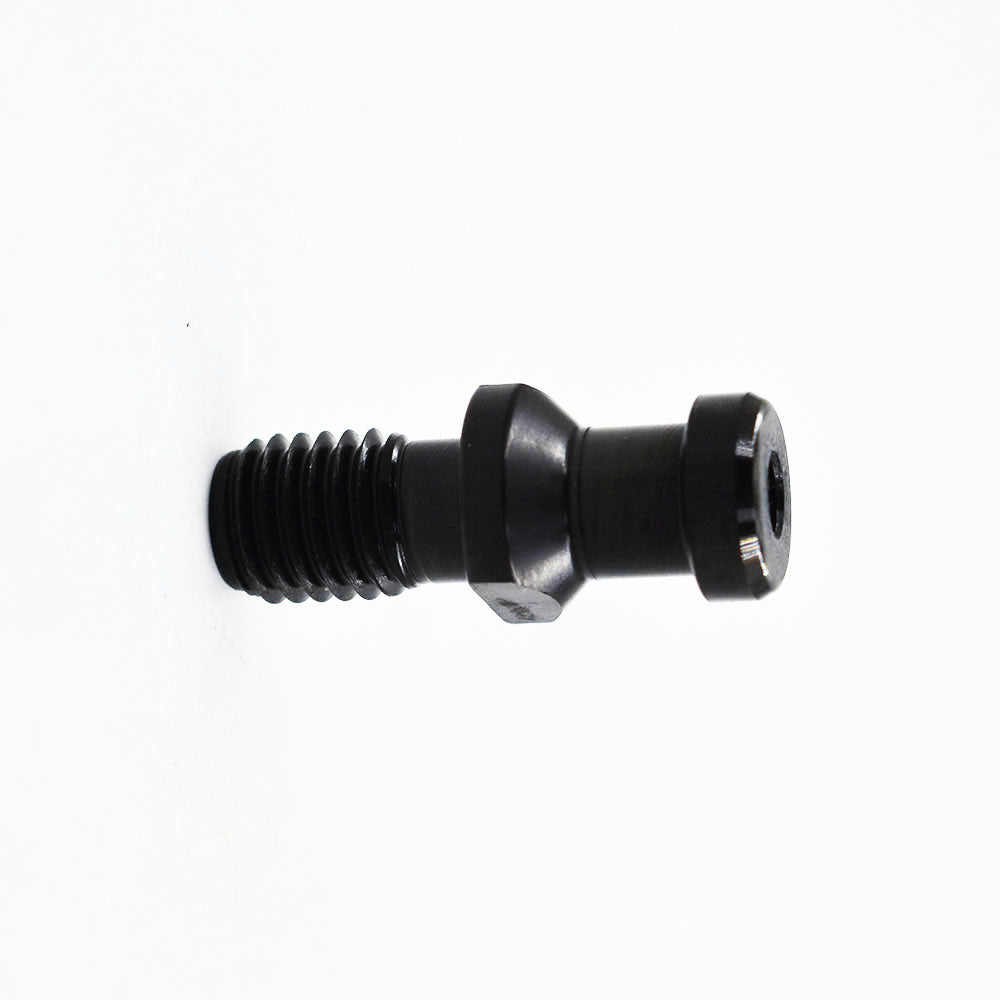

1 Pc CAT 40 15 .747 Pull Stud Coolant Thru Retention Knob Replacement for DMG Mori Doosan
1 Pc CAT 40 15 .747 Pull Stud Coolant Thru Retention Knob Replacement for DMG Mori Doosan
Regular price
$16.89 USD
Regular price
$0.00 USD
Sale price
$16.89 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Out of stock
Description?
Head Diameter?0.747"
Head Angle ?15°
Drawbar Thread Size?5/8"-11
Machine Taper Size ?CAT40
Neck Diameter?0.549"
Hole?0.281"
Pilot?0.641"
Overall Length?2.001"
Shoulder To Head?0.787"
Shoulder To End?1.024"
Coolant Hole
Features?
Made from alloy steel 5155 with heat treat to RC 56-58
Each retention knob is individually magnetic particle tested to ensure free of crack
High quality black oxide finish to ensure long enduring tool life
Fully ground on all critical surface including a pilot under the flange of retention knob for full contact between tool holder's taper end and retention knob
This pull stud is compatible with the following:
For J&M JM71123
For TJ Davies PSC-470 X 15
For Lyndex C40-1500-ISO
For Collis 69004
For Command RS4E-0114-C
Quantity?1 pc CAT 40 15 .747 Pull Stud for DMG Mori Doosan
