Description

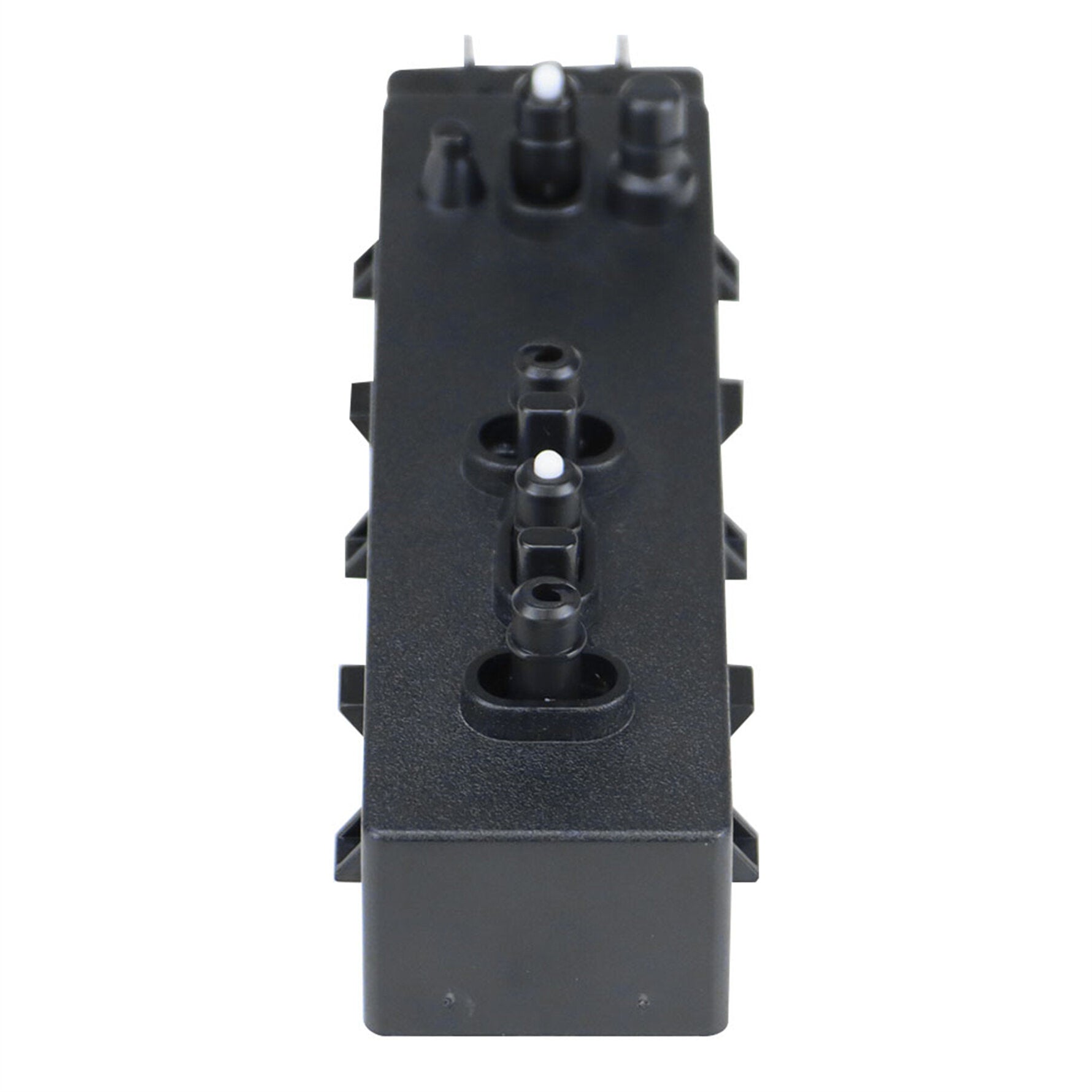

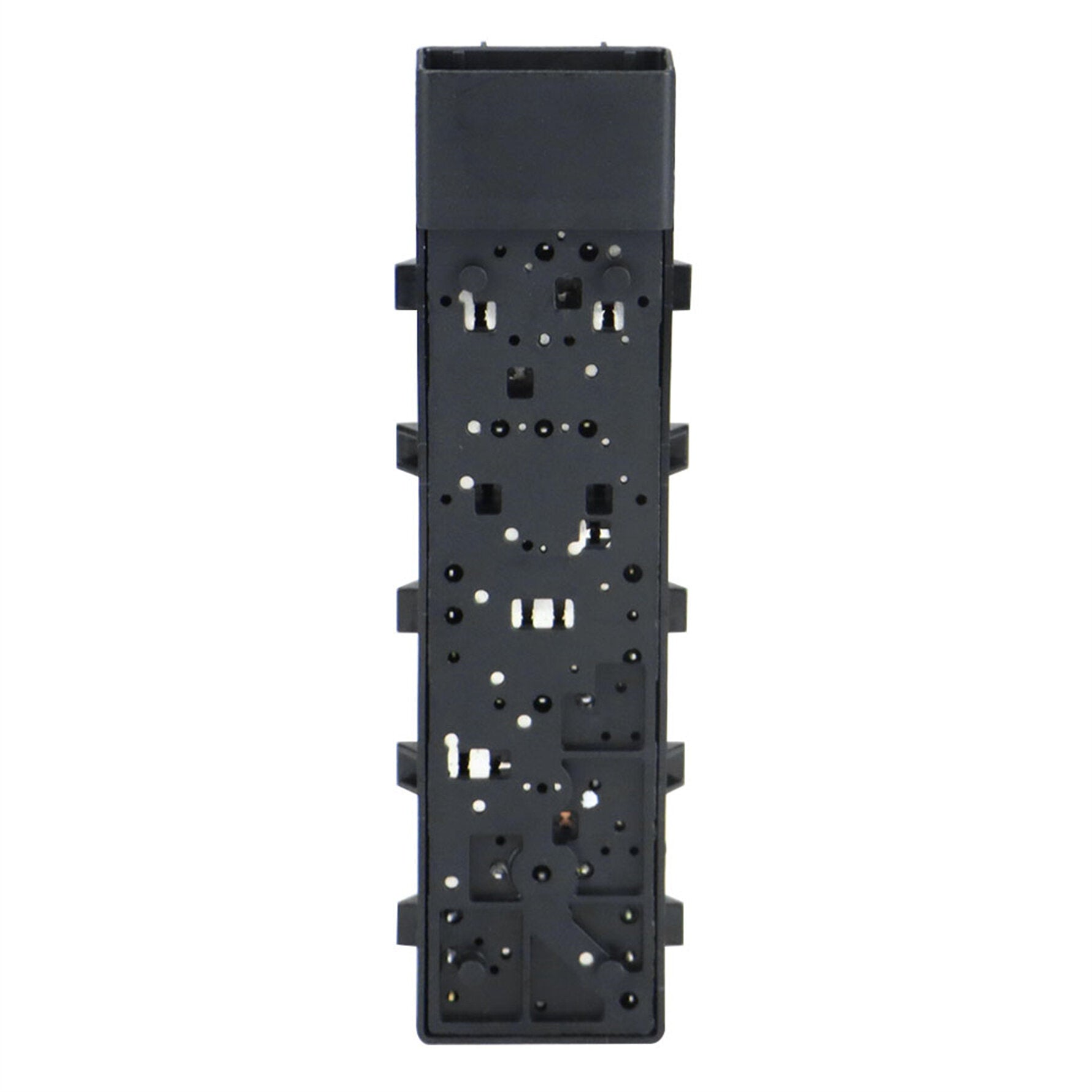

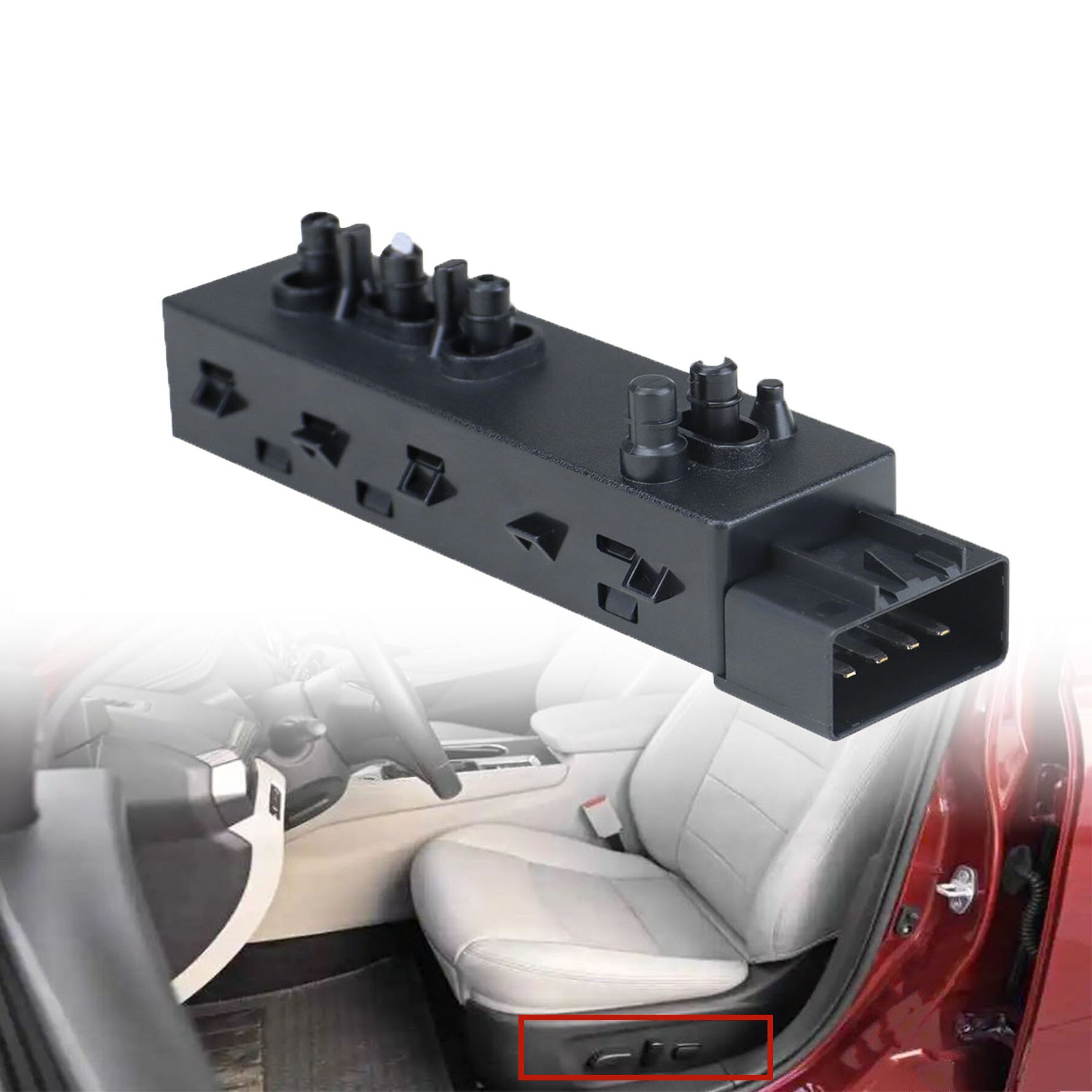

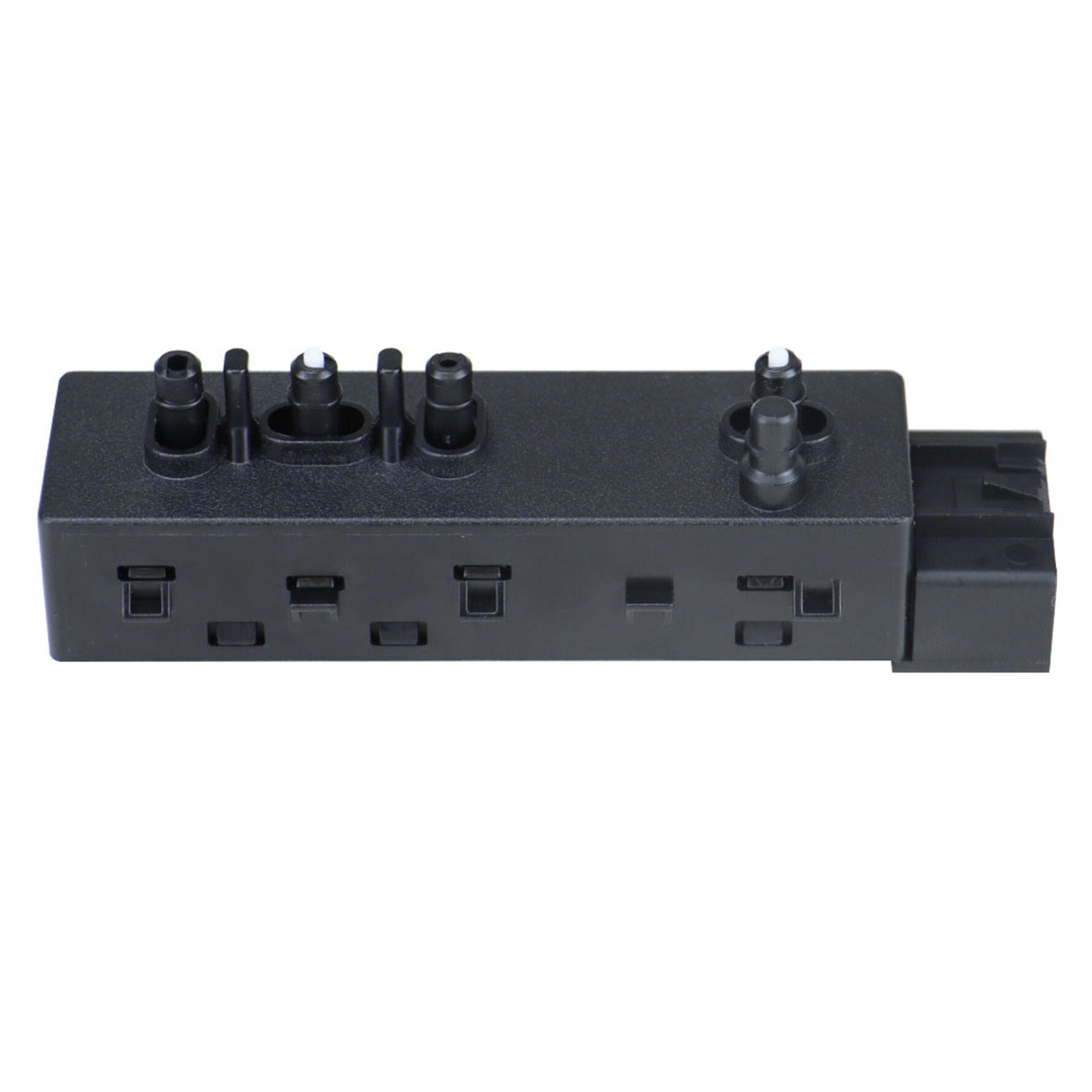

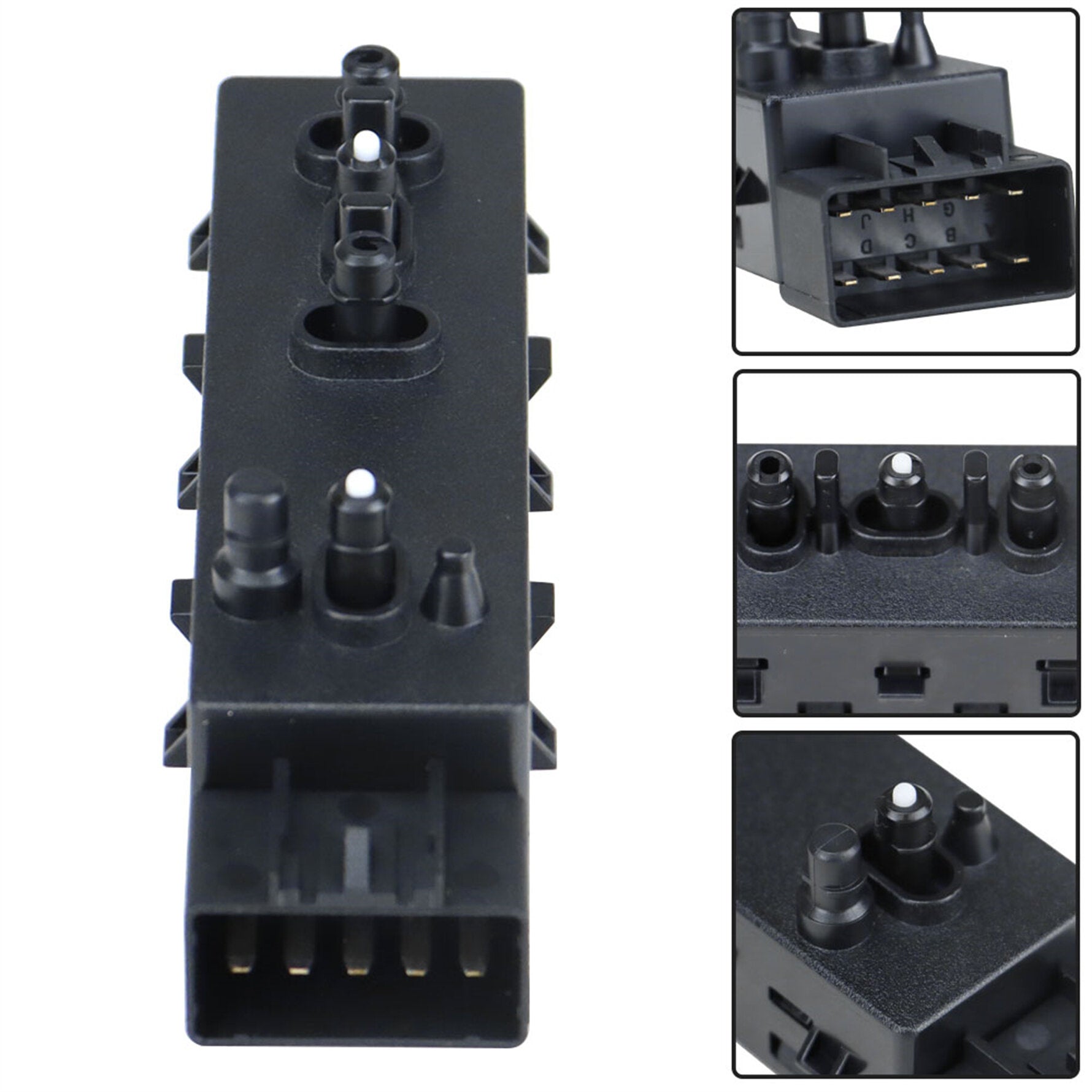

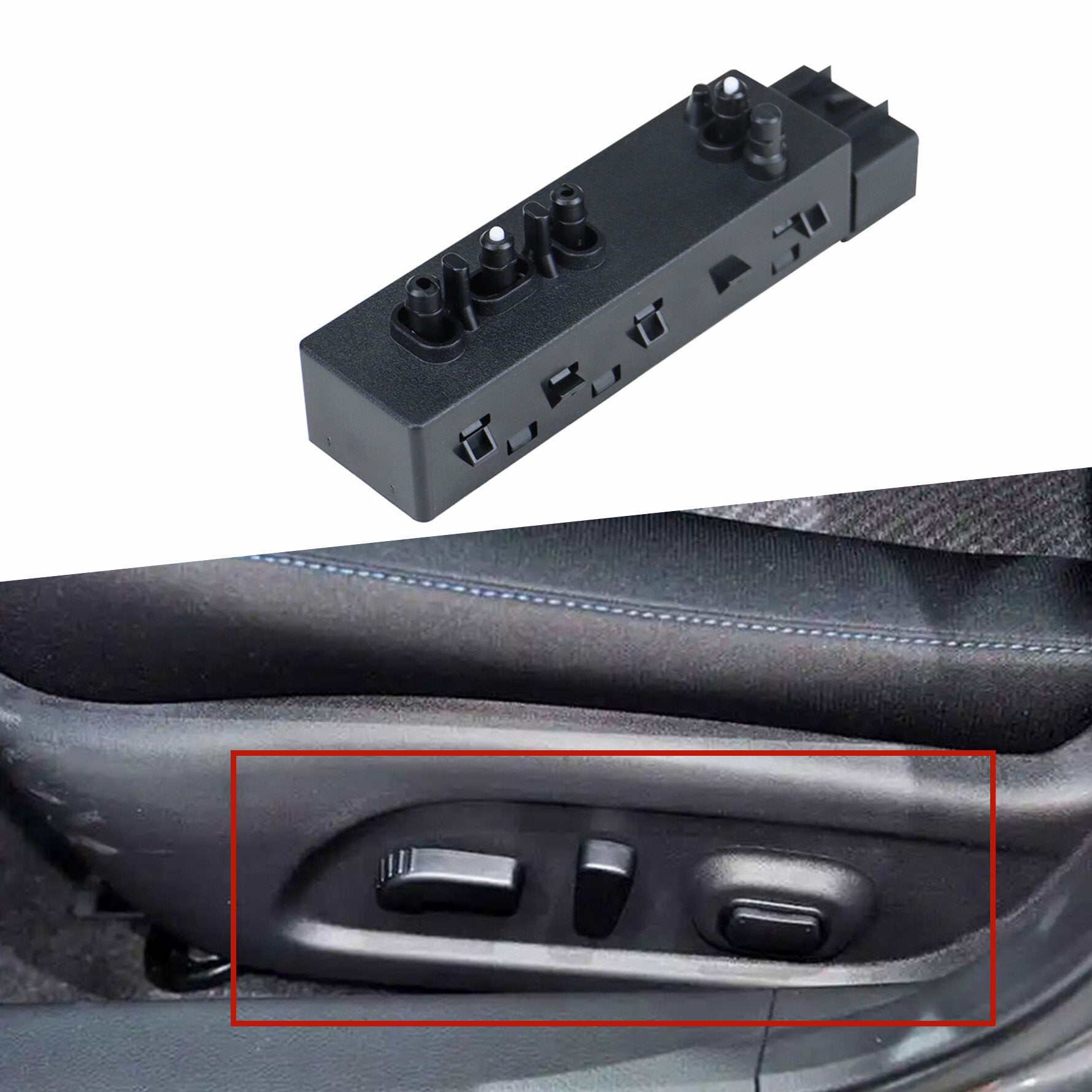

Power Seat Adjustment Switch Replacement for Altima 2007-2012 Front Left Driver Side Slide Switch 10 Way
Replacement for:
for 2007 Altima Front Left Seat Switch
for 2008 Altima Front Left Seat Switch
for 2009 Altima Front Left Seat Switch
for 2010 Altima Front Left Seat Switch
for 2011 Altima Front Left Seat Switch
for 2012 Altima Front Left Seat Switch
Feature:
Durable plastic material, proper fit and long service life.
Easy to install, plug and play, direct replace your old broken seat switch.
Specification:
Type: Power Seat Switch
Color: Black
Material: Plastic
Pin Numbers: 10
Placement on Vehicle: Front Left Driver Side
Package Include: 1 x Power Seat Switch
Part Numbers: 87066-JA03A 87066JA03A ?
Installation Step:
Locate the power seat switch.
Remove the seat trim panel to gain access to back side of the power seat switch.
Check the power seat switch inputs to make sure the switch has power and ground.
Supply power and ground to the power seat motor (bypassing the power seat switch).
Remove the switch connector. Remove the power seat switch from trim panel.
Install a new power seat switch.
Connect the power seat switch connector.
Reinstall the trim panel and power seat switch onto the bottom of the seat.
Move the power seat to verify that the power seat switch has been installed correctly.
