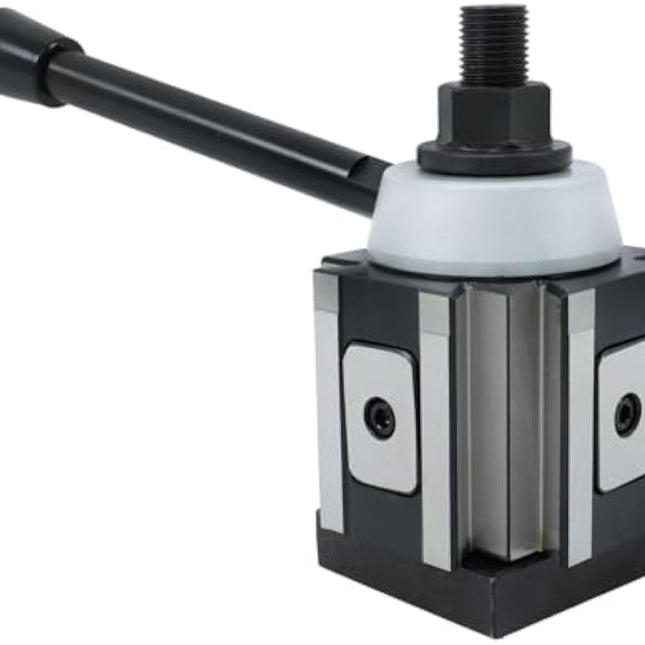

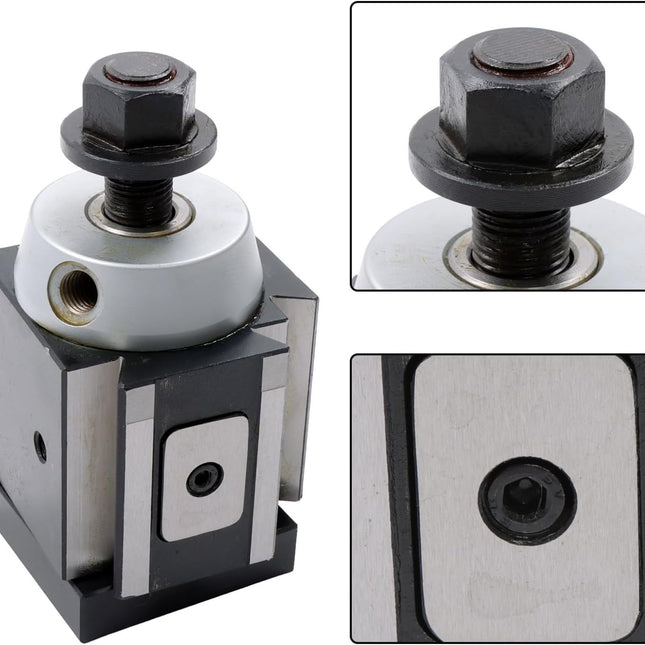

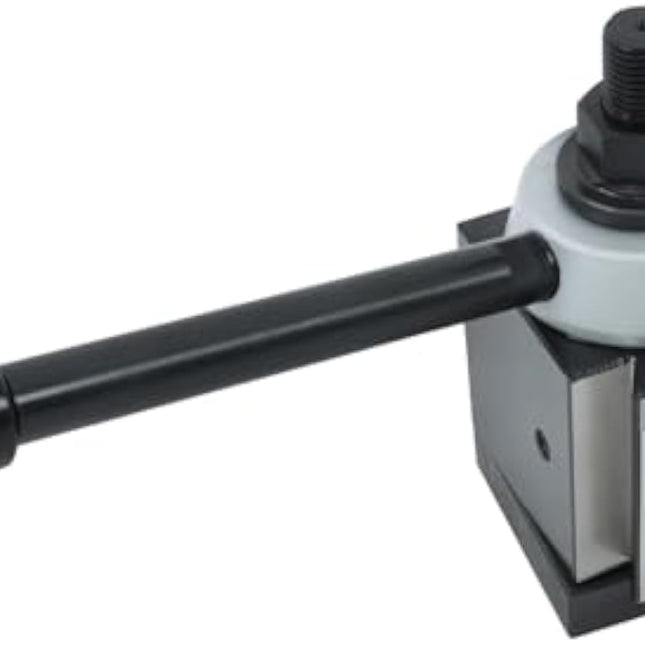

Lathe Swing: 13-18 Inch
Hex Key Size: 3/16 Inch
Set Screw Thread Size: M10x25
Application:
Suitable to fit lathes with a 13-18 inch swing.
Package Includes:
1 Tool Post Set
Features:
1.This piston style quick change tool post is machined from durable steel, engineered to deliver consistent performance in both fine finishing and heavy duty cutting applications.
2.All working components are accurately ground and hardened to ensure maximum rigidity and long lasting accuracy, allowing for exacting tolerances with every setup.
3.Designed to minimize downtime, this quick change system reduces the need for shims and enables tool swaps in just seconds, this tool post enhances workflow efficiency while maintaining high levels of accuracy.
4.This complete kit includes a wedge type tool post and five essential tool holders: the 250-301 turning holder, 250-302 boring holder, 250-304 heavy duty boring holder, 250-307 universal parting blade holder, and 250-310 turning holder.
5.Built for longevity in demanding workshop environments, the tool post features a completely sealed structure that ensures smooth operation and reliable performance over time. Its robust construction provides the stability required for heavy cuts while remaining sensitive enough for accruacy work.
The wedge type tool post has multi-job processing, such as outer round turning, inner hole processing, thread cutting, etc
The wedge type tool post is a tool holding device commonly used in lathe machining. Its core feature is the rapid clamping and accurate positioning of the tool through the mechanical structure of the wedge block
All working components are accurate machined, ensuring maximum rigidity and no vibration cutting

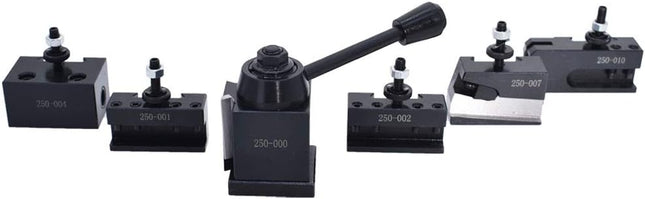

Toolholder Models:

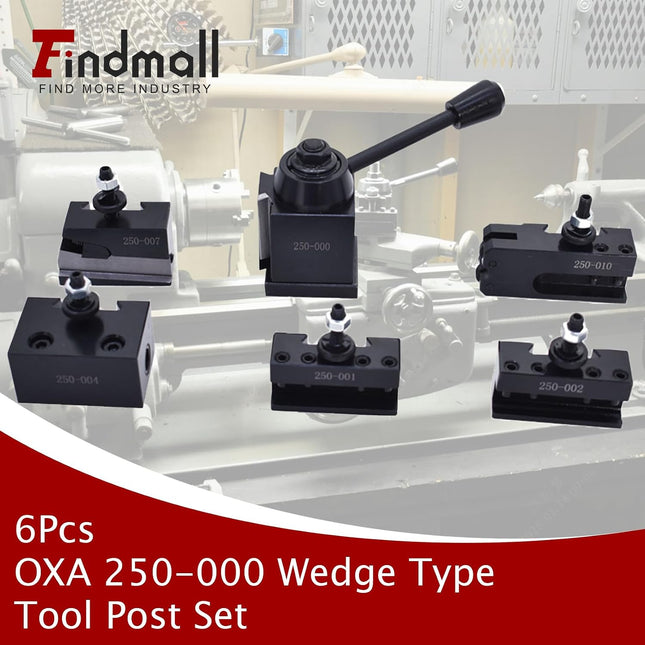

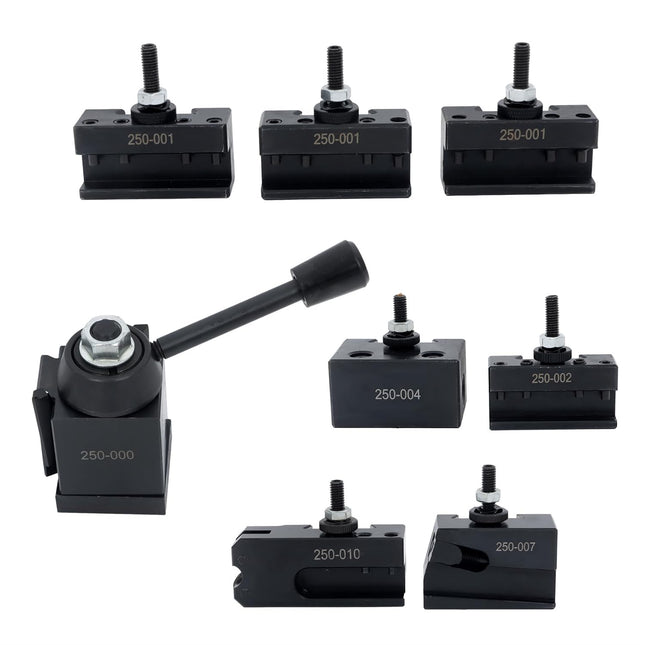

1 Set 250-000 OXA Wedge Type Tool Post
3PC 250-001 Turning Tool Holder
1PC 250-002 Boring, Turning Tool Holder
1PC 250-004 Heavy Duty Boring Bar Holder, Use 3/8" or 1/2" boring bar
1PC 250-007 Parting Blade Tool Holder, Use 1/2" Hight Paring Blades
1PC 250-010 Knurling and Turning Tool Holder

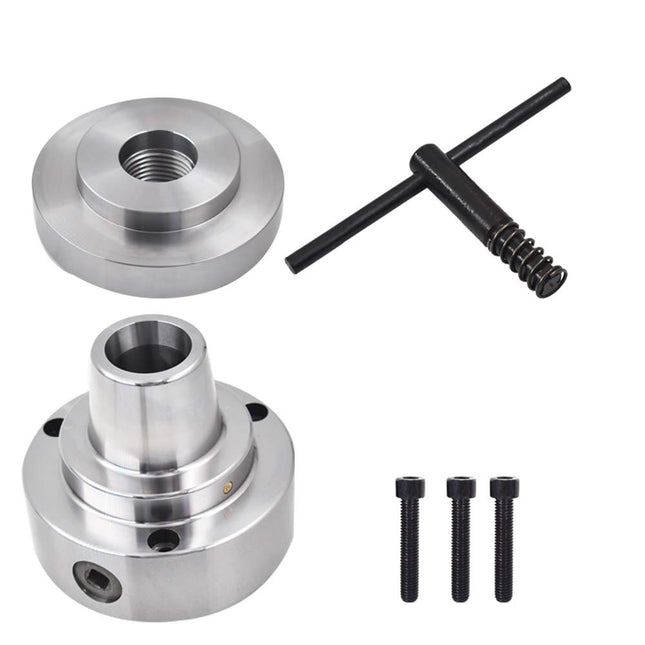

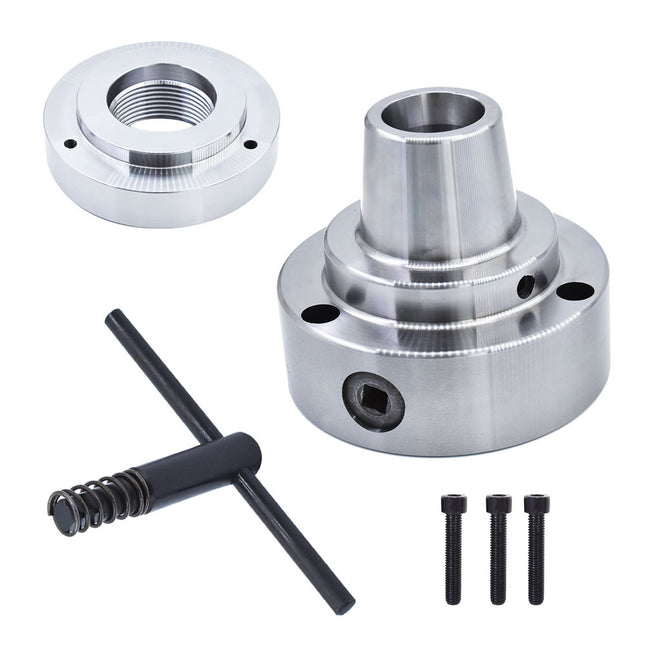

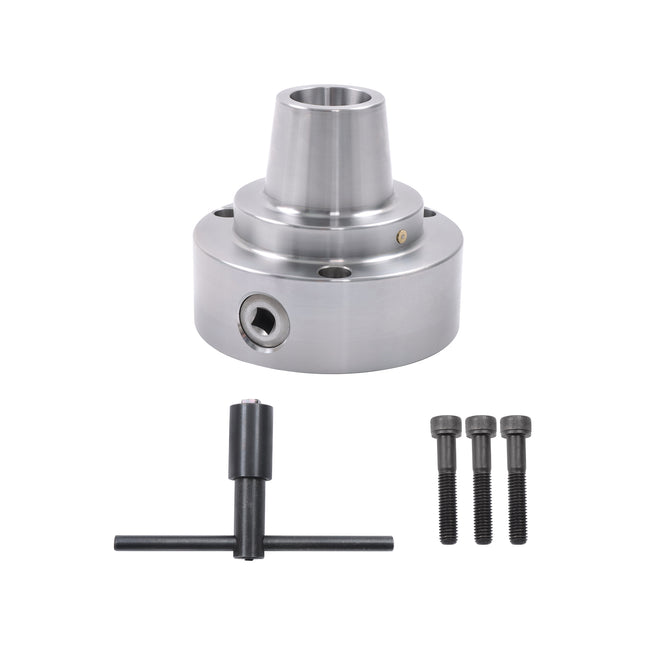

Outside Diameter: 5" Plain Back
Recessed 3.740" x .184" Deep
Comes With a Semi-finished Adapter (2-1/4 x 8 Threaded Hole)
Max. RPM 6000
Accuracy: 0.0006 TIR
Can Use Any Size 5C Collet From 1/16 through 1-1/8"
Scroll Pinion Accuracy Machined and Hardened
Scroll and Pinion Design just like 3-Jaw Chuck.
The mounting holes already drilled and tapped.
Customer just need to finish machining the locating mount the chuck and adapter together for themself on their own lathe to assure the best accuracy.

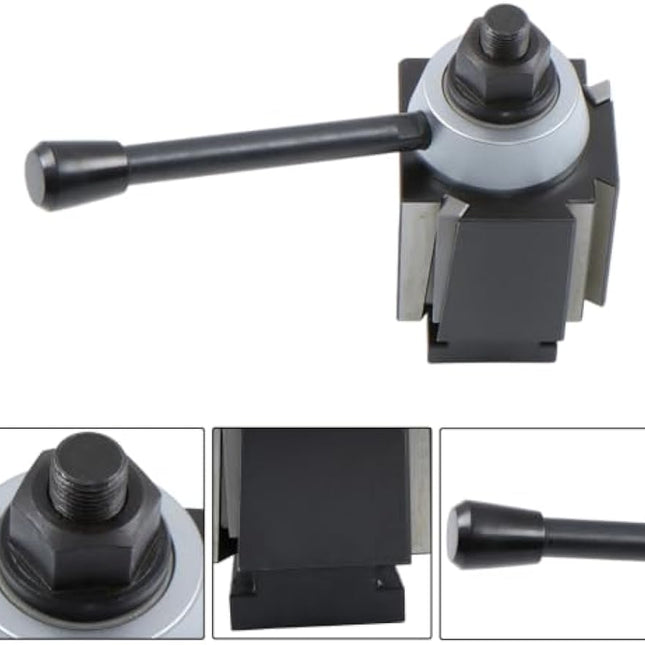

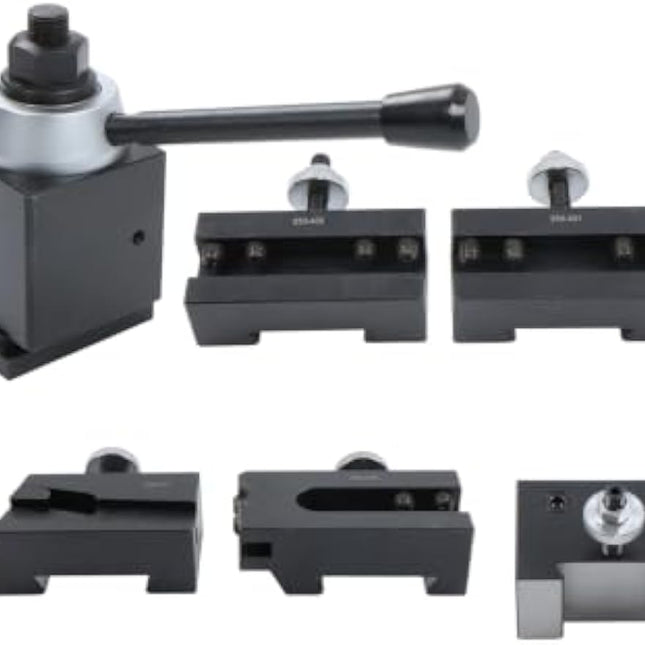

6 Pcs CA Wedge Type Quick Change Tool Post, 14"-20" Lathe Swing
Package Includes:
1 Piece of Tool Post
5 Pieces of Turning Tool Holder
Features:
1.This kit includes the main wedge-type tool post holder 250-444 along with five additional holders: 250-401, 250-402, 250-404, 250-407, and 250-410.
2.Capable of handling delicate, close-tolerance jobs as well as severe removal tasks, this tool post adapts seamlessly to diverse workshop demands. Its robust construction and rigid locking make it a reliable choice for both job shops and production environments.
3.Fully sealed internals ensures less routine lubrication needs. An integrated height-adjustment screw lets you adjust the tool center height to match different chucks and workpiece setups, ensuring optimal alignment.

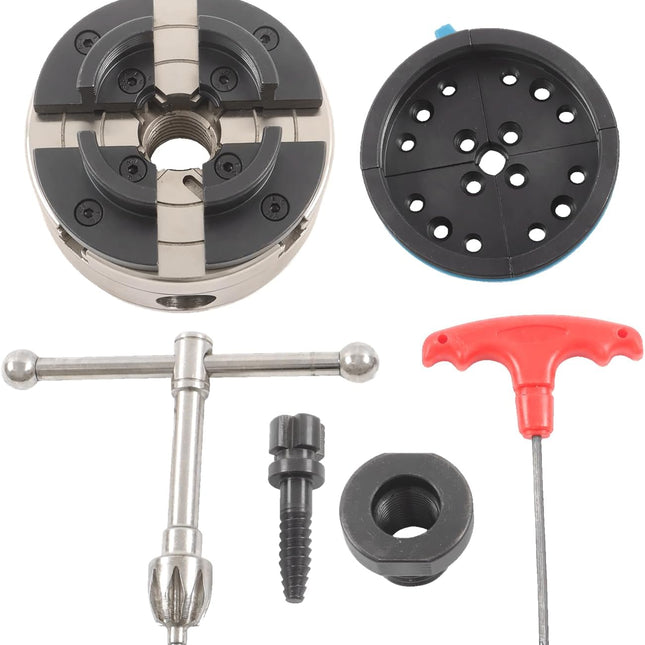

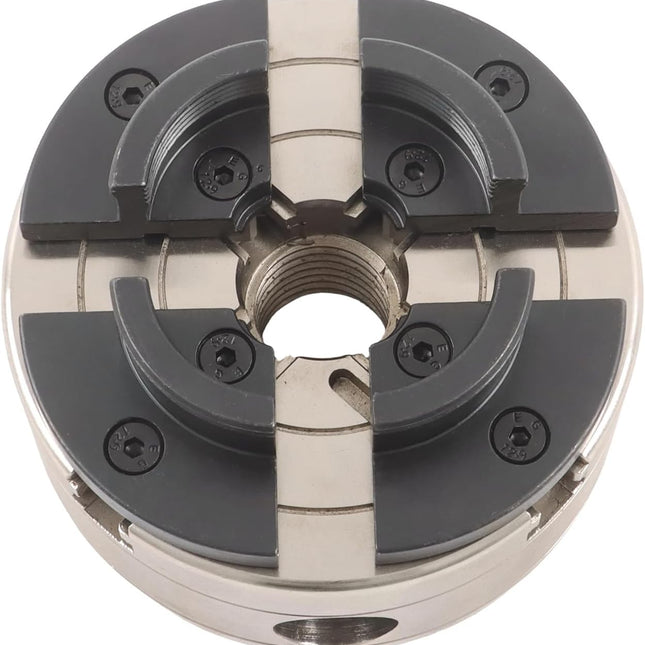

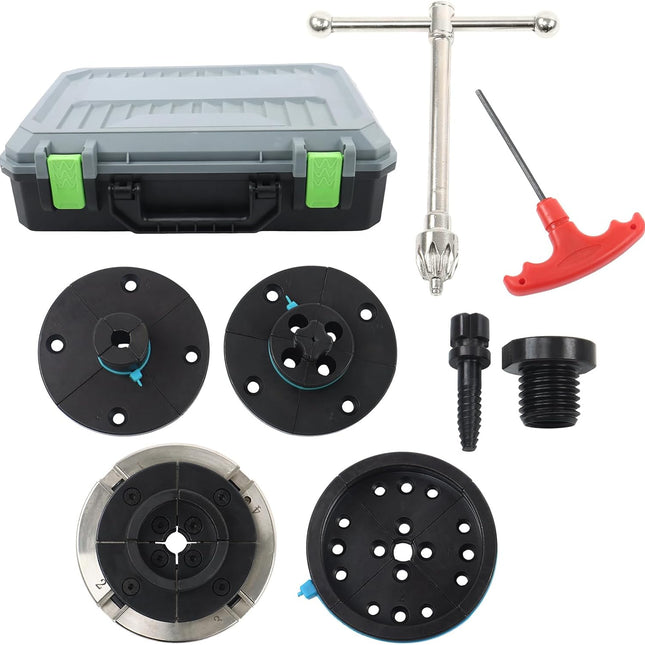

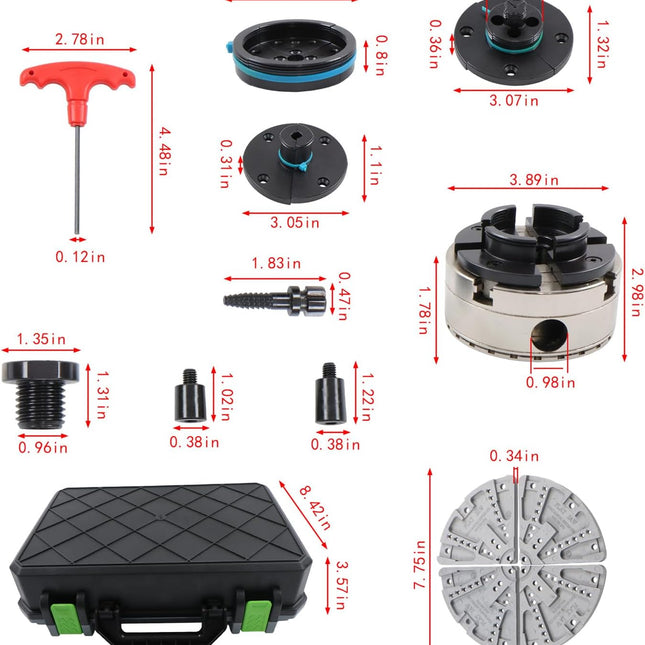

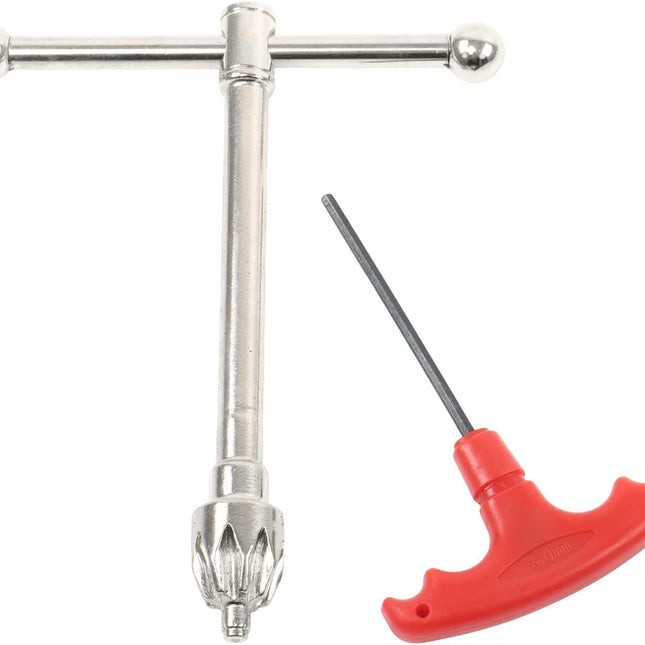

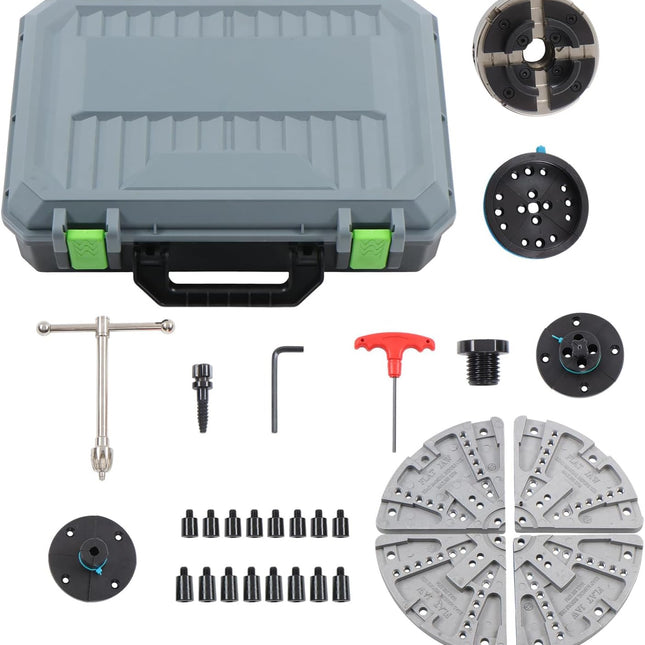

4 Inch Wood Lathe Chuck Set 1" x 8, Self Centering 4 Jaw Wood Turning Chuck
Specification:
Item Diameter: 4 Inches
Thread Size: 1" x 8
Material: Alloy Steel
Features:
Features accuary self-centering function, the four jaws move synchronously to center workpieces quickly, saving setup time and improving machining accuracy.
Prefect for various wood turning projects, suitable for processing bowls, spindles, crafts and other wooden workpieces, perfect for hobbyists and professional woodworkers.
Packaging Includes:
1x 4 Inch Wood Lathe Chuck Set

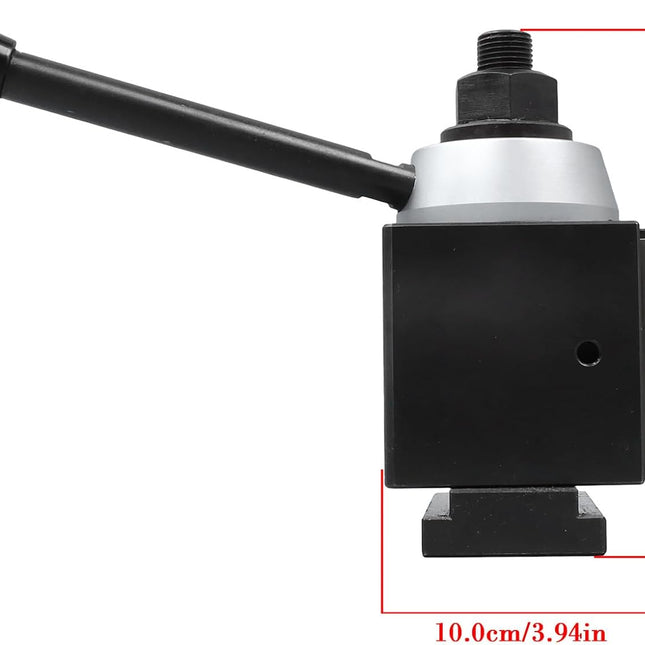

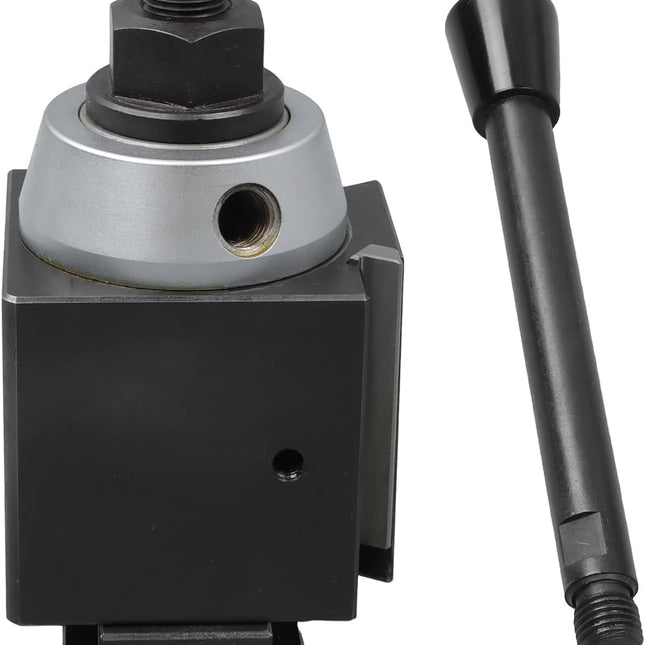

14-20 Inch CA 444 Wedge Quick Change Tool Post 250-444 for use on lathes with 14 Inch-20 Inch swing
Specification:
Lathe Swing: 14-20"
Features:
The internal locking mechanism uses wedge-shaped blocks instead of piston-type locking. By rotating the handle, the wedges are pushed outward to open, and the knife clamps are pressed from both sides to tightly secure against the positioning surface at the rear and downward.
Packaging Includes:
1x CA Wedge Type Quick Change Tool Post 250-444

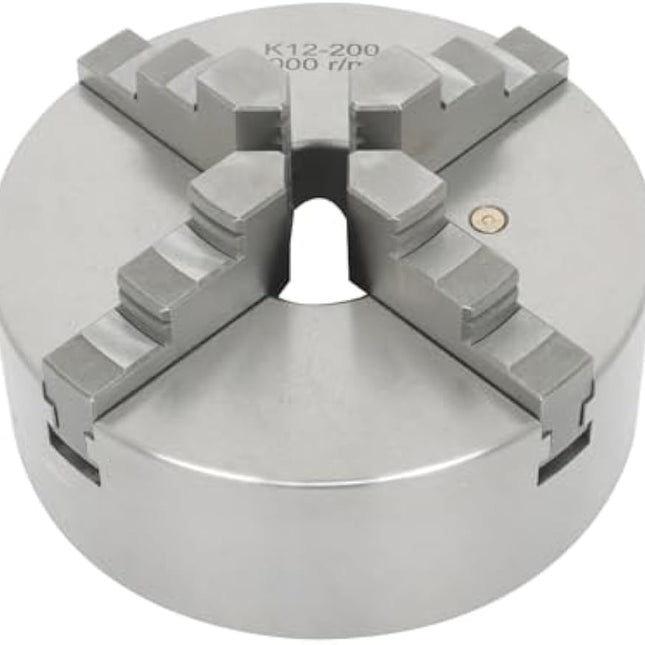

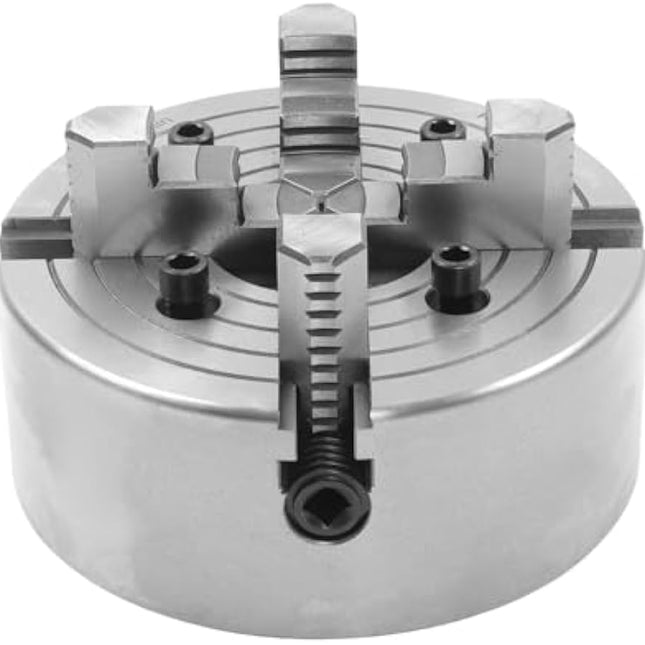

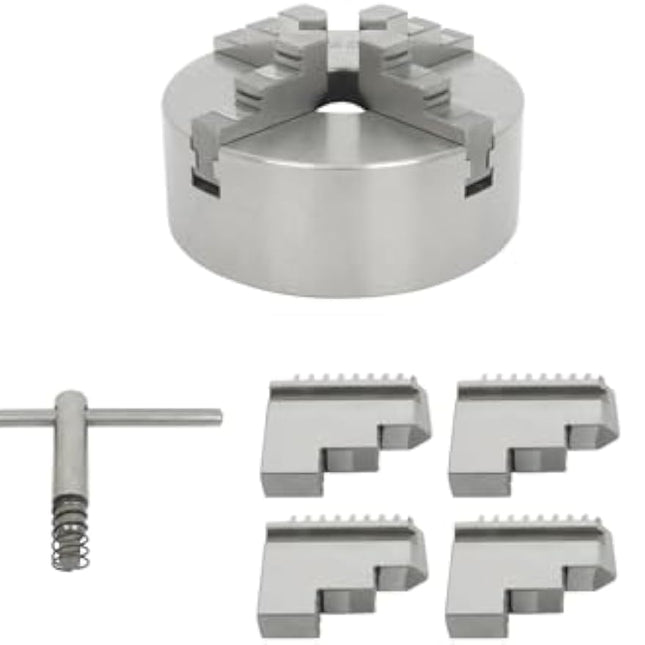

K12-200 8 Inch 4-Jaw Lathe Chuck Self-Centering Independent Chuck 4-200mm Clamping Range for Mini Lathe, CNC Router, Milling, Turning
Specification:
Model: K12-200
Max. Speed: 2000 RPM
Inner Diameter: 2.56In / 65 mm
Outer Diameter: 8In / 200 mm
Features:
1. Secure Clamping of Various Shapes: Features 4 stepped jaws that securely clamp a variety of irregularly shaped workpieces, including round, square, and hexagonal shapes, ensuring a firm grip without slipping.
2. Wide Range of Machine and Material Compatibility: Supports T-slot mounting, fits most lathes, and can clamp various materials including metal, wood, and plastic. Suitable for metalworking, drilling, milling, and other processes.
3. High-Efficiency, Versatile Machining: The 200mm diameter model is suitable for small to medium-sized metalworking projects, significantly improving machining efficiency, accuracy, and consistency, making it an essential universal fixture for the workshop.
Package Includes:
K12-200 Threaded Adapter Backing Plate
1Pc T-Key
3Pc Screws
4Pc Extra Reversible Jaws
A = 1.75 inch
B = 2.95 inch
C = 1.57 inch
D = 0.4 inch
Swing Dia: 8 inch
Weight: 1.56kg

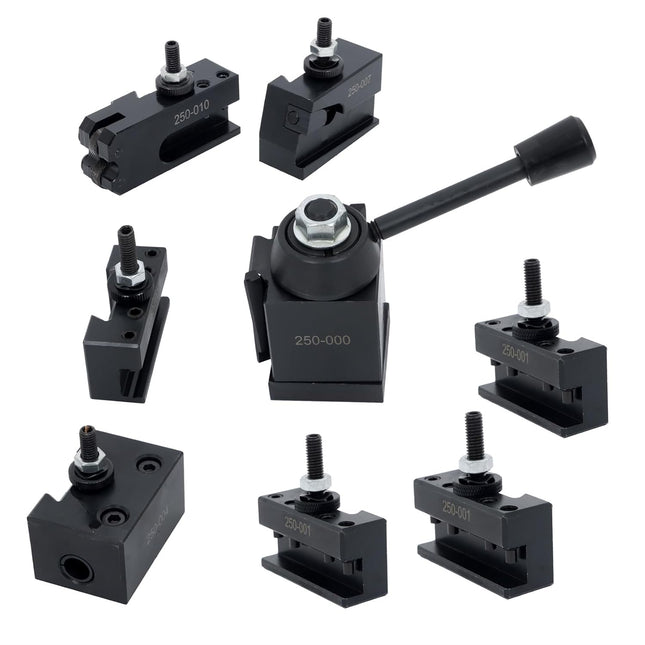

The scope of application of the tool post holder set is determined by the main tool post, namely OXA 250-000. The specific size of the main tool holder is shown in Figure, followed by the swing diameter (the space range) and the extension range of the tool holder to confirm whether it is suitable.
Package Includes
1 x OXA 250-000 Tool Post
1 x OXA 250-001 Tool Holder
1 x OXA 250-002 Tool Holder
1 x OXA 250-004 Tool Holder
1 x OXA 250-007 Tool Holder
1 x OXA 250-010 Tool Holder
A = 0.47 inch
B = 1.18 inch
C = 3/8 inch
D = 1/2 inch
Weight: 0.63kg
A = 0.126 inch
B = 0.55 inch
C = 1.38 inch
Blade Height: 1/2 inch
Weight: 0.37kg
A = 0.53 inch
B = 1.77 inch
C = 1.18 inch
Clamping Range: 3/16-1/2 inch
Weight: 0.34kg
Features
Made of steel, sturdy and durable
Quenching processing to extend service life
Precision grinding with high precision
Easy to use and quick to replace
Multiple models to meet usage needs
Products include

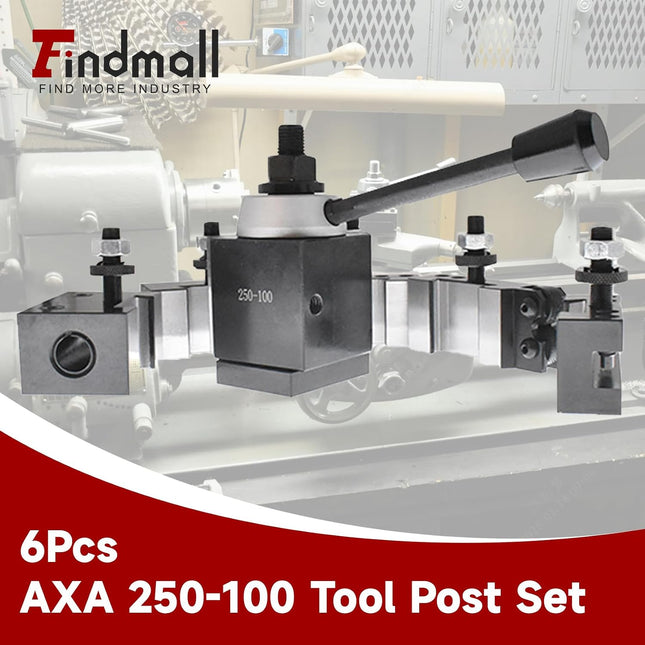

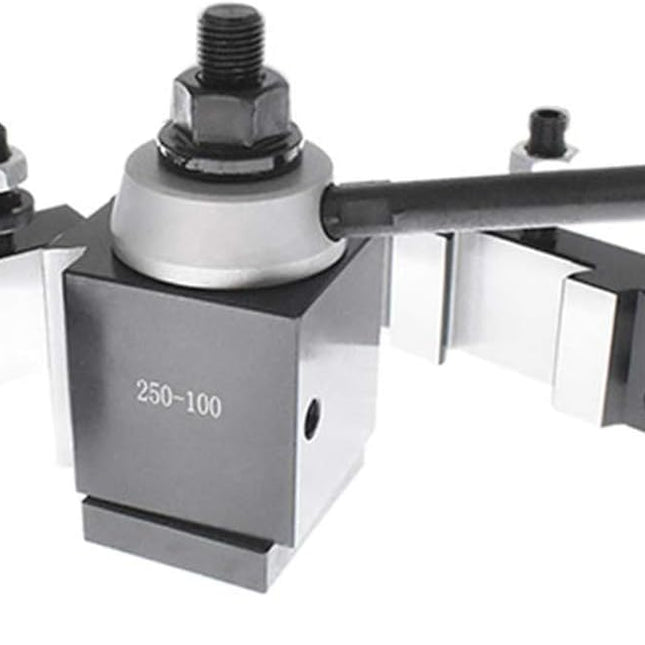

1 x 250-100 piston type quick change tool post
1 x 250-101 tool holder
1 x 250-102 tool holder
1 x 250-104 tool hoder
1 x 250-107 tool holder
1 x 250-110 tool hoder
AXA 250-101 tool holdrer
A = 1 inch
B = 0.55 inch
C = 29/64 inch
D = 1-1/2 inch
Tool bit range = 3/16-1/2 inch
AXA 250-102 tool holdrer
A = 1 inch
B = 1/2 inch
C = 29/64 inch
D = 1-1/2 inch
Tool bit range = 3/16-1/2 inch
AXA 250-104 tool holdrer
A = 3/4 inch
B = 1-1/2 inch
C = 3/4 inch
D = 5/8 inch
The wedge type tool post set is made of steel, which is firm and durable, not easy to wear and prolong the service life

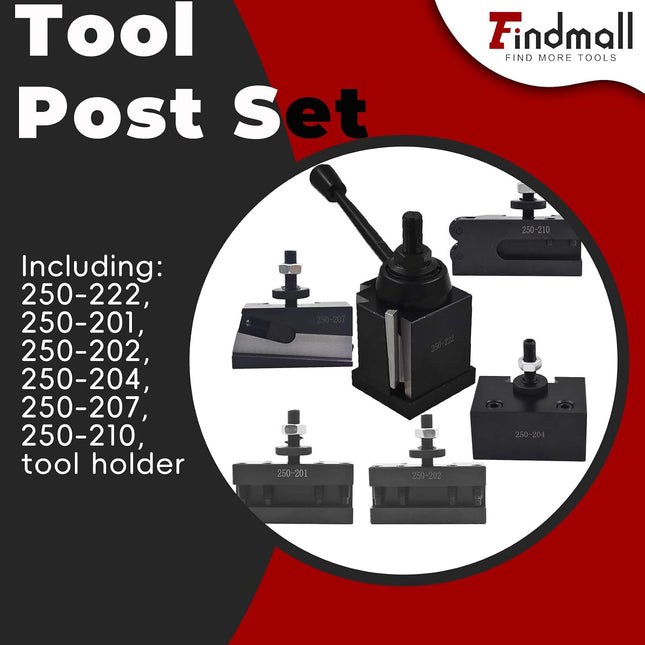

Package Includes

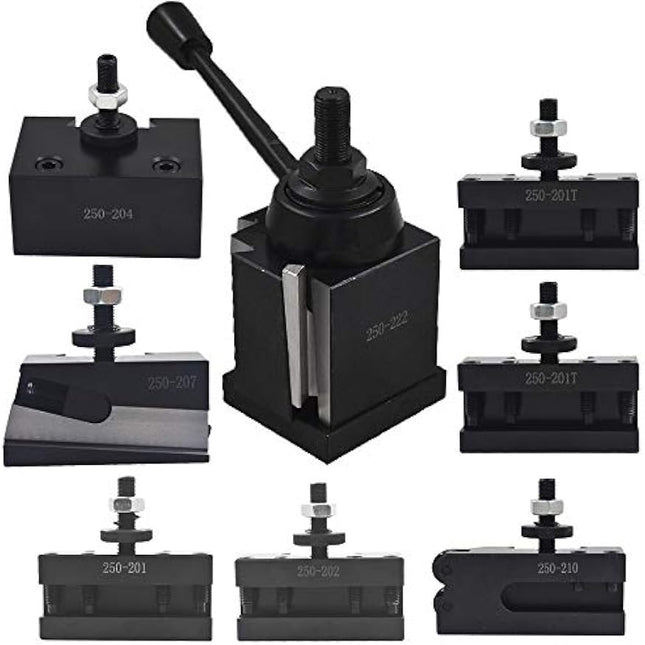

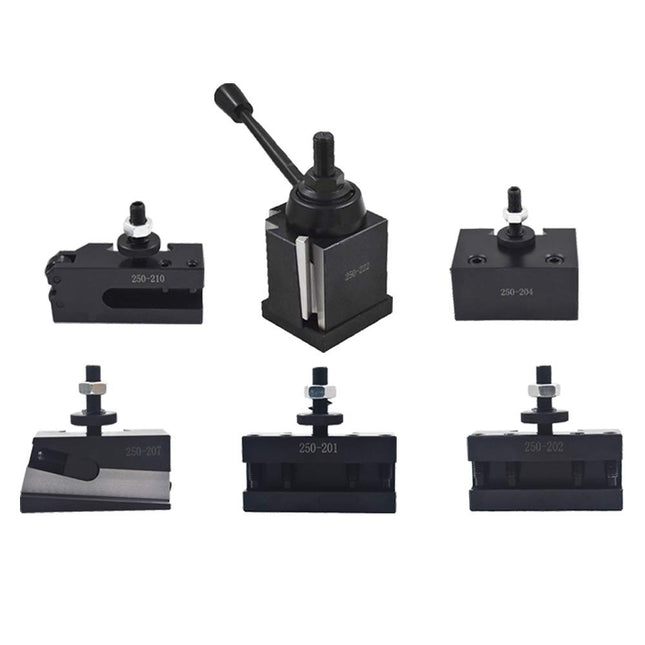

1 x Bxa 250-222 tool post
1 x Bxa 250-201 tool holder
1 x Bxa 250-202 tool holder
1 x Bxa 250-204 tool holder
1 x Bxa 250-207 tool holder
1 x Bxa 250-210 tool holder
2 x Bxa 250-201T tool holder
Package Includes:
1 x Bxa 250-222 tool post / 1 x Bxa 250-201 tool holder / 1 x Bxa 250-202 tool holder / 1 x Bxa 250-204 tool holder / 1 x Bxa 250-207 tool holder / 1 x Bxa 250-210 tool holder / 2 x Bxa 250-201XL tool holder
The quick change tool post is consist of tool post and many kinds of tool holders.
According to the processing requirements of the workpieces, correspording tool holders are selected to finish cylindrical facing, end facing, cutting, drilling, reaming, boring as well as other processing.
It realizes to mount tool outside the machine tool, it has exchange tool quickly, high accuracy, rigidity strong and more. It is satisfactory accessories in place of square turrets.

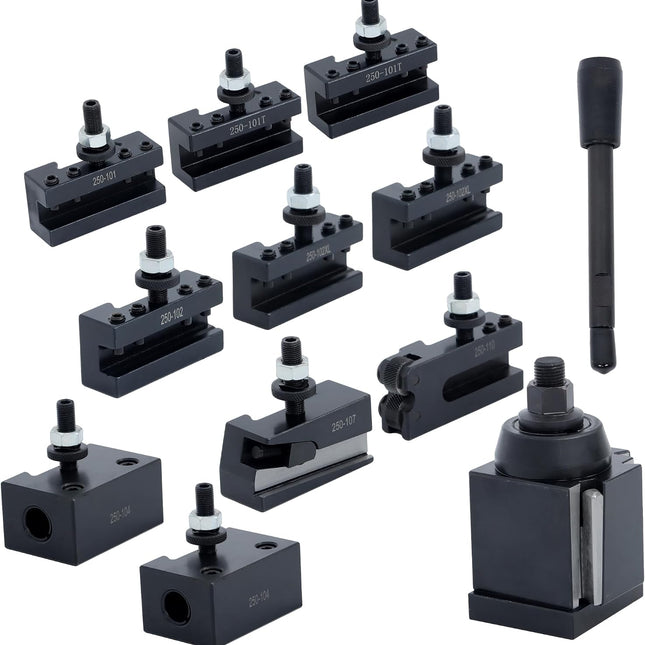

Whole set includes one each of:

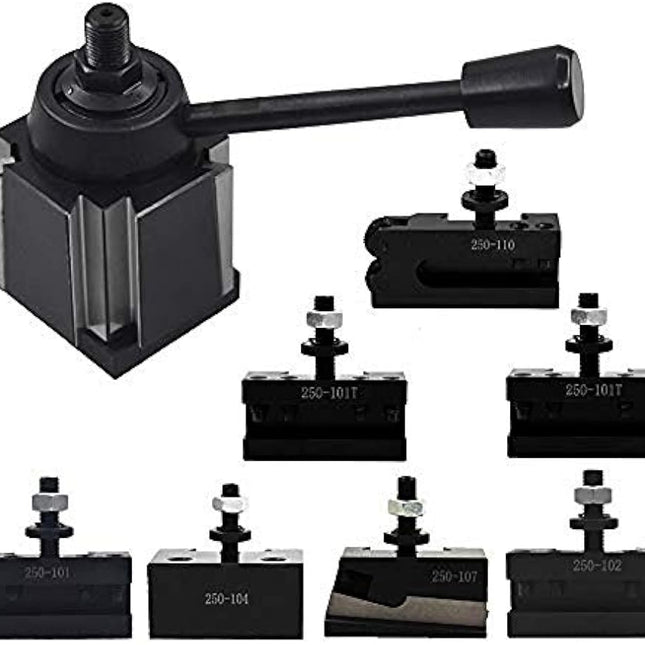

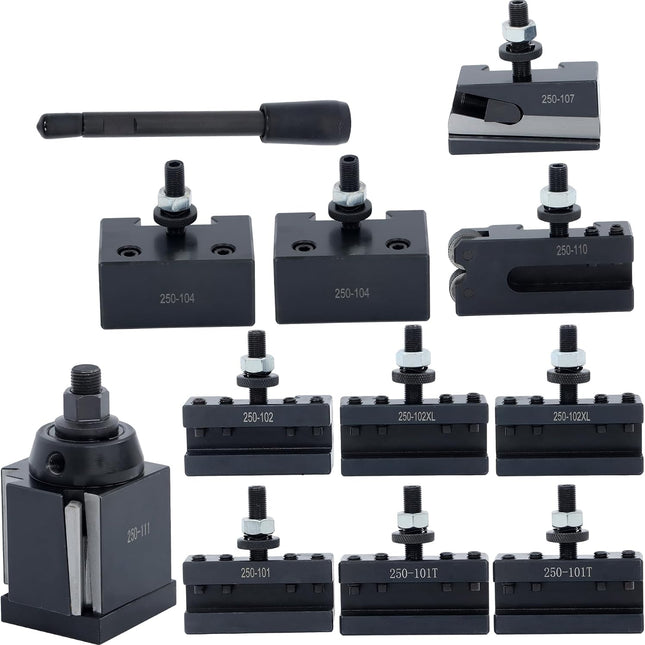

250-111 wedge type tool post; 250-101 turning tool holder, square tool bit range 3/16-1/2 inch; 250-102 boring turning tool holder, round tool bit range 3/16-1/2 inch; 250-104 heavy boring bar tool holder, using 5/8 or 3/4 inch shank boring bar; 250-107 universal parting blade holder, blade height 1/2 inch; 250-110 quick change knurling turning and facing tool holder; 2 x 250-101 T oversize tool holder, using 5/8 inch bit

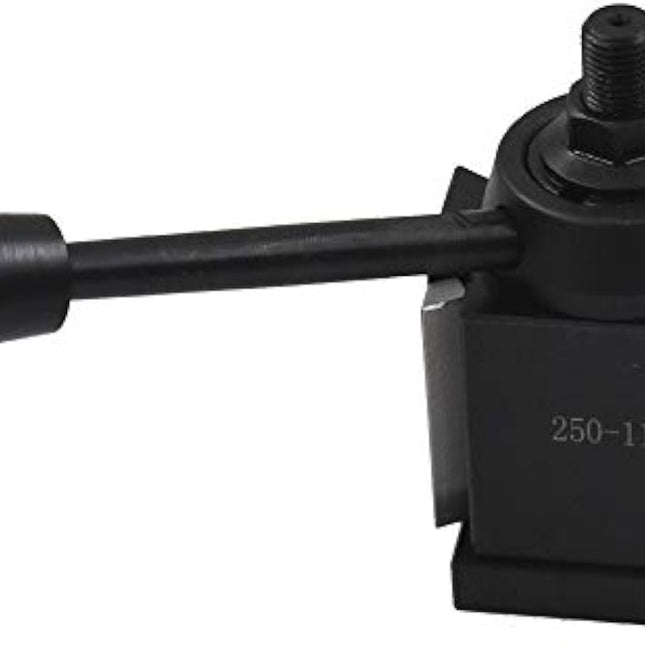

AXA 250-111 wedge type tool post set is made of steel, which is more durable and has a long service life. After quenching and hardening treatment, it has high hardness and is not easy to vibrate.
The wedge type tool post realizes fixed clamping through the rotation of the handle. Easy to use, the tool holders and wedge type tool post can be locked together for quick replacement.
What is the material of the 250-111 wedge type tool post set?
The 250-111 wedge type tool post set is made of steel, which is more durable.
In which direction does the locking lever turn to clamp the tool holder?
The locking lever clamps the tool holder by turning in the positive direction.
What size of lathe is this 250-111 wedge type tool post set suitable for?
This 250-111 wedge type tool post set is suitable for 6-12 "lathes.
What size of tool can be used for this tool wedge type tool post set?
Different types of tool holders have different clamping ranges. The tool holders 250-101, 250-102 and 250-110 are 3/16-1/2 inch.
The base of my wedge type tool post is lost. What should I do?
The base of the wedge type tool post is designed to facilitate the transportation of the wedge type tool post. It has no practical use, so you don't need to worry about it. It can be used normally.

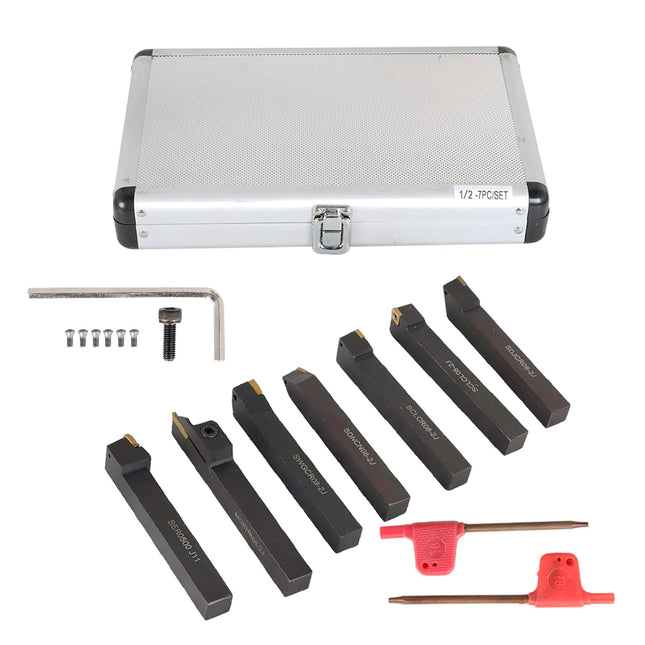

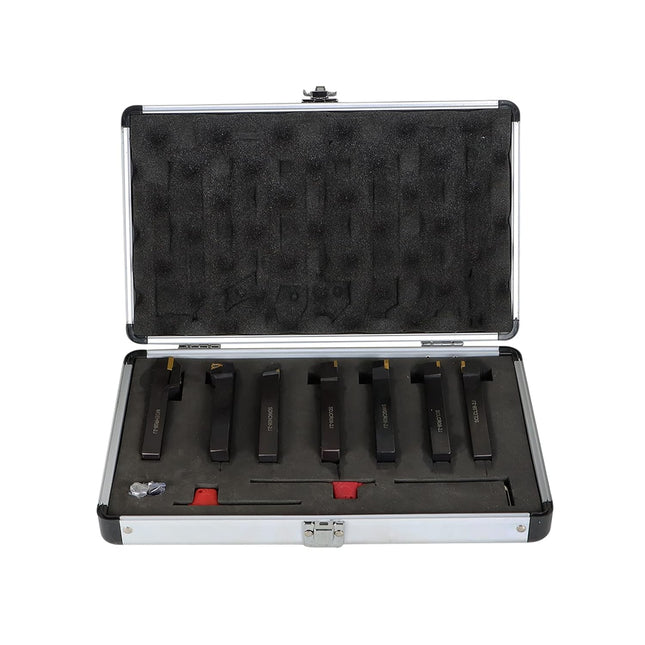

Material: steel
Quantity: 7pcs
Size: 1/2 inch
Features:
1. Carbide indexable turning tool is made of steel with high hardness and is not easy to break.
2. Each lathe boring bar is equipped with C6 tinned carbide blade, which has high cutting speed and long service life.
3. Metal lathe tool holder has stable processing, strong seismic performance, reasonable fastening structure design and good processing effect.
4. 1/2 inch shank lathe tool holders are 7 different types of milling cutter bar sets, which can cut flexibly to meet your different needs.
Package Includes:
7 x lathe boring Bar
Others as shown in the figure
