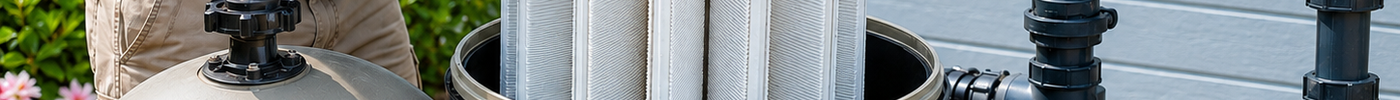

How to Replace a Pool Filter Grid Assembly
, by findmallindustry, 6 min reading time
Replacing a D.E. filter grid assembly requires exact model compatibility and careful pressure relief. This guide explains the general process and the checks to make before restarting the system.
A damaged diatomaceous earth (D.E.) filter grid can allow D.E. powder or debris to return to the pool, shorten filter cycles, or reduce filtration performance. Replacing the grid assembly can restore proper operation when the grids, manifold, or supporting components are damaged.
Pool filters operate under pressure. The most important part of this job is making the system safe before opening the tank. The exact procedure, clamp design, replacement parts, and D.E. quantity vary by filter model. Read the filter manufacturer's manual before beginning.
Confirm Compatibility Before Disassembly
Identify the filter from its data label, not only from its appearance. Confirm:
• Manufacturer and exact filter model
• Filter area in square feet
• Original part or assembly number
• Grid count, shape, and dimensions
• Manifold and lower-spreader design
• Standpipe connection
• Clamp, lid, O-ring, and air-relief configuration
Two filter assemblies can look similar while using different grid lengths, manifold openings, or tank dimensions. If a replacement is advertised as compatible with part number 59023800 or FNS24/FNSP24-style 24-square-foot systems, verify those details against the label and manual for the actual filter before installation.
Gather the Required Items
Depending on the model, you may need:
• Compatible replacement grid assembly or individual grids
• Correct tank O-ring or seal if replacement is required
• Manufacturer-approved O-ring lubricant
• Basic hand tools specified in the manual
• Hose and suitable cleaning area
• Correct type and quantity of fresh D.E. media
• Eye, hand, and body protection appropriate for the task
Do not reuse broken internal parts or substitute an incorrect clamp component.
1. Shut Down the System
Turn the pump off and disconnect or lock out its power according to the equipment instructions and applicable procedures. Close valves only in the sequence specified for the plumbing system.
Never rely on a timer or automation control alone; the pump must not be able to restart while the filter is open.
2. Relieve All Pressure
Open the manual air-relief valve as directed by the filter manual and wait until air and water discharge stops. Confirm that the pressure gauge reads zero. Open the drain or perform other pressure-relief steps required by the manufacturer.
Do not loosen the clamp, lid, or closure while any pressure remains. If the gauge does not return to zero or the system behaves unexpectedly, stop and have the equipment inspected.
3. Open the Filter Tank
Remove the clamp or closure using the exact method in the manual. Different clamp designs have different inspection, tightening, and replacement requirements.
Lift the lid carefully and place it where the sealing surface cannot be scratched. Avoid damaging the air-relief components, gauge, or internal piping.
4. Remove the Existing Grid Assembly
Note the orientation of the manifold, standpipe, air-relief tube, and lower support before removal. Taking reference photos can help during reassembly.
Lift the assembly evenly. D.E.-coated grids can be heavy and awkward, so use assistance when needed. Avoid striking the standpipe or tank sealing surface.
5. Clean and Inspect the Filter
Rinse the tank and reusable components in accordance with local disposal requirements and the manufacturer's instructions. Inspect:
• Standpipe for cracks or distortion
• Manifold for splits, damaged ports, or warping
• Lower spreader or support for damage
• Air-relief screen and tube
• Tank interior and sealing surfaces
• Drain components
• Pressure gauge and manual air-relief valve
• Clamp, spring, nut, band, or closure components
• Tank O-ring for flattening, cuts, swelling, or cracking
Replacing only the fabric grids will not solve a leak caused by a cracked manifold, damaged standpipe, or failed seal.
6. Install the New Assembly
If the replacement arrives fully assembled, verify that every grid is seated in the manifold and lower support. If assembly is required, place the full and partial grids in the positions shown by the filter manual. Do not force a grid into a mismatched opening.
Lower the assembly straight onto the standpipe or outlet connection and confirm it seats fully. Reconnect the internal air-relief components exactly as designed.
7. Reinstall the Lid and Clamp
Clean the tank and lid sealing surfaces. Install the correct O-ring, lubricating it only with a product approved by the filter manufacturer. Do not use petroleum-based lubricant unless specifically permitted.
Position the lid and clamp carefully. Tighten, tap, align, or set the clamp only according to the model-specific procedure. Never guess a clamp gap or torque value.
8. Restart and Recharge the Filter
Restore valves to the required operating position. Open the air-relief valve and start the pump using the manufacturer's startup procedure. Allow trapped air to escape until a steady stream of water appears, then close the valve as instructed.
Check the tank, clamp, drain, and plumbing for leaks. If anything shifts, leaks, or sounds abnormal, shut the system down and relieve pressure before correcting it.
Add the exact type and quantity of D.E. media specified for the filter and the maintenance condition. D.E. is normally mixed into a slurry and introduced through the skimmer, but the correct method must come from the filter manual. Too little media can leave grids unprotected; too much can restrict flow and shorten the filter cycle.
Record the clean starting pressure after the system has stabilized. This provides a useful baseline for future cleaning decisions.
Frequently Asked Questions
Why is D.E. powder returning to the pool?
Possible causes include torn grids, a cracked manifold, an incorrectly seated assembly, a damaged standpipe, an air-relief component problem, or a multiport-valve issue. Inspect the complete system rather than assuming the fabric alone is responsible.
Can I open the filter when the gauge reads zero?
The gauge reading is one check, but you must complete the full pressure-relief procedure in the manufacturer manual. A damaged gauge or trapped pressure can make a zero reading unreliable.
How much D.E. should I add after replacement?
Use the exact amount and method specified for the filter model. Do not estimate from tank size or another filter's instructions.
