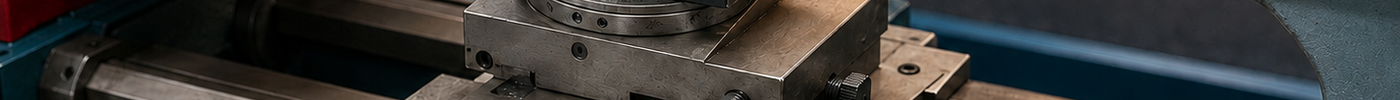

How to Install and Use a Quick Change Tool Post
, by findmallindustry, 6 min reading time

, by findmallindustry, 6 min reading time
A quick change tool post can make lathe setups faster and more repeatable, but it must fit the compound rest and hold each cutting tool on the spindle centerline.
A quick change tool post, often shortened to QCTP, lets a lathe operator swap pre-set tool holders without repeatedly shimming every cutting tool. When correctly fitted, it can improve setup speed and help the operator return tools to a consistent height.
The installation details vary by lathe and tool-post design. Use this guide to understand the general process, then follow the instructions and limits supplied with your machine and tool post.
Do not choose a tool post by appearance alone. Confirm:
• The lathe's swing and compound-rest dimensions
• The tool-post series or size recommended for the machine
• Center height from the top of the compound to the spindle centerline
• The existing compound stud diameter and thread
• The included or required mounting stud, T-nut, bushing, or adapter
• The maximum cutting-tool shank accepted by the holders
An oversized tool post may prevent the cutting edge from lowering to centerline. An undersized post may lack rigidity or tool capacity. Some installations require machining a blank T-nut or fitting a model-specific stud; do not force mismatched threads together.
A typical system includes the central tool post, one or more turning and facing holders, a boring-bar holder, height-adjusting screws, locking nuts, and a post handle or locking mechanism. Wedge and piston styles clamp the holder differently, but both depend on clean mating surfaces and secure locking.
Inspect every component for shipping damage, burrs, or contamination before assembly.
Turn the machine off and prevent accidental startup according to the lathe manufacturer's procedure. Remove the chuck key and clear chips from the work area. Never install or adjust the post while the spindle is moving.
Remove the old post, tool holder, and any loose shims. Keep original hardware if it may be needed to return the machine to its previous configuration.
Clean the top surface, slot, stud, and mating faces. A chip or raised burr under the tool post can tilt the entire assembly and affect tool height and alignment. Correct damaged threads or mounting surfaces before continuing.
Install the specified T-nut, stud, bushing, washer, and nut for the tool-post system. A blank T-nut should be machined to fit the compound slot without binding or excessive looseness. Make sure it cannot bottom out in a way that prevents the post from clamping firmly.
Do not improvise a stack of poorly fitting washers or partially engaged threads. If the supplied hardware does not fit, obtain or make the correct adapter.
Place the post on the compound and tighten it enough to remove looseness while still allowing intentional alignment. For common turning work, operators often set the post so the holder is approximately square to the workpiece, but the exact angle depends on tool geometry and operation.
Place a properly sized cutting tool in the holder. Keep the tool shank firmly supported and use the shortest practical overhang. Tighten the holder screws evenly according to the holder instructions.
Use the holder's height-adjusting screw to bring the cutting edge to the spindle centerline, then secure the height-adjustment locknut. A center gauge, test bar, tailstock center, or measured facing result can be used as appropriate for the machine.
A tool above or below center can cause poor cutting geometry, facing errors, rubbing, chatter, or tool damage. For boring bars and internal tools, centerline alignment is especially important.
Fully lock the tool holder to the post and secure the post using the manufacturer's method. Check that there is no rocking, gap, or unexpected movement.
Rotate the chuck by hand with the machine powered down to verify clearance between the chuck, jaws, workpiece, holder, compound, carriage, tailstock, and guards. Then begin with conservative settings and observe the first cut.
Set up dedicated holders for frequently used turning, facing, parting, threading, and boring tools. Once each tool is adjusted to center height, leave its stop setting in place unless the insert, tool, or setup changes.
Before every use:
1. Wipe the holder and dovetail or clamping surfaces clean.
2. Confirm the cutting tool is secure.
3. Seat the holder fully on the post.
4. Lock the holder firmly.
5. Verify center height after changing inserts or tools.
6. Check the full travel path for collisions.
The tool post may be too large, the tool shank may be too tall, or the compound stack may be too high. Use compatible components rather than grinding or weakening structural parts without an approved plan.
Check for excessive tool overhang, a loose post, a loose holder, poor workholding, incorrect insert geometry, or unsuitable cutting parameters. The quick-change mechanism cannot compensate for an unstable overall setup.
Clean the clamping surfaces, inspect for burrs or wear, verify that the height screw and locknut are secure, and make sure the holder is fully seated before locking.
Keep the post and holders clean and lightly protected from corrosion. Remove packed chips from screws and moving surfaces without driving debris into the mechanism. Lubricate only as recommended by the manufacturer; excess oil can hold abrasive chips.
Yes. The system makes height adjustment repeatable, but each cutting tool must first be set correctly and rechecked after tool or insert changes.
No. Tool-post body height, holder range, compound dimensions, stud hardware, and spindle center height must be compatible with the lathe.
Not for every operation. It must be positioned so the selected tool has the correct cutting orientation, clearance, and rigidity. Follow the tool geometry and operation requirements.
