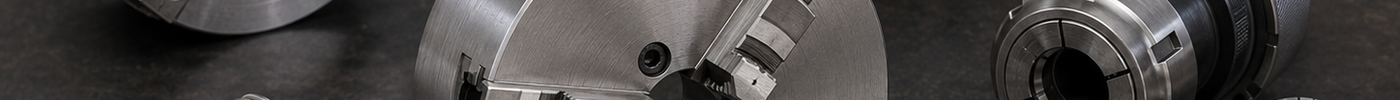

How to Choose the Right Lathe Chuck
, by findmallindustry, 5 min reading time
The right lathe chuck must fit the machine, hold the workpiece securely, and suit the accuracy and production demands of the job. This guide explains the main chuck types and the specifications to check before buying.
Choosing a lathe chuck is not simply a matter of matching the workpiece diameter. The chuck must be compatible with the spindle, suitable for the material and shape being held, and rated for the intended operating speed. A good choice improves repeatability and setup time; a poor match can cause excessive runout, jaw marks, chatter, or unsafe workholding.
Start With the Machine Interface
First identify how the chuck connects to the lathe. Depending on the machine, this may involve a threaded spindle nose, camlock mount, direct mount, adapter plate, or hydraulic drawtube. A chuck with the correct outside diameter is still unusable if its mounting system does not match the machine.
Before ordering, confirm:
• Lathe make and model
• Spindle nose or mounting standard
• Bolt pattern, register, and adapter requirements
• Manual or power-operated chuck compatibility
• Maximum chuck diameter and weight allowed by the machine
• Maximum permitted spindle speed
The lowest rated limit in the complete setup controls operation. Never run a chuck faster than the chuck, jaws, adapter, fasteners, or machine manufacturer permits.
Compare the Main Chuck Types
3-Jaw Self-Centering Chuck
A 3-jaw scroll chuck moves all jaws together and centers round or hexagonal stock quickly. It is the common choice for general turning, repeated work, and fast setup. Its main limitation is that it cannot independently adjust each jaw to correct an irregular workpiece or minimize runout.
4-Jaw Independent Chuck
Each jaw on a 4-jaw independent chuck moves separately. This allows the operator to center square, rectangular, irregular, or off-center work. It also allows precise indicating of a round part. Setup takes longer, but the flexibility is valuable for repair work, one-off machining, and demanding alignment.
Collet Chuck
A collet grips around much of the workpiece circumference. It is well suited to consistent round stock, small-diameter parts, and repetitive operations where quick loading and good concentricity matter. Its gripping range is narrower than that of a standard jaw chuck, so the collet system and exact workpiece size must be confirmed.
6-Jaw Chuck
A 6-jaw chuck distributes clamping force across more contact points. It can be useful for thin-wall tubing or finished parts that are more likely to distort or show jaw marks. It is not automatically more accurate than a properly selected and set up 3-jaw or collet chuck, so choose it for the workholding requirement rather than the jaw count alone.
Match the Chuck to the Workpiece
Consider the part's diameter, length, shape, surface condition, and wall thickness. Rough stock may require hardened jaws with a secure bite, while clean or previously machined parts may benefit from bored soft jaws. Long stock may also need support from a tailstock, steady rest, follow rest, or bar support system.
The jaws should grip the workpiece over enough surface area and operate within their designed travel. Avoid clamping near the extreme end of the jaw stroke. If the job changes frequently, reversible jaws or a chuck with readily available replacement jaws may reduce setup time.
Decide How Much Accuracy You Need
Chuck accuracy is influenced by more than the advertised runout value. The spindle condition, adapter plate, jaw wear, dirt on mating surfaces, gripping diameter, and setup method all affect the result.
For general work, a self-centering chuck may provide sufficient repeatability. For close concentricity requirements, consider an adjustable chuck, a collet system, bored soft jaws, or indicating the work in a 4-jaw chuck. Always measure the actual setup with an indicator instead of assuming the chuck alone guarantees part accuracy.
Check Capacity, RPM, and Jaw Options
Review the manufacturer's specifications for maximum and minimum gripping diameter, through-hole size, maximum speed, jaw type, and compatible replacement parts. A larger chuck offers more capacity but also adds rotating mass and may reduce available clearance around the carriage or tool post.
Also check whether the chuck is supplied with the jaws, mounting hardware, wrench, adapter, or backplate you need. Similar-looking packages may contain very different components.
Final Buying Checklist
Before purchasing, verify all of the following:
1. The mounting interface matches the lathe.
2. The chuck size and weight are permitted by the machine.
3. The gripping range covers the actual workpiece.
4. The chuck type suits the part shape and required setup speed.
5. The jaws suit the material and finish.
6. The entire setup is rated for the intended RPM.
7. Replacement jaws and service parts are available.
Frequently Asked Questions
Is a 3-jaw or 4-jaw chuck better?
Neither is universally better. A 3-jaw chuck is faster for common round stock, while a 4-jaw independent chuck offers greater control for irregular work and precise indicating.
Can I put any size chuck on my lathe?
No. The machine has limits for mounting style, chuck diameter, weight, clearance, and spindle speed. Check the lathe and chuck documentation before installation.
When should I use soft jaws?
Soft jaws are useful when you want to machine the gripping surface to match a part, improve contact, reduce marking, or hold a previously machined diameter more accurately.
