findmall 6 Inch Cross Slide Drill Press Vise Heavy Duty Benchtop Compound Cross Slide Vise Drill Press X-Y Compound Vise Fit for CNC Milling Machine, Drilling Machine and other Mechanical Equipment

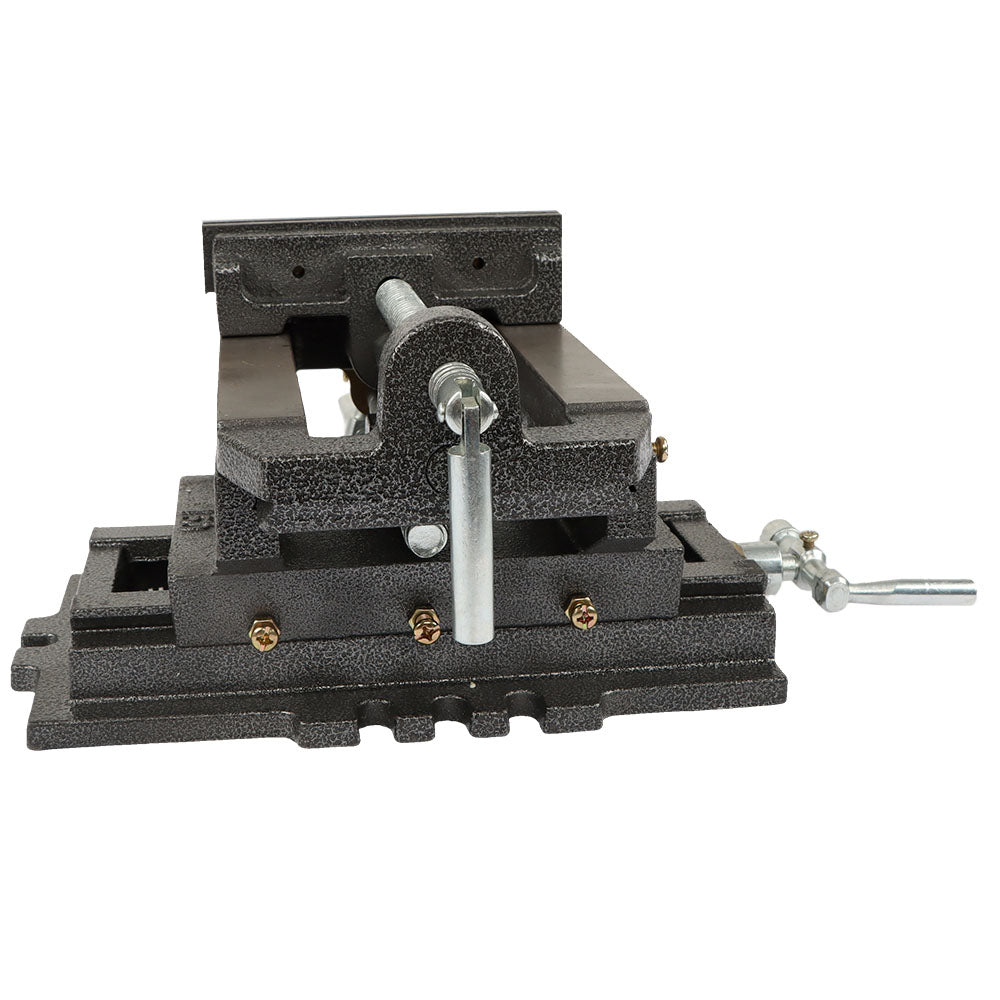

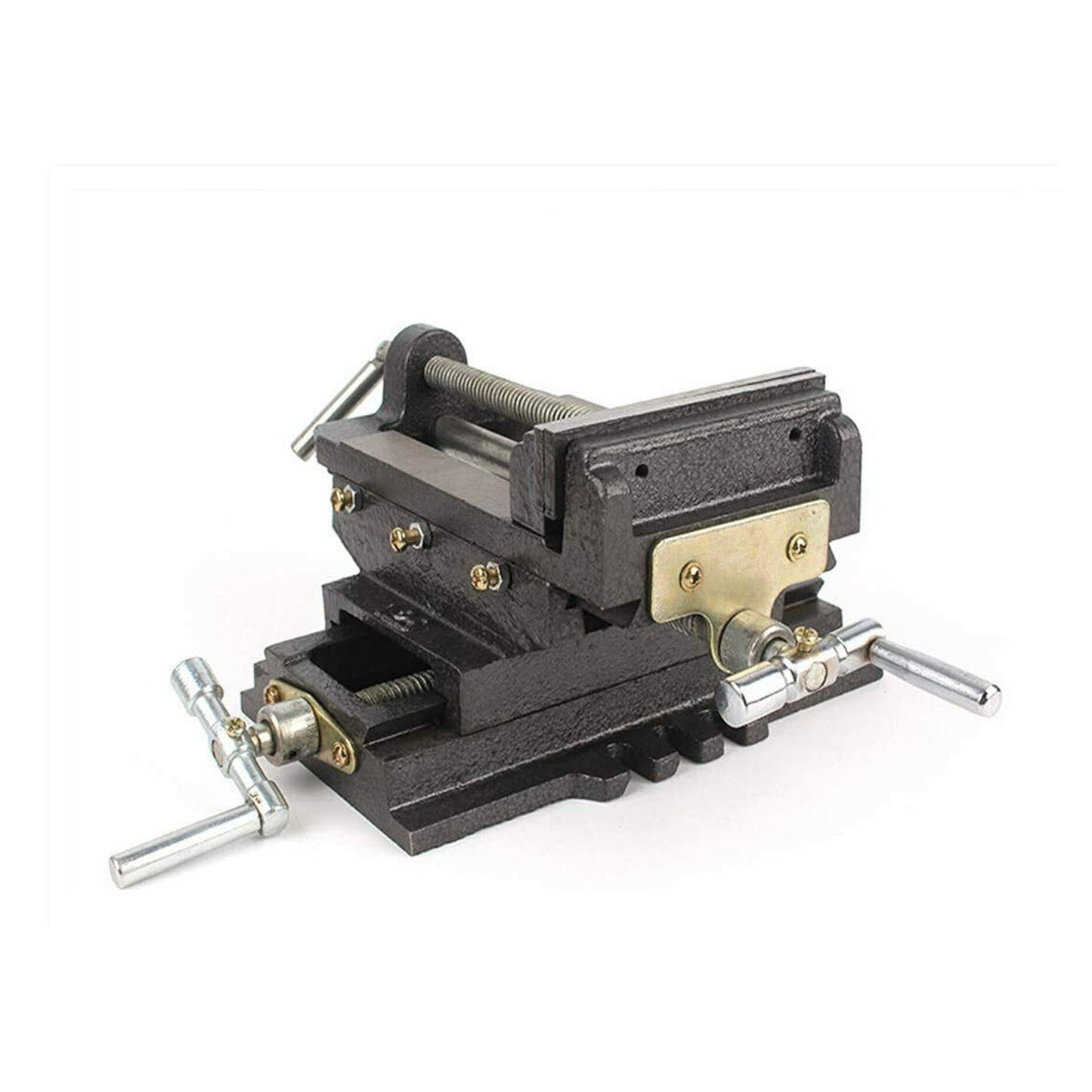

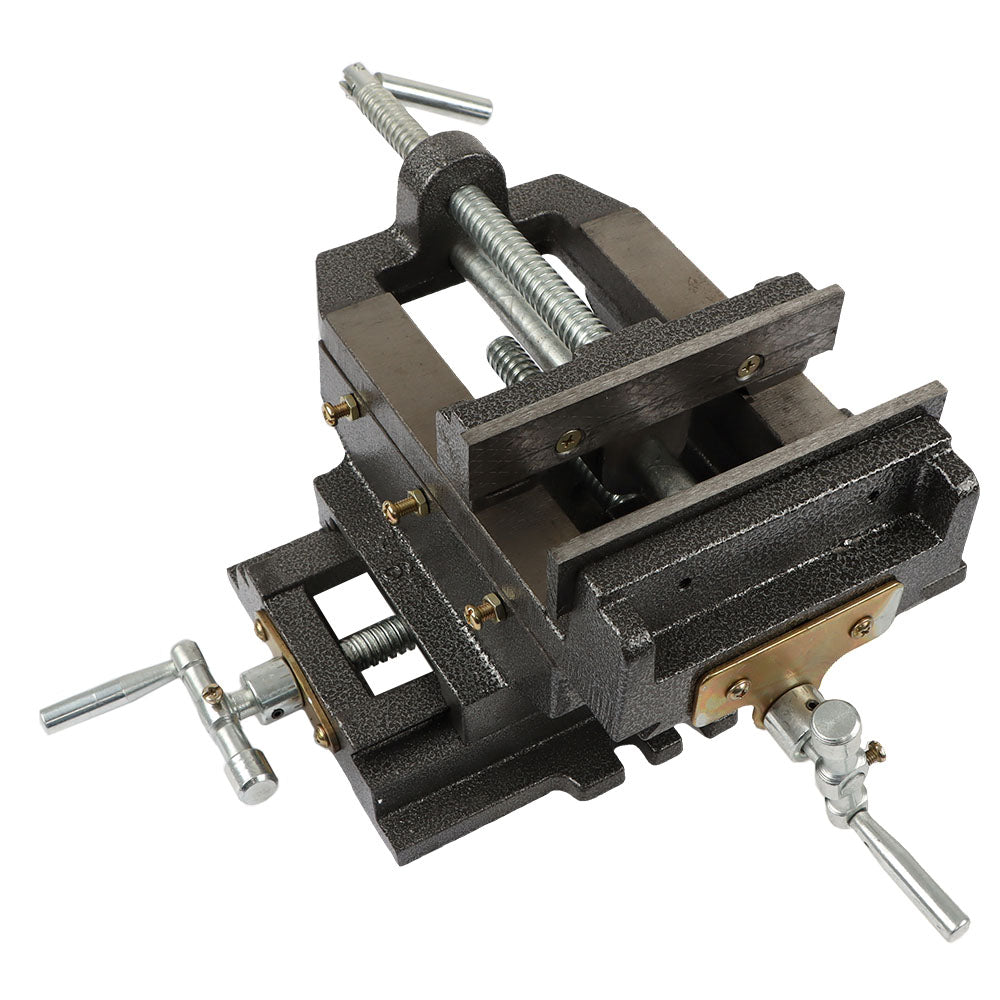

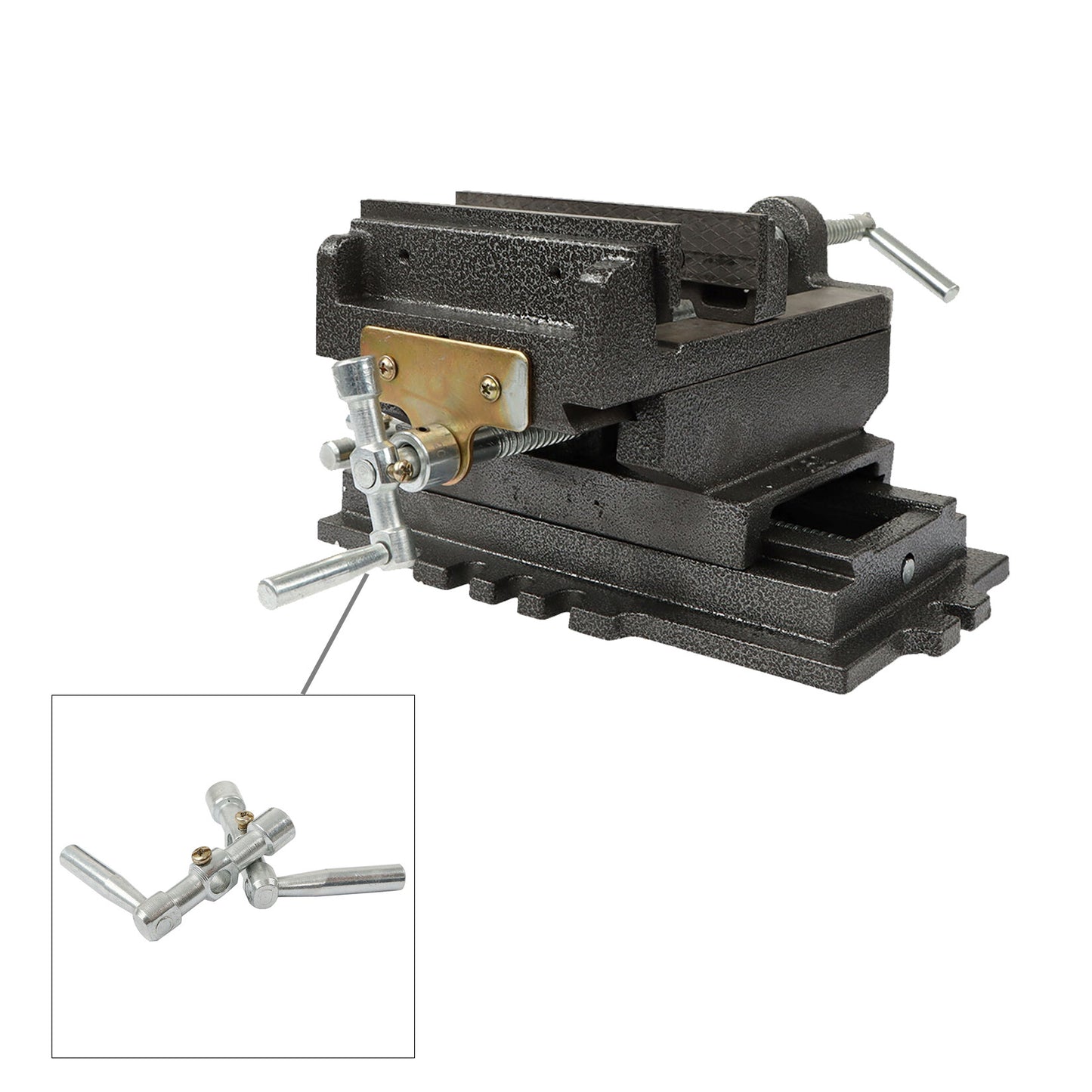

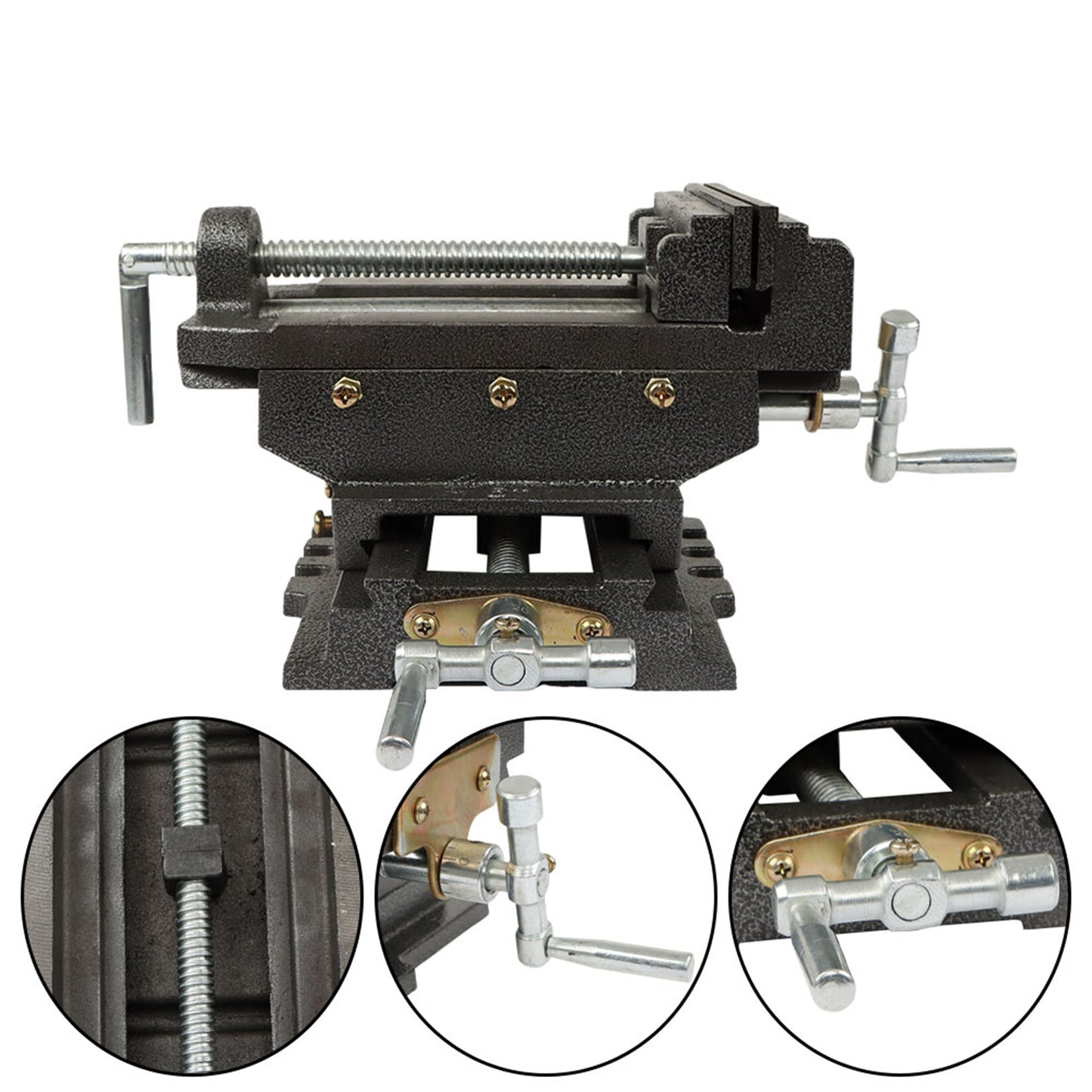

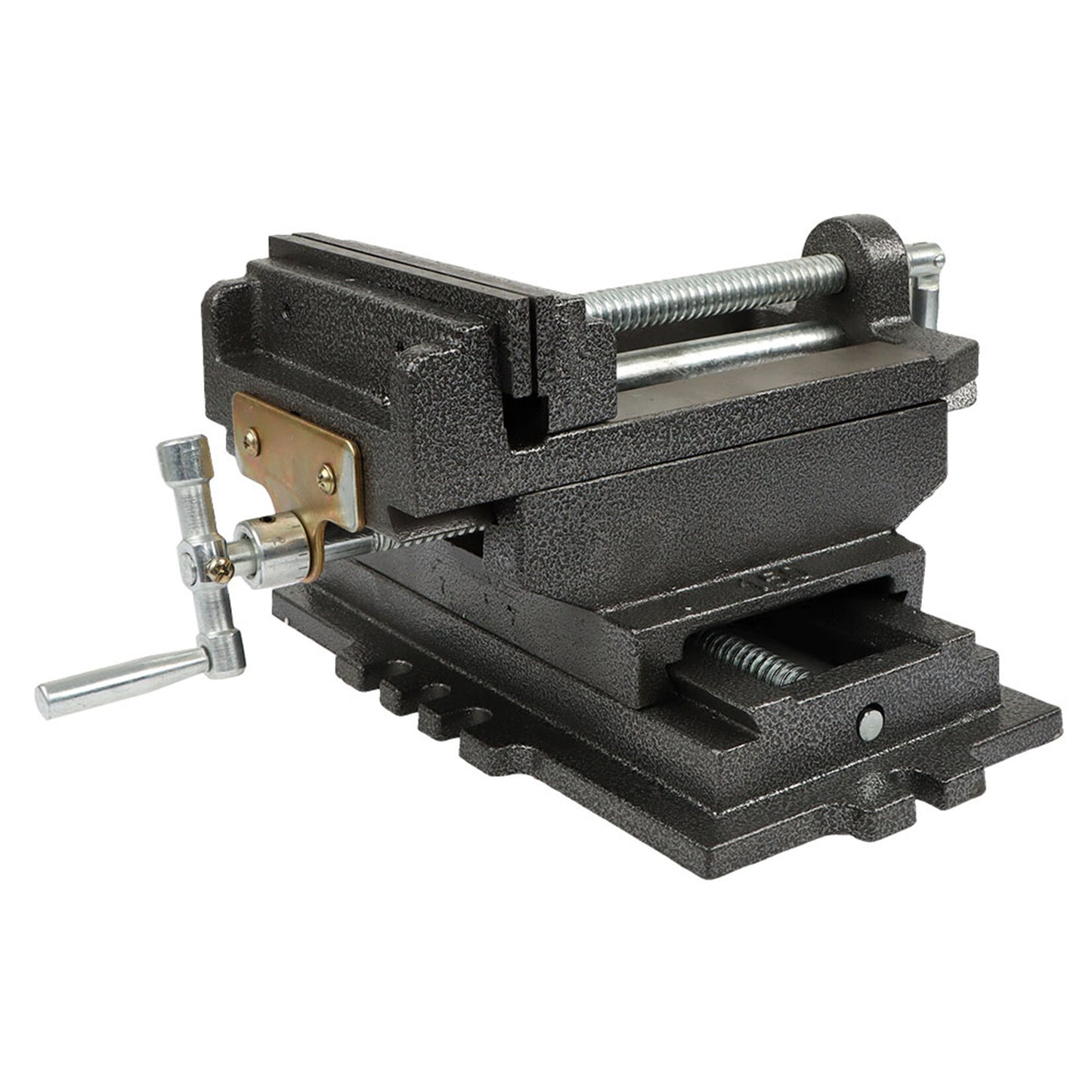

6 Inch Cross Slide Drill Press Vise Heavy Duty Benchtop Compound Cross Slide Vise Drill Press X-Y Compound Vise

Specification:

Maximum clamping: 5.9 inch/150 mm

Jaw width: 5.9 inch/150 mm

Jaw height: 1.18 inch/30 mm

Jaw thickness: 0.24 inch/6 mm

Width of mounting slot: 0.47 inch/12 mm

Base length and width: 150 x 320 mm

Material: cast iron

Handle material: iron

Features:

Cast iron material, sturdy and durable

Harden the jaws for stable clamping

Clear moving scale and precise fine tuning

Bi-directional movement, easy to use

Accuracy slide, smooth operation

Note :

Clamp the workpiece to ensure uniform force on the jaw.

When the handle is installed, the screw cap is tightened to leave a gap to ensure the smooth operation of the screw.

Package Includes:

1 x 6 inch cross slide drill press vise
